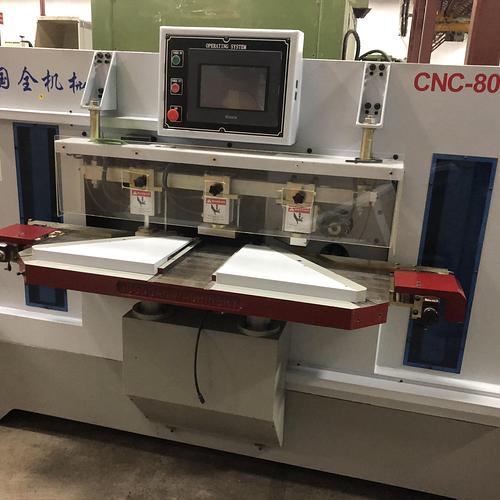

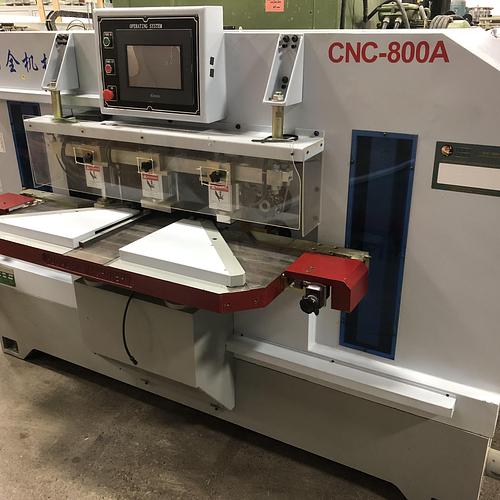

2016 CNC-800A Mitered Door Machine

Sold

Specifications

ManufacturerCNC-800A
ModelMitered Door Machine
Year2016
Stock Number1545GB
Voltage600V / 60Hz / 3Ph
ConditionExcellent

Description

The CNC 800A is capable of creating endless mortise and tenon combinations. It is perfectly suited for applications such as cabinetry, doors, windows and photo frame construction.


2016 CNC-800A Mitered Door Machine - Features and Specifications:

  • Produces 45°and 135° tenoned miters
  • Mortising bit shank E25 collar (min: 3mm; max: 16mm)
  • Shaft dimensions: 30mm
  • 45° tenoning depth: 10-45mm
  • 135° tenoning depth: 10-20mm

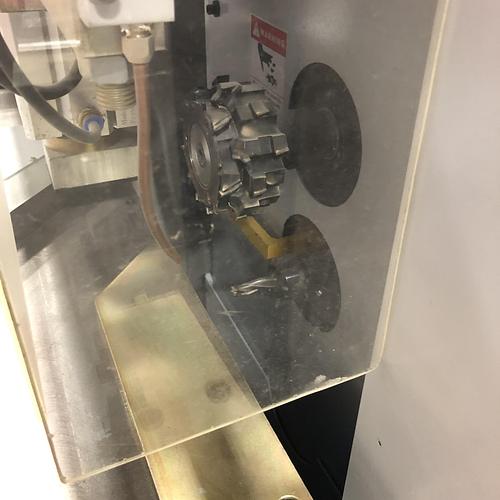

  • Hogging cutter (max): 130mm
  • Tenoning tool body (max): 90mm
  • Work table dimensions: 1,200 x 450 mm
  • Drill rotating speed: 9000/12000/18000 rpm
  • Fence angle: 45°/90°
  • 45° Tenoning width: 0-150mm
  • 135° Tenoning width: 0-120mm
  • Approximate dimensions: 98" L x 48" W x 70'' H
  • Approximate weight: 3,748 lbs (1,700 kg)


Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |


Please contact TCMI customer service for more information.


---


** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
