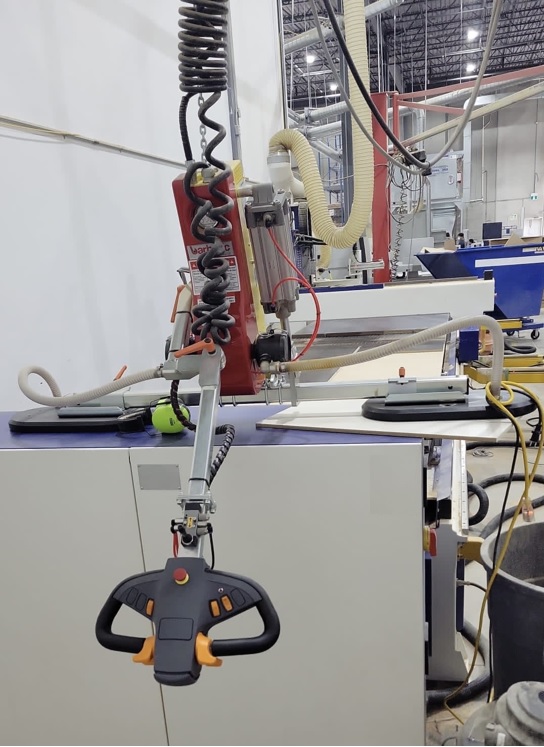

Barbaric UniWood UWL 3 Vacuum Lifter w/ SSK Pillar Jib Crane

The Barbaric UniWood UWL 3 Vacuum Lifter is the standard lifter for wood handling

With its 90 ° tilting function, our UniWood UWL 3 is particularly versatile in the field of wood production, as boards can be manipulated both upright and horizontal. The lifter also impresses with its light, slim design and particularly easy operation. In addition to most commonly used coated wood materialism, the UniWood UWL 3 is also ideal for handling air-permeable panels (OSB, chipboard, MDF over 8 mm thickness) and materials with a slightly textured surface.

The Barbaric UniWood UWL 3 Vacuum Lifter is the standard lifter for wood handling

With its 90 ° tilting function, our UniWood UWL 3 is particularly versatile in the field of wood production, as boards can be manipulated both upright and horizontal. The lifter also impresses with its light, slim design and particularly easy operation. In addition to most commonly used coated wood materialism, the UniWood UWL 3 is also ideal for handling air-permeable panels (OSB, chipboard, MDF over 8 mm thickness) and materials with a slightly textured surface.

Barbaric UniWood UWL 3 Vacuum Lifter - Features and Specifications:

• Tilting angle: 90° with pneumatic motor
• Maximum load: 250 kg (551 lbs)
• High performance suction traverse:

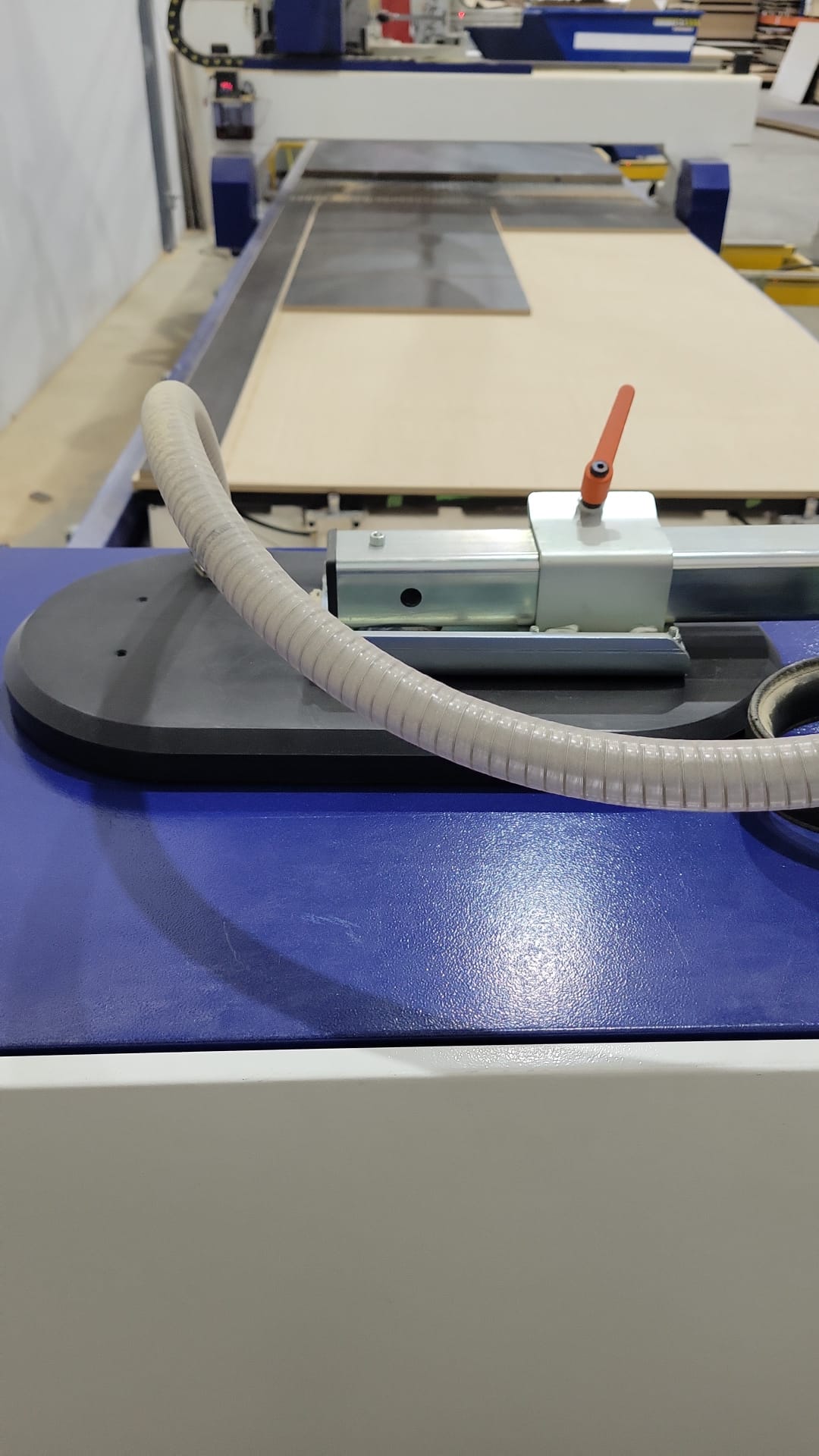

• 2 oval suction cups (500 x 250 mm)
• Adjustable traverse, length 1,500 mm
• High performance vacuum pump for MDF material handling

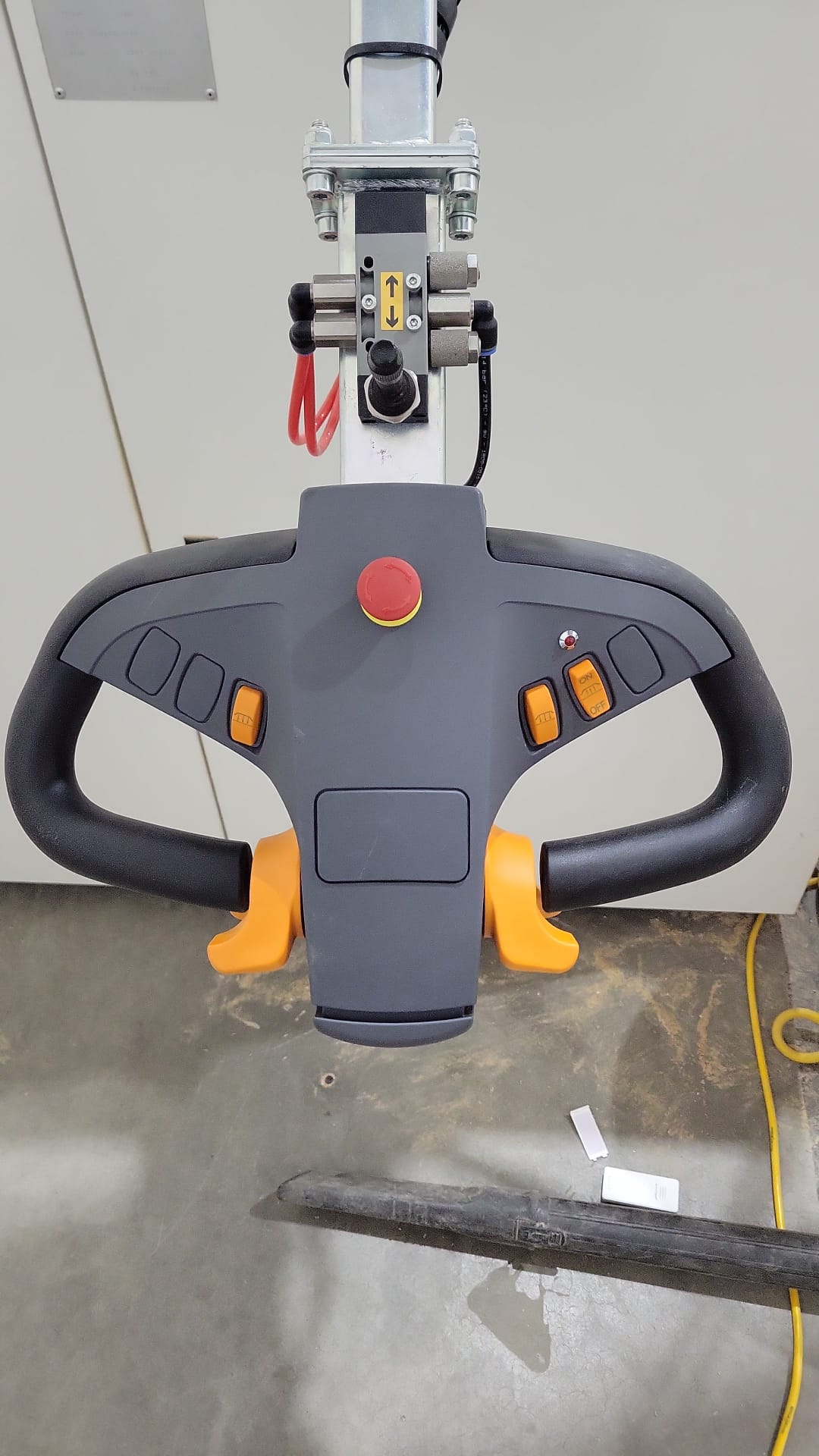

• Comfortable handle:
• Enables one-handed operation
• Continuously variable lifting speeds
• Extra safety features (both hands needed to put down panels)
• Lifting speeds: 0-10 m/min continuously variable
• Operating voltage: 230 V / 50 Hz
• SSK Pillar Jib Crane
• Universal solution for different handling operations
• Lightweight construction for easy operation
• Low resistance swivel and cross travel
• Swivel angle: 250°
• SSK Cantilever maximum length: 6 m
• SSK Pillar total construction height: 3.8 m

• Adjustable control handle
• Compact design and low build height
• Special operation handle for one-hand operation
• Load capacity maximum: 551 lbs (250 kg)
• Hoist: continuously, maximum 10 m/min
• Approximate shipping dimensions: 3,813 mm H

Benefits:

• Boards can be manipulated both upright and horizontal
• Light, slim design
• Particularly easy operation
