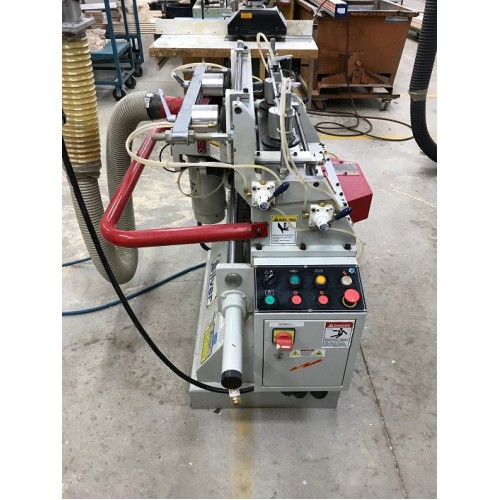

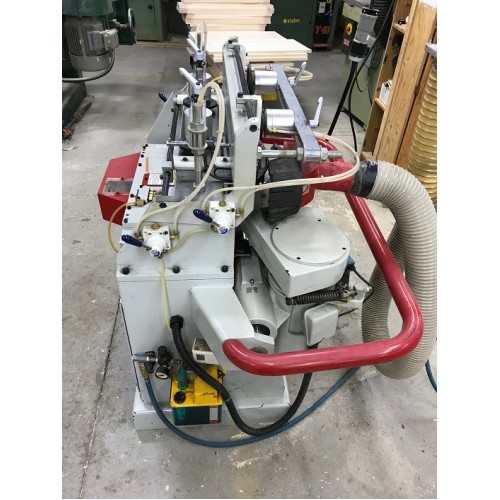

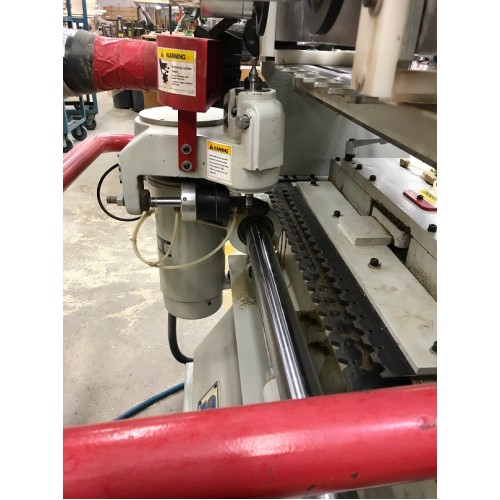

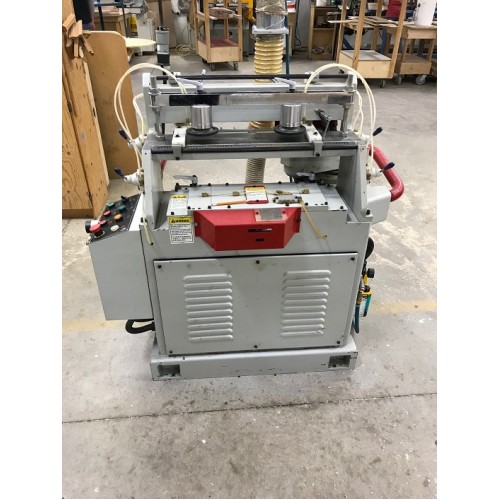

Silver SYC 480 Dovetailer

Features: Cut dovetailed tenons/mortises simultaneously for accurate jointing Dovetail width and depth is adjustable Continuous tenoning motion Automatic motion cycle provides efficient and economical operation High spindle speed 20,000 rpm Simple to operate and maintain 3 feed speeds change suitable for cutting various wood material *Picture is for illustration purpose only. Specification SYC-480 Tenon thickness Min. 8 mm, Max. 20 mm Tenon width Min.7 mm, Max.18 mm Tenon depth Min. 10 m, Max. 30 mm Spindle vertical adjustment 30 mm Maximum workpiece sizes Length 1500 mm, Width 480 mm Collect chuck capacity Ø12 mm Numbers of air clamps 4 pcs Spindle speed 20000 RPM Spindle motor 2 HP Working air pressure 5 kg Dust hood outlet diameter 60 mm Machine dimensions (LxWxH) 1270 x 780 x 1300 mm Packing dimensions (LxWxH) 1420 x 780 x 1450 mm
