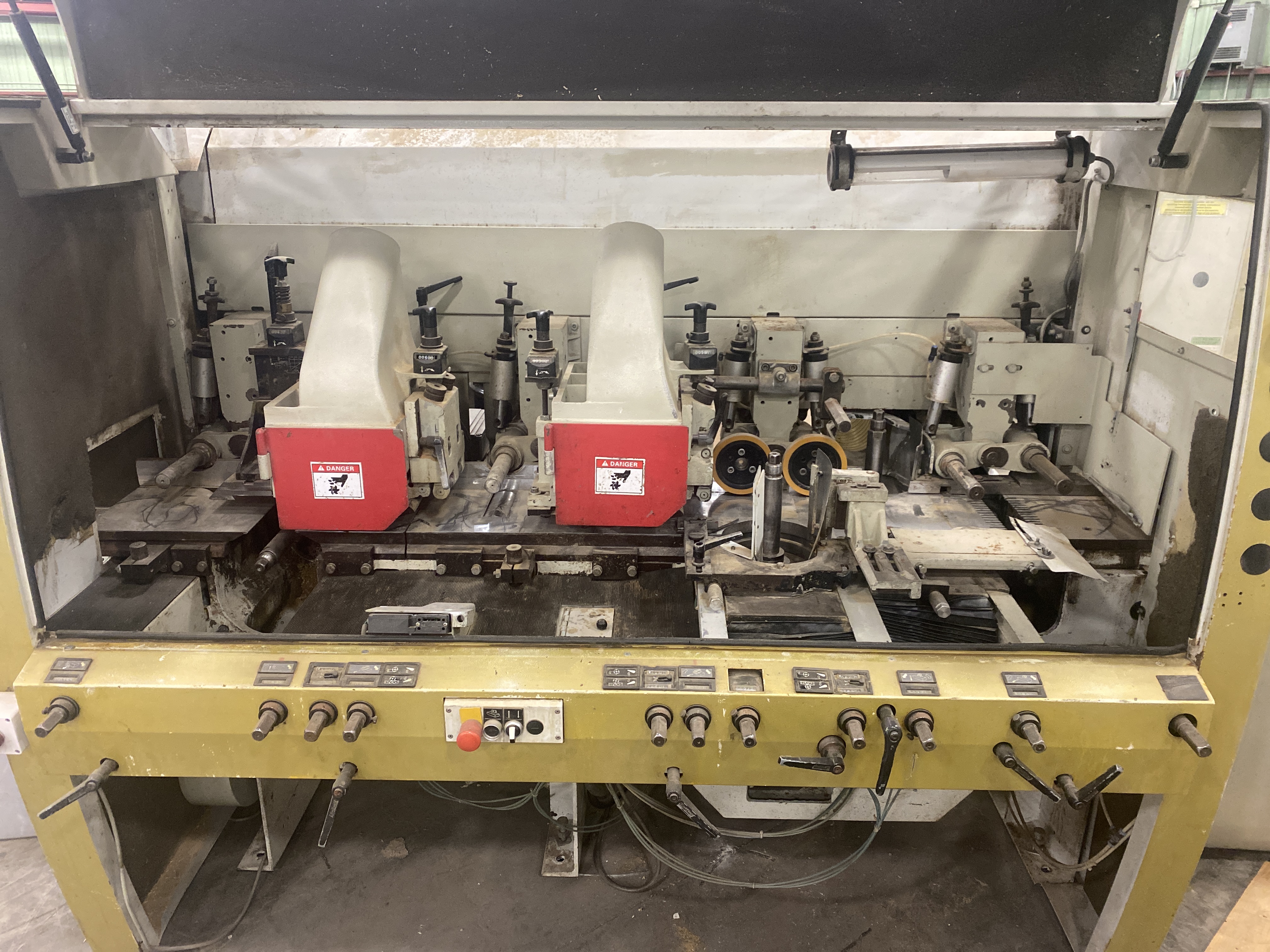

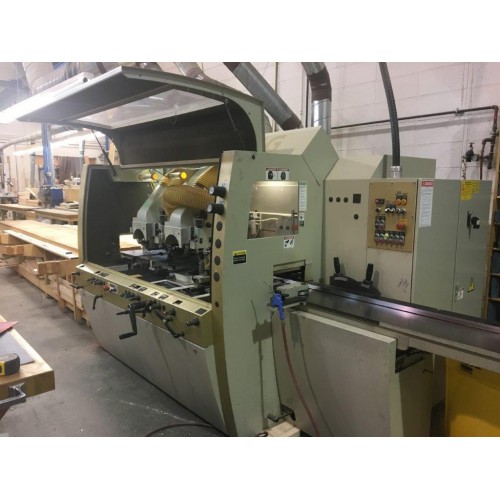

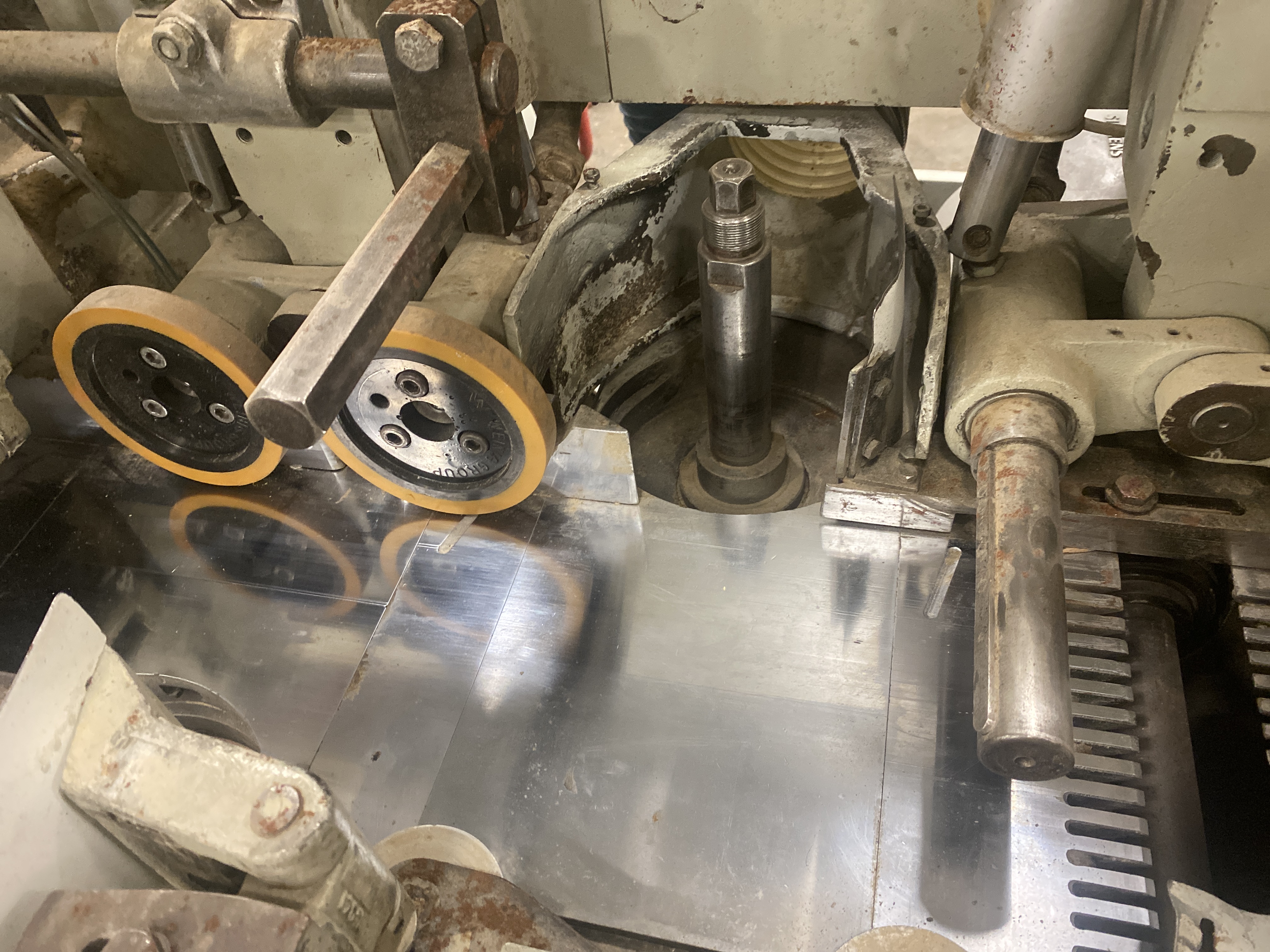

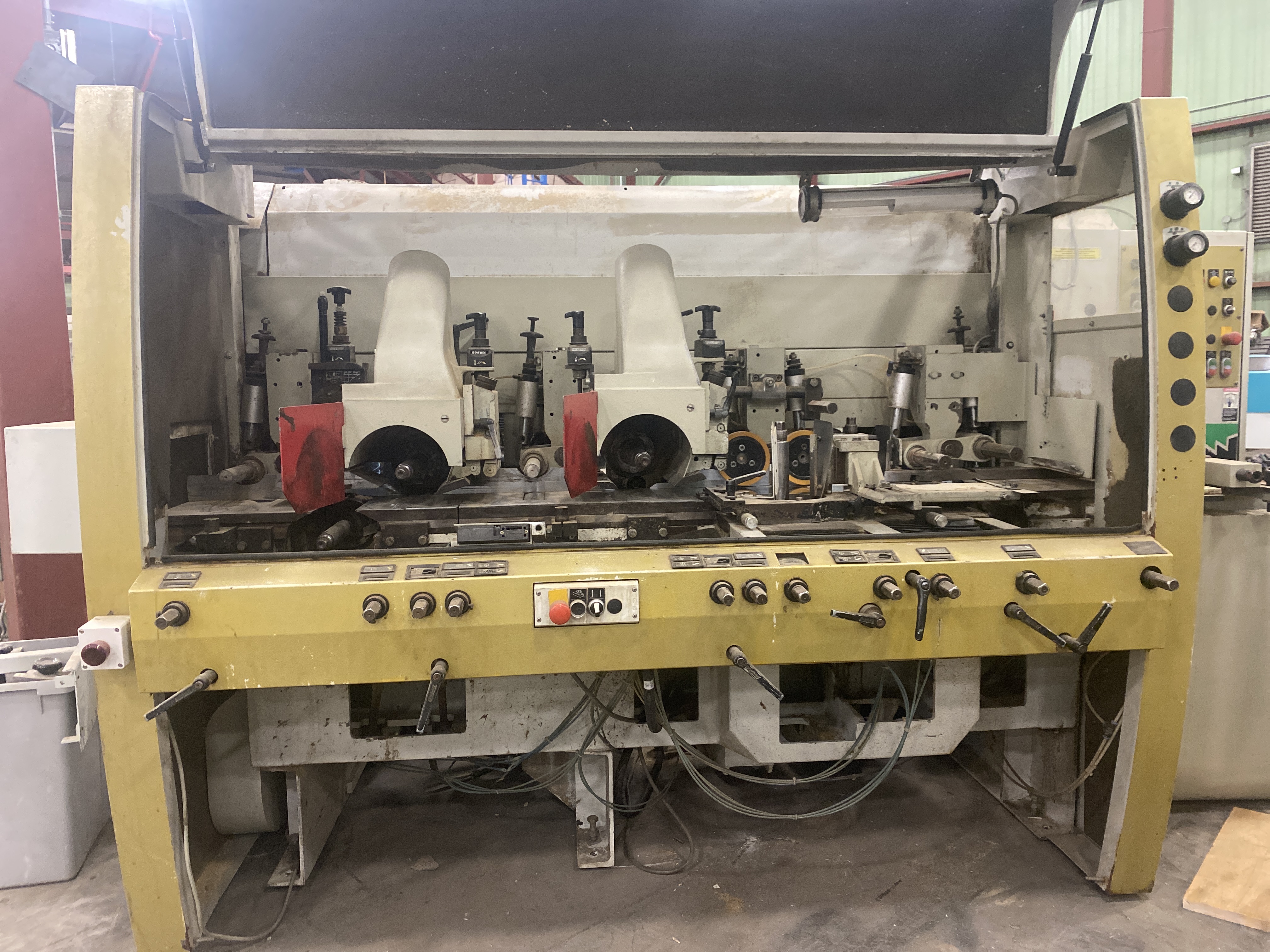

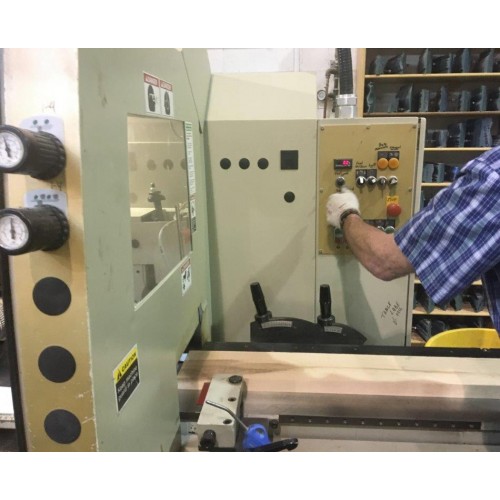

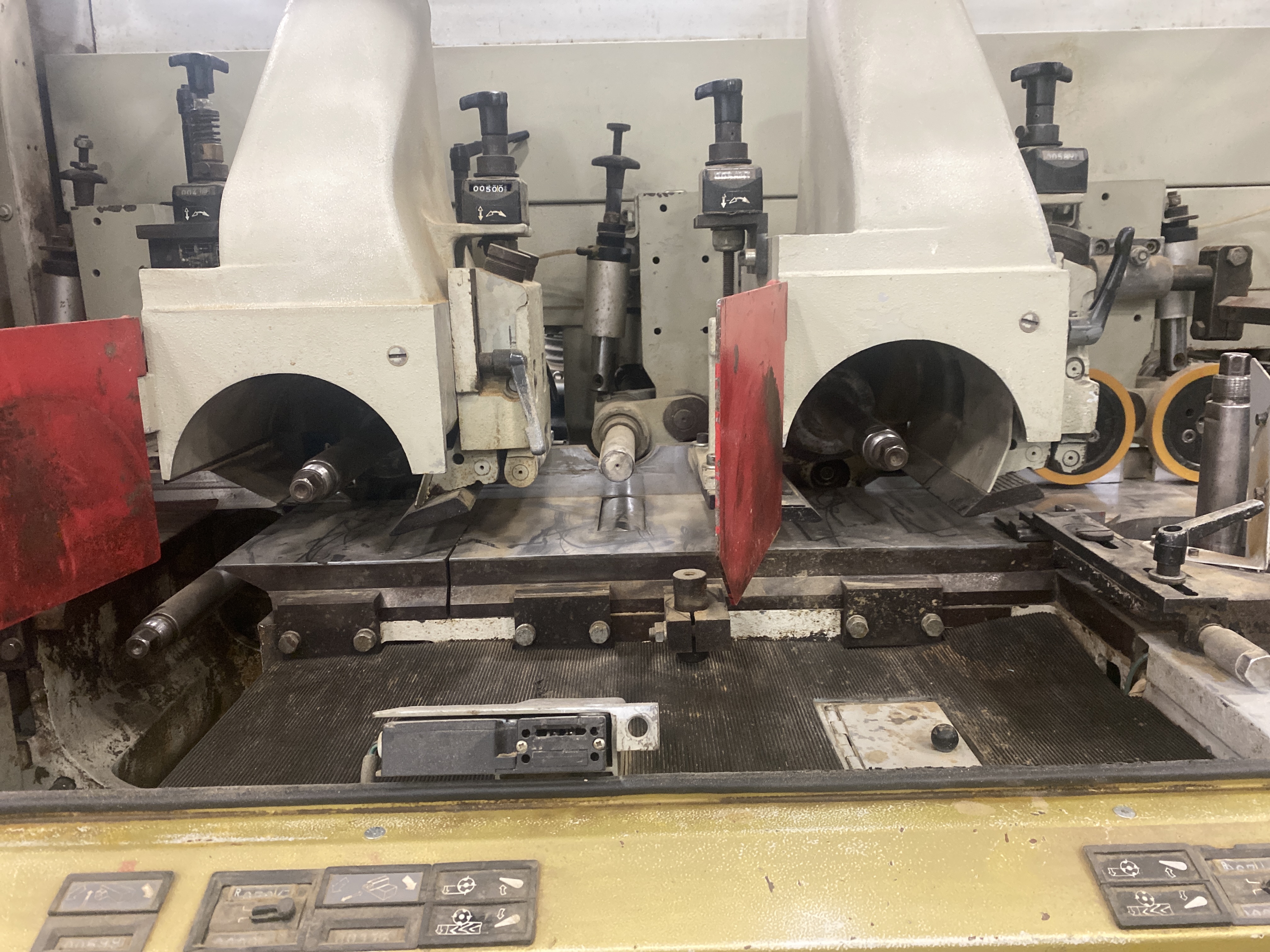

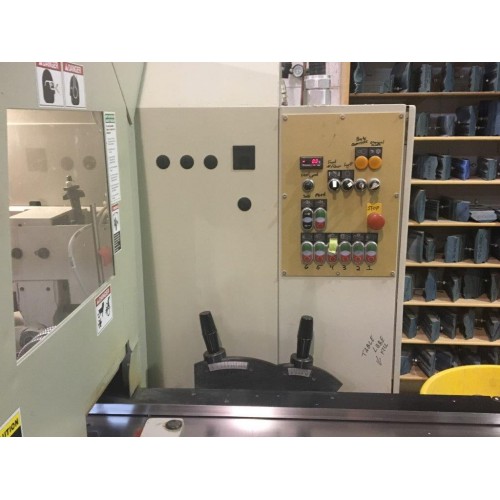

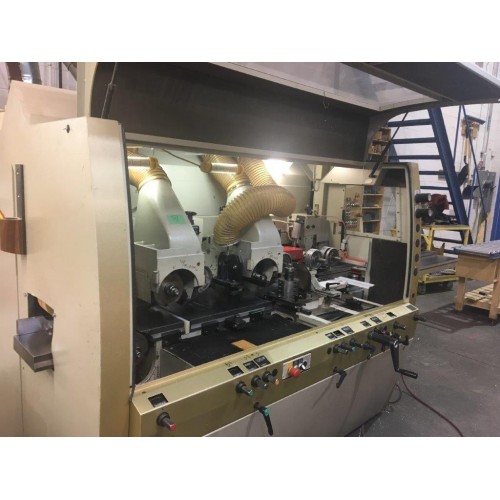

2007 Weinig Unimat Gold Moulder

orCall (905)-451-8430


ModelUnimat Gold Moulder
Stock Number1073JW
Voltage600V / 60Hz / 3Ph


The Weinig Unimat Gold combines highest quality, precision, and productivity. Standard receding chipbreakers, pneumatic pressure to the feed system, and the drive ntable rollers ensure quality moulding, even on short workpieces and difficult species. With strong horsepower a standard feature, this Weinig Moulder meets the demands of large and deep profiles in any species. Spindle speed of 6,000 RPM assures a superb surface finish and high throughput.

Features and Specifications:

  • 6 head, B-R-L-T-T-B: 9¹⁄₁₆" x 4¾", 40mm spindle diameter, 6,000 RPM
  • Bottom: 10 HP, Right: 10 HP, Left: 10 HP, Top: 15 HP, Top: 20 HP, Bottom: 10 HP
  • Inverter controlled feed speed: 16-78 FPM, 5.5hp feed drive
  • Heavy cast-iron base
  • Chromed table plates for abrasive material
  • Pneumatic pressure for feed rollers
  • (2) Powered table rollers in machine bed: (1) between top spindles & (1) at outfeed.
  • Infeed straightening table: 2 meters ( 6 1/2') chromed bed tables, central location of lubrication points, manual waxilit pump, anti-kickback device, sound & safety enclosure.
  • Mechanical digital readouts on all spindles. "Digiset" readouts on left and top spindles.
  • Mechanical readouts on chipbreaker and pressure elements of top spindles.
  • Approximate shipping dimensions: 154'' L x 72'' W x 65'' H
  • Approximate shipping weight: 6,720 lbs (3,048 kg)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.


** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
