Casadei E321
orCall (905)-451-8430
Specifications
| Manufacturer | Casadei |
| Model | E321 |
| Condition | Brand New |
| Working table dimensions | 1,800 x 300 mm |
| Panel thickness | Min-max 10-34 mm |
| Edge thickness | Min-max 0.4-2.- mm |
| Minimum panel width | 110 mm |
| Minimum panel length | 220 mm |
| Feeding speed | 7 mt/1' |
| Heating elements power Nr. 6 | 1,490 kW |

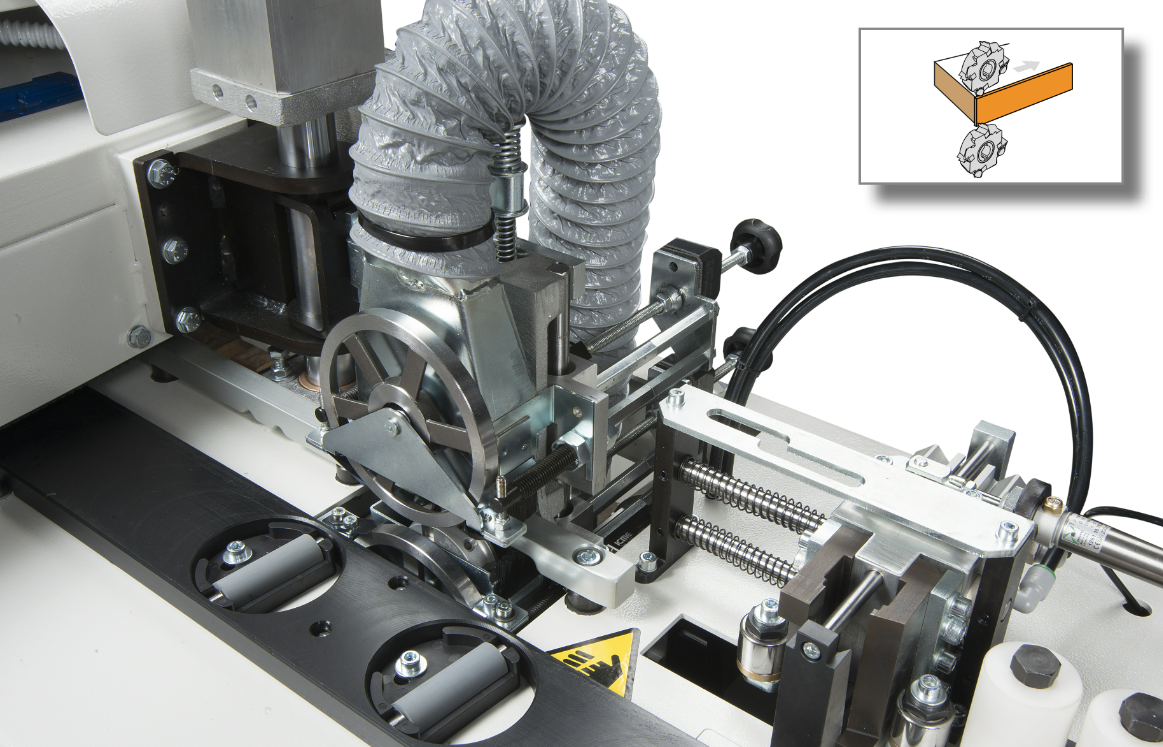

| Flush trimming motor | 0.37 kW |

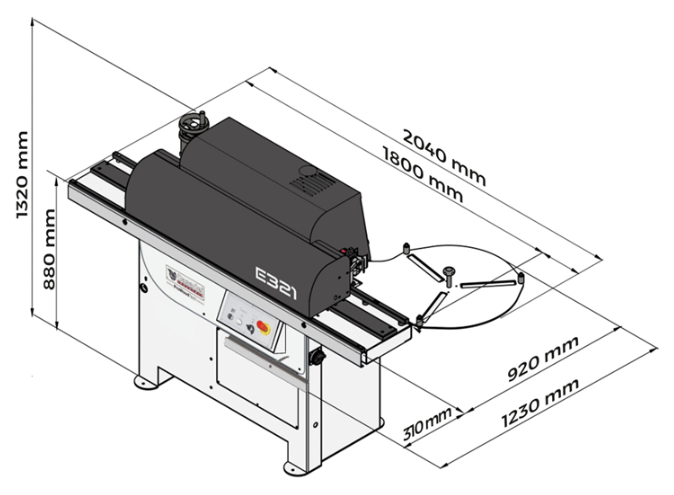

| Machine dimensions | 80'' x 48'' x 52'' (2,040 x 1,230 x 1,320 mm) |
| Machine weight | 534 lbs (242 kg) |
Description

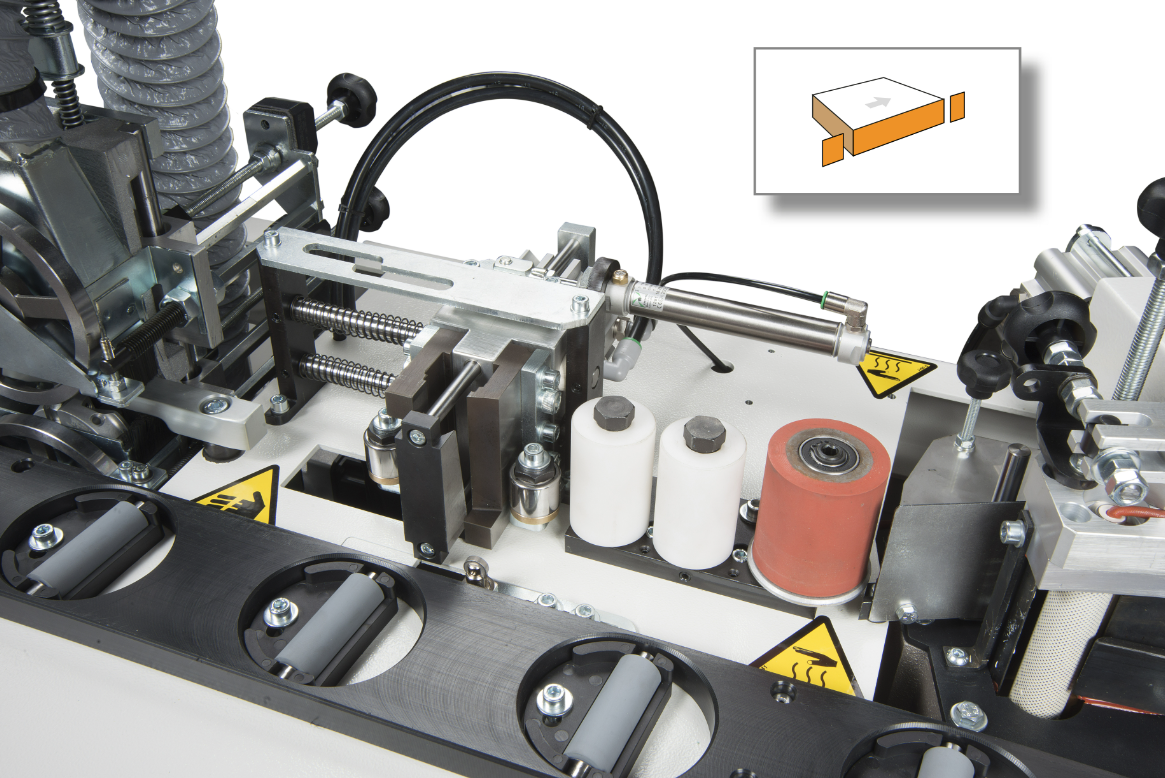

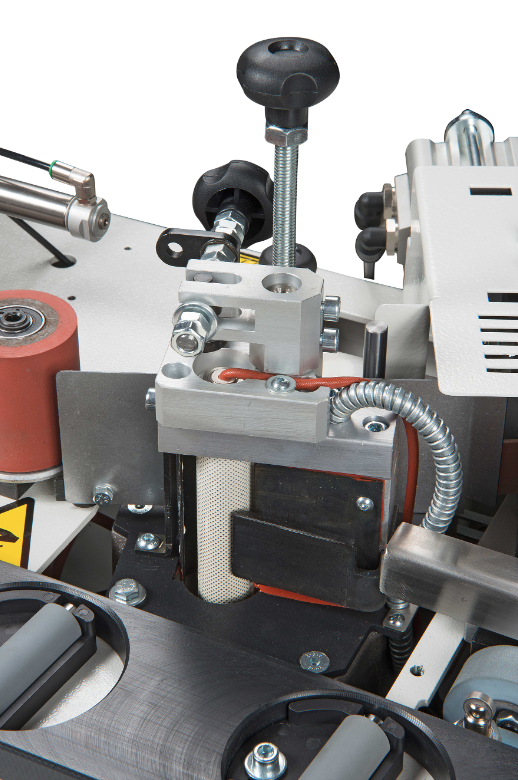

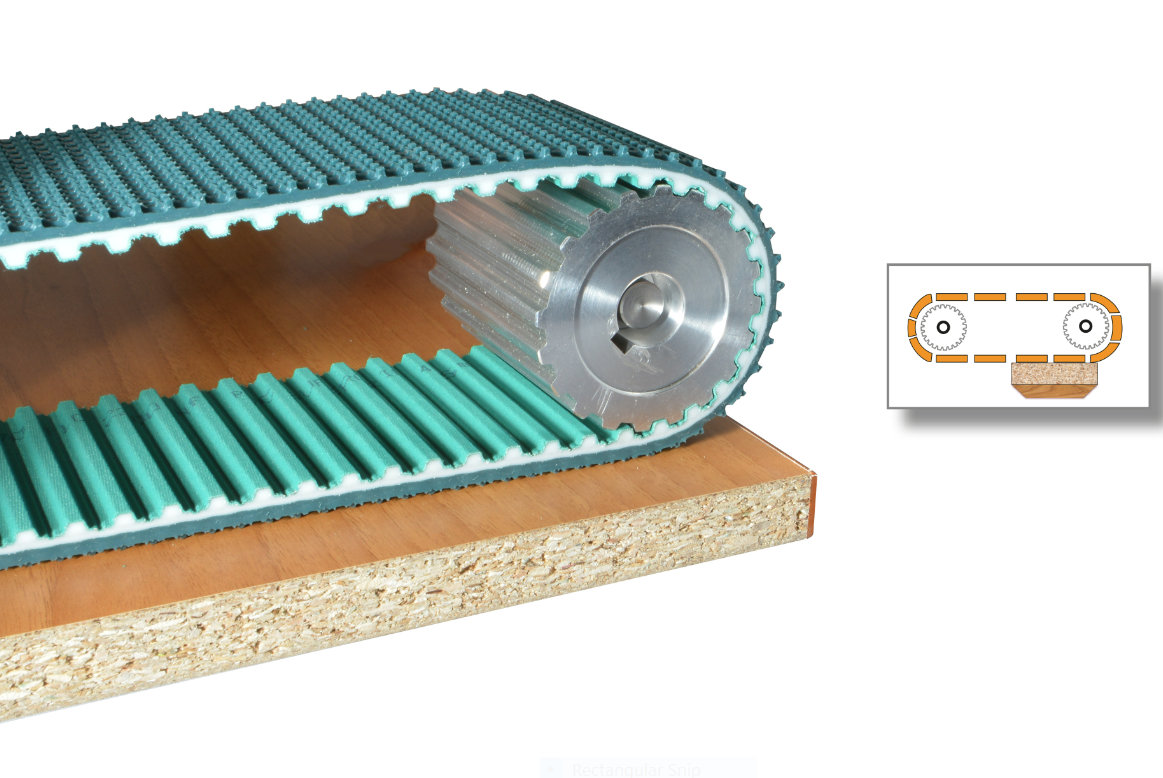

Casadei E321 automatic edgebander with hot-melt glue pot (EVA) and belt panel feeding
- Very good bonding
- Ready to use in a few minutes
- East cleaning and maintenance

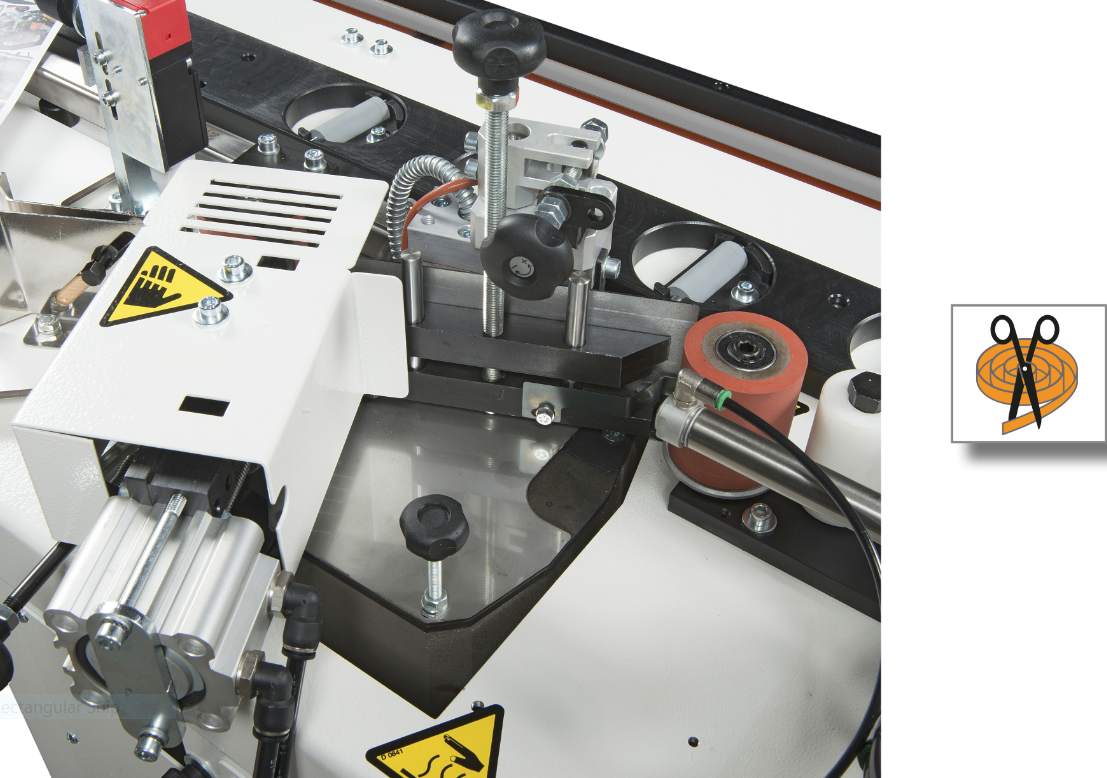

- Quick edge changing
- Quick adjustments according to edge used
Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |
Please contact TCMI customer service for more information.
---
** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
