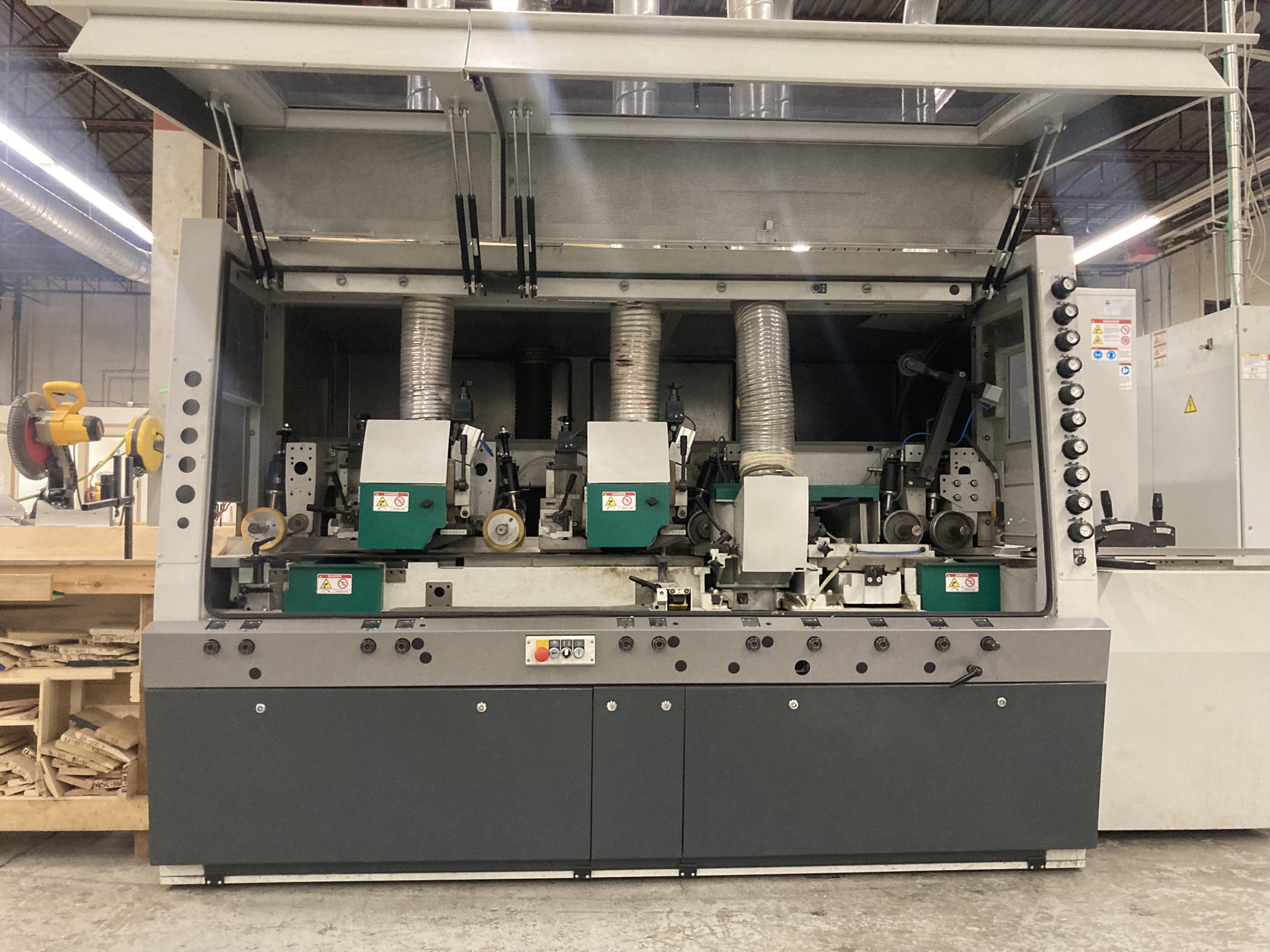

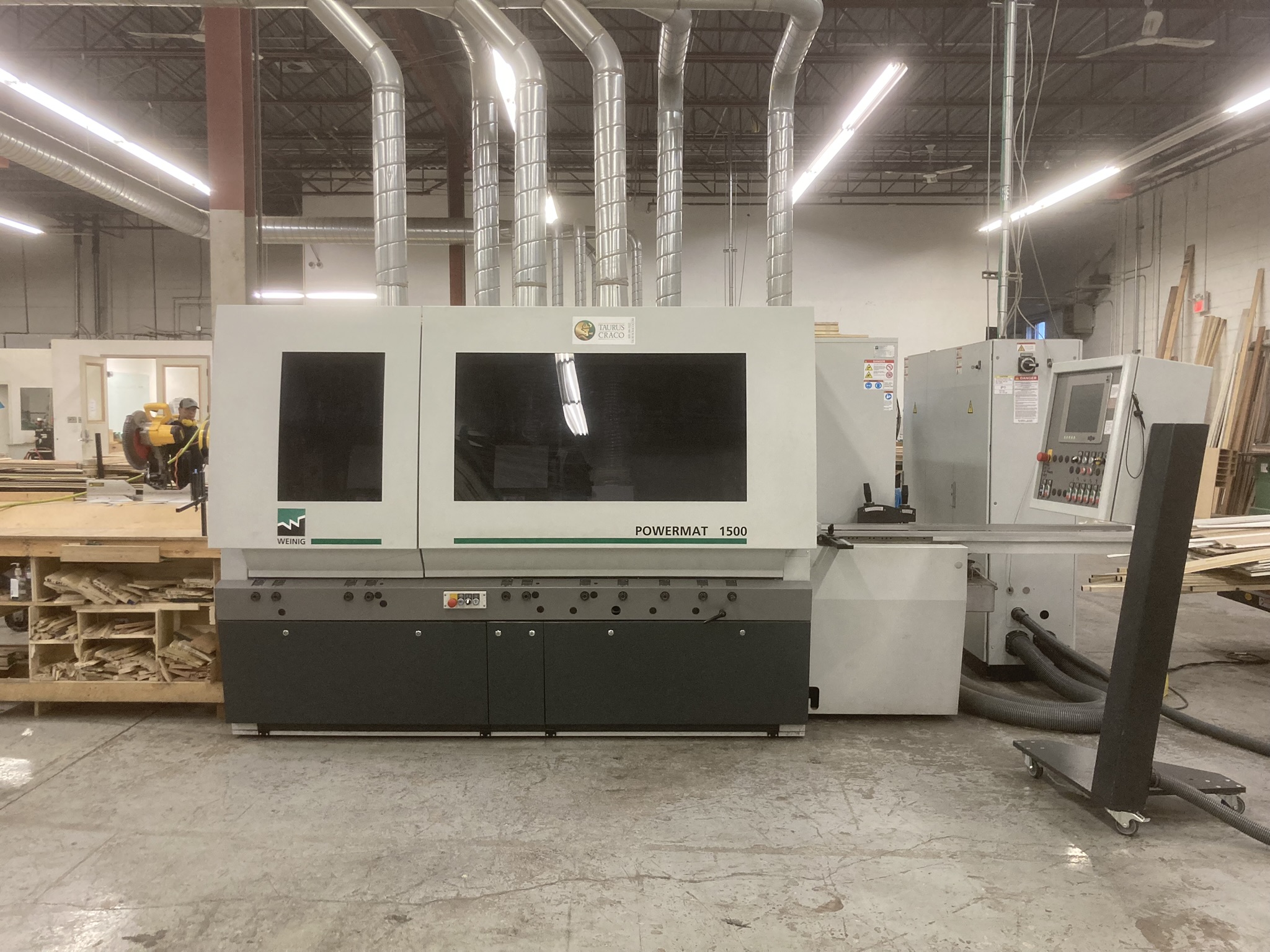

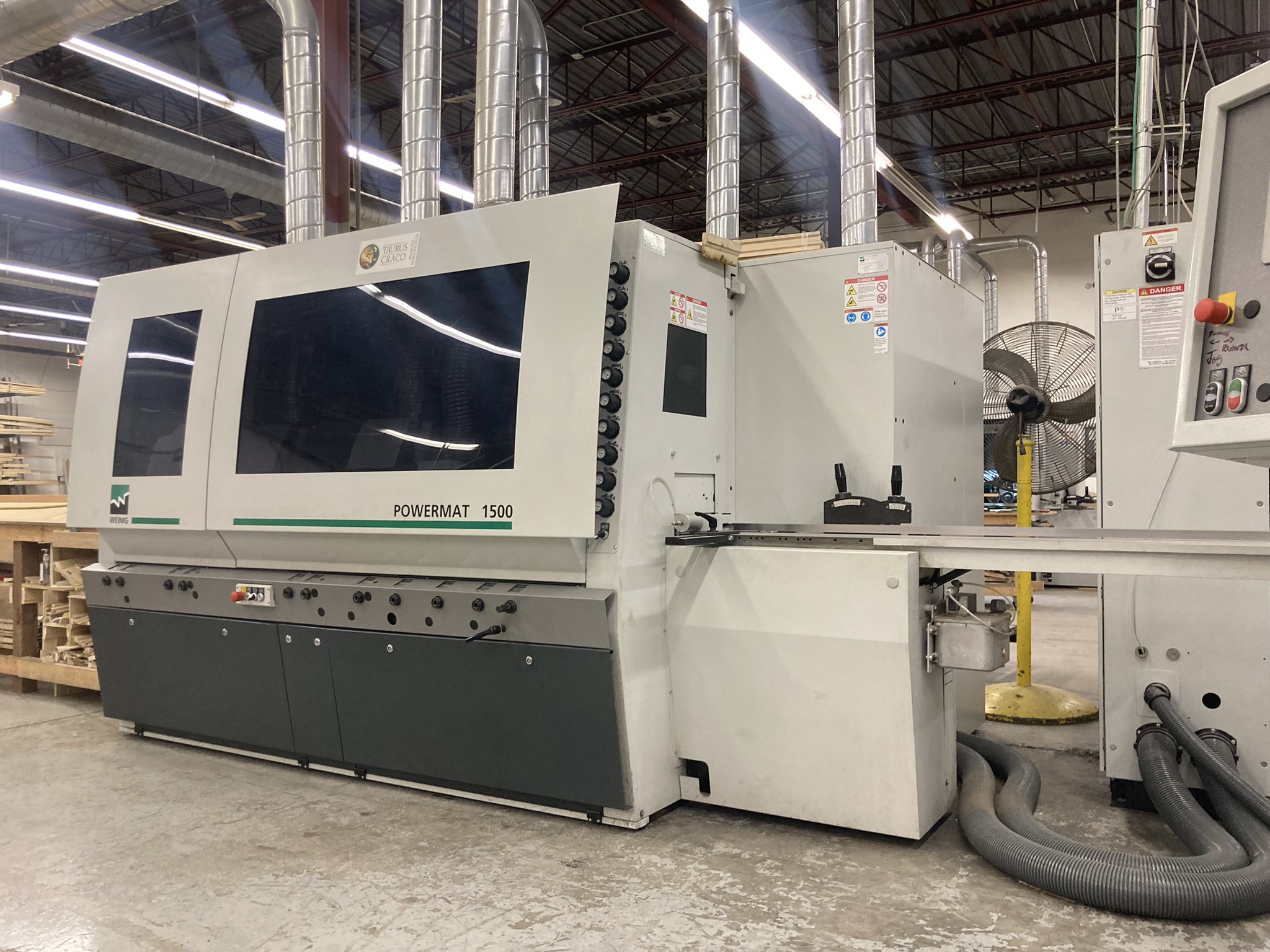

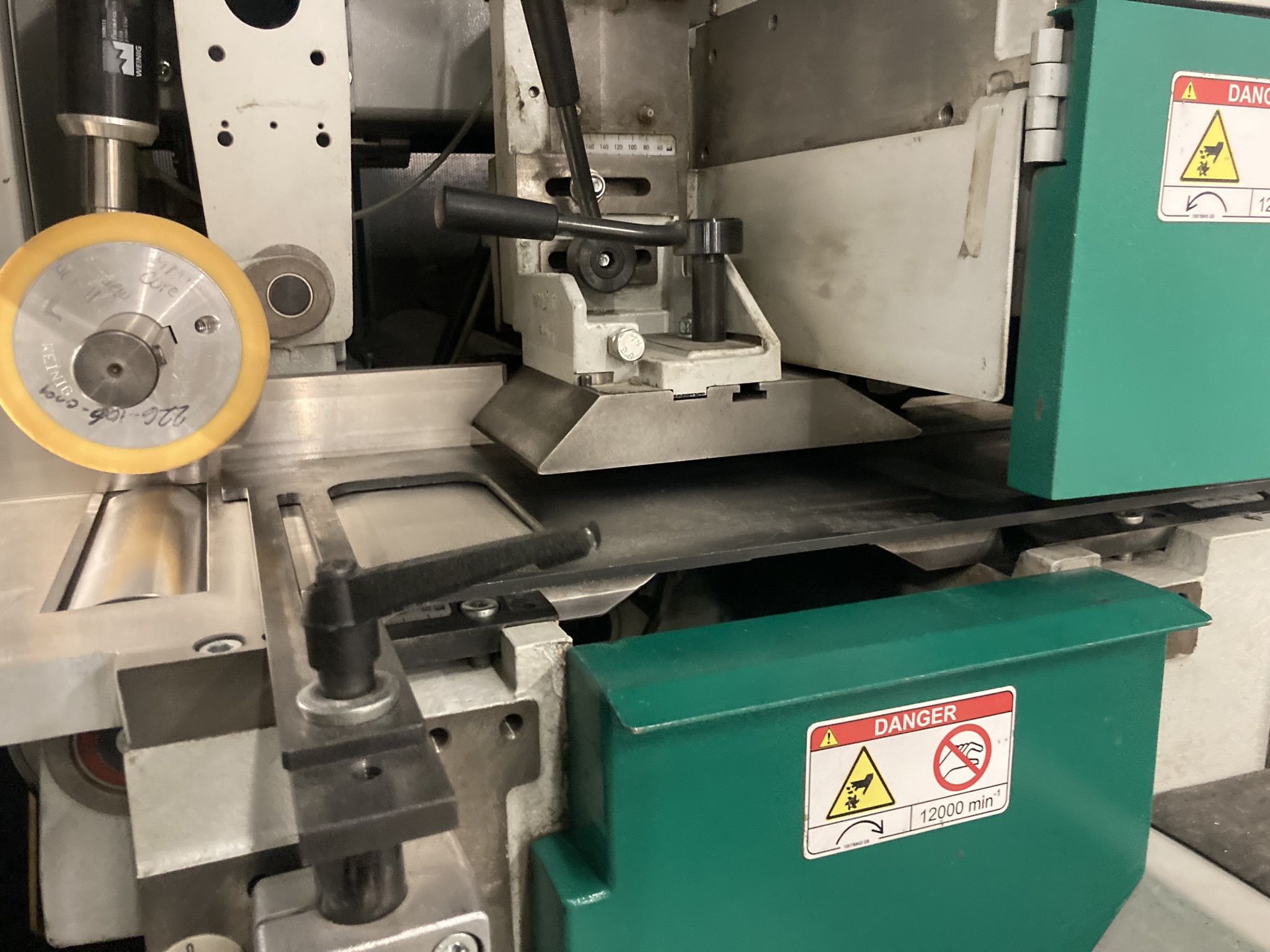

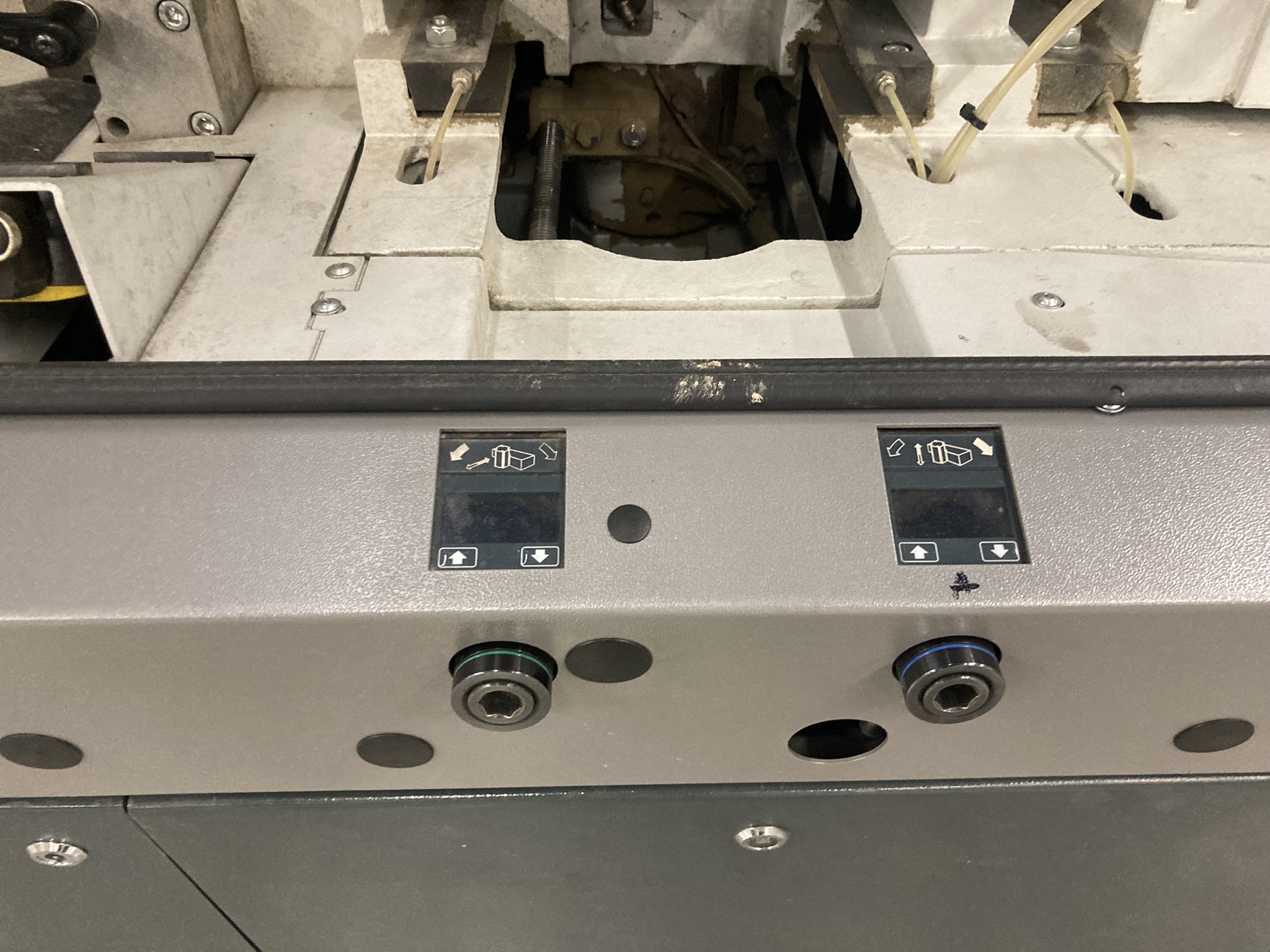

2019 Weinig Powermat 1500 Automatic Planer and Moulder

orCall (905)-451-8430

Specifications

ManufacturerWeinig
ModelPowermat 1500 Automatic Planer and Moulder
Year2019
Stock Number1600EZ
Voltage600V
ConditionExcellent

Description

Ultimate design, perfect processing down to the last detail, typical WEINIG: with the Powermat 1500 WEINIG offers an exceptional machine. With the Powermat 1500 you will experience the full capability of a WEINIG moulder. With this exceptional state of the art machine standard the Powermat 1500 offers outstanding ease of use and a maximum of profitability. Decades of experience have influenced the development of this machine. The result: a machine coping even with challenging applications and delivering top quality.


Features and Specifications:

  • Working width (with tool cutting circle 93-163 mm): 20 - 230 mm (0.8'' - 9'')
  • Working height (with tool cutting circle 93-163 mm): 10 - 160 mm (0.4'' - 6.3'')
  • First horizontal bottom spindle:
  • Motor: 15 kW (20 HP)
  • Diameter: 40 mm
  • Revolution speed: 6,000 RPM
  • Tool cutting circle: 125-180 mm
  • Tool cutting circle rebate cutter: 130-160 mm
  • Setting range axial: 17 mm
  • First right vertical spindle:
  • Motor: 11 kW (15 HP)
  • Revolution speed: 12,000 RPM
  • Tool cutting circle: 93-200 mm
  • Tool cutting circle for planer heads max.: 200 mm
  • Maximum profile depth: 35 mm
  • Setting range axial: 55 mm
  • First left vertical spindle:
  • Motor: 11 kW (15 HP)
  • Revolution speed: 12,000 RPM
  • Tool cutting circle: 93-200 mm
  • Tool cutting circle for straight planer heads max: 163 mm
  • Maximum profile depth: 35 mm
  • Setting range axial: 55 mm
  • First horizontal top spindle:
  • Motor: 18.5 kW (25 HP)
  • Revolution speed: 12,000 RPM
  • Tool cutting circle: 93-200 mm
  • Maximum profile depth: 35 mm
  • Adjustment range axial: 40 mm
  • Second horizontal top spindle:
  • Motor: 30 kW (40 HP)
  • Revolution speed: 12,000 RPM
  • Tool cutting circle: 93-200 mm
  • Tool cutting circle rebate cutter: 180 mm
  • Maximum profile depth: 35 mm
  • Adjustment range axial: 40 mm
  • Second horizontal bottom spindle:
  • Motor: 15 kW (20 HP)
  • Revolution speed: 12,000 rpm
  • Tool cutting circle: 93-225 mm
  • Maximum profile depth: 15 mm
  • Adjustment range axial: 40 mm
  • Feed system
  • Feed speed electronically variable (incl. brake): 5-40 m/min
  • Motor: 7 kW (9.5 HP)
  • Approximate shipping dimensions: 192'' x 85'' x 75'' (4880mm x 2165mm x 1905mm)
  • Approximate shipping weight: 9,700 lbs (4,400 kg)


Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |


Please contact TCMI customer service for more information.

---


** Note: Information on or derived from the attached documents may not apply to listed machine and is accurate to the best of our knowledge.**
