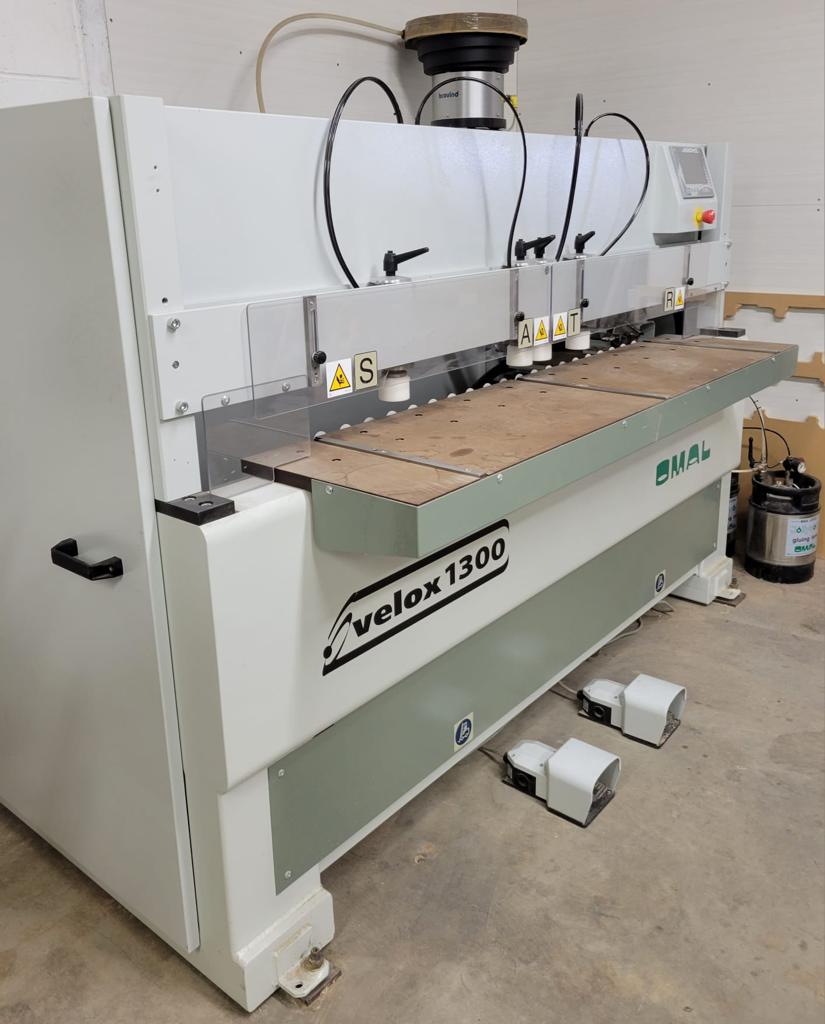

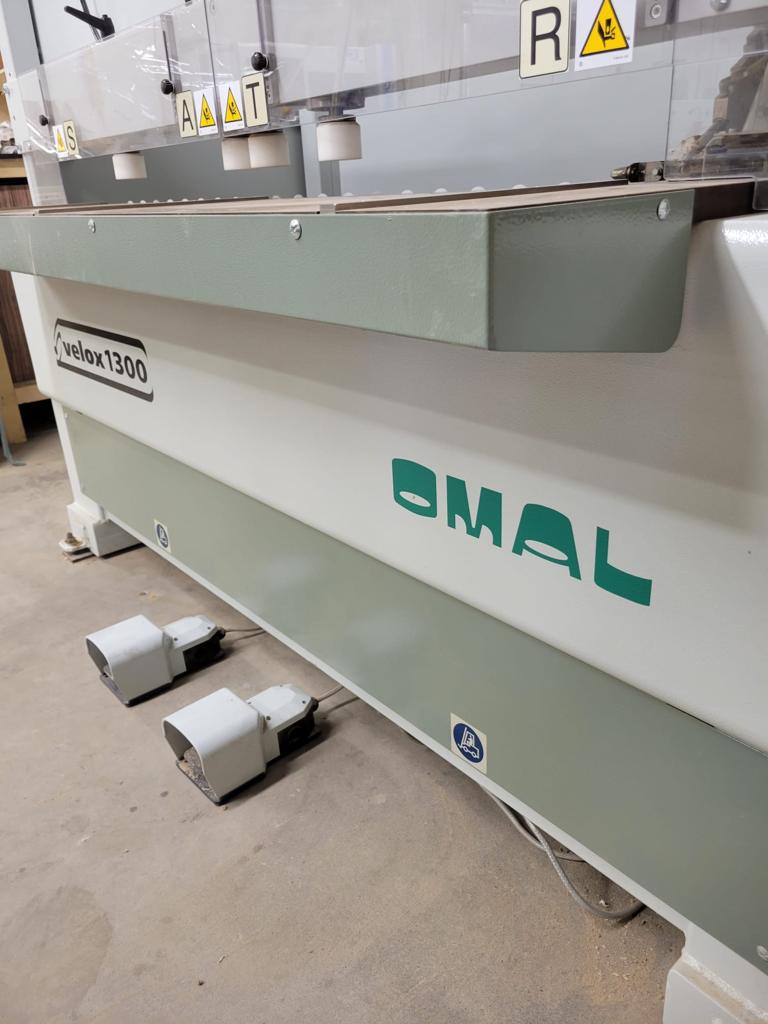

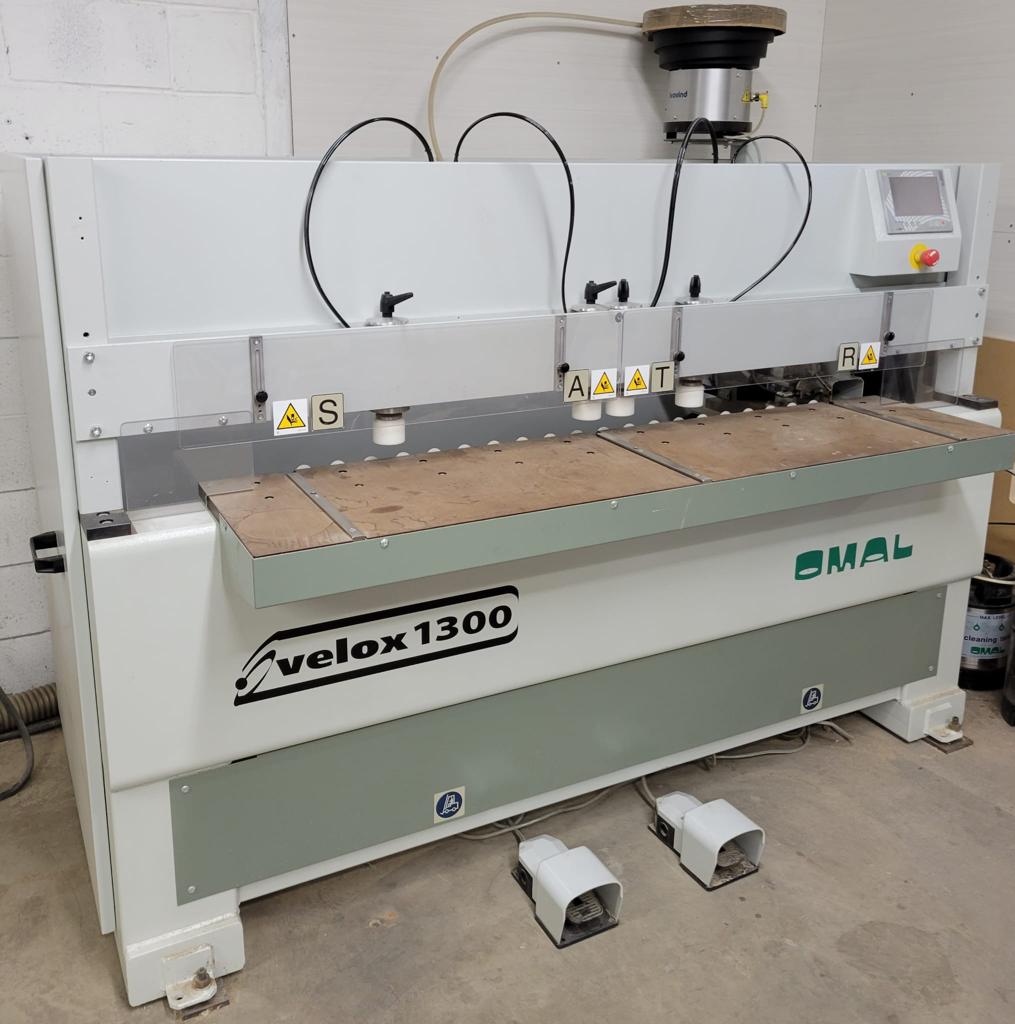

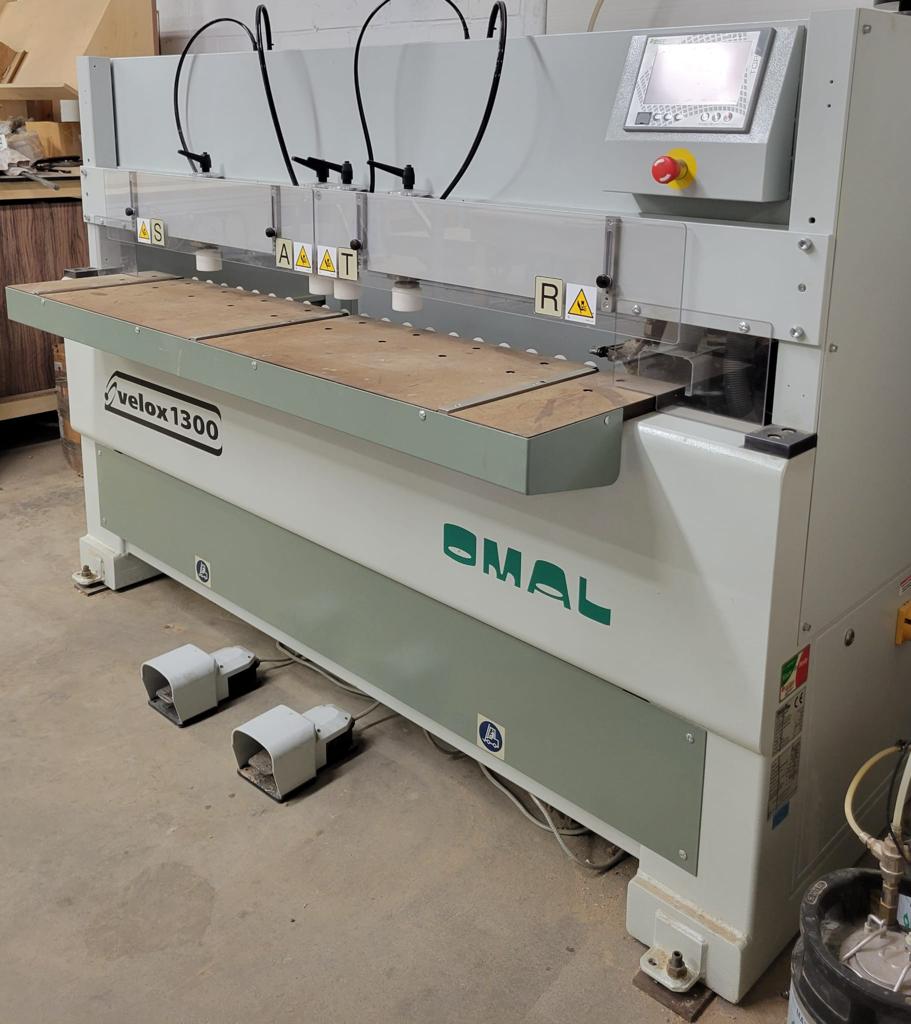

2014 Omal Velox 1300 CNC Dowel Machine

orCall (905)-451-8430

Specifications

ManufacturerOmal
ModelVelox 1300 CNC Dowel Machine
Year2014
Stock Number1594JL
Voltage220V / 60 Hz / 3Ph
ConditionGreat

Description

The VELOX1300 CNC drilling, gluing, and dowel inserting machine is perfectly suited for flexible, just-in-time production like nesting. The machine is also suitable for larger batch production thanks to his high processing speed and simple touch screen interface.


Features and Specifications:

  • Drilling unit:
  • Number of drilling units: 1
  • Drill motor: 0.55 kW (0.75 HP)
  • Drill rotation speed: 6,000 RPM
  • Max depth of holes: 30mm (1 18'')
  • Max diameter of drill: 10mm (3/8'')
  • Dowel insertion unit:
  • Number of dowel insertion unit: 1
  • Standard dowel dimension (other dimensions on request): ø 8 x 35mm
  • Maximum dowel length: 40mm
  • Maximum dowel projection: 20mm
  • 2 position revolver for dowel
  • Fiber optic sensor for dowel presence
  • The drill and dowel inserter are 64mm on-center
  • Dowel vibrator bowl
  • Capacity: 2000 dowels
  • Gluing & cleaning unit
  • Capacity of glue tank: 8 liters
  • Capacity of cleaning tank: 8 liters
  • Maximum glue viscosity: 900 cps
  • NC control of glue amount
  • Injector unit with inductive sensor to verify glue is shot
  • Injector with double, reinforced seals to ensure no nozzle leakage
  • X axis, CNC with ball screw
  • Installed torque: 2.4 Nm
  • Working area: 1,300mm (50'')
  • Carriage travel speed: 50m/min (163.5 ft/min)
  • Depth "Y" axis (manual setting)
  • Working stroke: 40mm (1.57'')
  • Thickness "Z" axis (manual setting)
  • Working stroke: 40mm (1.57'')
  • Approximate shipping dimensions: 88.6'' x 77.3'' x 59.1'' (2,250mm x 1,963mm x 1,500mm)
  • Approximate shipping weight: 2,645 lbs (1,200 kg)
