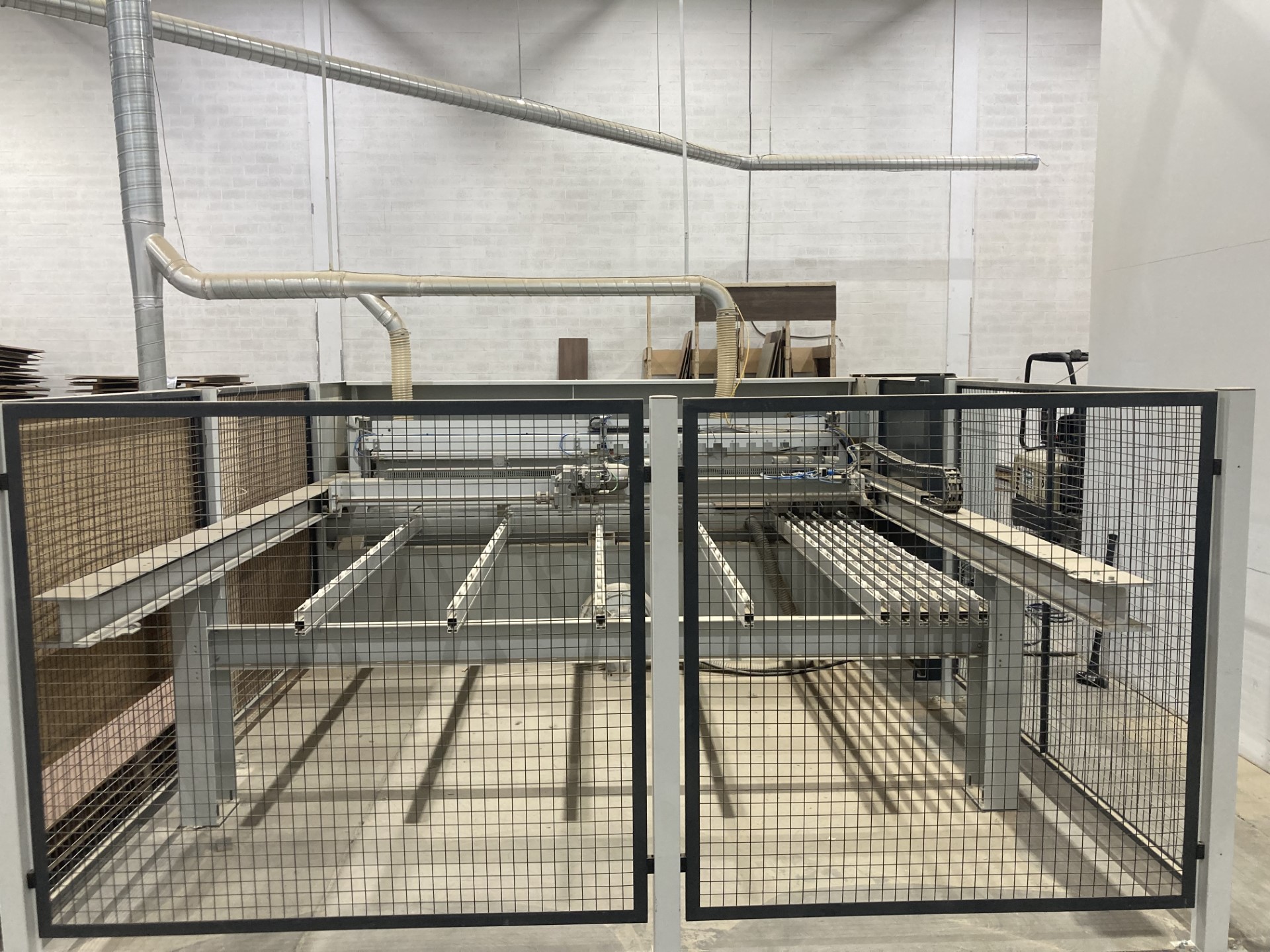

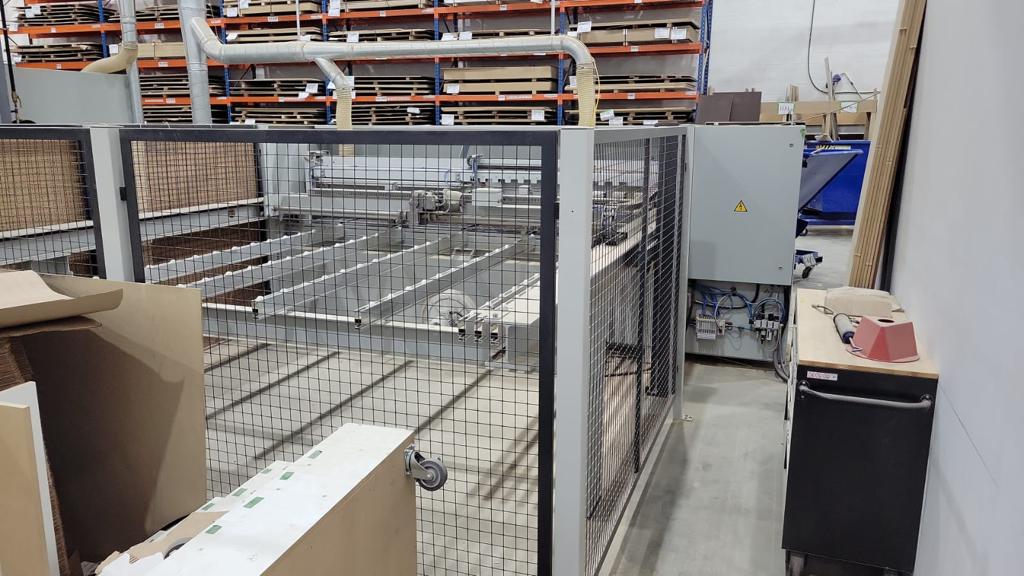

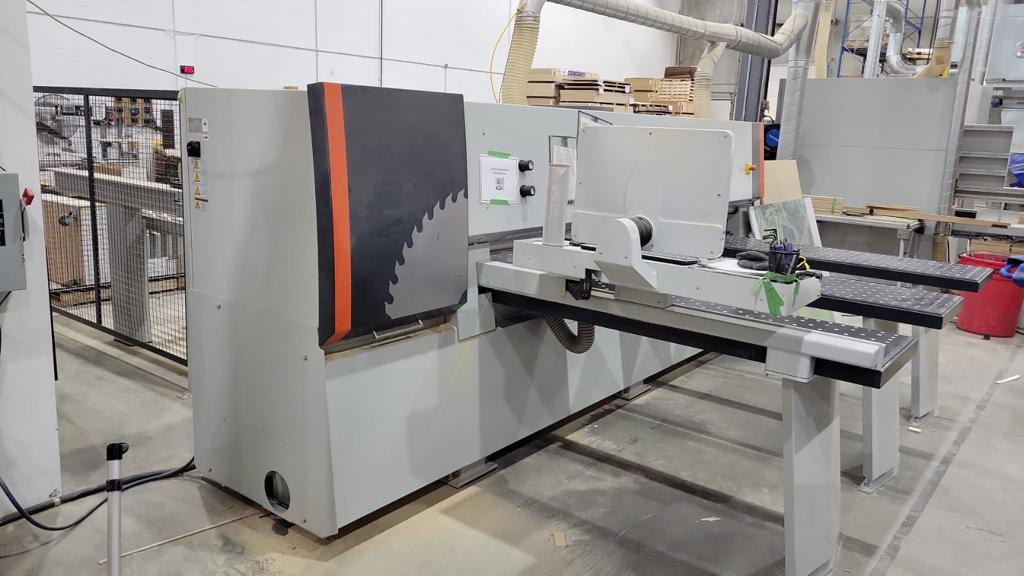

2019 Holz-Her Tectra 6120 Power Beam Saw

orCall (905)-451-8430

Specifications

ManufacturerHolz-Her
ModelTectra 6120 Power Beam Saw
Year2019
Stock Number1591JL
Voltage400V / 3Ph
ConditionExcellent

Description

Thanks to its high acceleration values and feed rates, the beam saw TECTRA 6120 can process even large quantities of panels rationally. This versatile saw is available with various cutting lengths and cutting widths, allowing it to be adapted to highly varying applications as a custom solution.


Features and Specifications:

  • Cutting length: 3,100 mm
  • Saw blade protrusion: 95 mm
  • Main sawing unit:
  • Motor: 11 kW
  • Saw blade: Ø 380 x 4.4 x 30 mm, Z 72 FZ/TZ, 2/10/60
  • 15kW, speed control
  • Automatic cutting length
  • Scoring unit:
  • Motor: 2.2 kW
  • Saw blade diameter: Ø 180 X 4.4/5.4 X 30 MM conic, 2/10/60
  • Speed control
  • Electronic adjustment
  • Post-forming saw blade diameter: 280mm
  • Groove cutting equipment: Electronic positioning
  • Saw carriage feed rate (forwards): 1-100 m/min
  • Saw carriage feed rate (backwards): 130 m/min
  • Rip fence
  • Positioner speed: 25m/min
  • Return speed: 100 m/min
  • Workpiece clamps:
  • 3 double-finger clamps
  • 2-6 pieces
  • Intelligent workpiece clamps
  • Angle cut clamps
  • Approximate shipping dimensions (saw): 265'' L x 288'' W x 72'' H (6,470mm L x 7,315mm W x 1,835mm H)
  • Approximate shipping weight (total): 24,692 lbs (11,200 kg)
