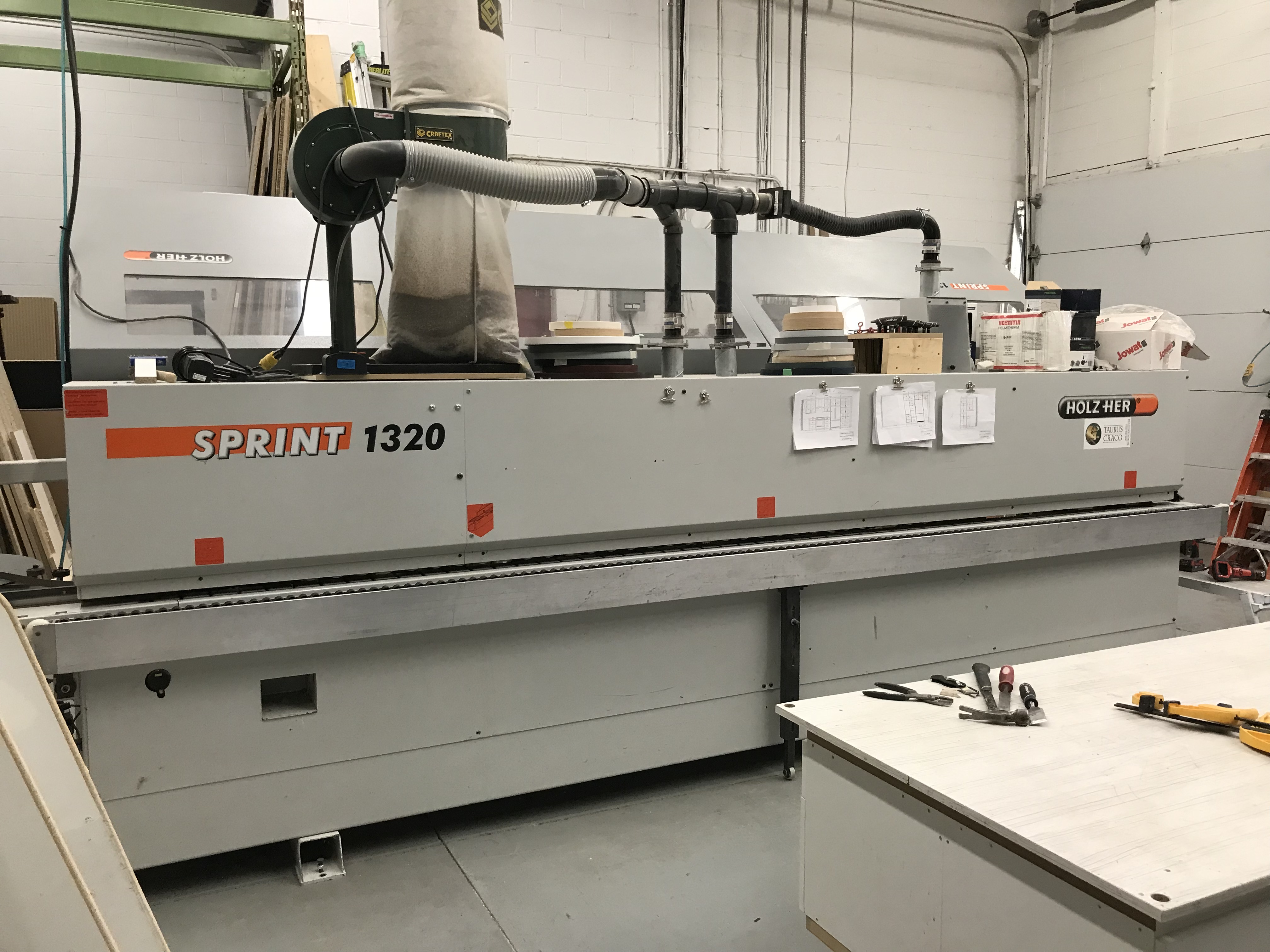

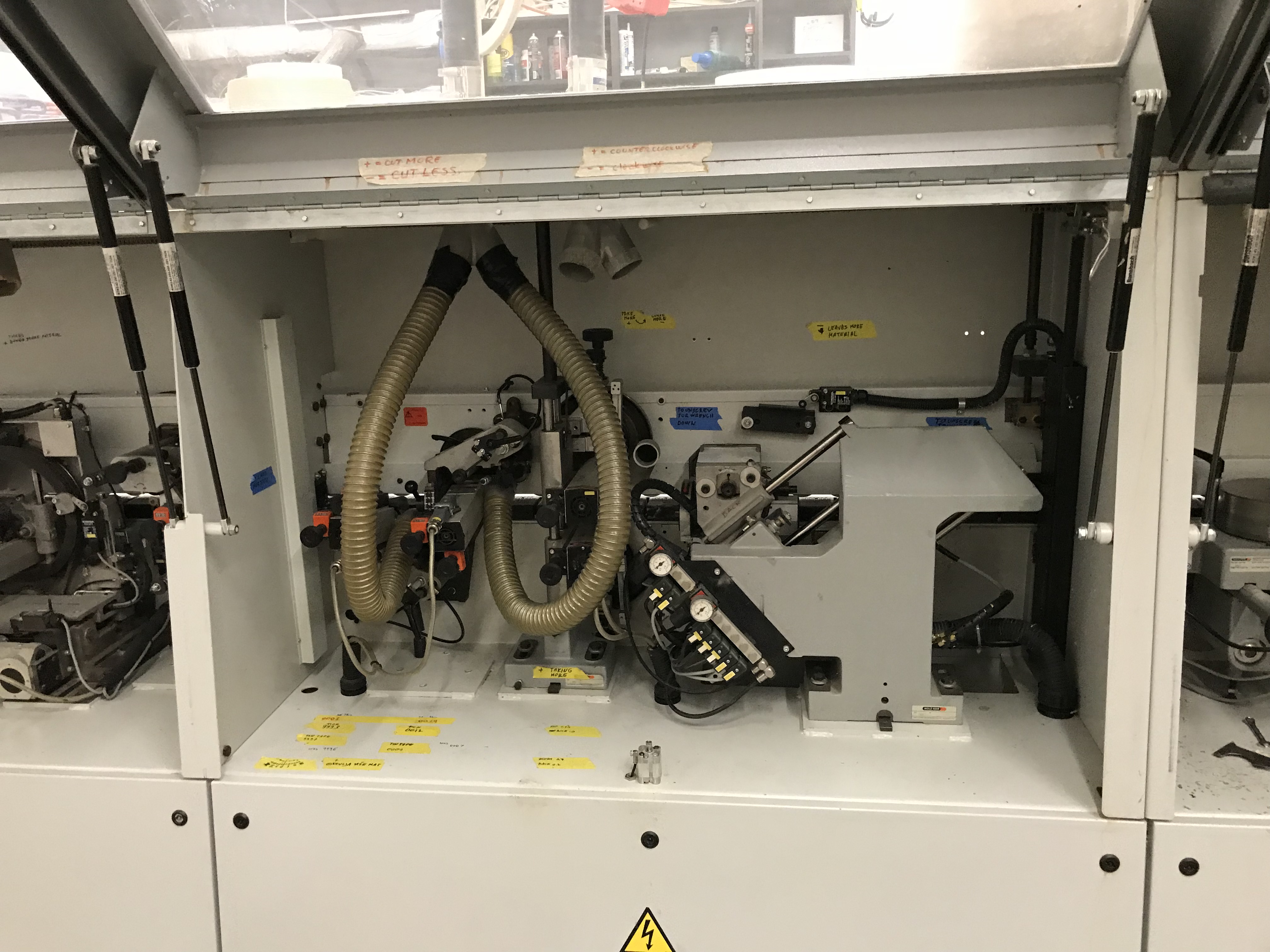

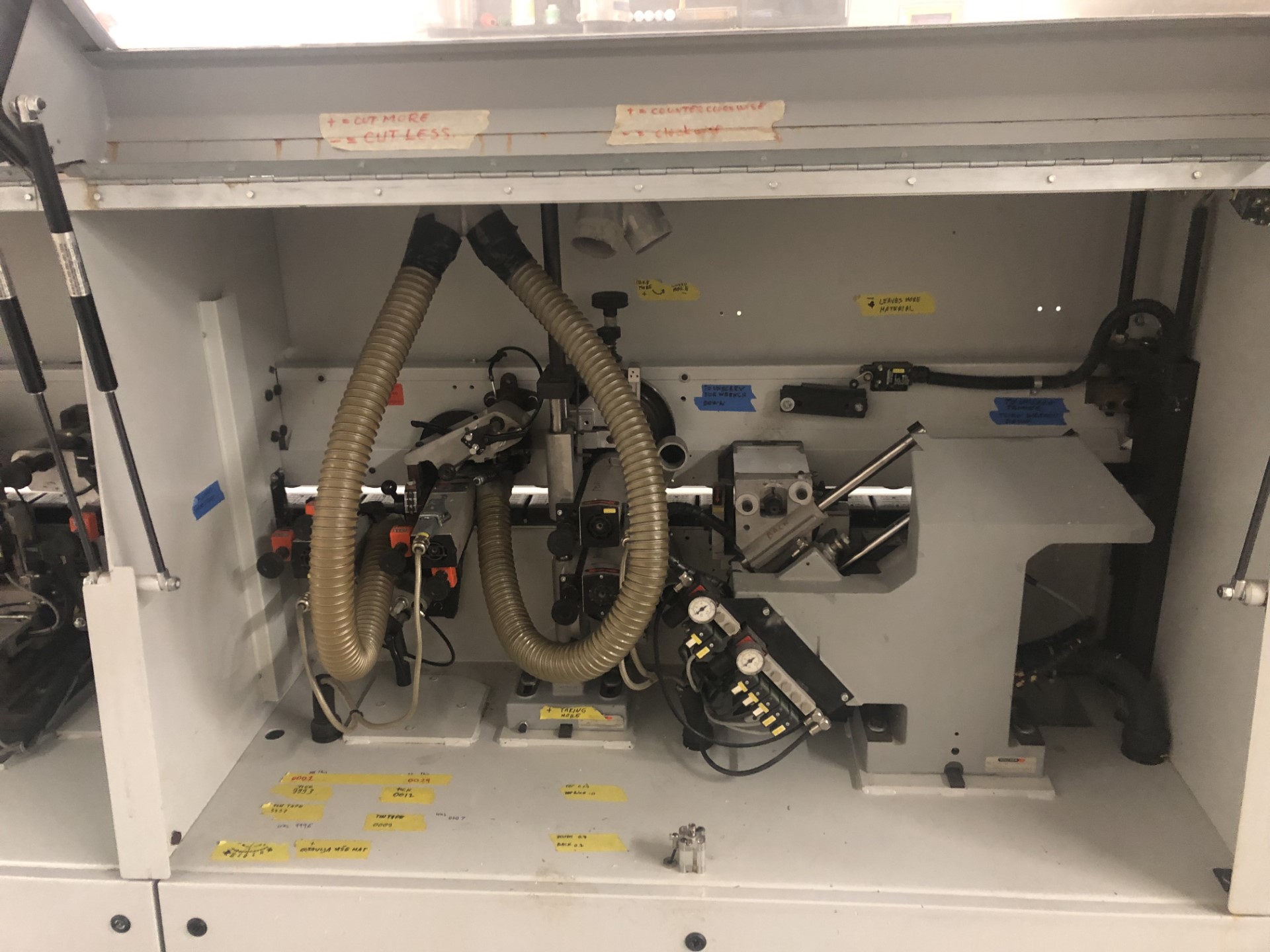

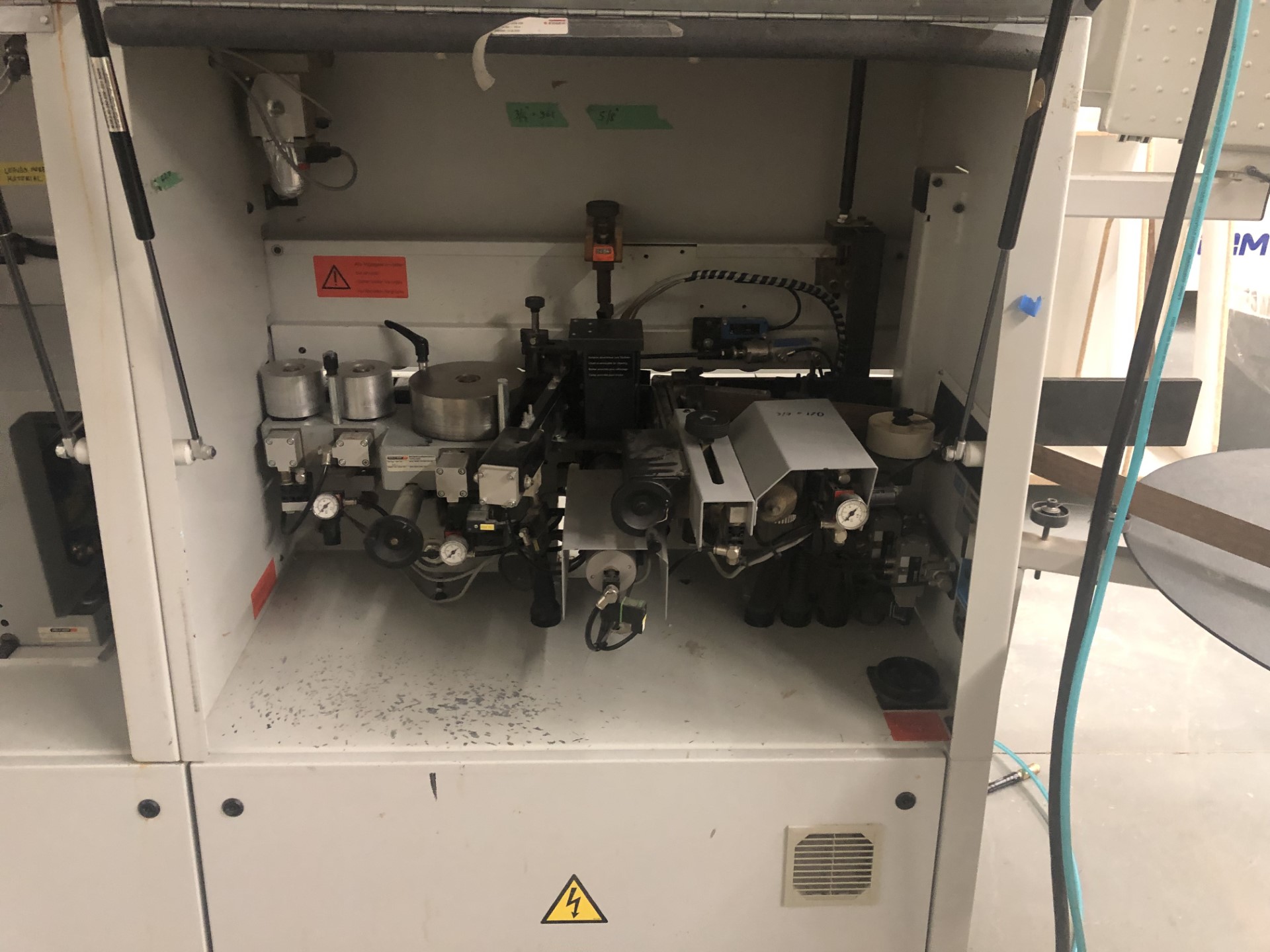

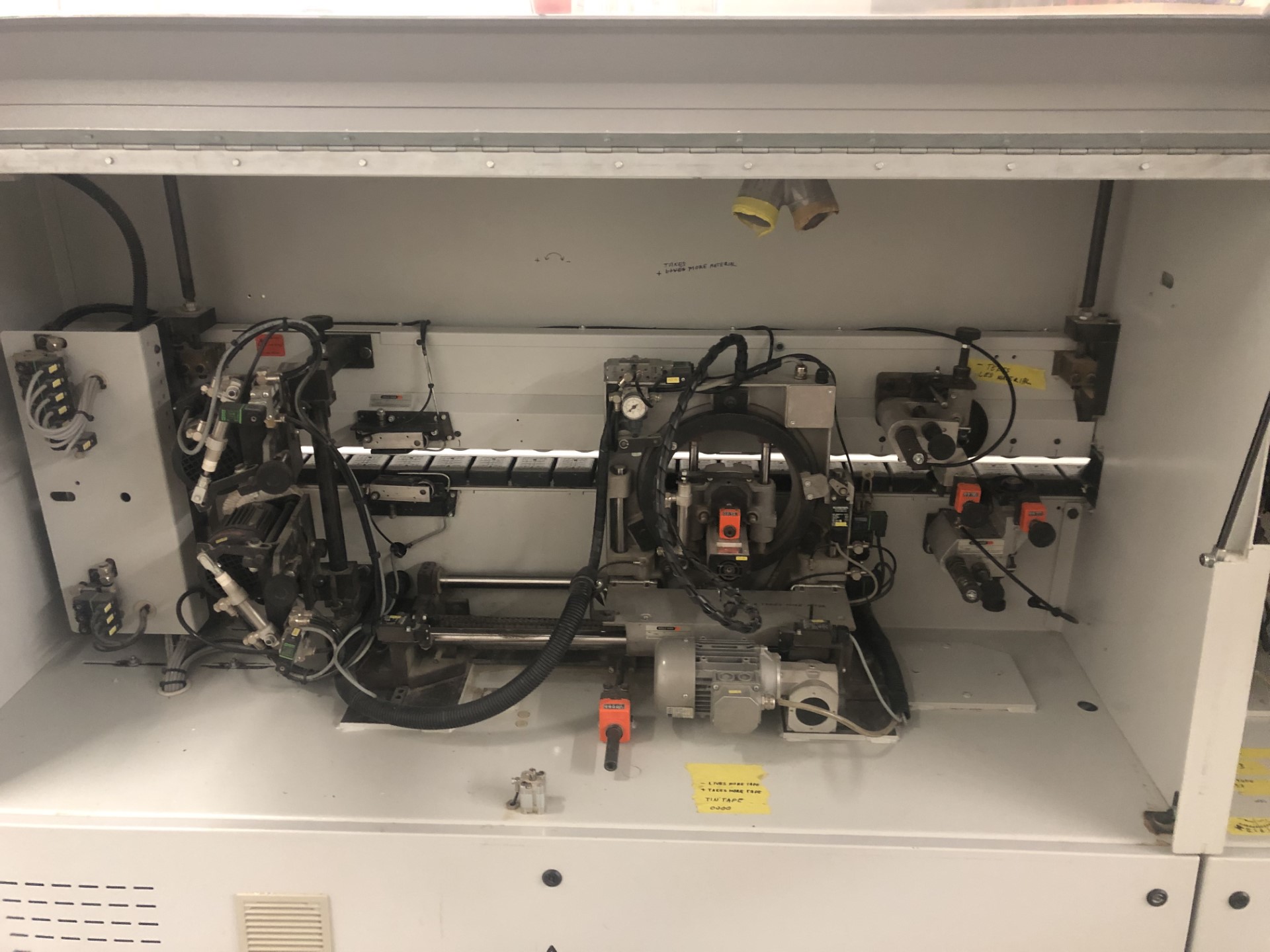

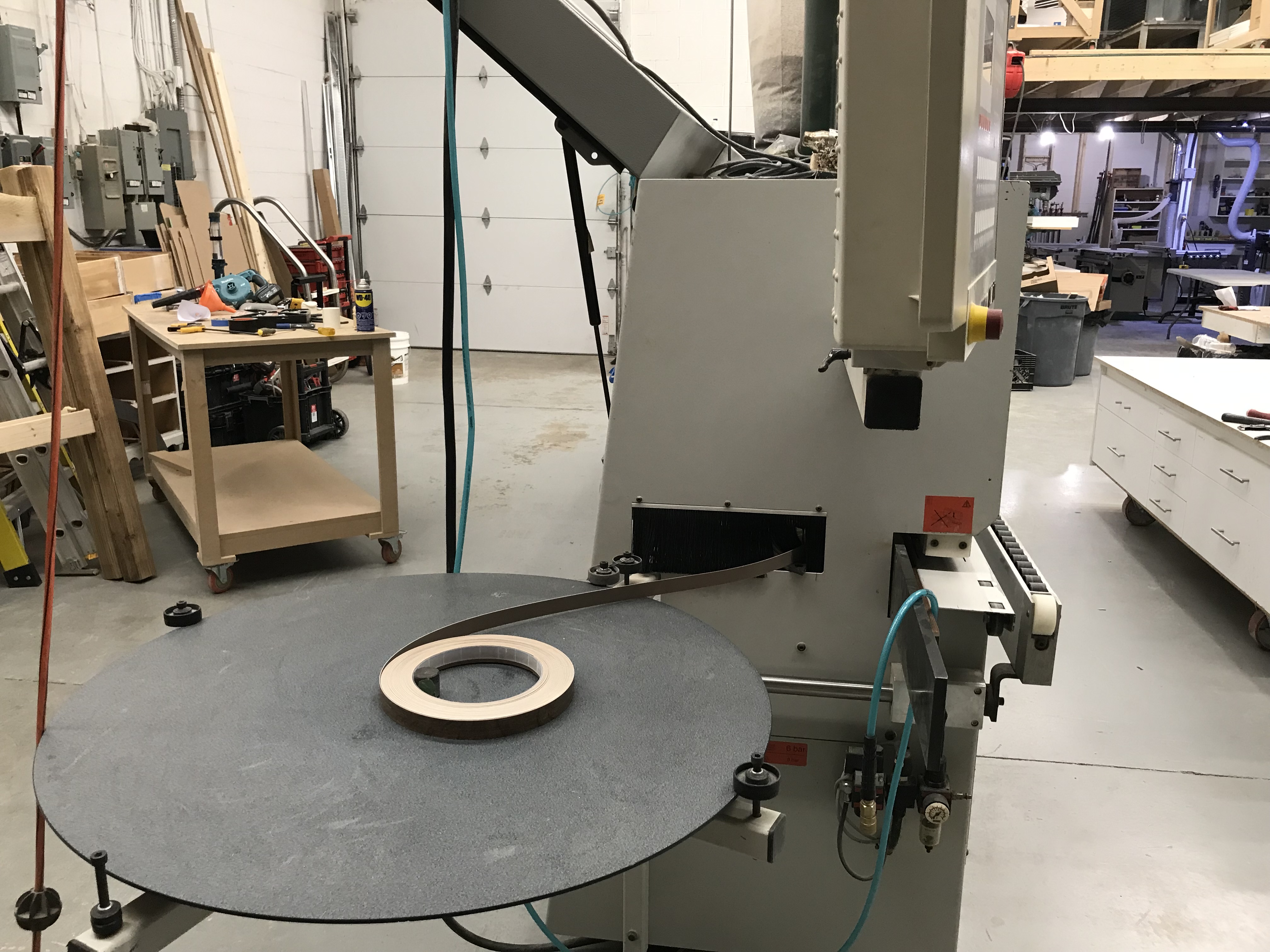

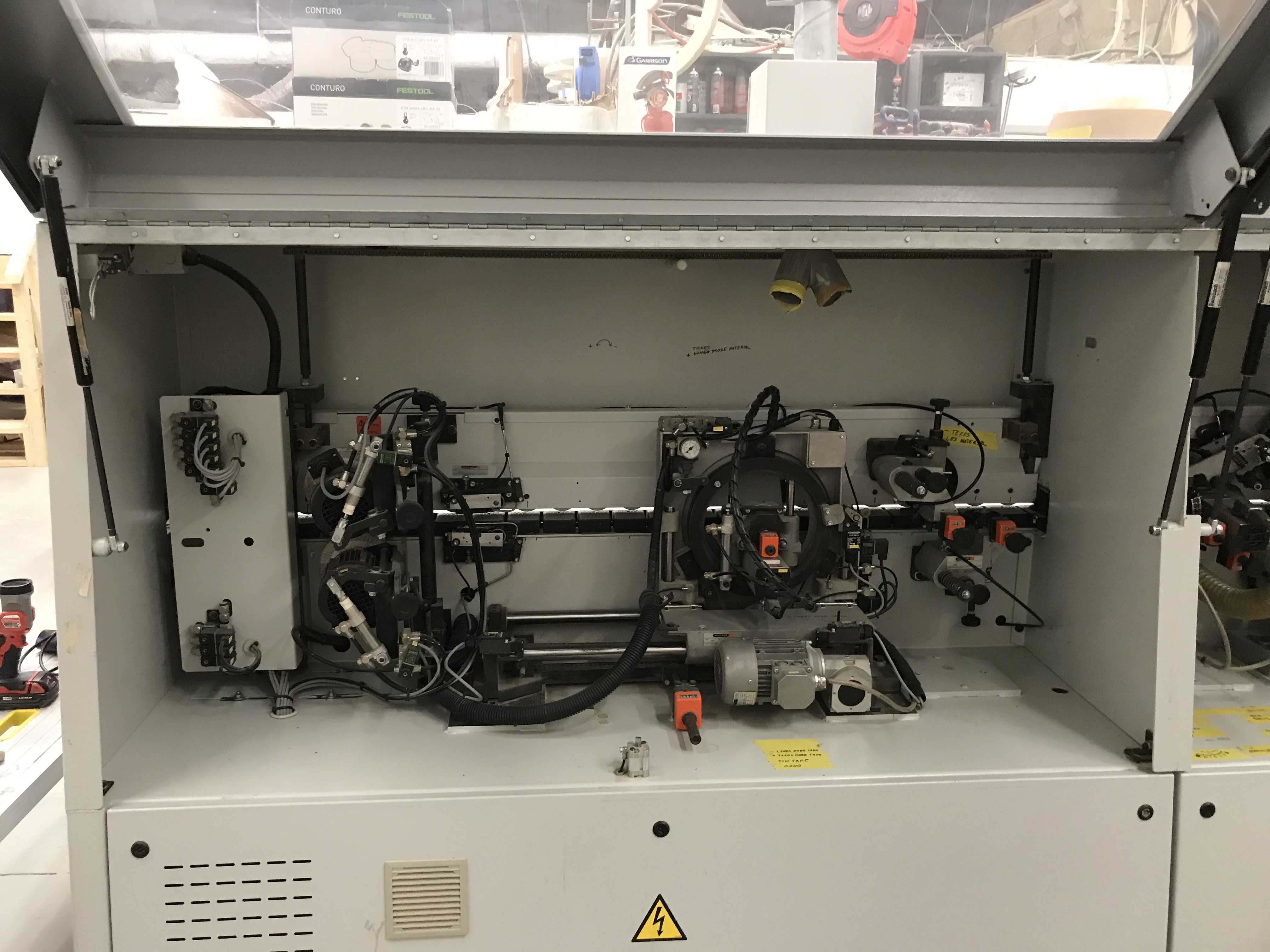

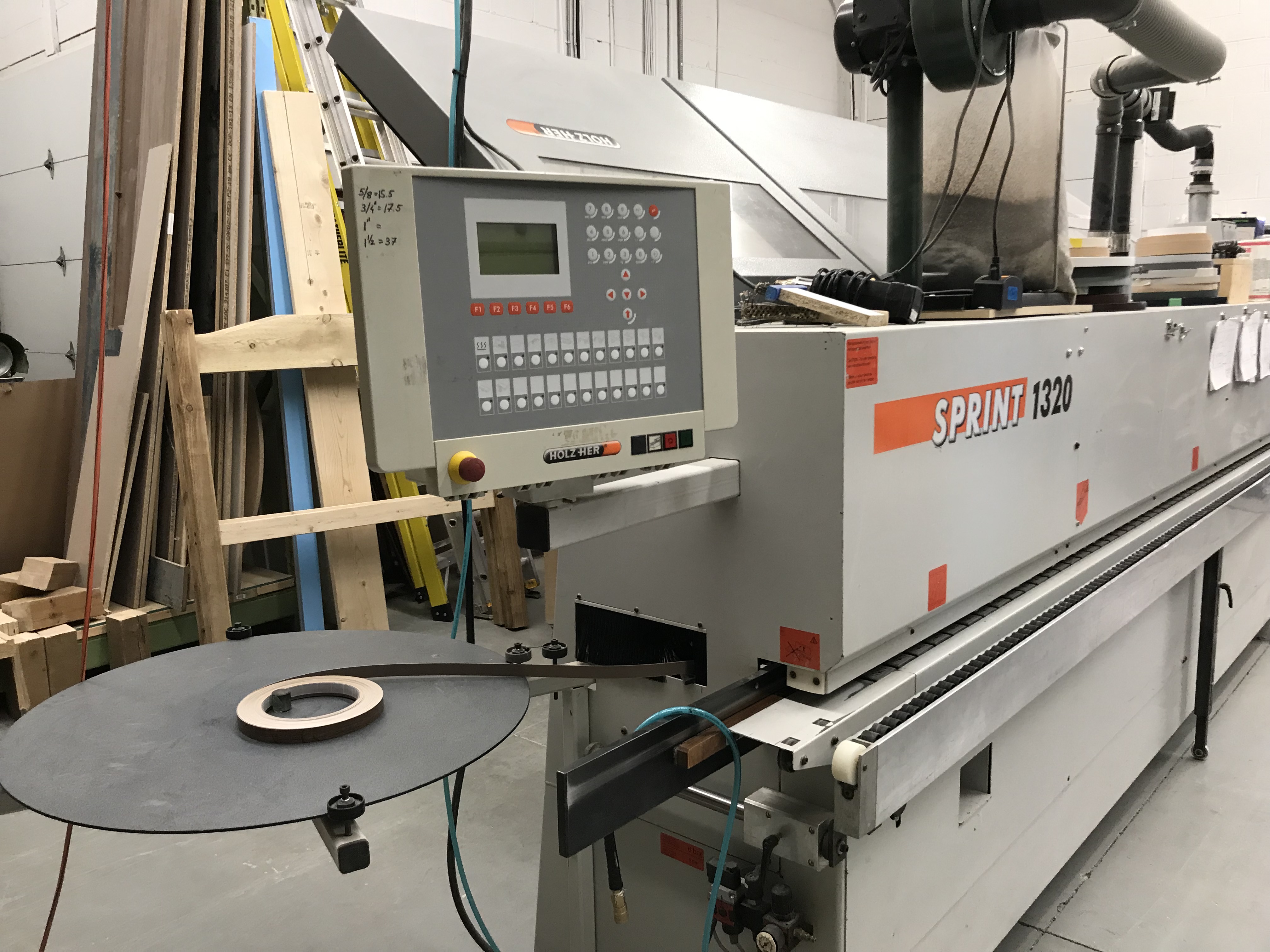

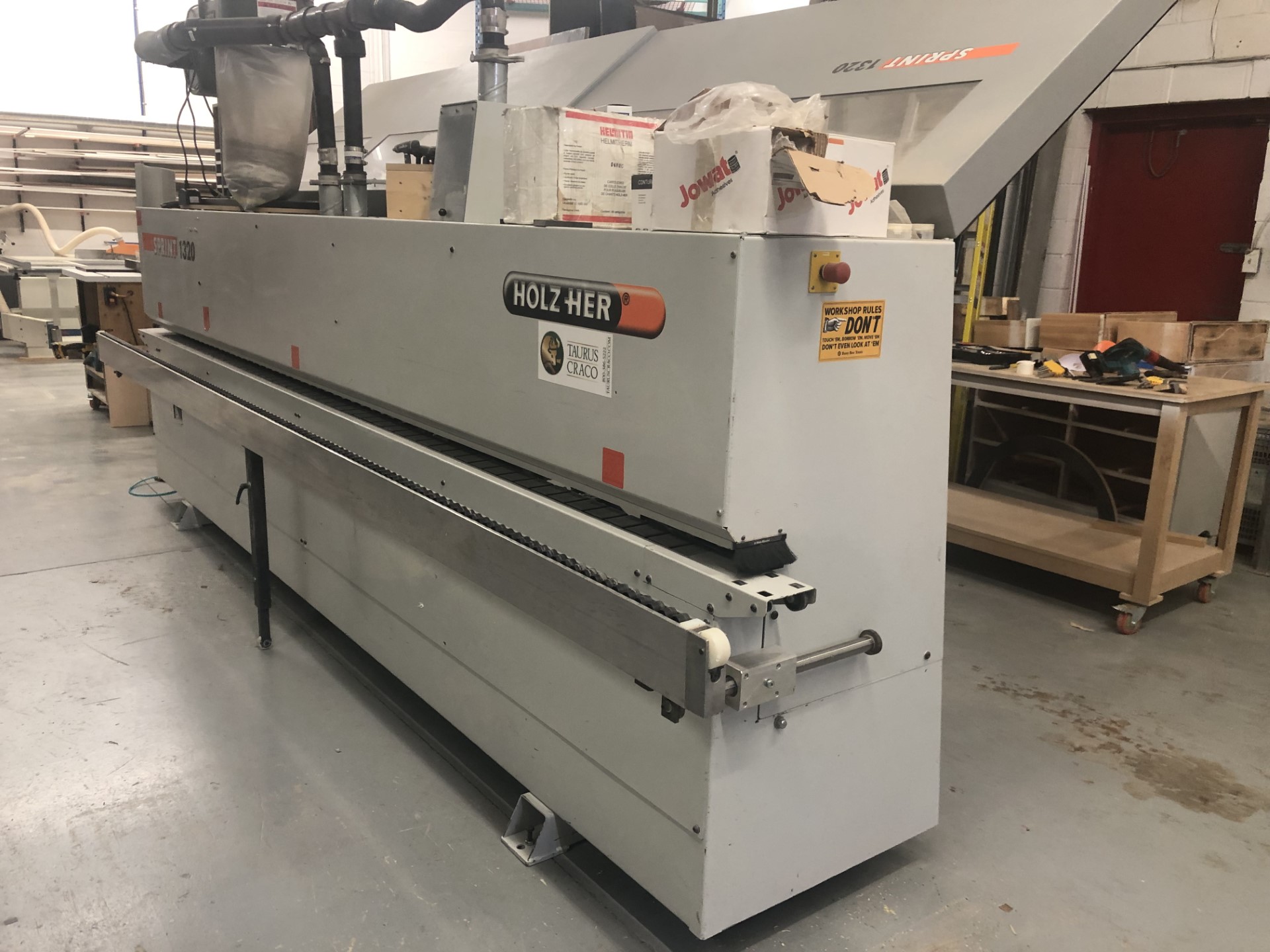

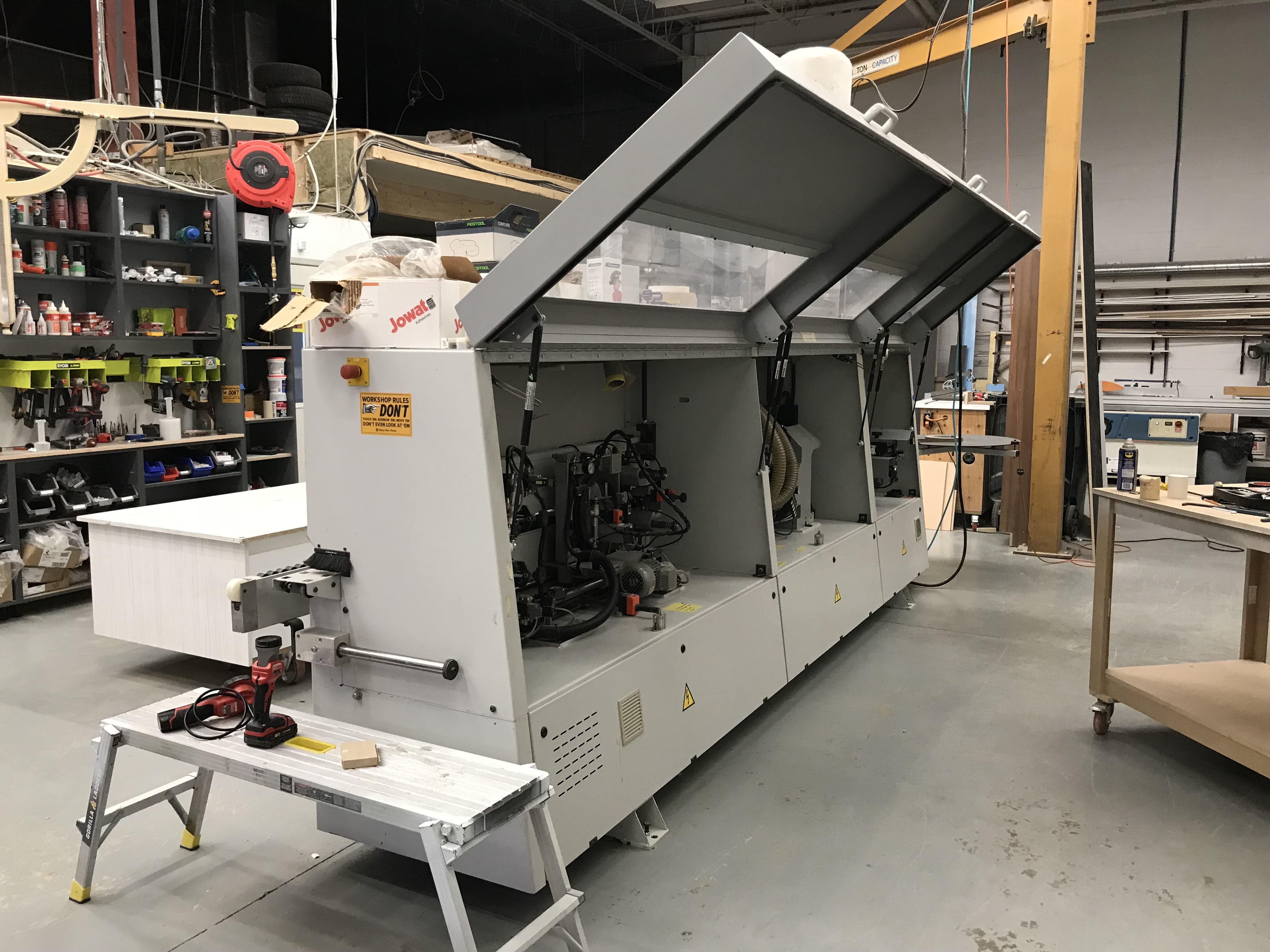

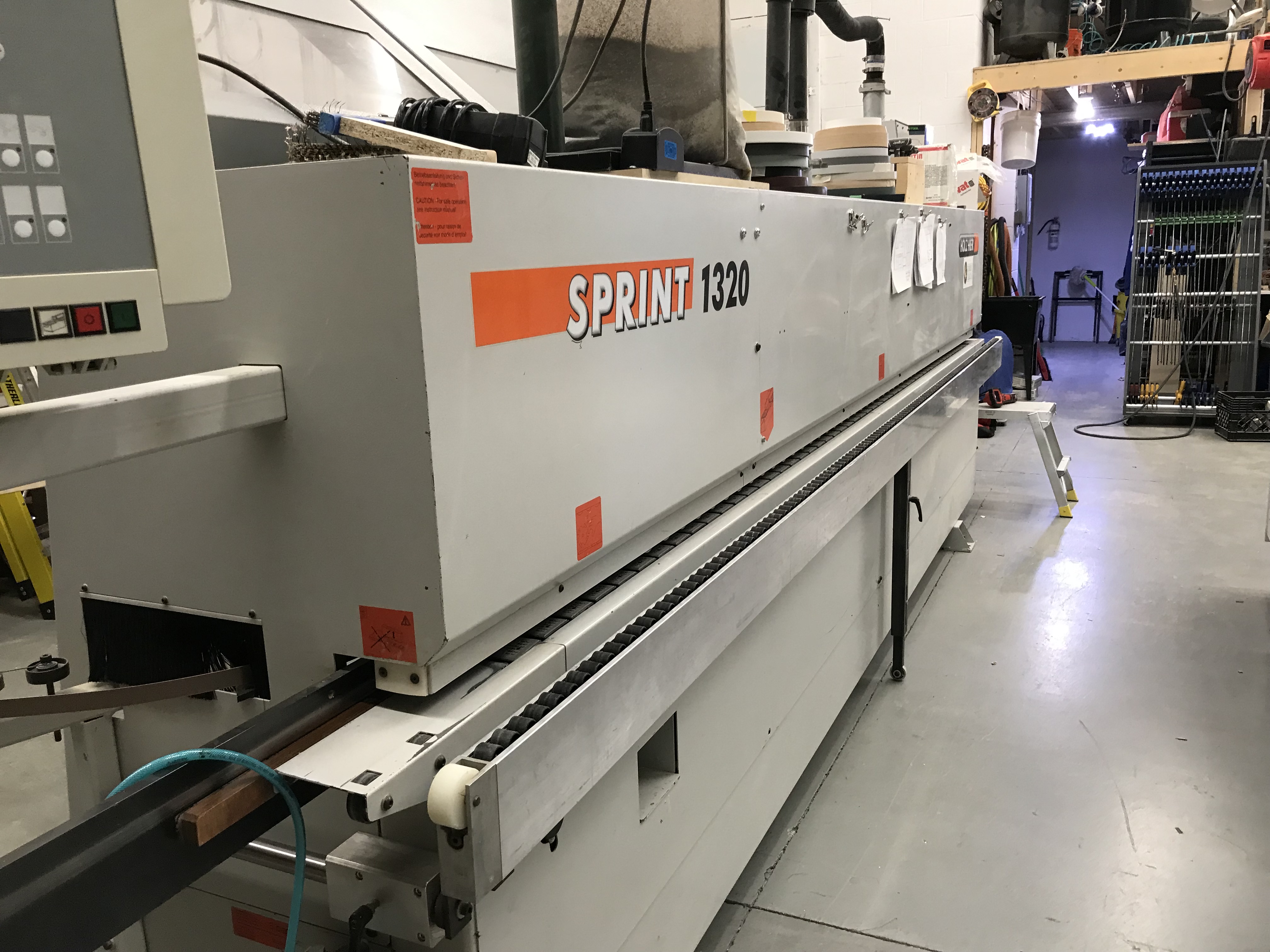

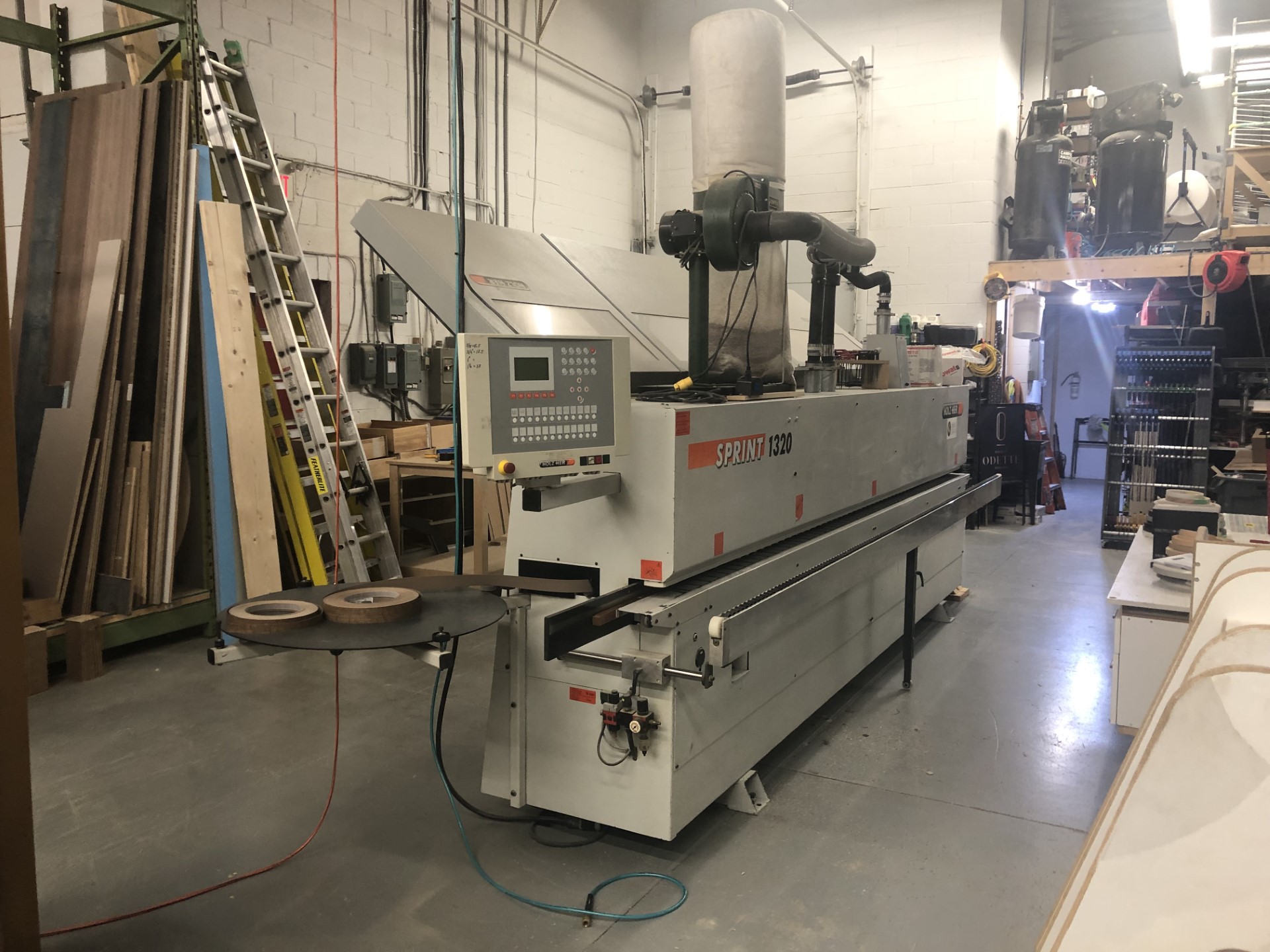

2007 Holz-Her Sprint 1320 Edgebander

Nine high-performance basic units - including a copying cutter unit for process post-forming profiles and perfect post-finishing- for applying plastic edges of up to 3mm and solid-wood edges of up to 15mm. The workpieces can be up to 55mm thick. The maximum feed speed is 18 m / min and makes it a leader in terms of processing speed.

Features and Specifications:

• Corner rounder
• End trimming unit
• Surface glue scraper
• Buffing unit w/ plunge
• Scraper unit
• Glue station
• Workpiece thickness min./max.: 0.23'' / 2.36'' (6mm / 60mm)
• Edge thickness: 0.01'' - 0.59'' (0.4mm - 15mm)
• Edging height max.: 2.56'' (65 mm)
• Cut edging length min.: 13.78'' (350 mm)
• Edging projection/height per side max.: 0.12'' (3 mm)
• Workpiece min. width: 2.36'' (60 mm)
• Workpiece length min: 7.09'' (180 mm)
• Feed speed: 41.01 ft/min (12.5 m/min)
• Cutter unit: 2 x 280 m^3/h
• Scraper unit: 280 m^3/h
• Min. air speed: 65.62 ft/sec (20 m/sec)
• Cutter unit connection ∅: 2 x 2.75'' (2 x 70 mm)
• Scraper connection ∅: 2.75'' (70 mm)
• Compressed air connection: 6 bar
• Approximate machine length: 218'' L x 50'' W x 67'' H
• Approximate machine length (w/ door open): 218'' L x 83'' W x 86'' H

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
