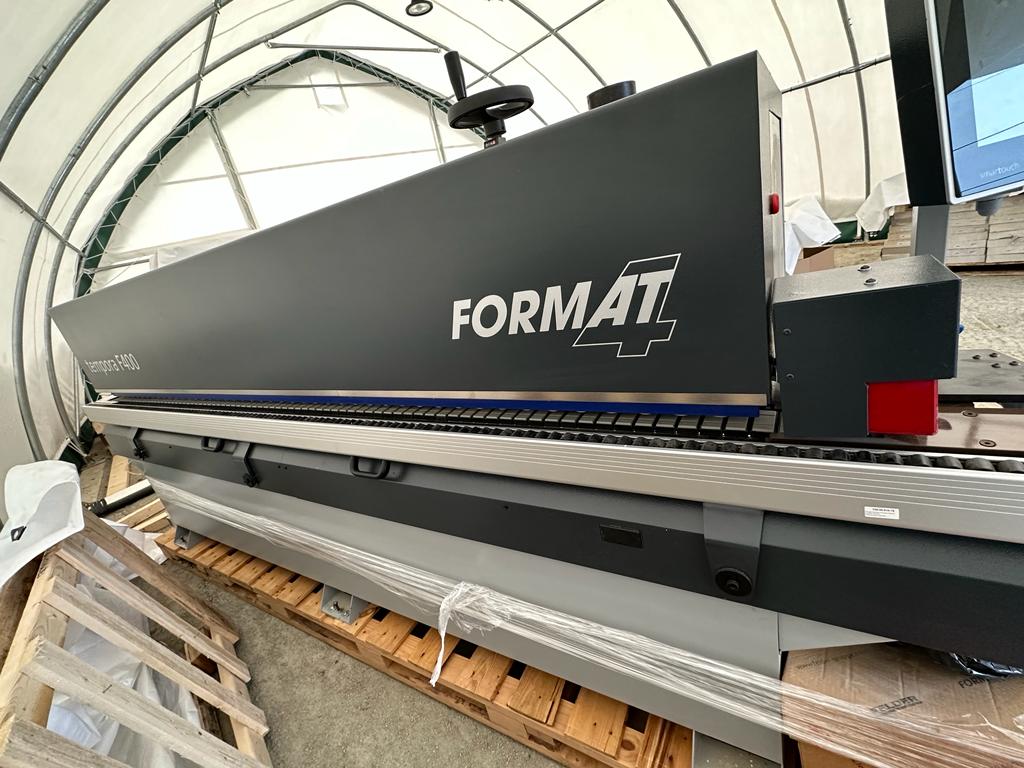

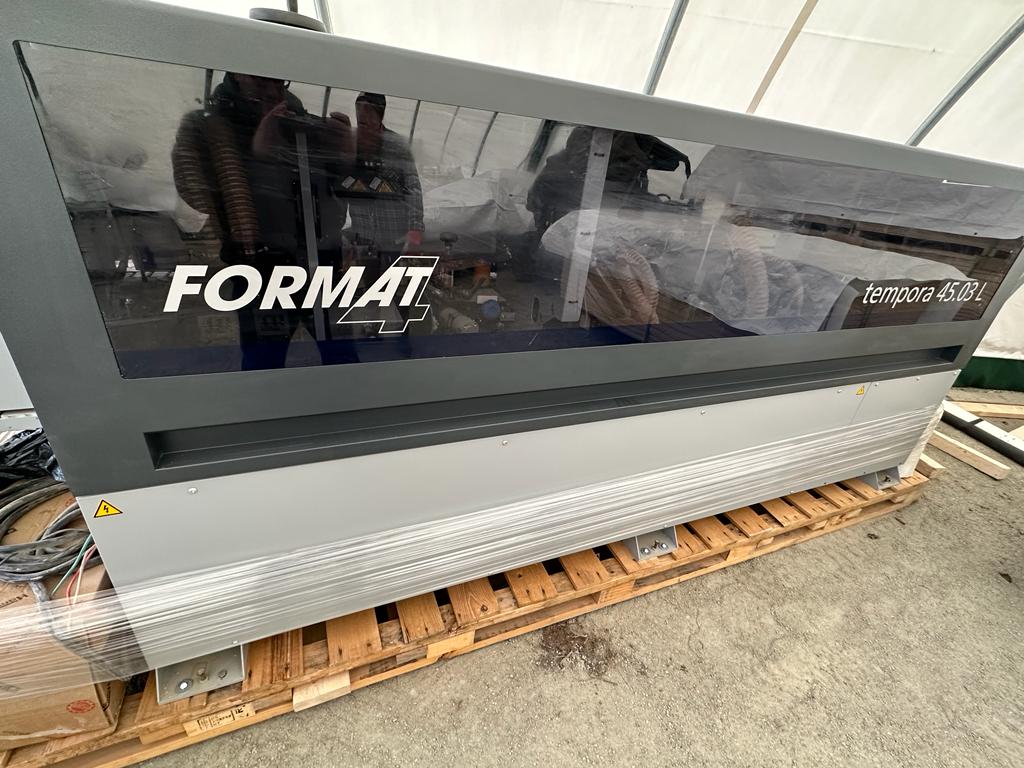

2019 Felder Format 4 Tempora F400 45.03L Edgebander

Felder Format 4 Tempora F400 45.03L Edgebander - Features and Specifications:

Voltage: 208V / 60 Hz / 3Ph
Edge thickness: 0.4 - 3 mm
Workpiece thickness: 10 - 45 mm
Feed speed: 9 m/min
Drive motor: 0.75 kW
Rotary tape coil
D = 740mm for tape coils 0.4 - 3 mm
Rotary plate diameter: 740 mm

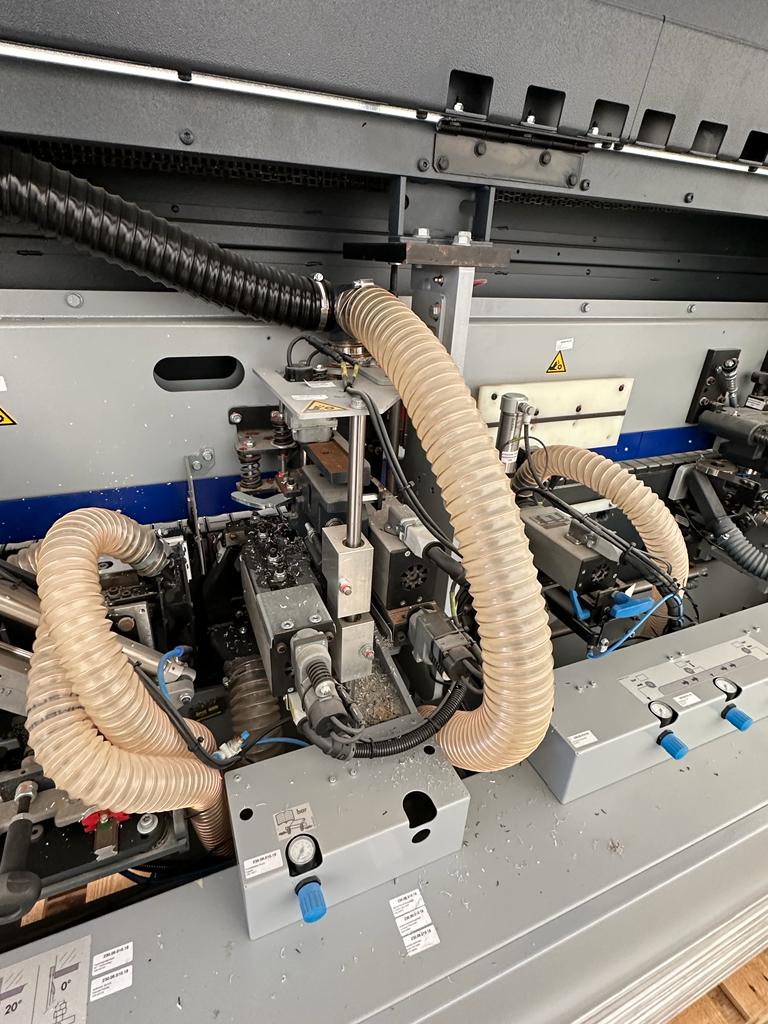

Pre-milling unit with immersion-controlled diamond milling cutters
Speed: 12,000 RPM
Motors: 2x 1.1 kW
Max. depth of cut: 2 mm
Corner rounding unit:
Edge band thickness: 0.4 - 3 mm
Workpiece height: 10 - 45 mm
Min. workpiece length: 270 mm

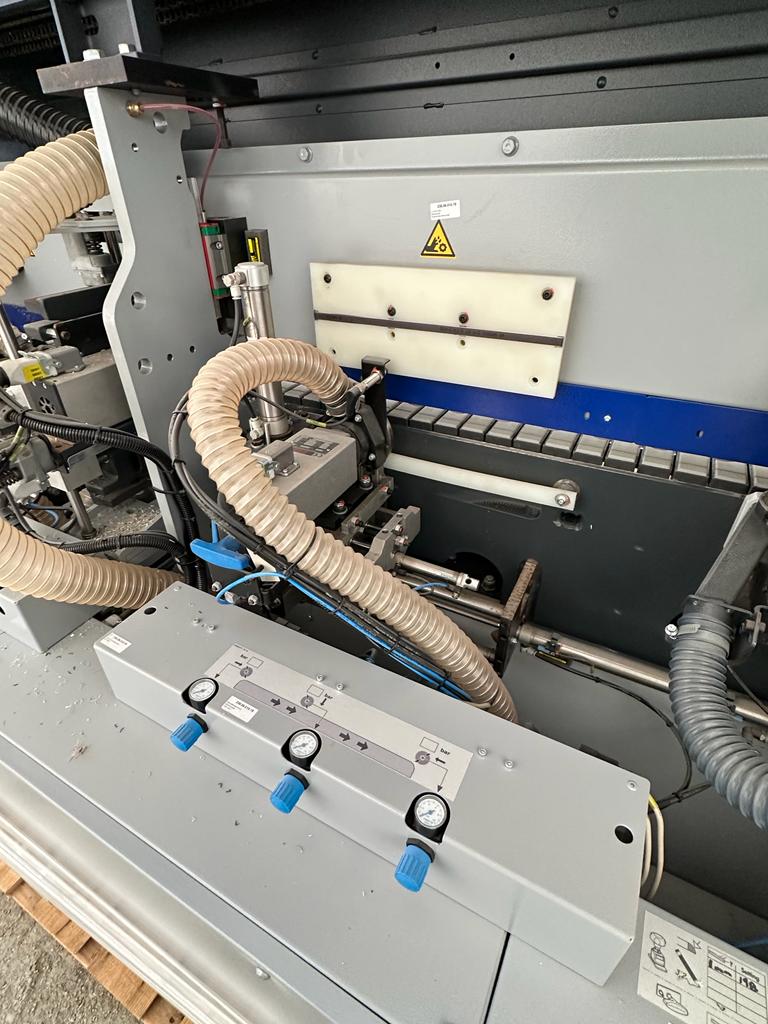

Pneumatic controlled, Teflon coated glue applicator unit
Guillotine scissors for tape coil with thickness between 0.4 - 3 mm
Upper and lower scraping units for processing 2 and 3 mm plastic edges
Upper and lower buffing units
Pneumatic/mechanical infeed block
Spraying unit for cleaning agent

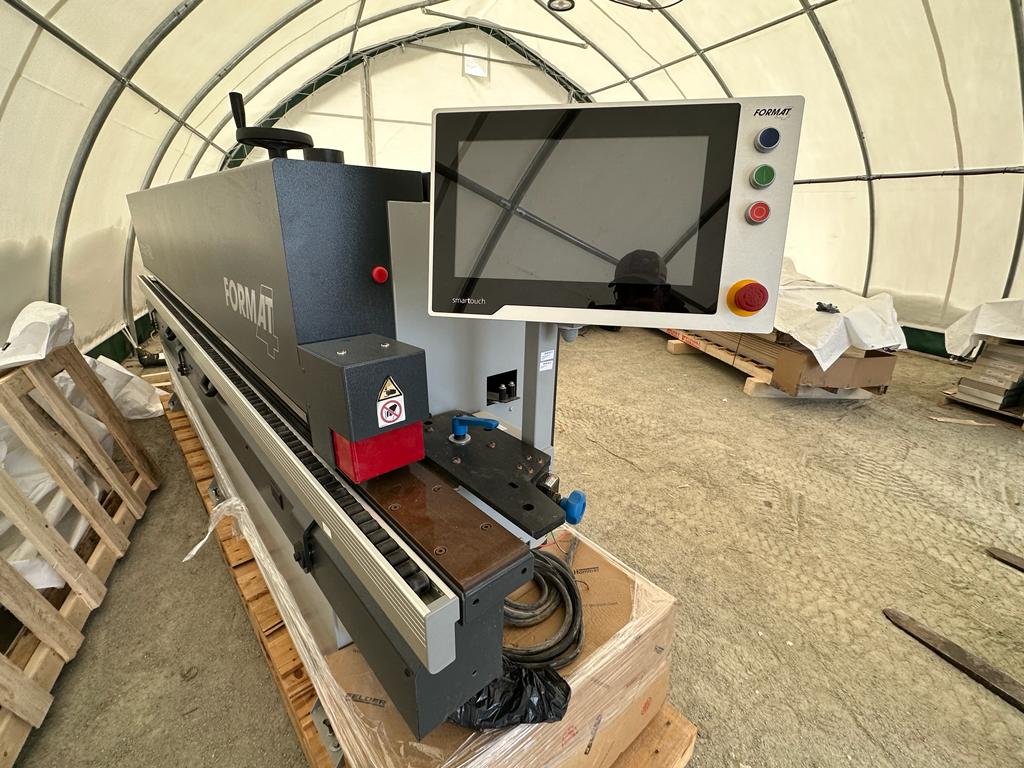

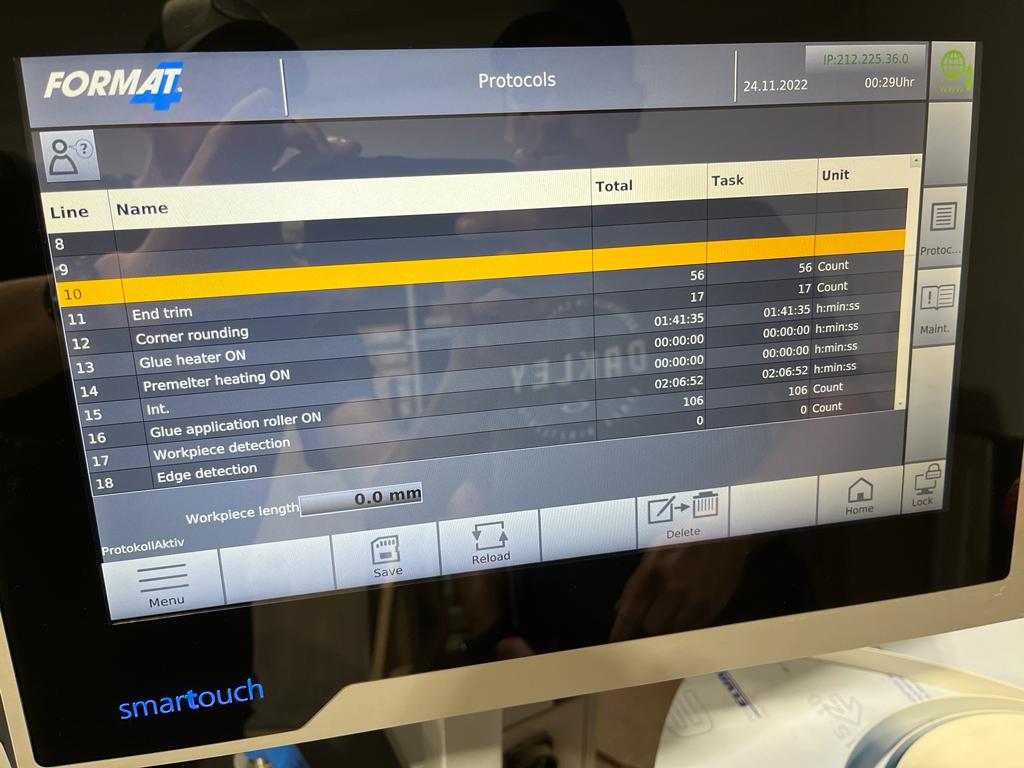

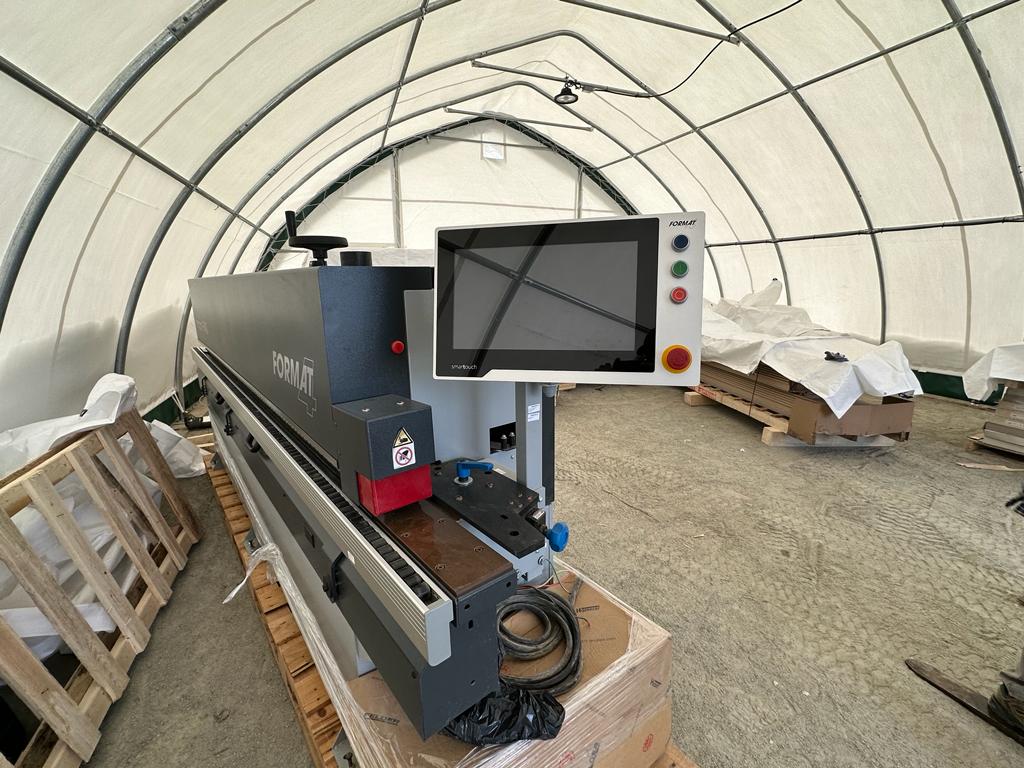

X-motion plus control with 15'' smartouch
Upper and lower multifunctional trimming units; each with 1 high frequency motor 0.75 KW (1HP), 12000 RPM
Multiple copy rollers for the processing of workpieces with cabinet hinges
Upper and lower glue scraping units
Approximate shipping dimensions: 166.5' x 61'' x 75''
Approximate shipping weight: 2,315 lbs (1,050 kg)

Please contact TCMI customer service for more information.

---
