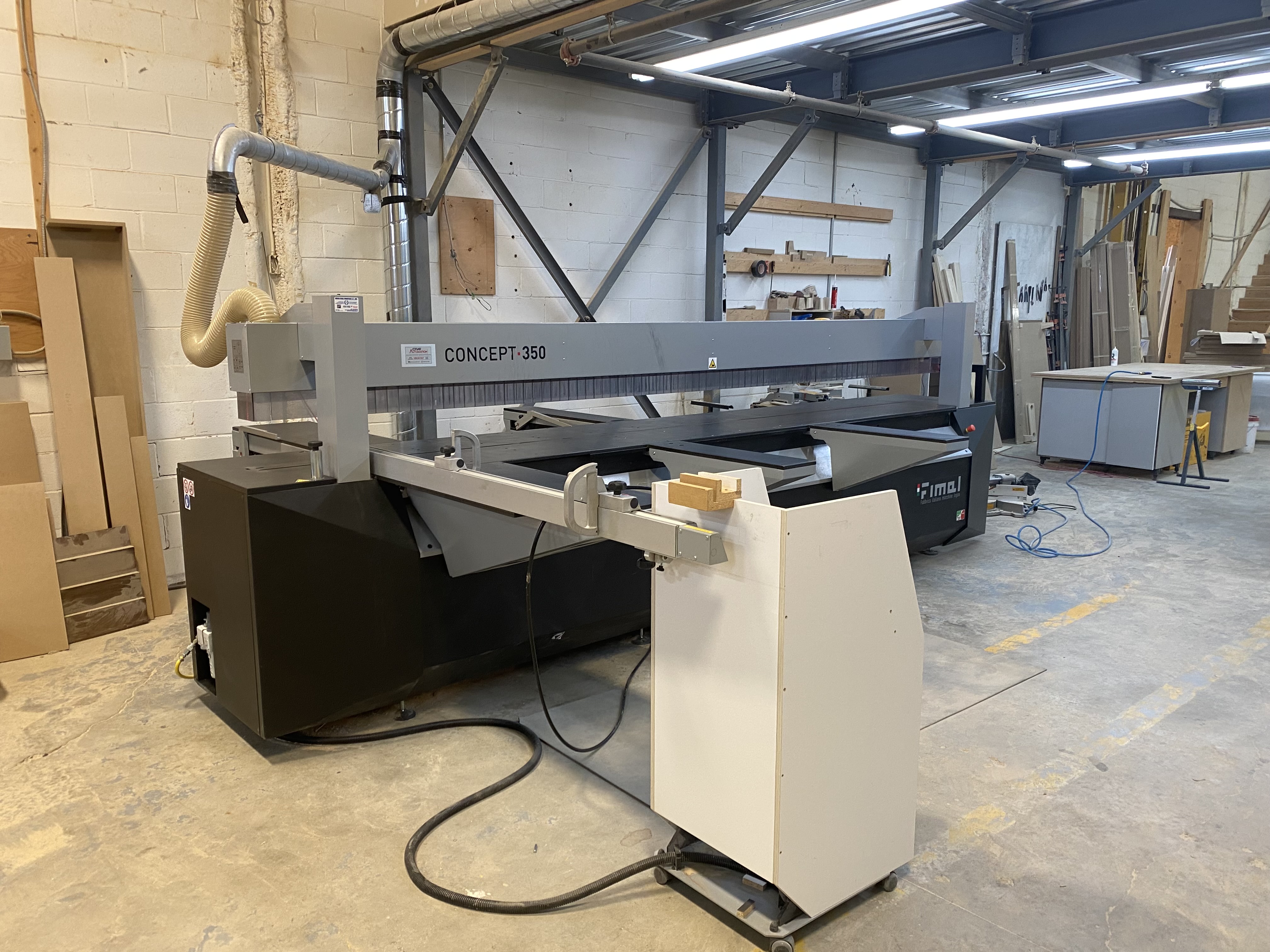

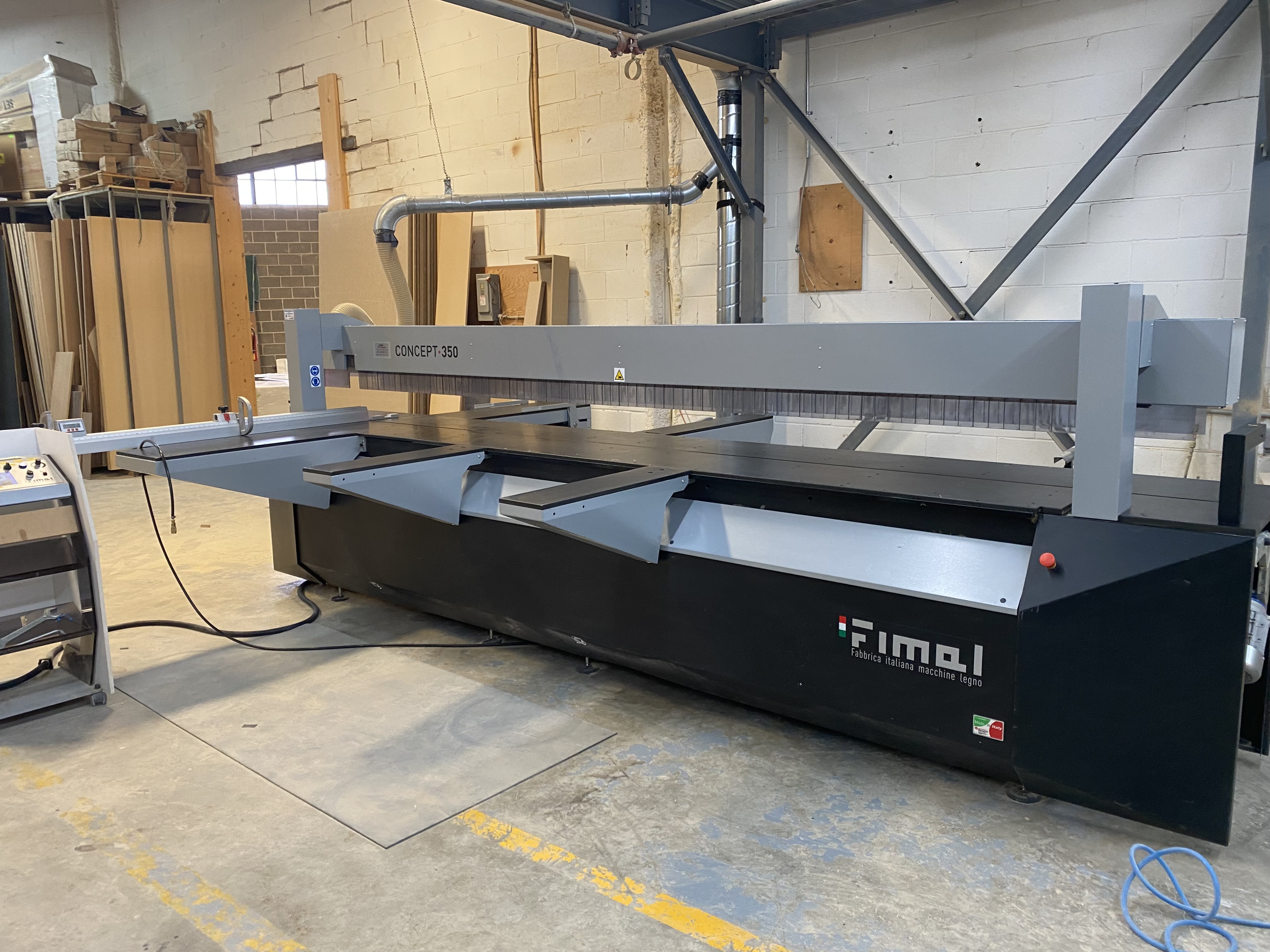

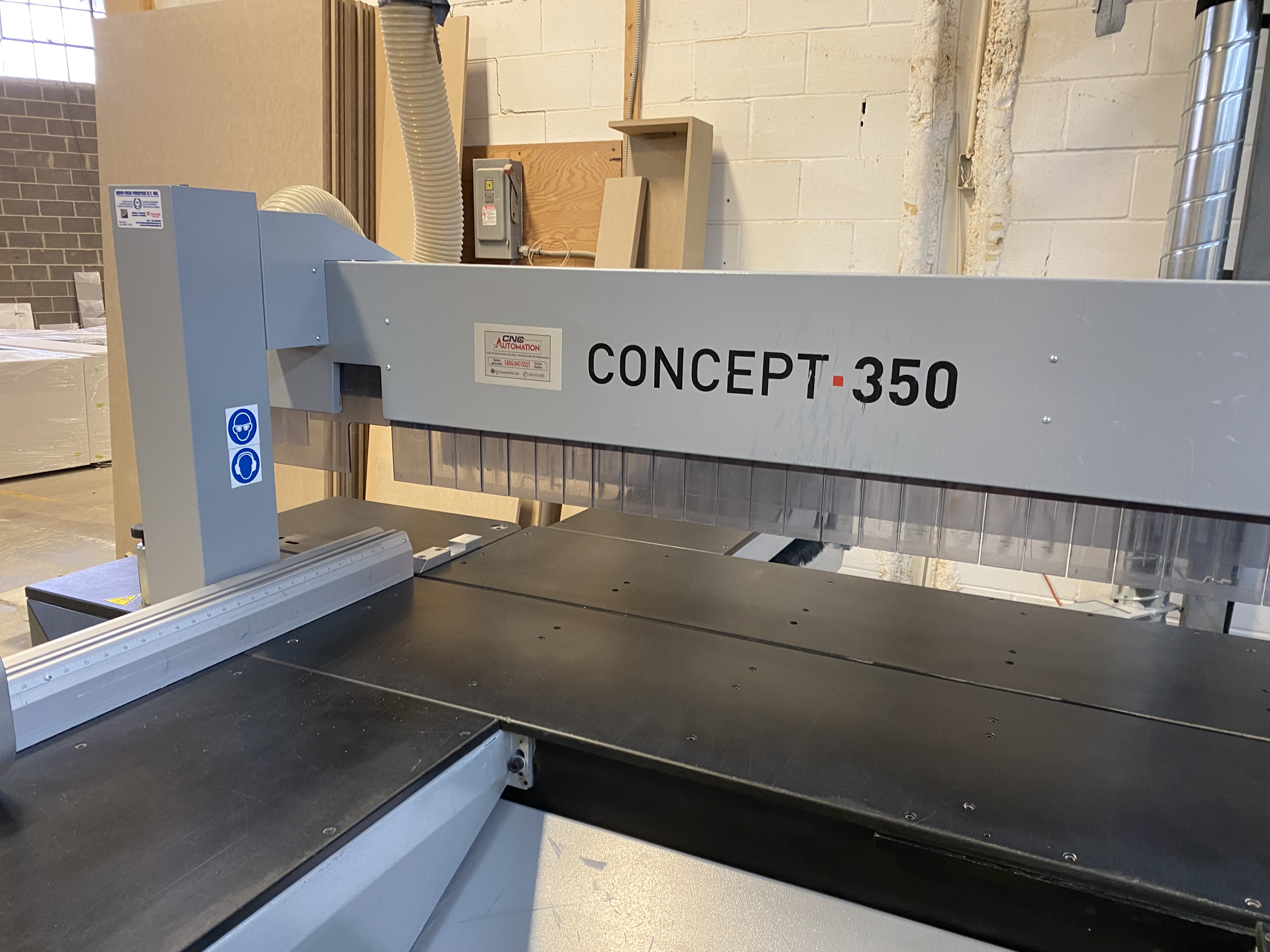

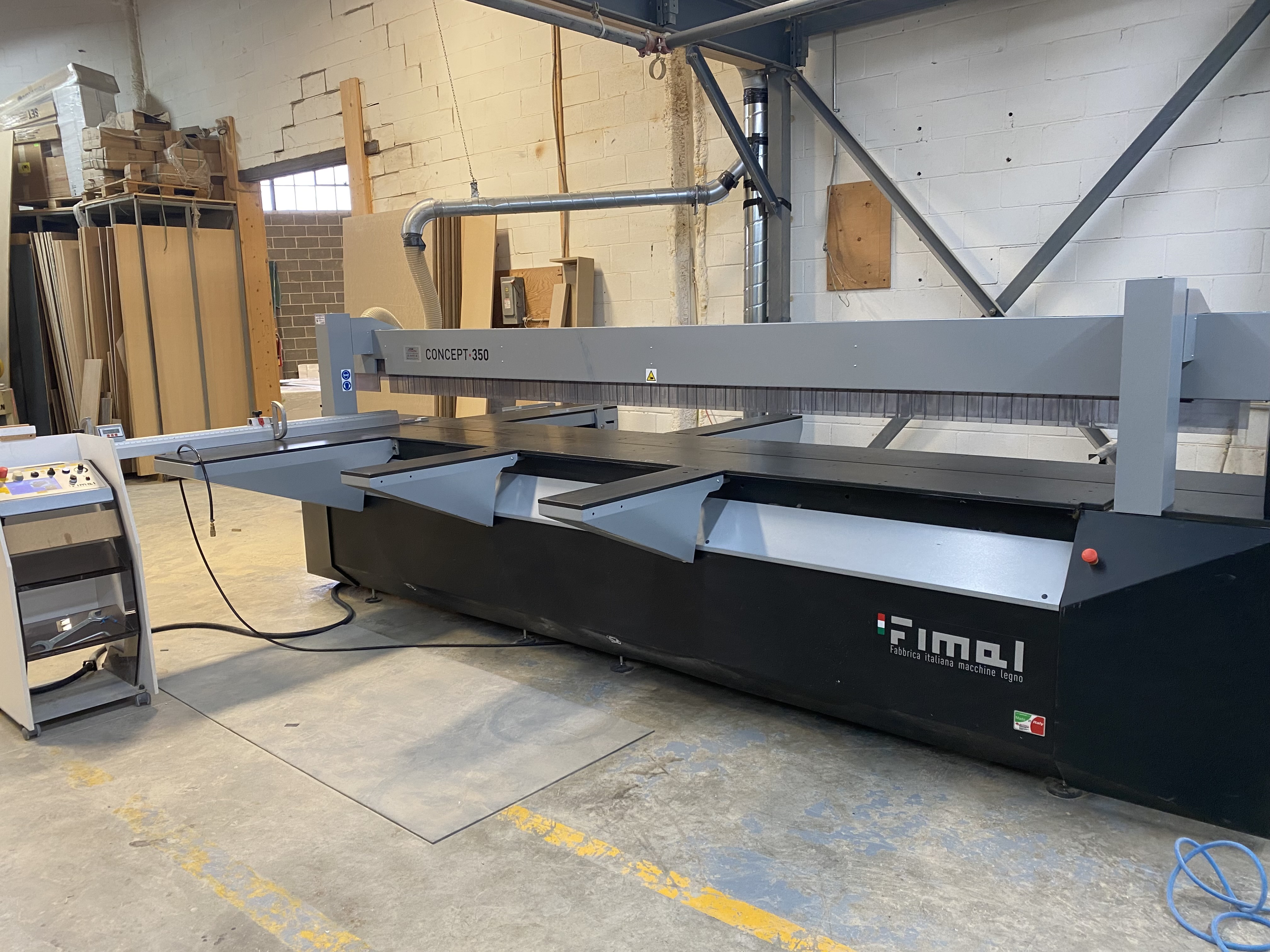

2017 Fimal Concept 350 3800 Beam Saw
No longer available
Specifications
| Manufacturer | Fimal |
| Model | Concept 350 3800 Beam Saw |
| Year | 2017 |
| Stock Number | 1579EZ |
| Voltage | 600V / 3Ph |
| Condition | Excellent |
Description
Fimal Concept 350 3800 - Features and Specifications:
- Squaring length: 3,800mm
- Blade diameter allowed: 350-300mm
- Inner hole blade: 30mm
- Blade projection @ 90°:
- 350mm: 100mm
- 300mm: 75mm
- Blade projection @ 45°:
- 350mm: 67mm
- 300mm: 45mm
- Blade rotation speed: 4,000 g/min
- Blade carriage speed with inverter: 40 mt/min
- Main motor power: 7.5 HP (5 kW)
- Extraction outlet: 120/100mm
- Extraction air volume: 1,800 m^3/h
- Extraction air speed: 25 m/sec
- Operating pressure: 7 bar
- Air consumption: 85 L/h
- Approximate shipping dimensions: 192'' x 112'' x 60'' (4,870 x 2,840 x 1,530mm)
- Approximate shipping weight: 3,329 lbs (1,510 kg)
Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |
Please contact TCMI customer service for more information.
---
** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
