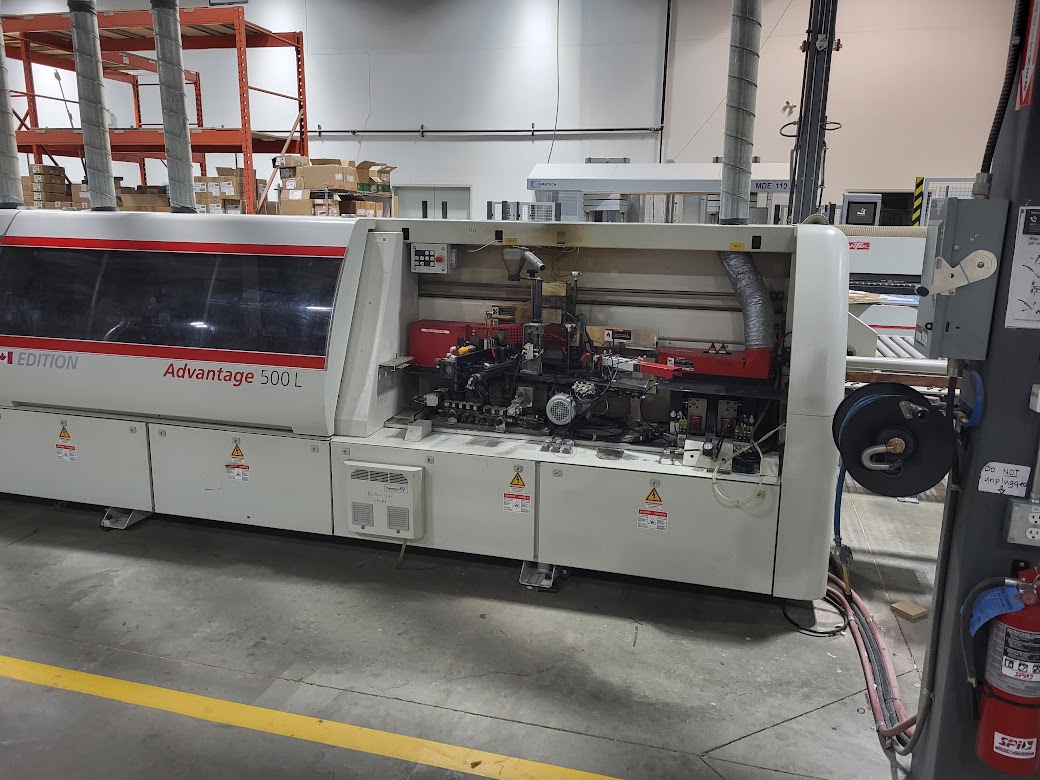

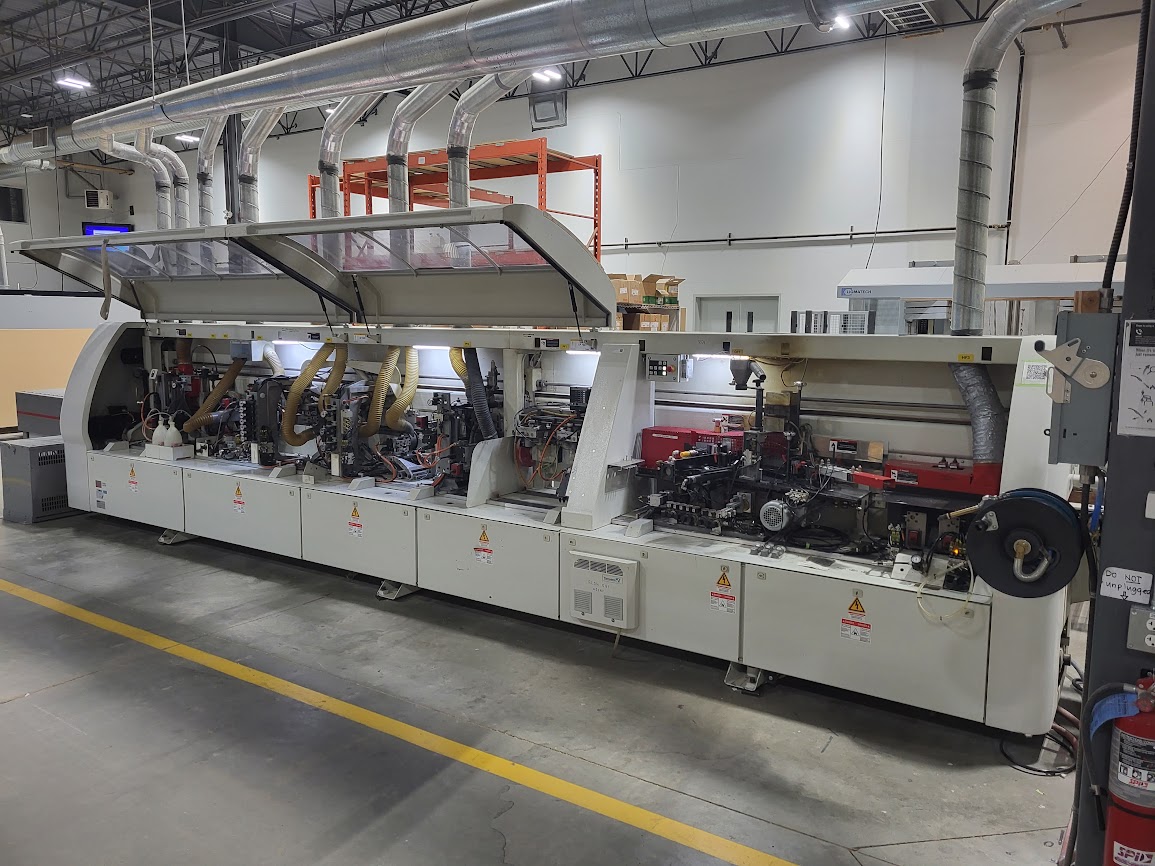

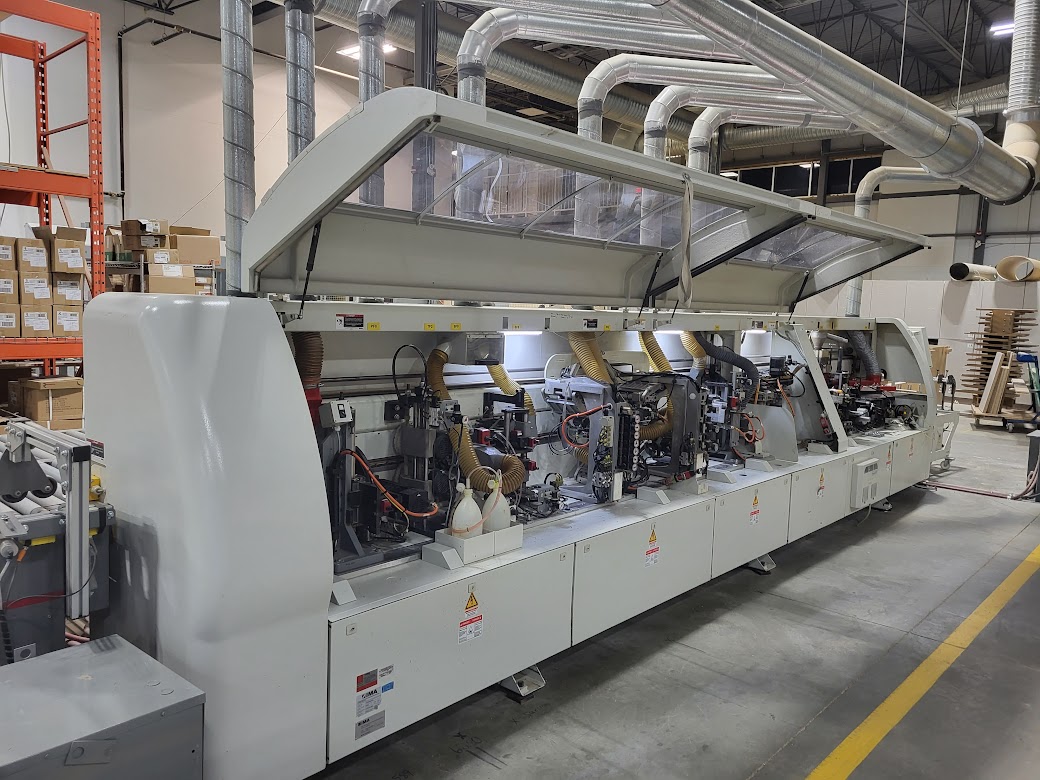

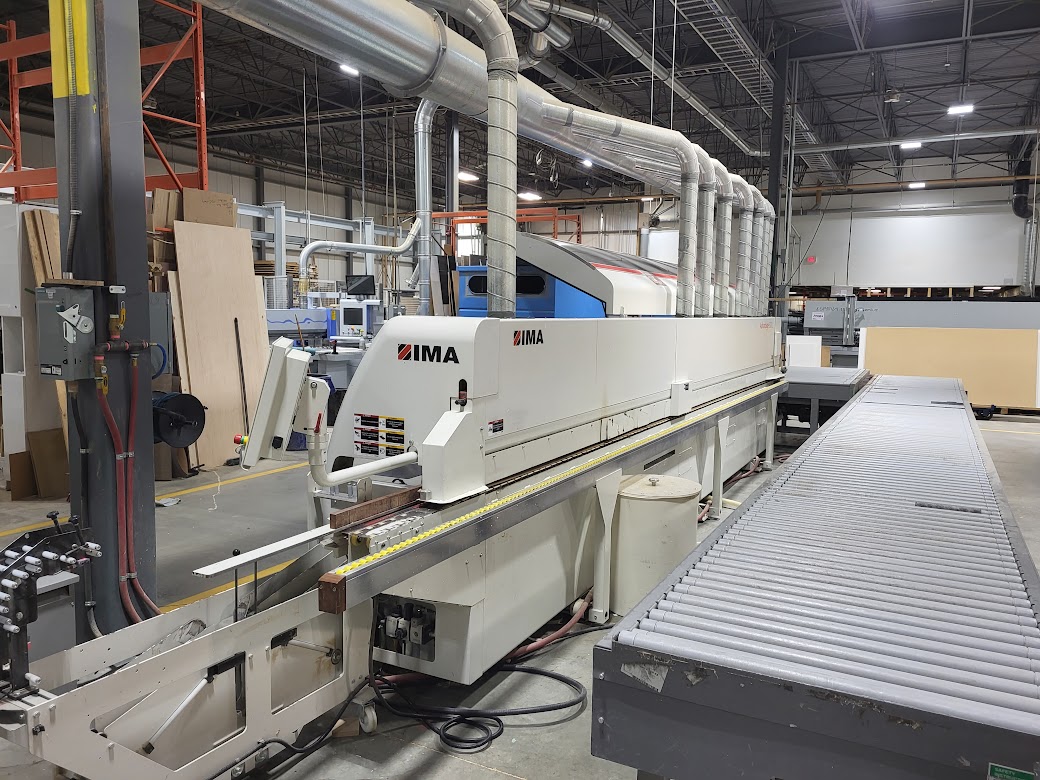

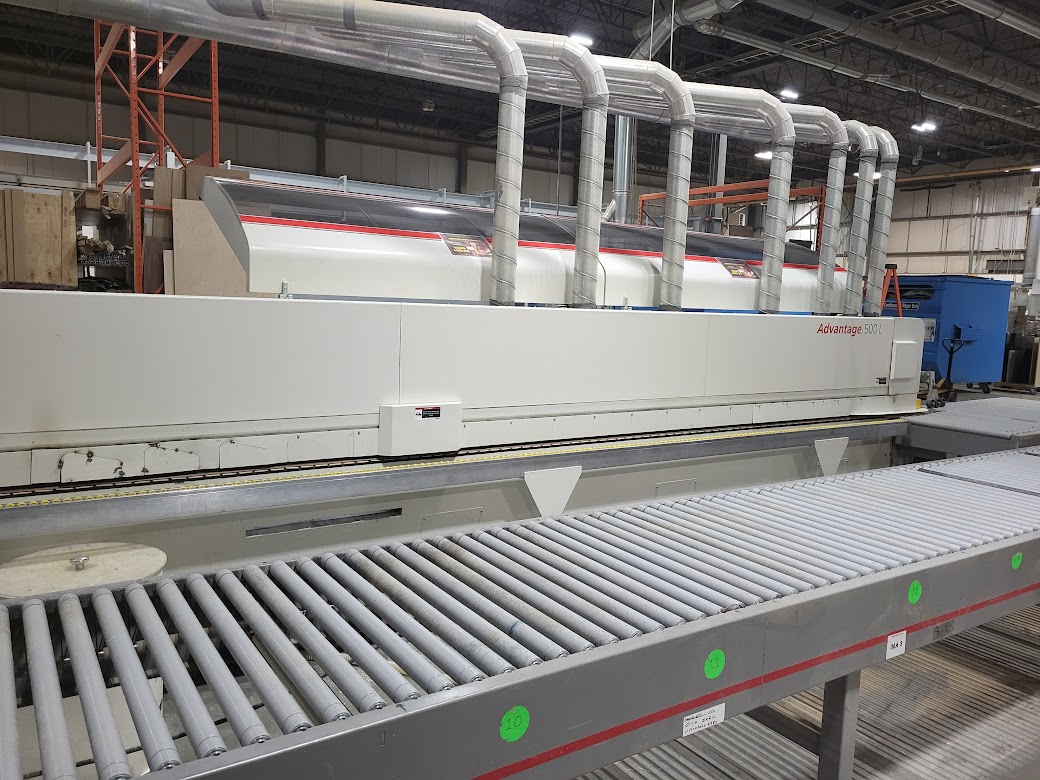

2014 Ima Advantage 500L Edgebander

orCall (905)-451-8430

Specifications

ManufacturerIma
ModelAdvantage 500L Edgebander
Year2014
Stock Number1539GB
Voltage480V / 60Hz / 3Ph
ConditionExcellent

Description

IMA’s edge banding machines perform highly professional edge processing on an industrial scale. IMA edgebanders handle all aspects of edge processing, with additional units for grooving or smoothing operations.


Conveyor not included.


Features and Specifications:

  • Edges (band in rolls) thickness: min 0.3 mm / max 3 mm
  • Edges thickness in strips / lippings: min 3 mm / max 12 mm
  • Panel thickness: min 8 mm / max 60 mm
  • Feeding speed (adjustable) 4- 20 m/min
  • Pre-milling unit
  • Corner rounding unit
  • Buffing unit
  • Milling grooving unit
  • Profile edge scraping unit
  • Rough trimming unit
  • End trimming (snipping) unit
  • Spray station to prevent Glue from sticking

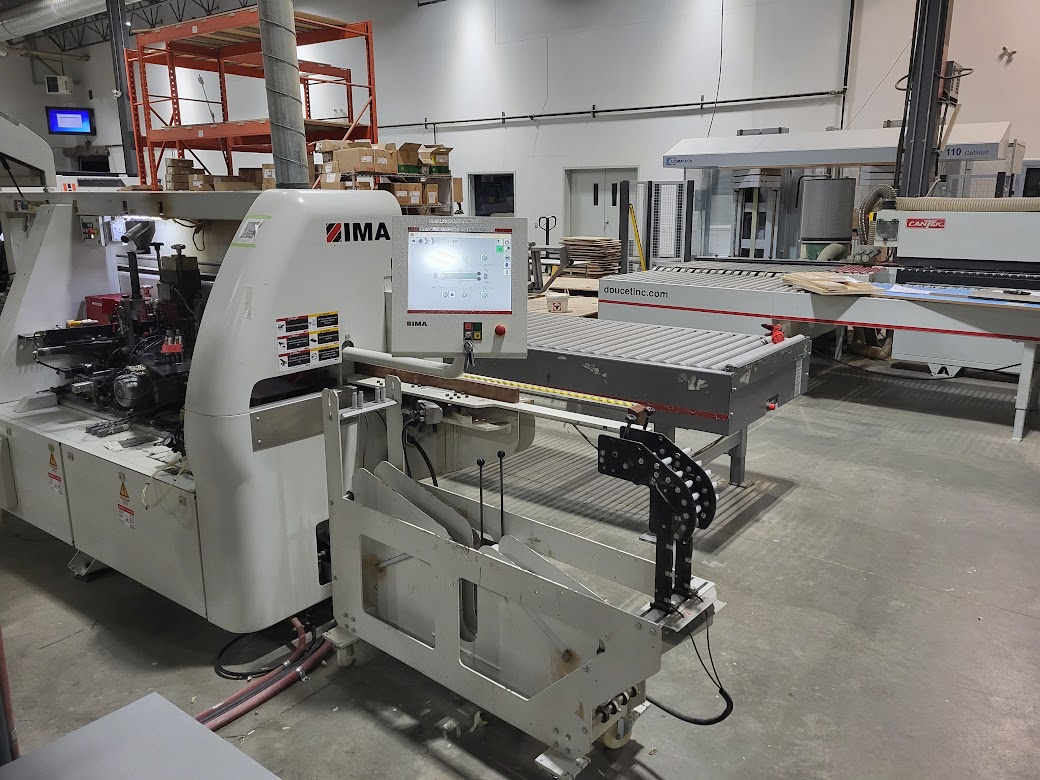

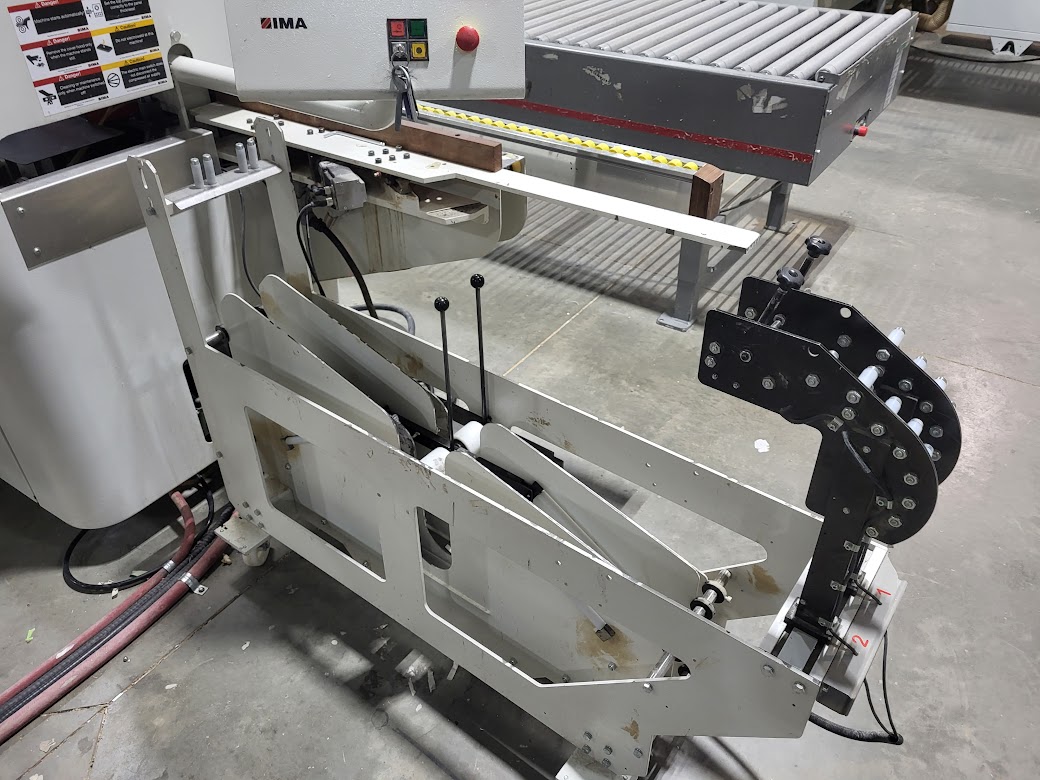

  • Automatic infeed fence and stop fence
  • Infrared preheat

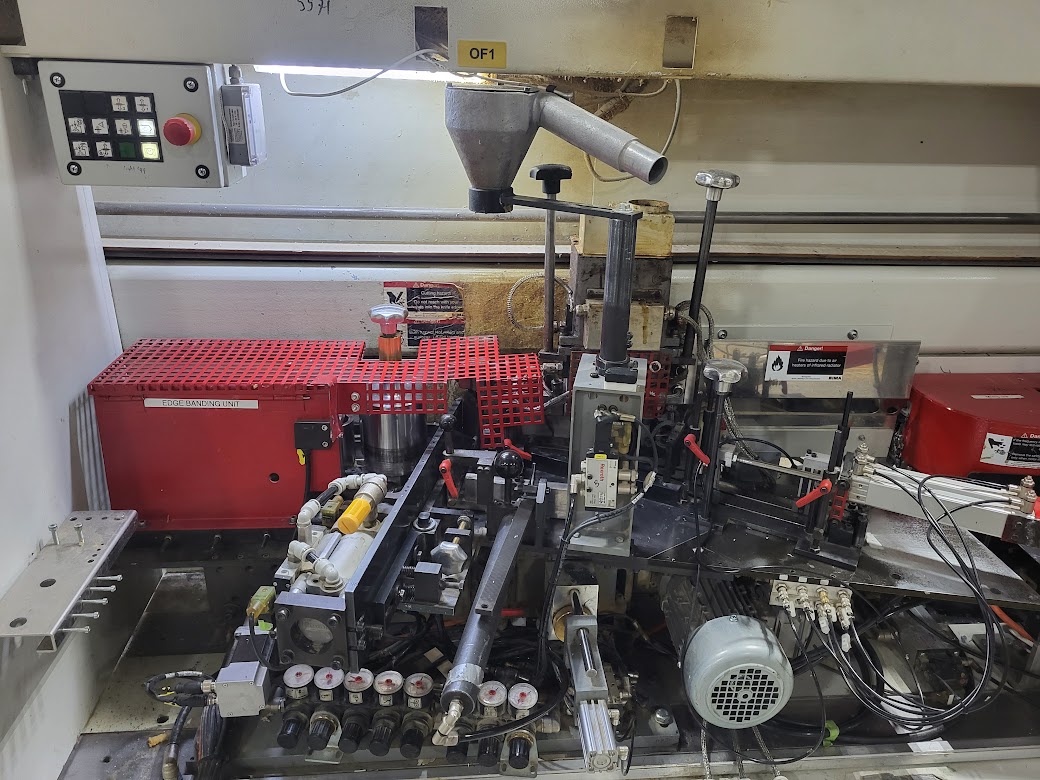

  • Glue station comes with 2 pots (both need cleaning)
  • Glue cleaning spray station
  • Flat scraper
  • Radius scraper
  • Approximate shipping dimensions: 145'' x 48'' x 60''
  • Approximate shipping weight: 8,500 lbs (3,856 kg)



Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |


Please contact TCMI customer service for more information.


---


** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
