2020 Fimal P350NX Sliding Table Saw

The Fimal P350NX Sliding Table Saw's sliding system adopted on the carriage, with large diameter bearings that roll along tempered and ground prismatic tracks, provides excellent smoothness and straight cutting. The tracks are fixed to the carriage and to the sub-carriage by mechanical pressure, avoiding any risk of glue losing its adhesion through age.

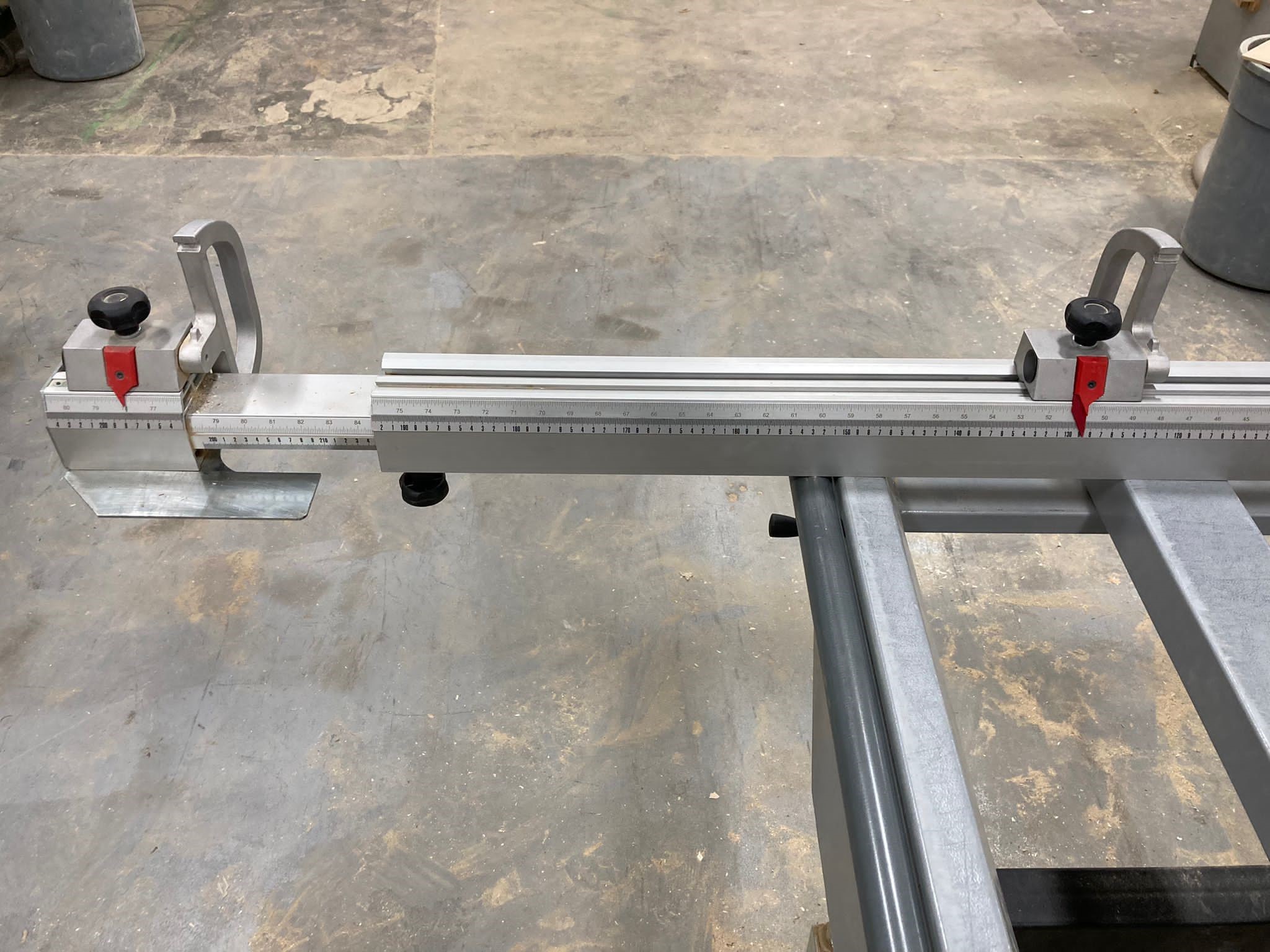

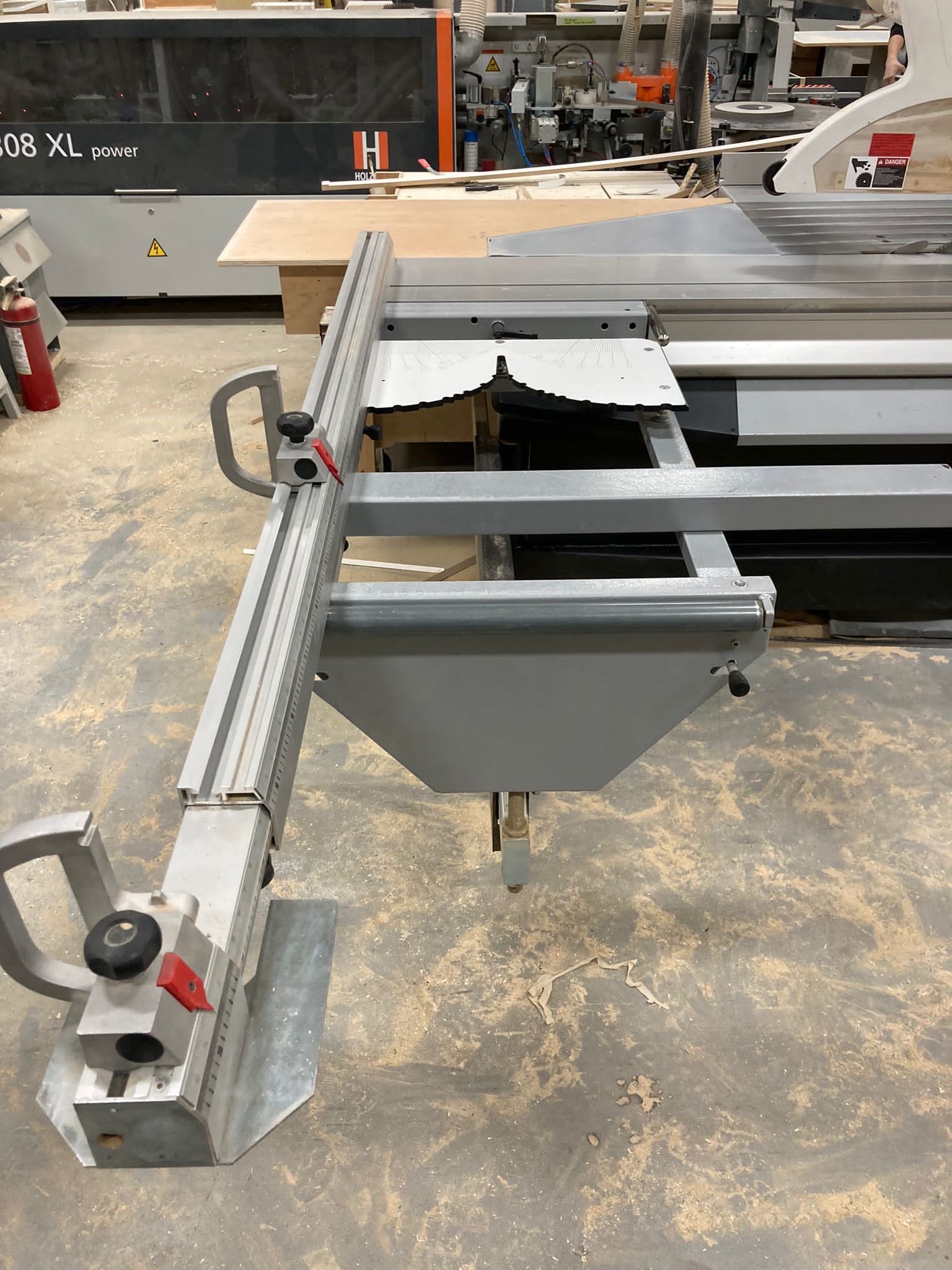

The P350NX Sliding Table Saw's extension table fence can be quickly set from +45° to -45° with fixed references at each 5° and at 22°30. The special small table allows to keep the distance between the stop and and the saw blade unchanged, while changing the tilting.

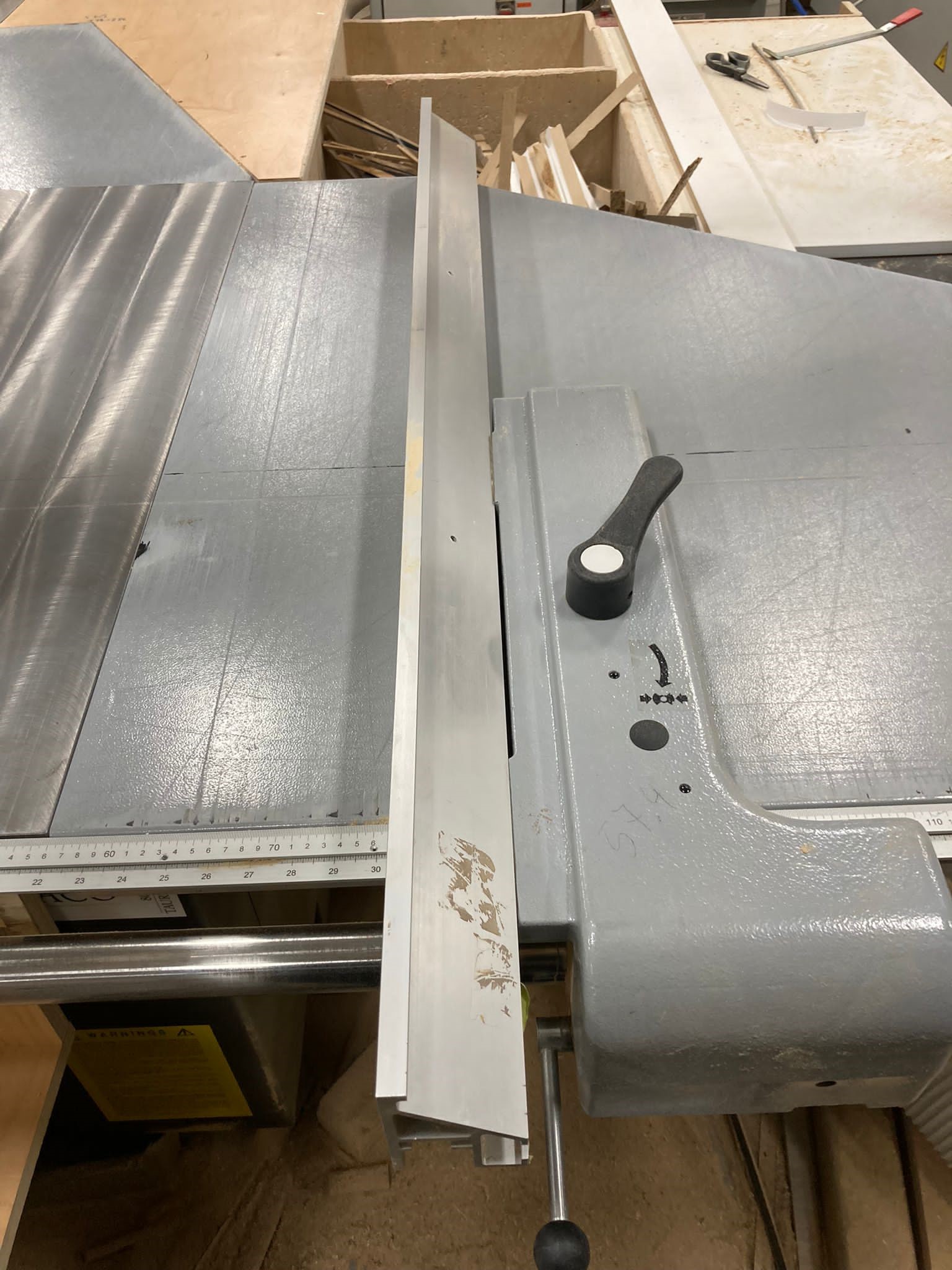

The P350NX Sliding Table Saw's saw guide, with micrometric adjustment, slides along a ground steel bar on P350Nx models. The guides can easily be excluded from the work table by turning them if necessary for sawing large panels.

Features and Specs:

• Fixed table dimensions/height: 1000x560 mm
• Carriage dimensions/stroke: 3200x350 mm/3350 mm
• Cutting width: 1300 mm
• Cutting height at 90-45 degrees: 118 mm
• Max diameter saw blade: 350 mm
• Motor power: 7.5 km (10HP)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.
