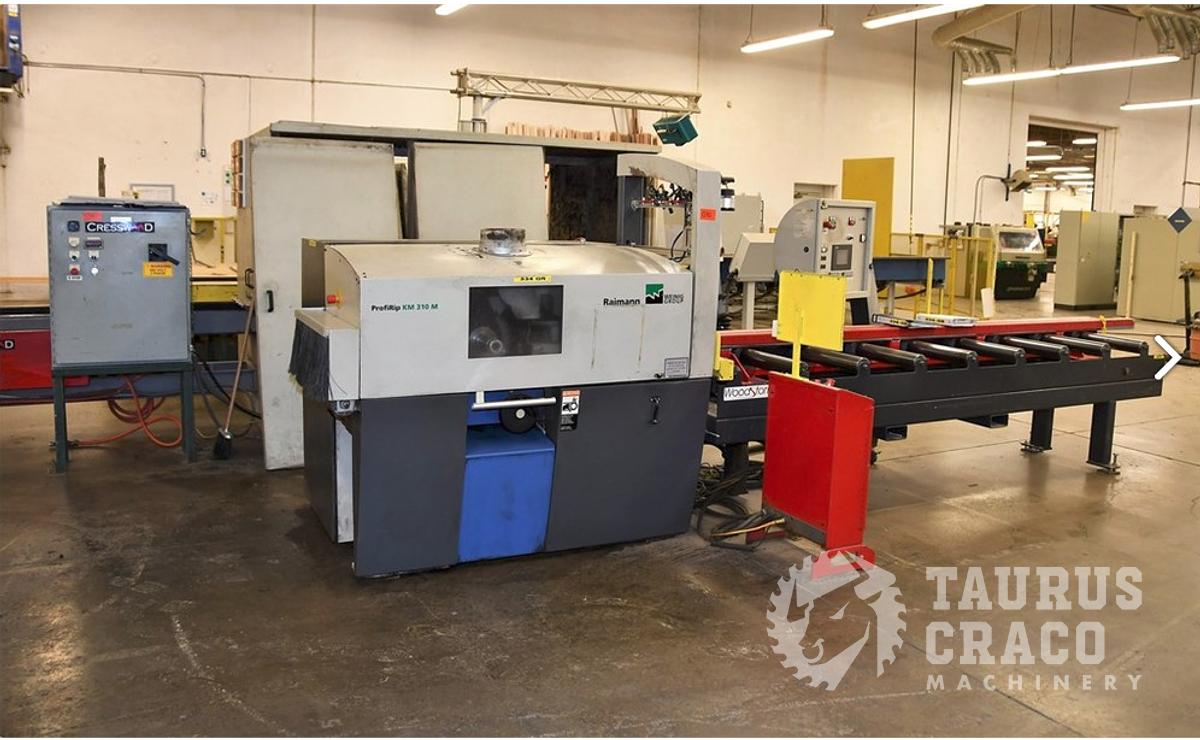

2003 Weinig Raimann ProfiRip KM 310 M Multi-Blade Rip Saw (w/ Woodstorm Infeed)

Sold

Specifications

ManufacturerWeinig Raimann
ModelProfiRip KM 310 M Multi-Blade Rip Saw (w/ Woodstorm Infeed)
Year2003
Stock Number1529GB
Voltage460V / 60Hz /3PH
ConditionGreat

Description

An extremely strong player as an optimizing rip saw. Reliable continuous performance with superior cutting quality. Simple to use and flexible ripping for today’s just-in-time production requirements.


Features and Specifications

  • Max cutting width: 310mm
  • Chain width: 340mm
  • Max. movable saw blades: 2
  • Max. cutting height with pressure shoe: 90mm
  • Max. cutting height without pressure shoe: 105mm
  • Min. material length with pressure shoe: 650mm (400mm)
  • Saw blade diameter, min/max.: 250mm / 360mm
  • Machine weight: 2080kg
  • Machine dimensions: 1.9 L x 1.5 W x 1.9 H meters
  • Working height: 850mm
  • Diameter of dust port: 250mm
  • Required suction speed: 30m/sec
  • Required suction volume: 5,300 m3/h
  • Approximate shipping dimensions: 75'' L x 60'' W x 75'' H
  • Approximate shipping weight: 4,590 lbs (2,080 kg)


Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |


Please contact TCMI customer service for more information.


---


** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
