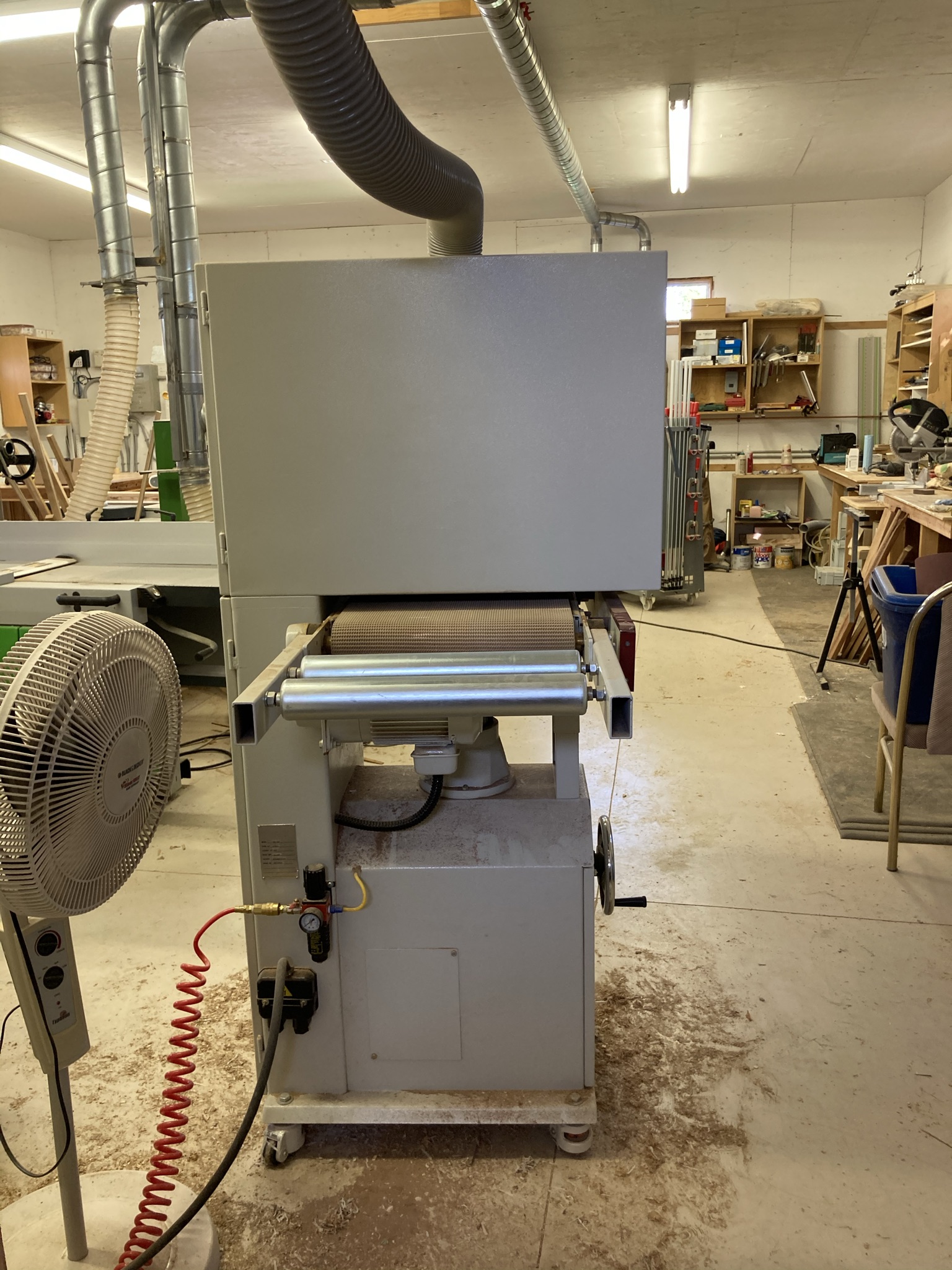

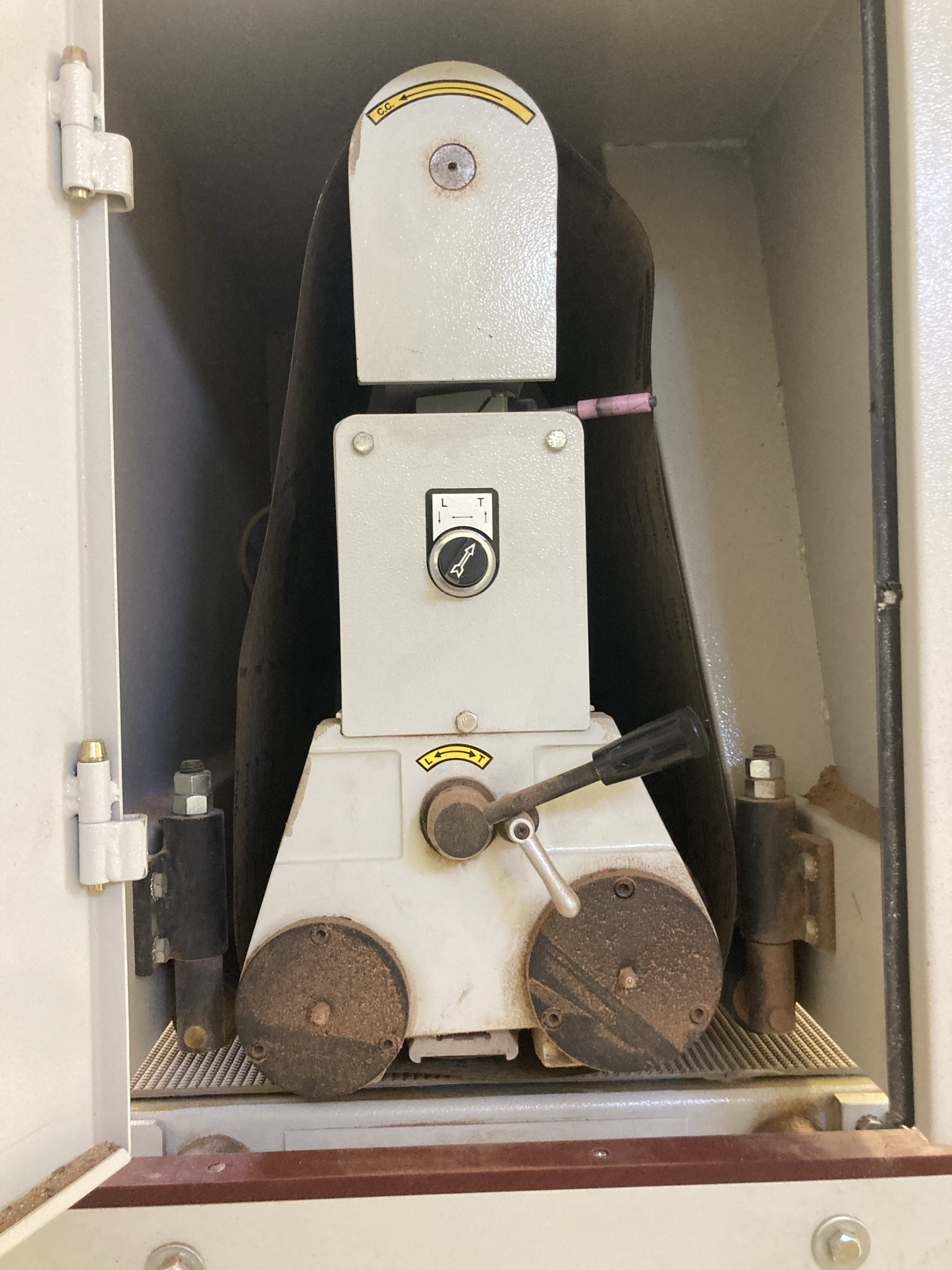

2007 North State DW-16P Open End Wide Belt Sander

Great sanding performance at an economical price with this single head, open end sander. Centralized control panel provides operational convenience. A body activated emergency stop bar is provided at the front of the conveyor table. If an emergency condition occurs, simply touch the emergency stop bar for immediate stop of all motions. The machine frame is fabricated from heavy gauge steel plate for maximum rigidity and stability. Sanding thickness setting is made by turning a large hand wheel. Extra large quill supports conveyor table firmly. Side extension bar makes the machine ideal for sanding large panels. The infeed roller equipped at the front of the conveyor table provides convenient work piece infeed.

Features and Specs:

·       Single head

·       Max working width – 16”(406mm)

·       Min working width – 14”(350mm)

·       Max working height – 5 ¼”(130mm)

·       Main motor – 5hp

·       Feed motor – 1/4hp

·       Feed speed – 15/32.5 FPM

·       Dust collection – single outlet, 4”(100mm) dia

·       Gross weight – 990lbs(450kg)
