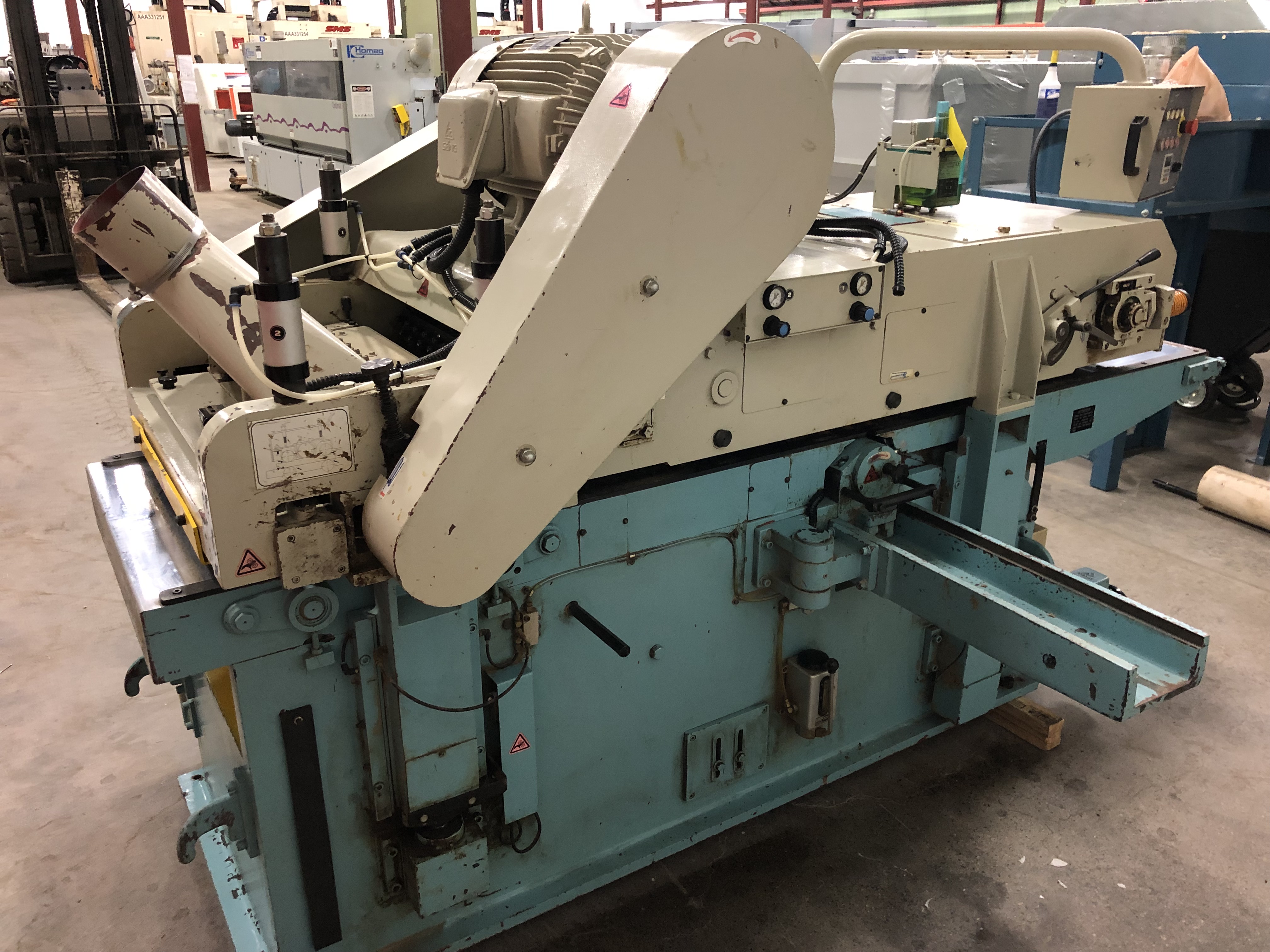

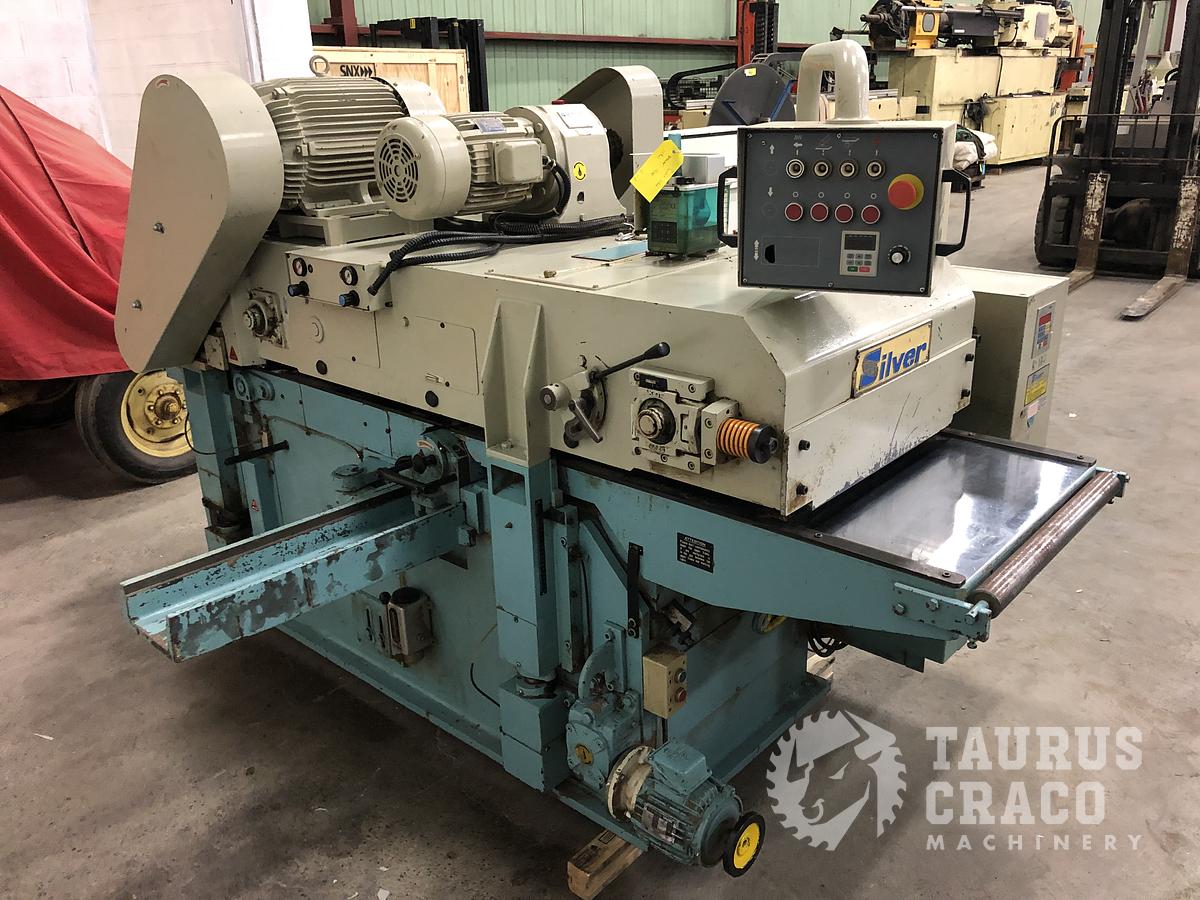

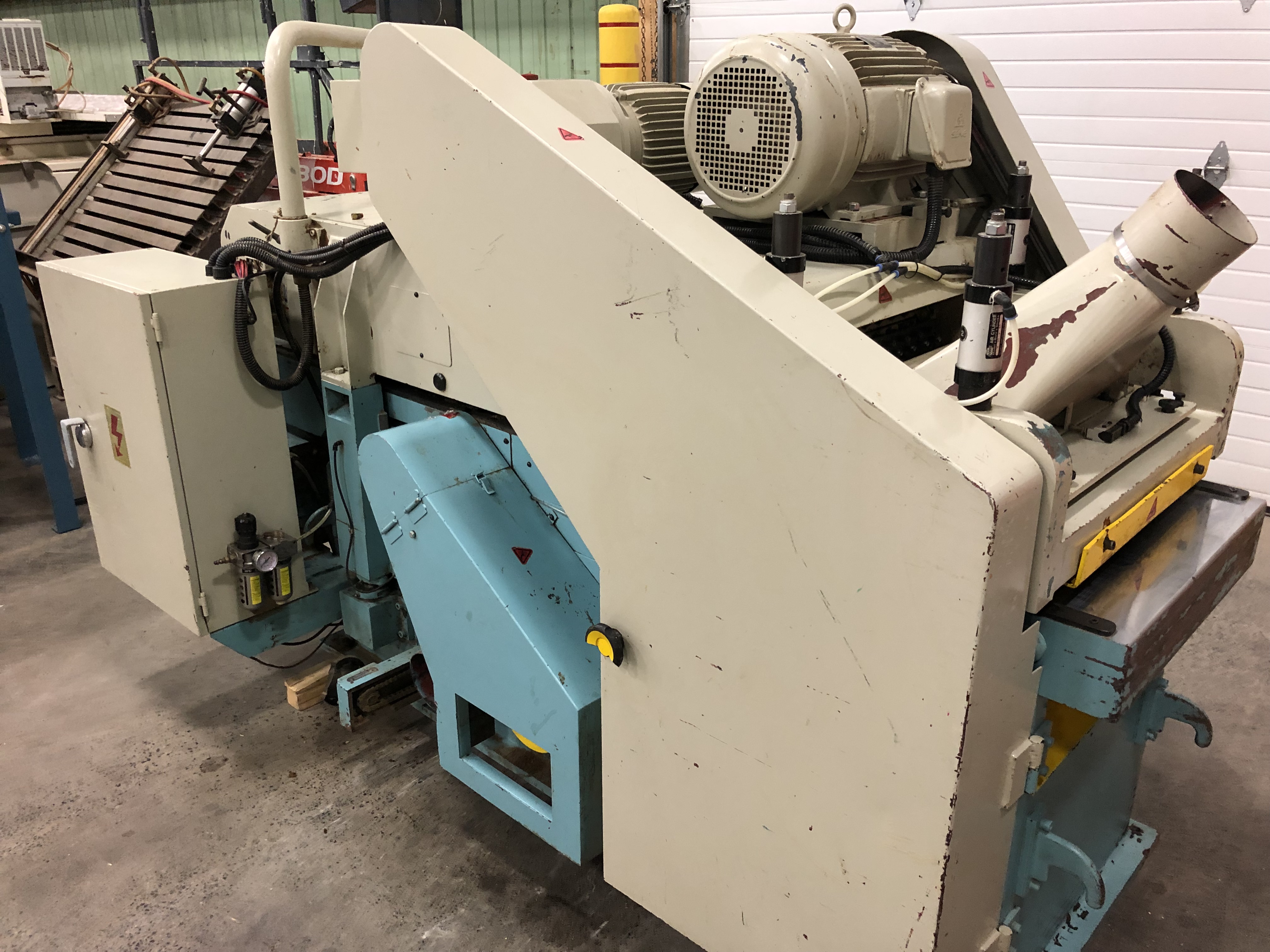

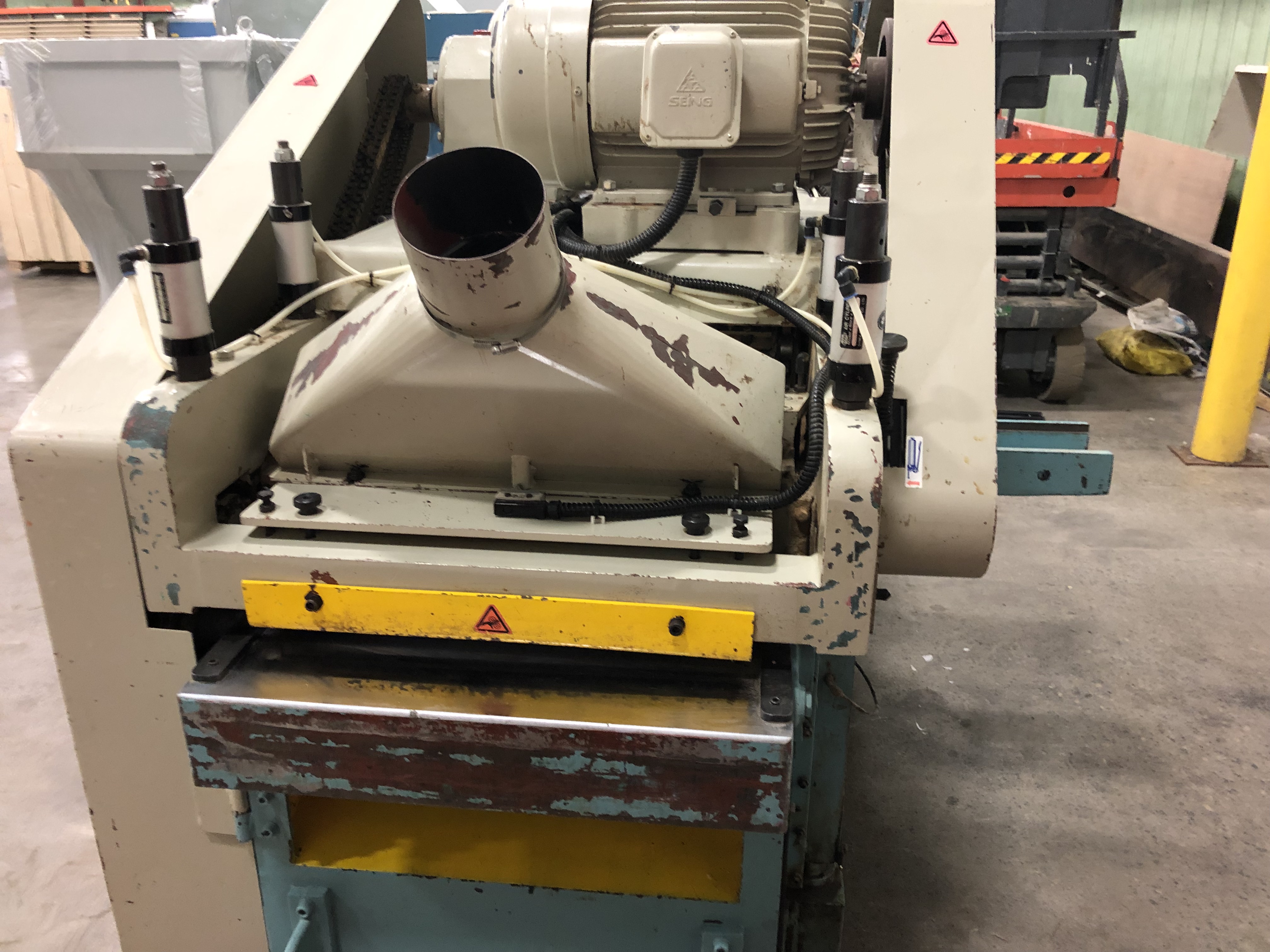

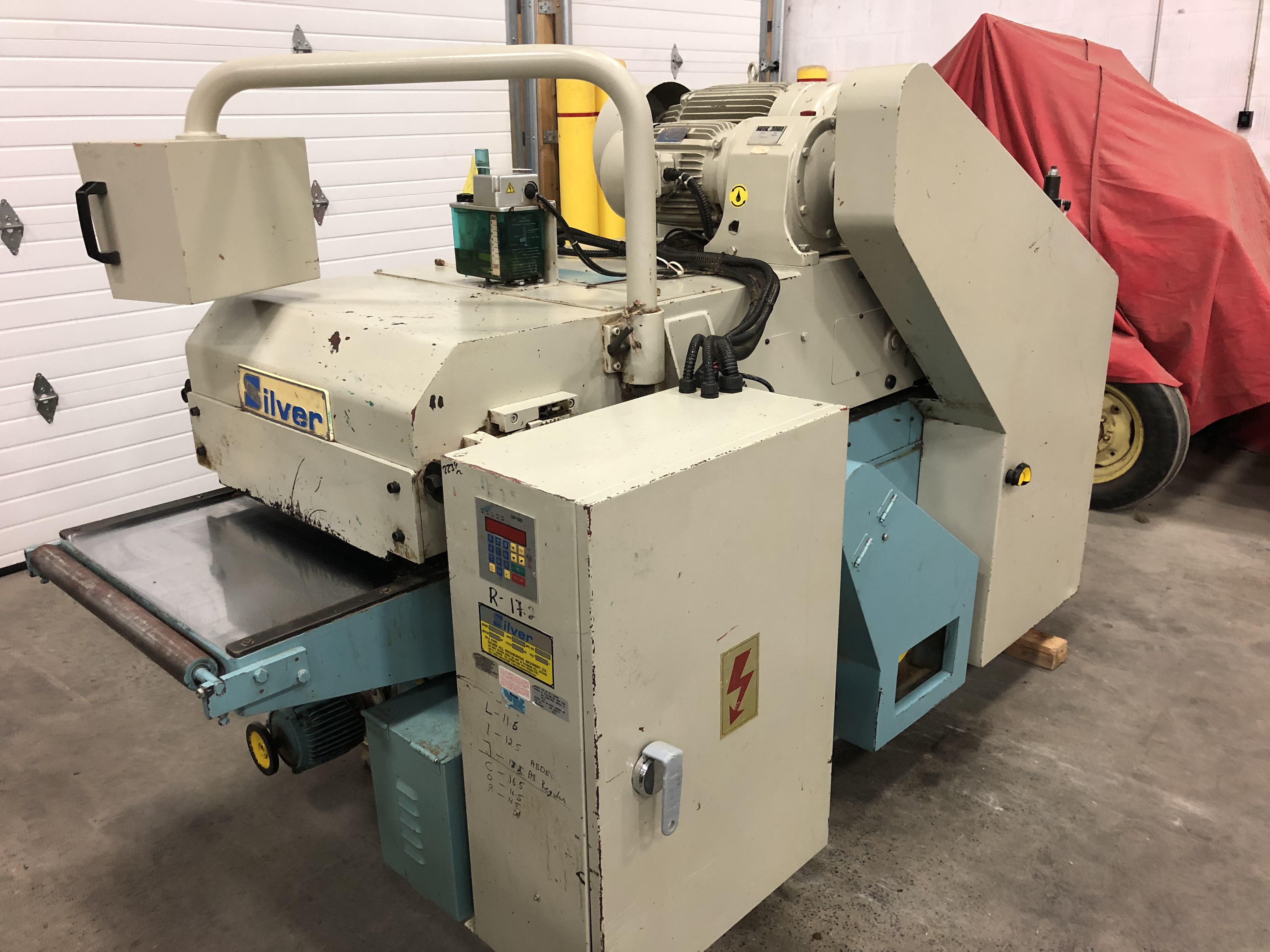

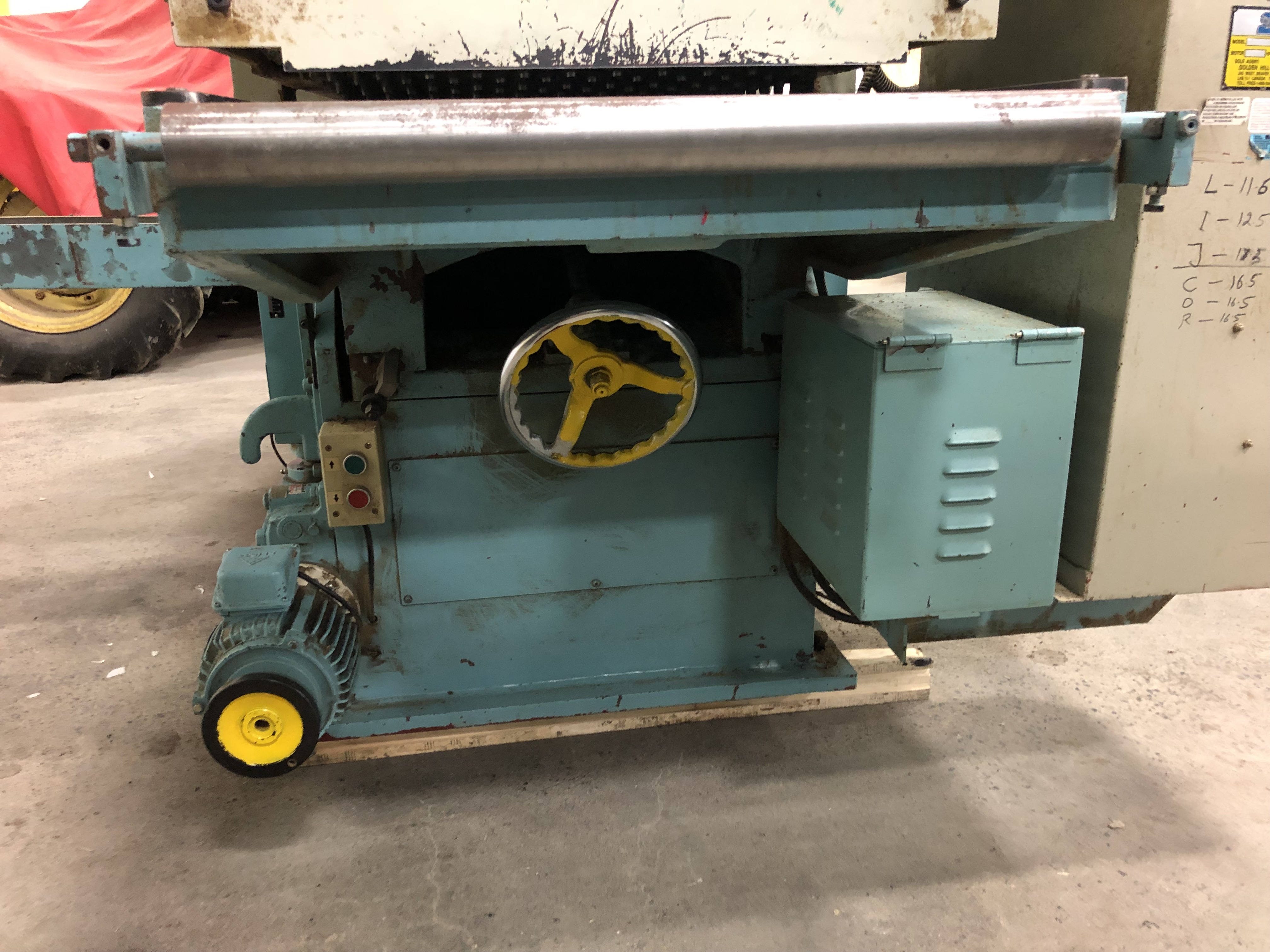

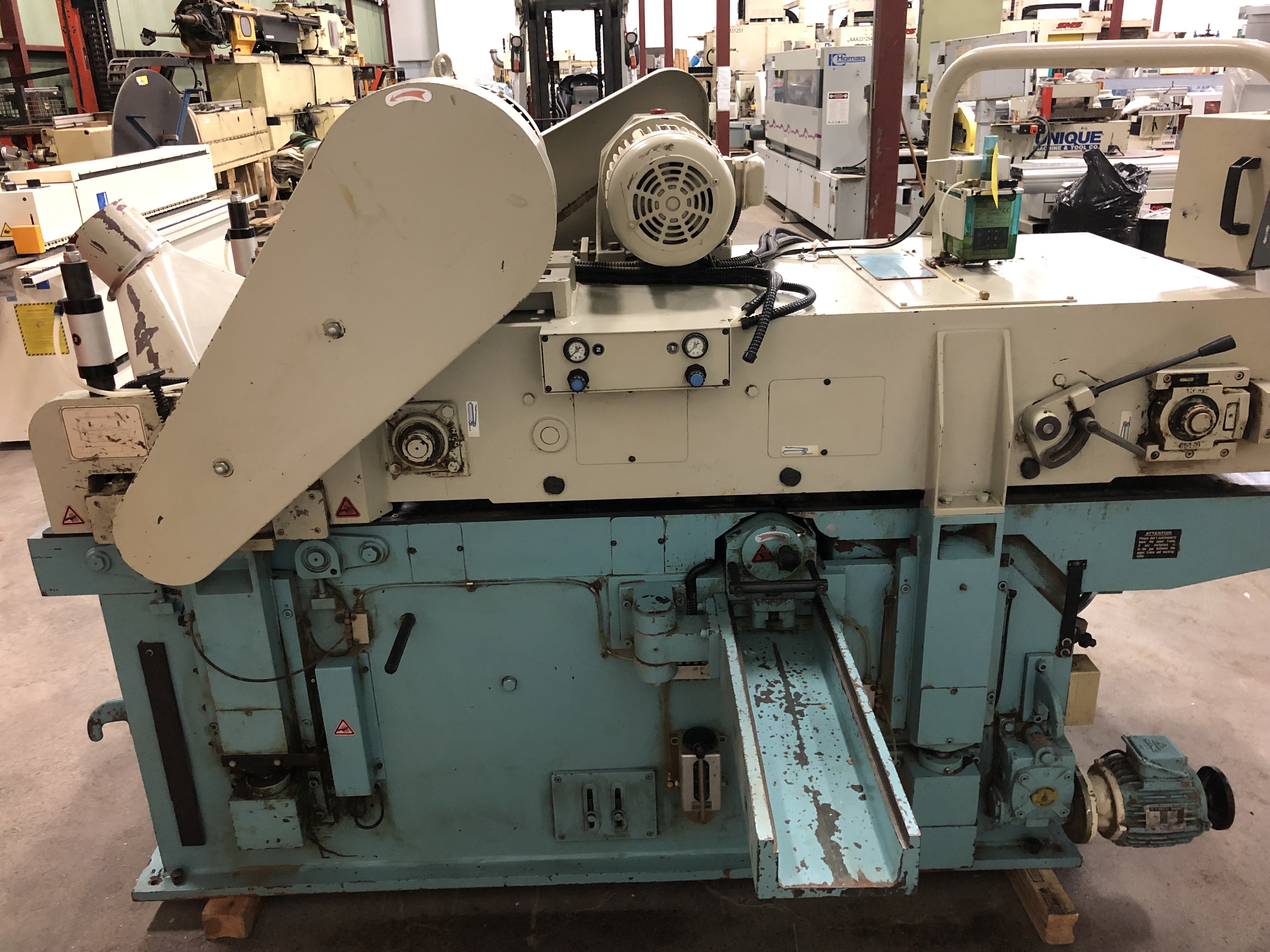

Silver SK-610-GH Double Surface Planer

The heavy cast-iron machine frame structure is computer-design to provide optimal vibration absorption, the precise plane surface processing ensure the precision and long life of the machine. Tool replacement and setting are very convenient which shorten the down time to the least limit and upgrade the work efficiency. Use of pressure pin caterpillar to feed workpiece through give you smooth and stable workpiece to achieve perfect finish quality. Feed speed is controlled by a frequency inverter, allowing for selecting desired feed speed to accurately meet workpiece material. This machine is equipped with anti-overload device to protect feeding system. It has a conveying caterpillar chain tension auto-adjustment device to avoid damage of chains from tension tightness that is not enough while in processing. The 3 sets of table roller reduce the friction between workpiece and table, providing less wear when working hard and abrasive timbers. Switches and mechanical adjustment of this machine are very handy for ease of operation.

Features and Specifications:

• Maximum working width: 15-600mm (24”)
• Maximum working height: 15-150mm (6")
• Upper spindle power: 25 HP
• Lower spindle power: 20 HP
• Feeding power: 5 HP
• Elevation power: 1 HP
• Feeding speed: 10-40 m/min
• Approximate shipping dimensions: 107'' x 54'' x 70''

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
