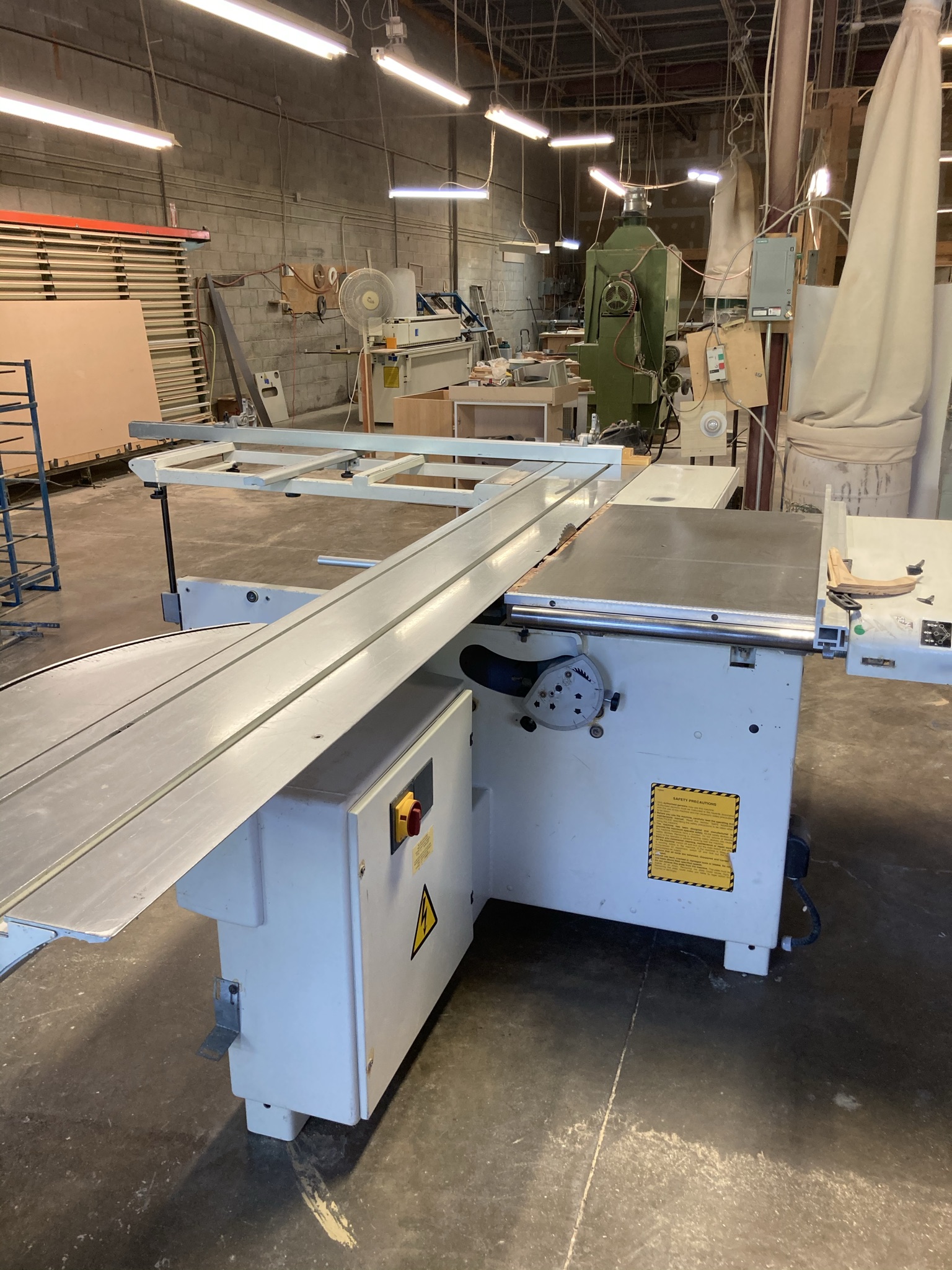

2001 SCM SI 350n Sliding Table Saw

Sold

Specifications

ManufacturerSCM
ModelSI 350n Sliding Table Saw
Year2001
Stock Number1497GB
Voltage600V 60Hz 3PH
Condition RatingGood

Description

Great Find! Well maintained 10' sliding table saw with plenty of life left. Saw was in use a couple of weeks ago and is only being sold as the previous owner has decided to close up shop.


Features and Specifications:


  • SCM SI 350 N Sliding Table Saw
  • Main motor horsepower 9 HP
  • Scoring motor horsepower 1 HP
  • Fixed table size 41” x 25”
  • Height of worktable 34.5”
  • Rip capacity 1270 mm (51”)
  • Max. length of crosscut with scoring 3200 mm (126”)
  • Main blade diameter/arbor 350 mm/1”
  • Scoring blade diameter/ arbor 120 mm/3/4″”
  • Arbor speed – main/scoring 4,000/8,500 RPM
  • Dust outlets – main/overarm guard 120 mm/100 mm (5”/4”)
  • Depth of cut – 0 degrees/45 degrees 118 mm/81 mm (4.6”/3.1”)
  • Overall dimensions 279.5” x 157.5” x 44”
  • Crated dimensions – 2 pieces (machine/table) 7.4’ x 3.8’ x 3.7”/ 10.9’ x 1.5’ x 0.7’
  • Shipping weight – 2 pieces (machine/table) 1050 kg/180 kg (2,215 lbs/396 lbs)
  • Net weight 980 kg (2,160 lbs)
  • Electrical requirements 25 amps @ 230 volts, 3phase
  • Dust extraction 1100 CFM
  • Anodized aluminum sliding table with hardened steel guides
  • Separate Mitre Fence for Angle cutting
  • Tilting arbor from 0 to 45 degrees
  • Mechanical tilt indicator
  • External scoring saw adjustment with stops
  • 2 Position table lock
  • Overhead mounted blade guard with dust outlet
  • Heavy industrial aluminum extrusion crosscut fence with flip stops
  • ”EZ Dial” Adjustable split scoring blade assembly
  • Standard 1 year warranty (10 years on table guide way tolerances)
  • Hand wheel on front for lifting and tilt of blade
  • Electrical control panel tilted 25 deg. for ergonomics

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
