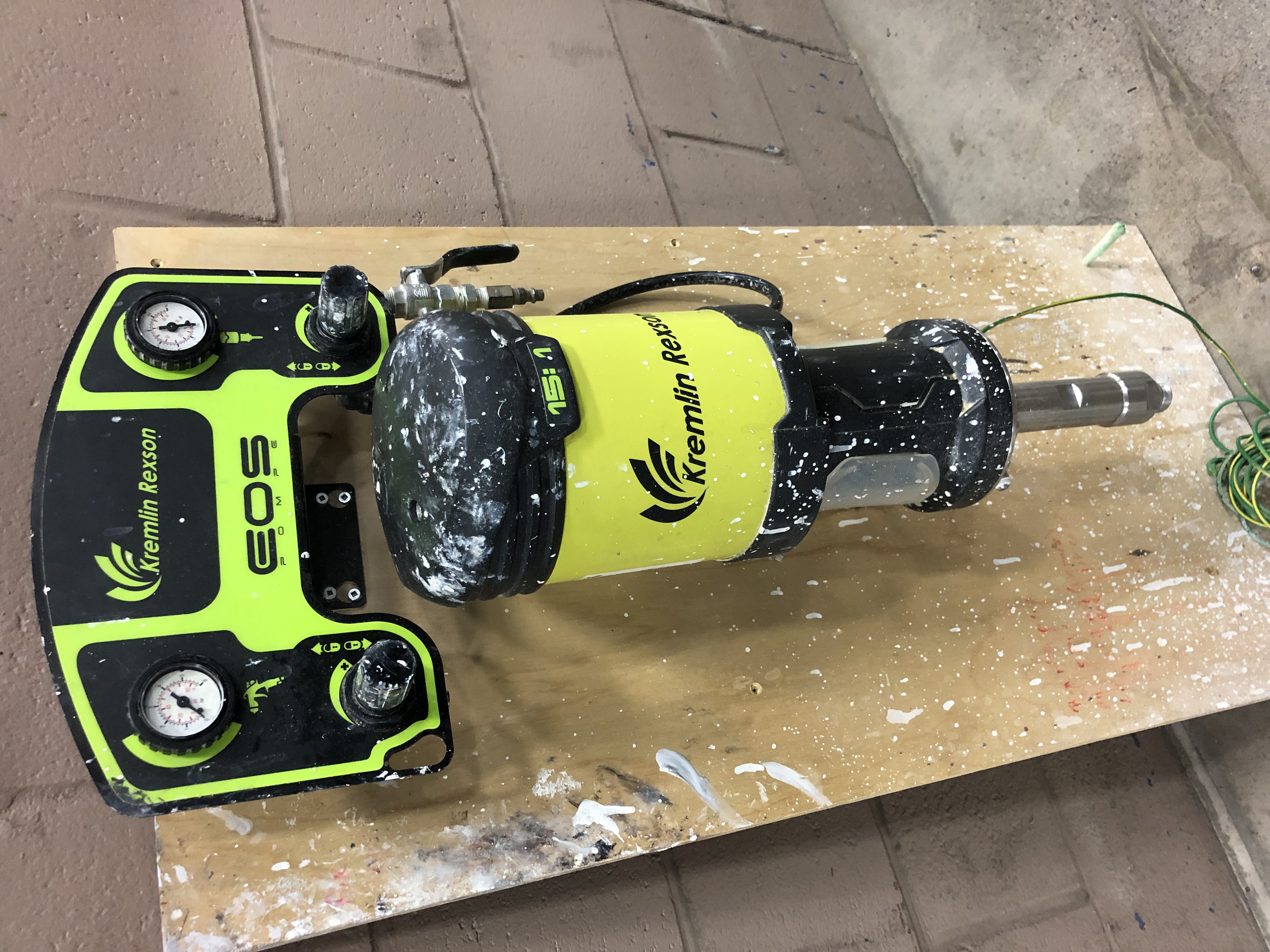

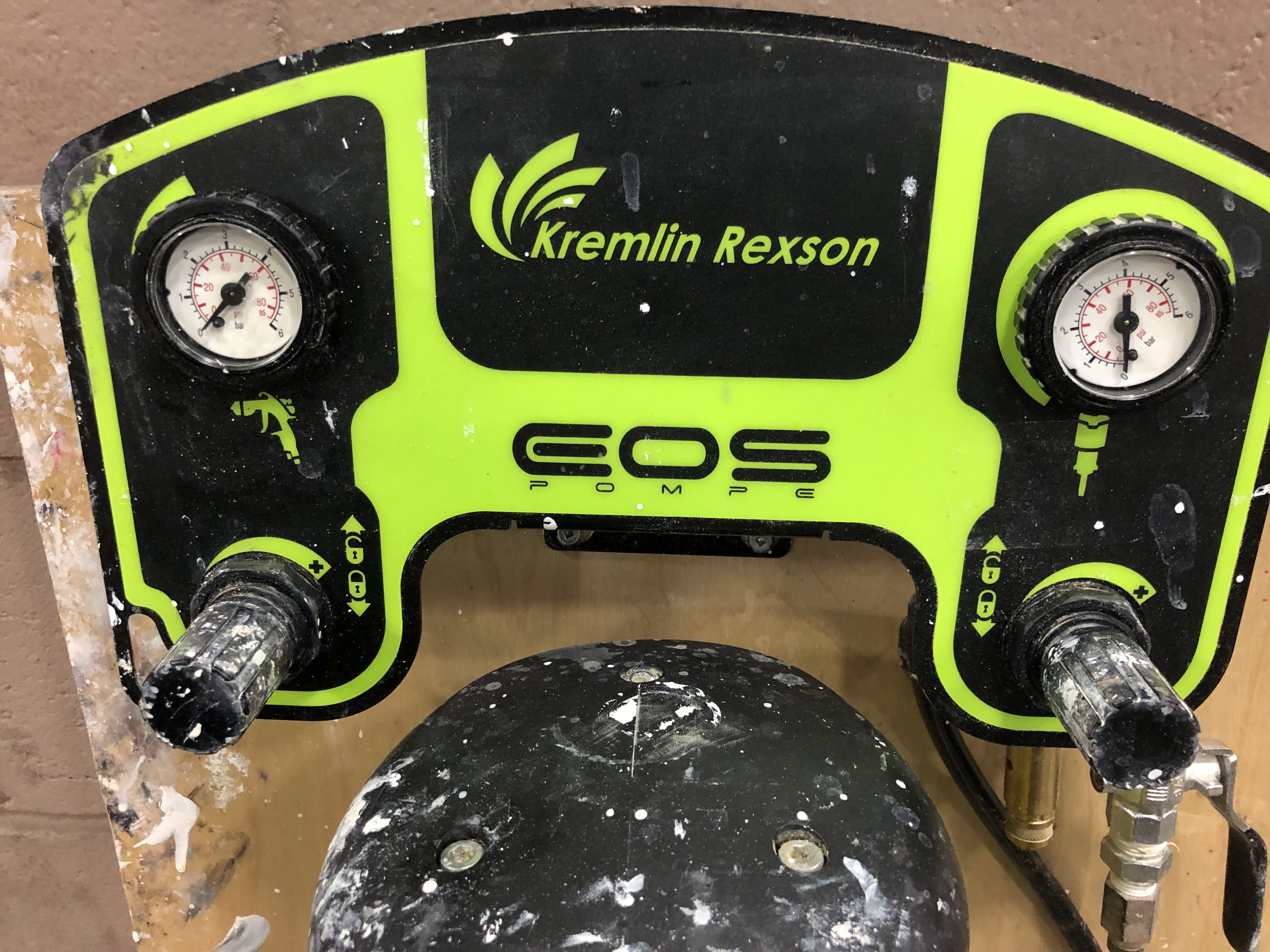

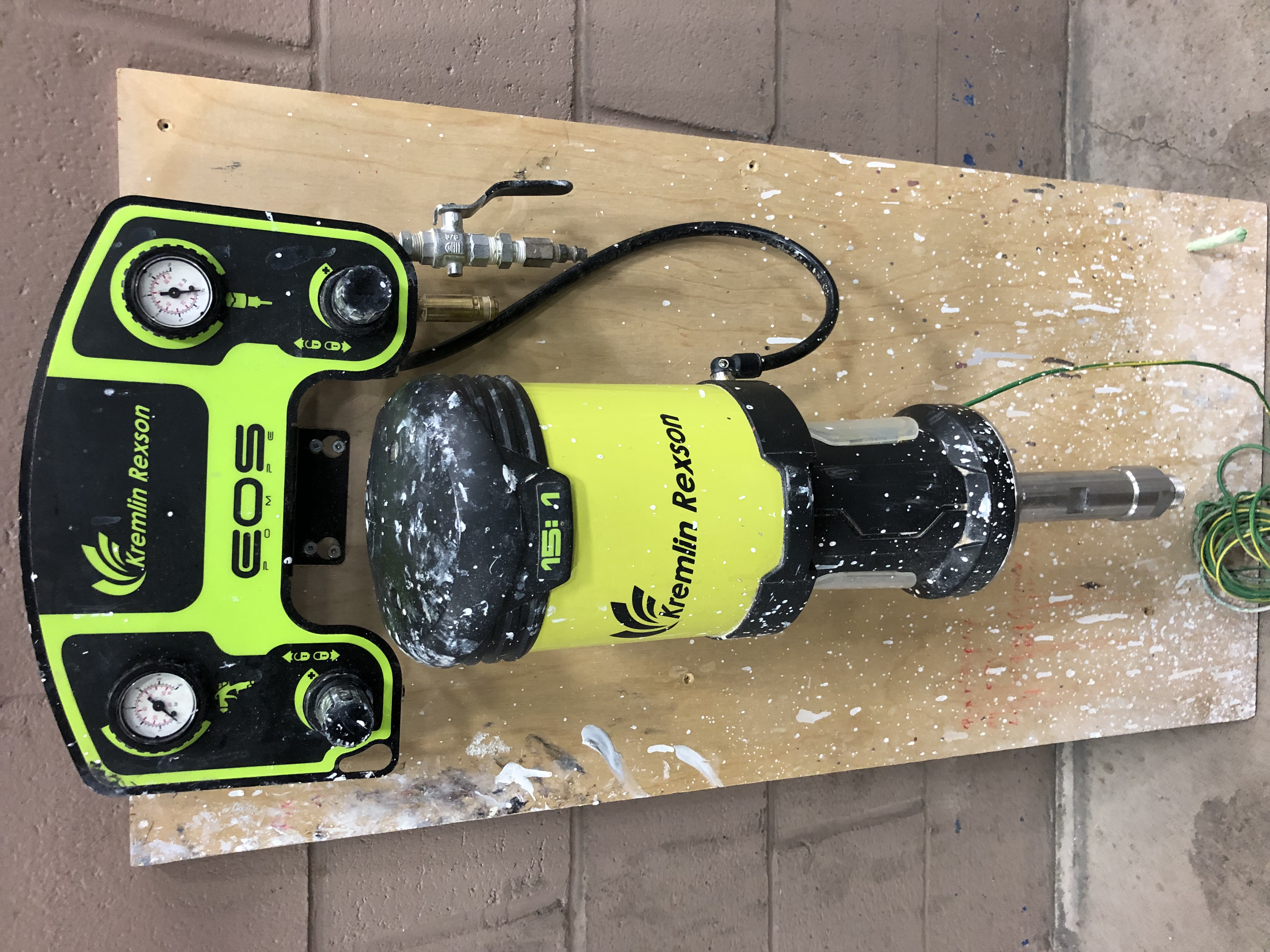

2011 Kremlin Rexson EOS 15-C25 Pump

EOS is based on 80 years of KREMLIN REXSON technical expertise, innovation and dedication to our customers. The EOS pump range articulates around 3 strong themes: Efficiency, Optimization and Simplicity. The EOS range is the ideal partner of your AIRMIX® and AIRLESS spray guns, providing exceptional Performances (quality of finish, high transfer efficiency). A large choice of accessories allows to create various AIRMIX® & AIRMIX® electrostatic configurations; to meet all customer requirements.

Features and Specifications:

• Motor stroke: 4'' (100 mm)
• Air motor piston section: 3.8 sq in (24.5 cm2)
• Fluid section: 0.43 sq in (2.8 cm2)
• Fluid delivery per cycle: 0.83 oz (25 cm3)
• Number of cycle for 1 liter of product: 40
• Fluid delivery (30 cycles): 0.2 US gal (0.75 L)
• Maximum air inlet pressure: 87 psi (6 bar)
• Maximum fluid discharge pressure: 1,305 psi (95 bar)
• Weighted sound pressure (LAeq): 71.2 dBa
• Maximum operating temperature: 140° F (60° C)
• Approximate height: 22.6'' (575 mm)
• Approximate circumference: Ø 6.26'' (Ø 159 mm)
• Approximate shipping weight: 7.7 kg (~17 lbs)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
