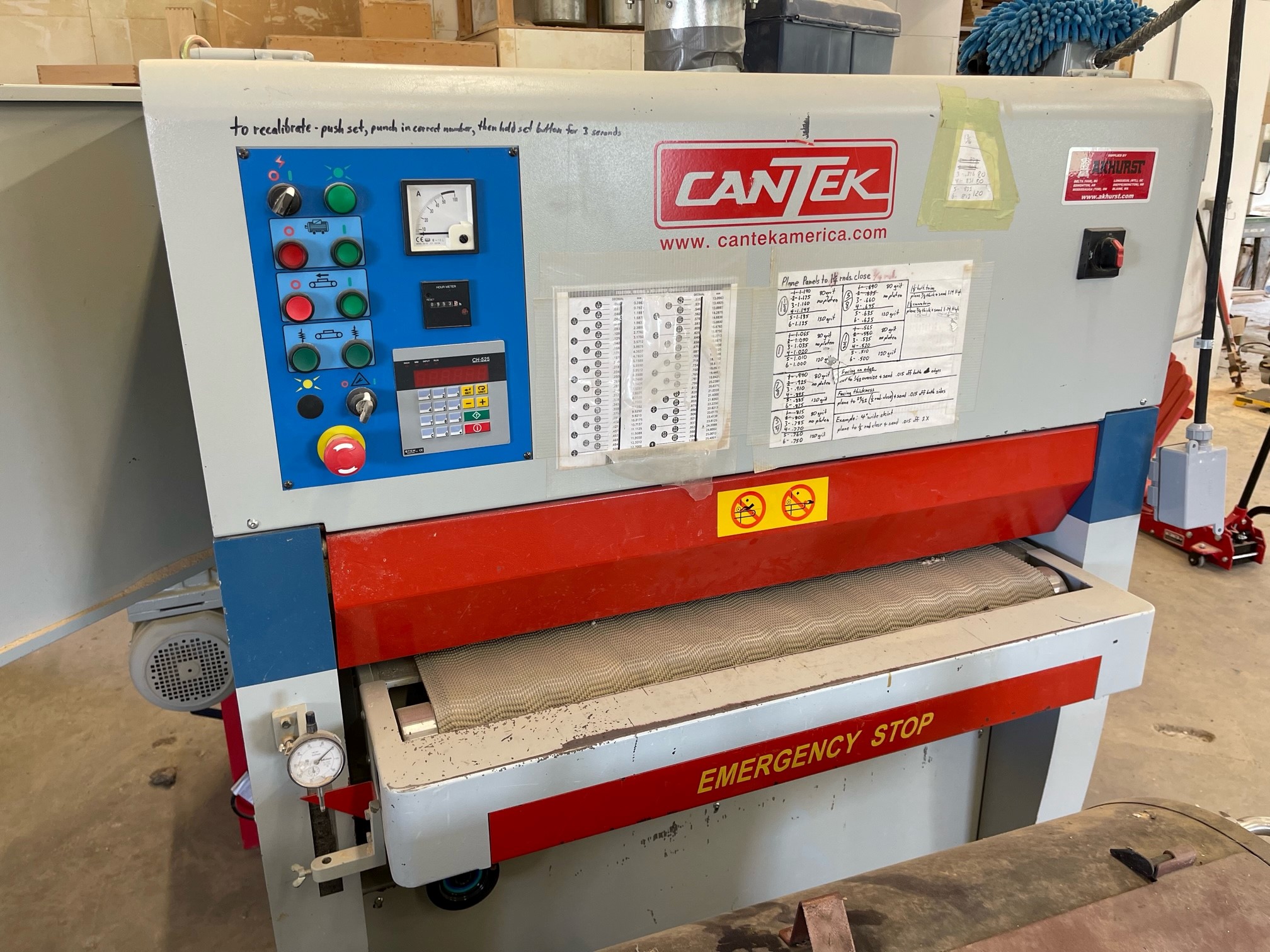

Cantek C371

orCall (905)-451-8430

Specifications

ManufacturerCantek
ModelC371
Stock Number1477KR
Voltage575V 3Ph 60Hz
Dimensions67” x 55” x 78” (1701 x 1397 x 1981 mm)
Abrasive belt size37” x 60” (939 x 1524 mm)
Approximate shipping weight2530 lbs (1150 kgs)
Feed Speed 13 to 52 FPM (4 to 16 m/min)

Description

The Cantek C371 36″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensures optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.


Features

  • Electronic belt tracking for optimum belt life and sanding results
  • Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.
  • Disc brake on main motor allows for faster belt changes

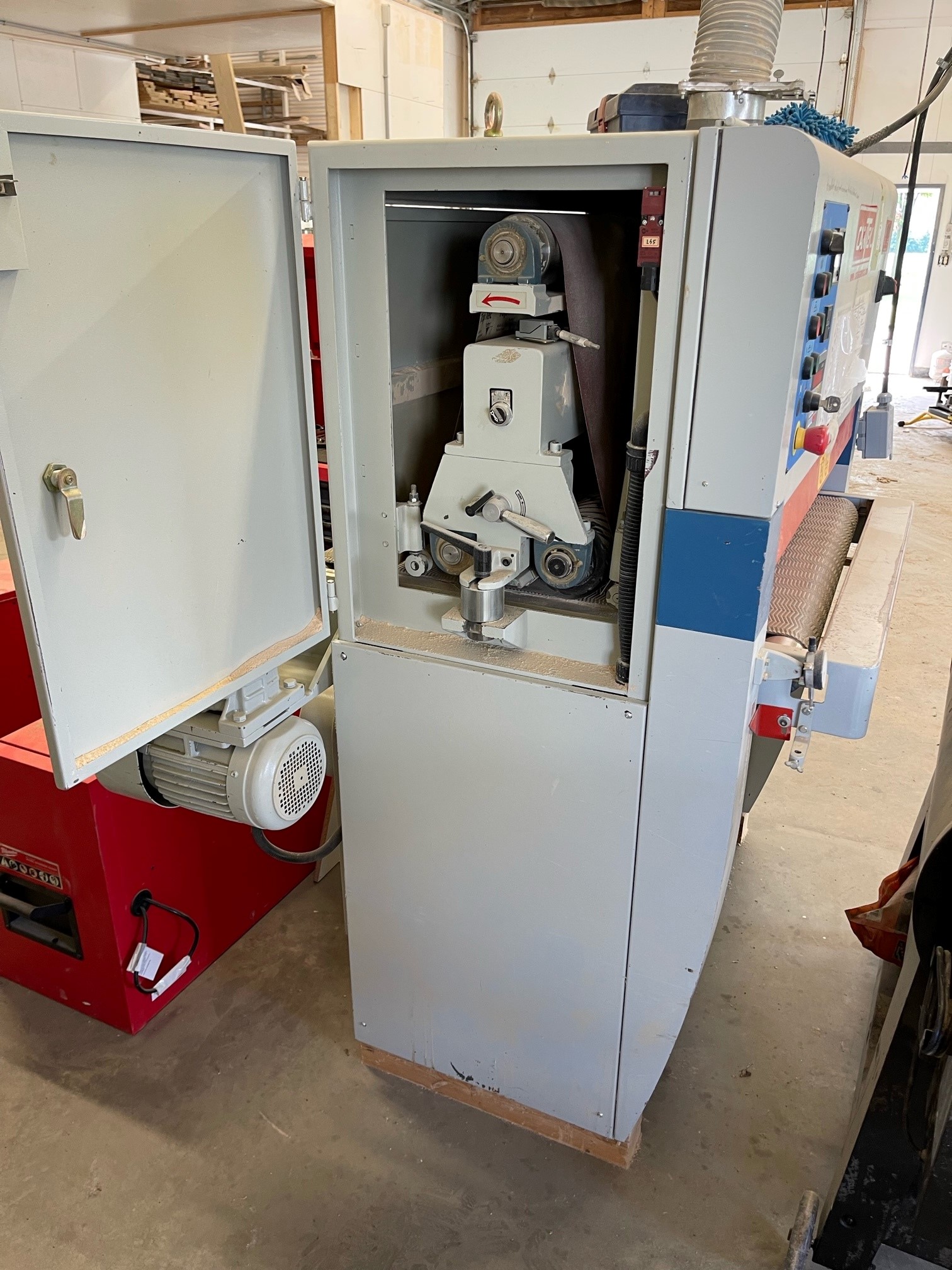

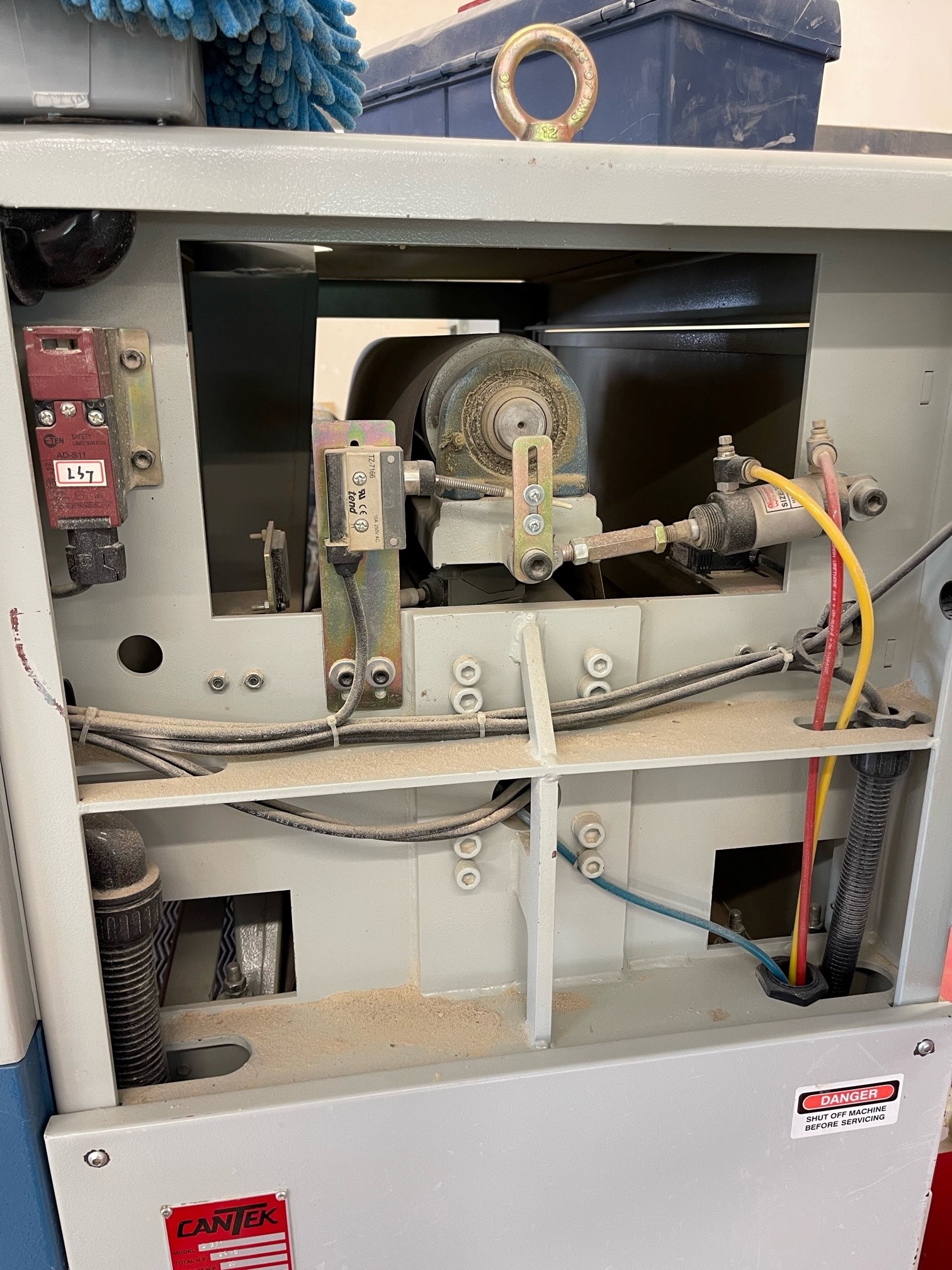

  • Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
  • Double infeed and outfeed pressure rolls for superior part hold down
  • Four table raising jack screws
  • Material over-height limit switch
  • Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
  • Interlocks located on all access doors.


Specifications


Inch
Metric
Abrasive belt size
37” x 60”
939 x 1524 mm
Main motor
20 HP
Feed motor
2HP
Table rise/fall motor
½ HP
Maximum width stock
36”
910 mm
Minimum part length
13”
330 mm
Minimum thickness opening
5”
127 mm
Feed speed: variable
13 to 52 FPM
4 to 16 m/min
Passline height
33”- 38”
838 – 965 mm
Infeed table
11 ½”
292 mm
Dust outlet
1 @ 5”
1 @ 127 mm
Compressed air usage
2 CFM @ 90 PSI
2 CFM @ 90 PSI
New weight
1980 lbs
900 kgs
Machine dimensions
64” x 53” x 73”
1625 x 1346 x 1854 mm
Shipping weight
2530 lbs
1150 kgs
Shipping dimensions
67” x 55” x 78”
1701 x 1397 x 1981 mm
