2016 Silver SJK-21A

Sold

Specifications

ManufacturerSilver
ModelSJK-21A
Year2016
Stock Number1471EZ
Voltage220V 3Ph 60Hz
Dimensions3 x 3 x 3
Approximate shipping weight700 lbs
Condition RatingVery Good

Description

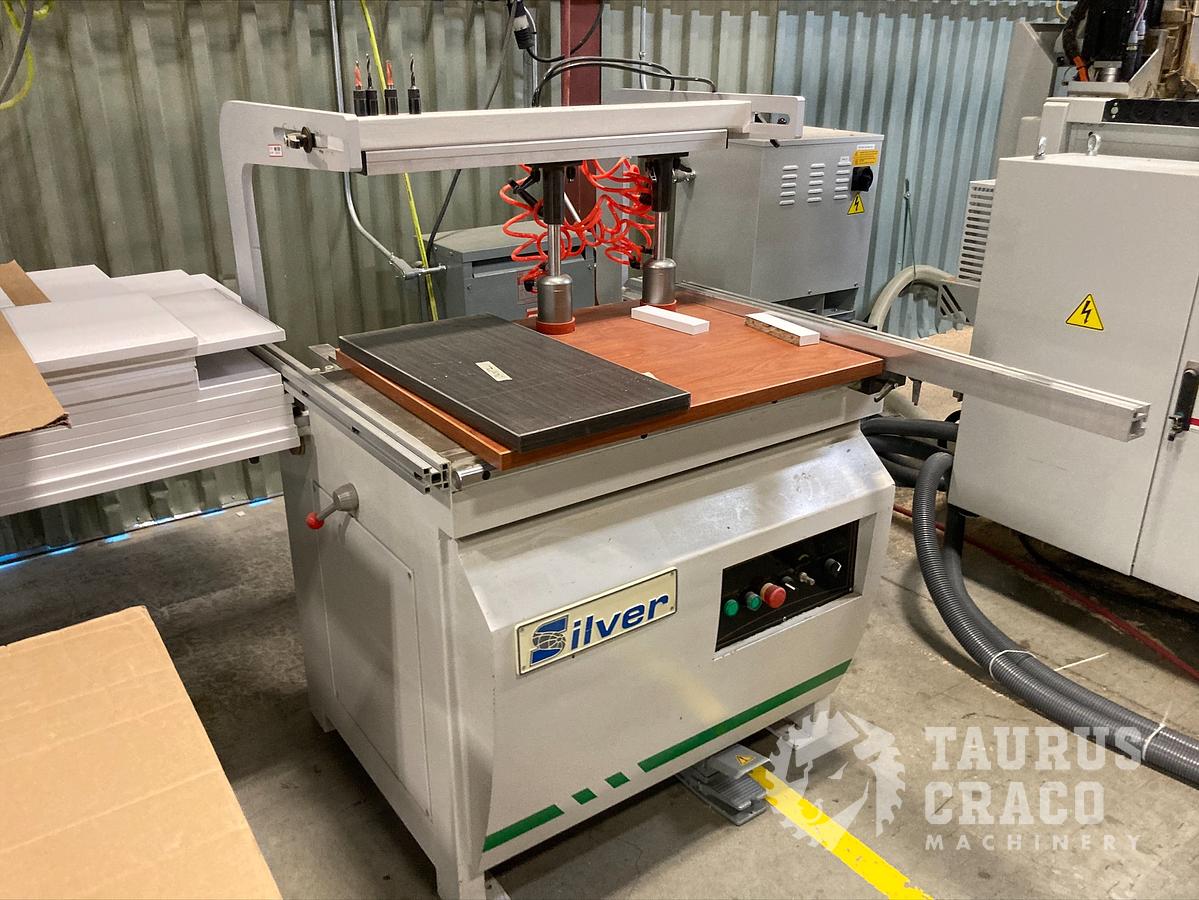

Great opportunity!! This 21 spindle horizontal/vertical line boring machine is ready for immediate sale, used lightly by the original purchaser. Clean and in great shape, this machine would make a great addition to any small/medium sized shop looking to increase production.



Features and Specs:

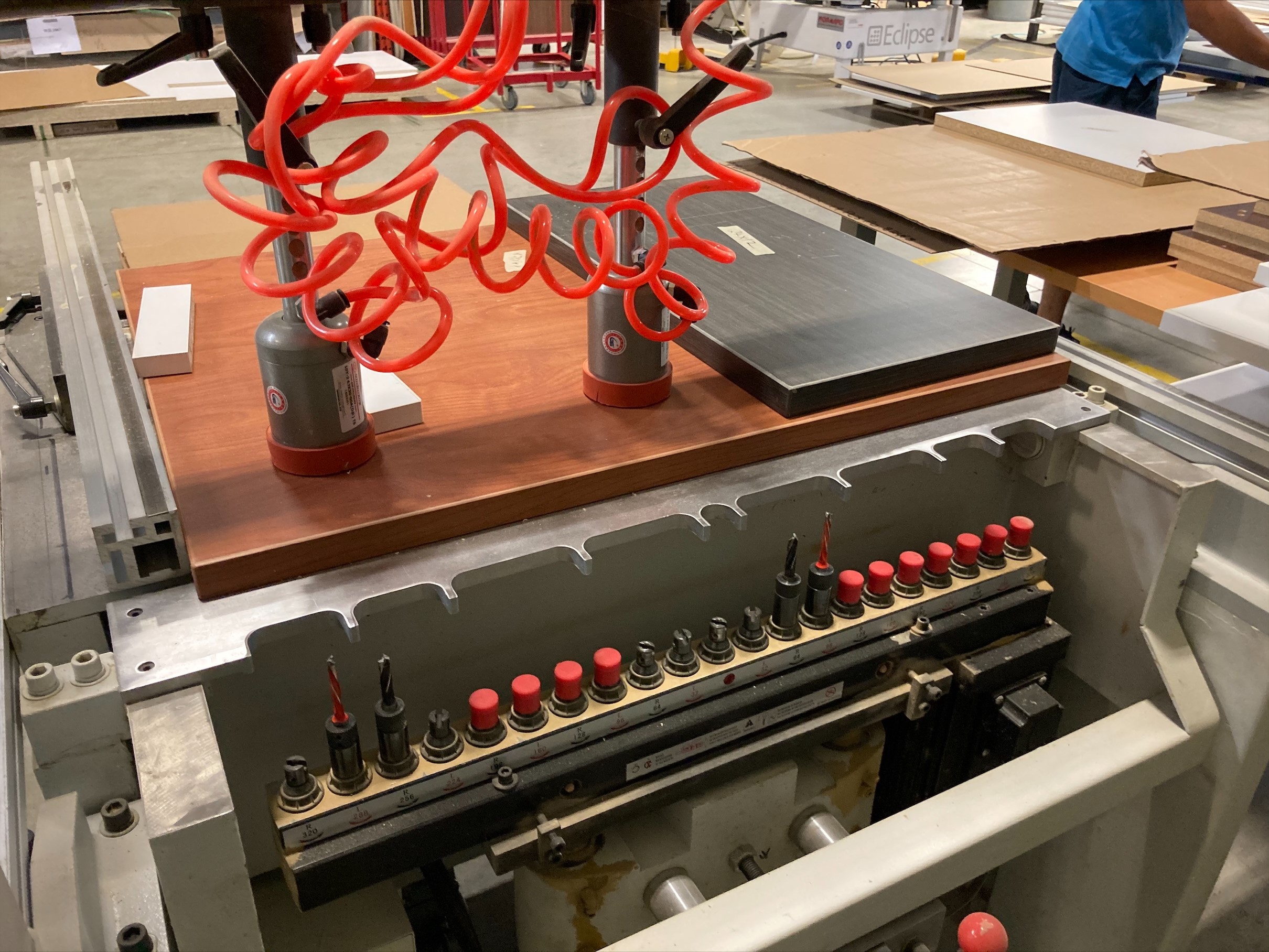

  • Single line boring machine with 21 spindles at 32mm centers
  • Tiltable boring head can be changed from vertical to horizontal boring by pneumatic setting
  • Pneumatic boring cycle by convenient foot pedal
  • 2 Pneumatic cylinder clamp for solid hold-down to the material.
  • Adjustable boring feed speed
  • Mechanical digital readouts are provided for precise setting of the boring head
  • Adjustable boring depth for fast changeover
  • Two side fences for end boring or boring smaller components
  • One 3m long back fence for long line boring with flip stops
  • quick change chuck for fast changeover (12pcs included)
  • Distance between each bit: 32mm
  • No. of spindles of boring head: 21pcs
  • Max Drilling Dia: 35mm
  • Max Drill Depth: 80mm
  • Table Size: 920x500mm
  • Working Table Height: 900mm
  • Length of back Fence: 3m
  • Motor Power: 2HP
  • Motor Speed: 2840 rpm
  • Machine Size : 1000x1020x1340mm
  • Net Weight : 320 kgs


Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.
