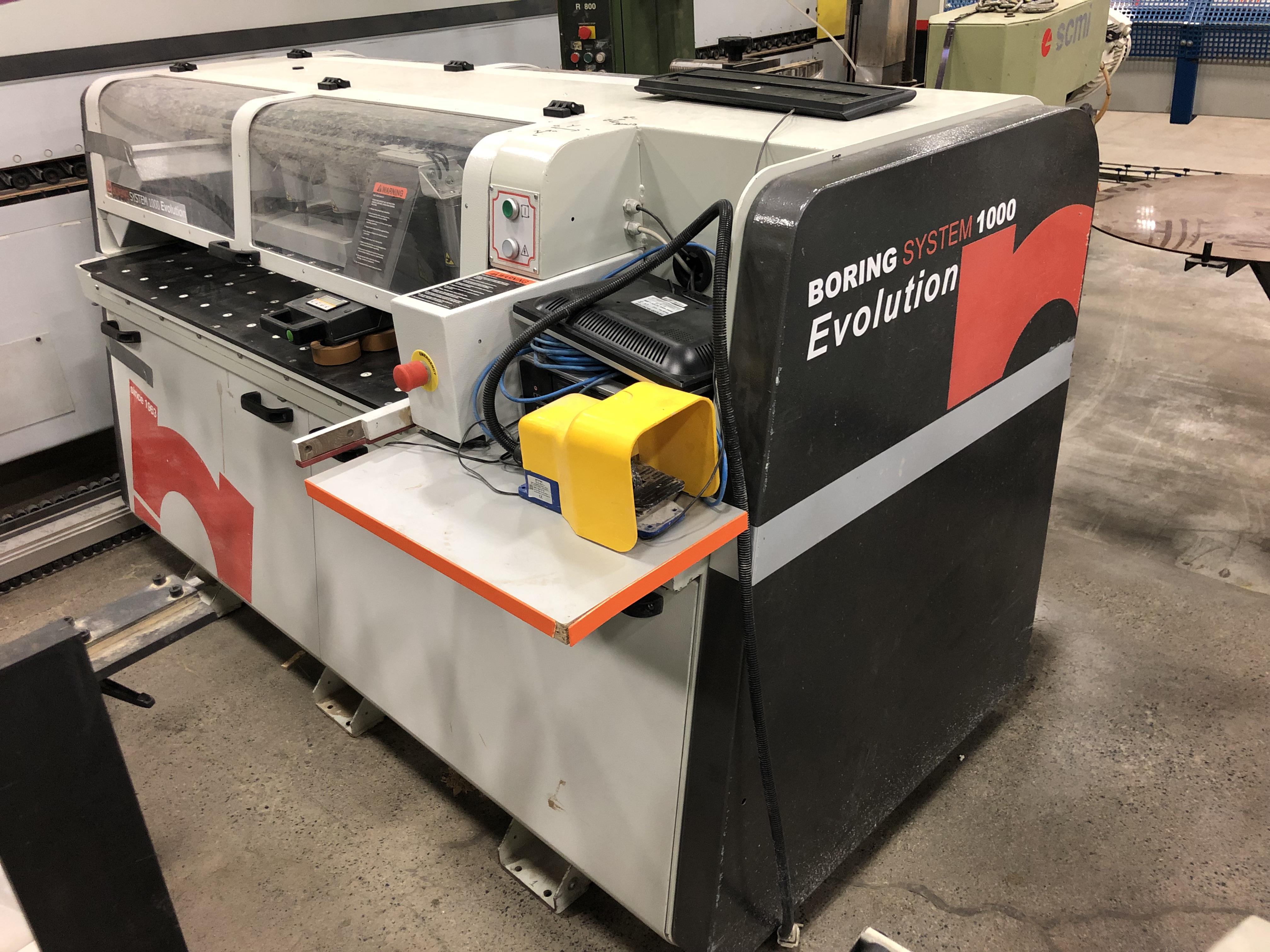

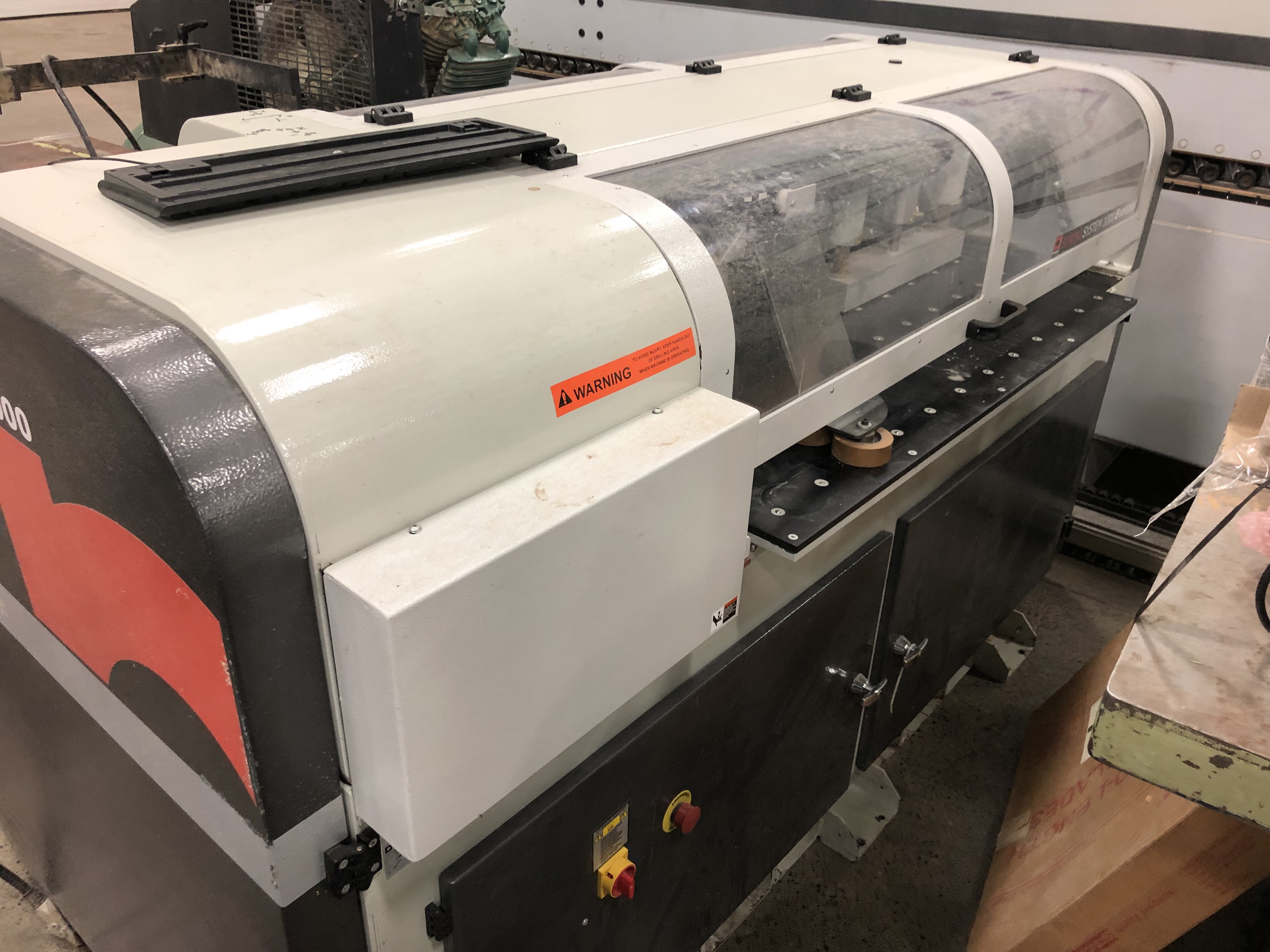

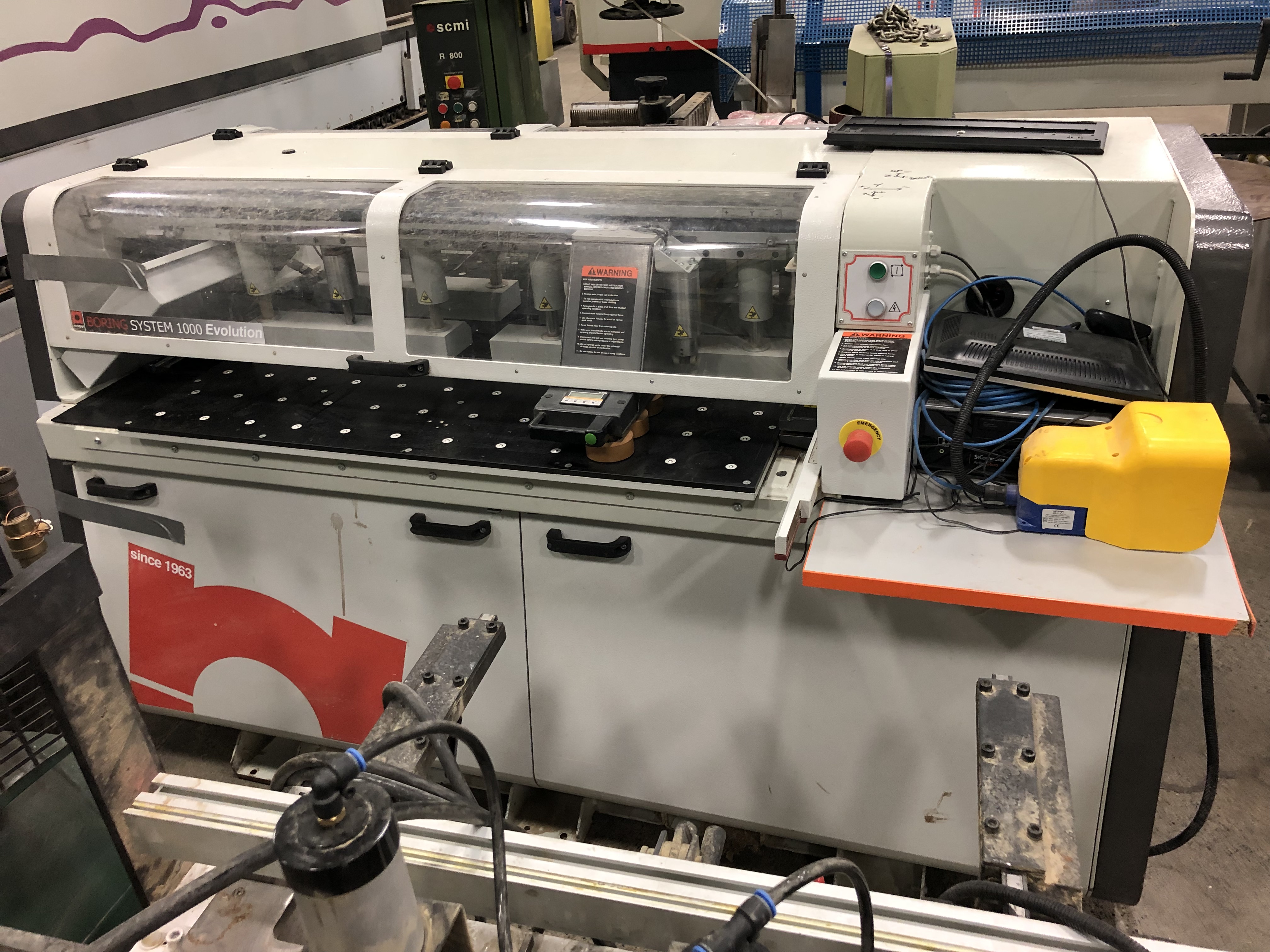

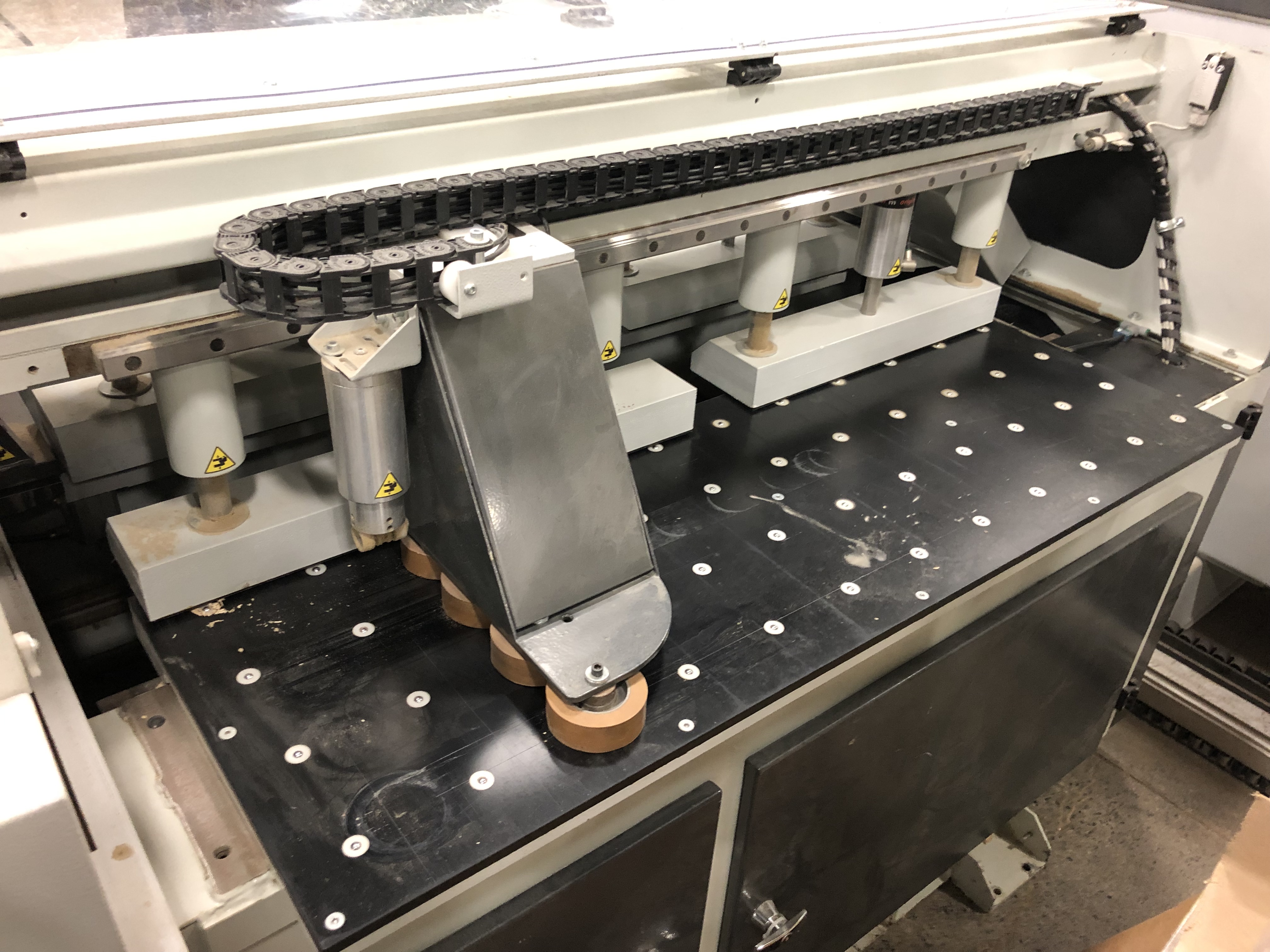

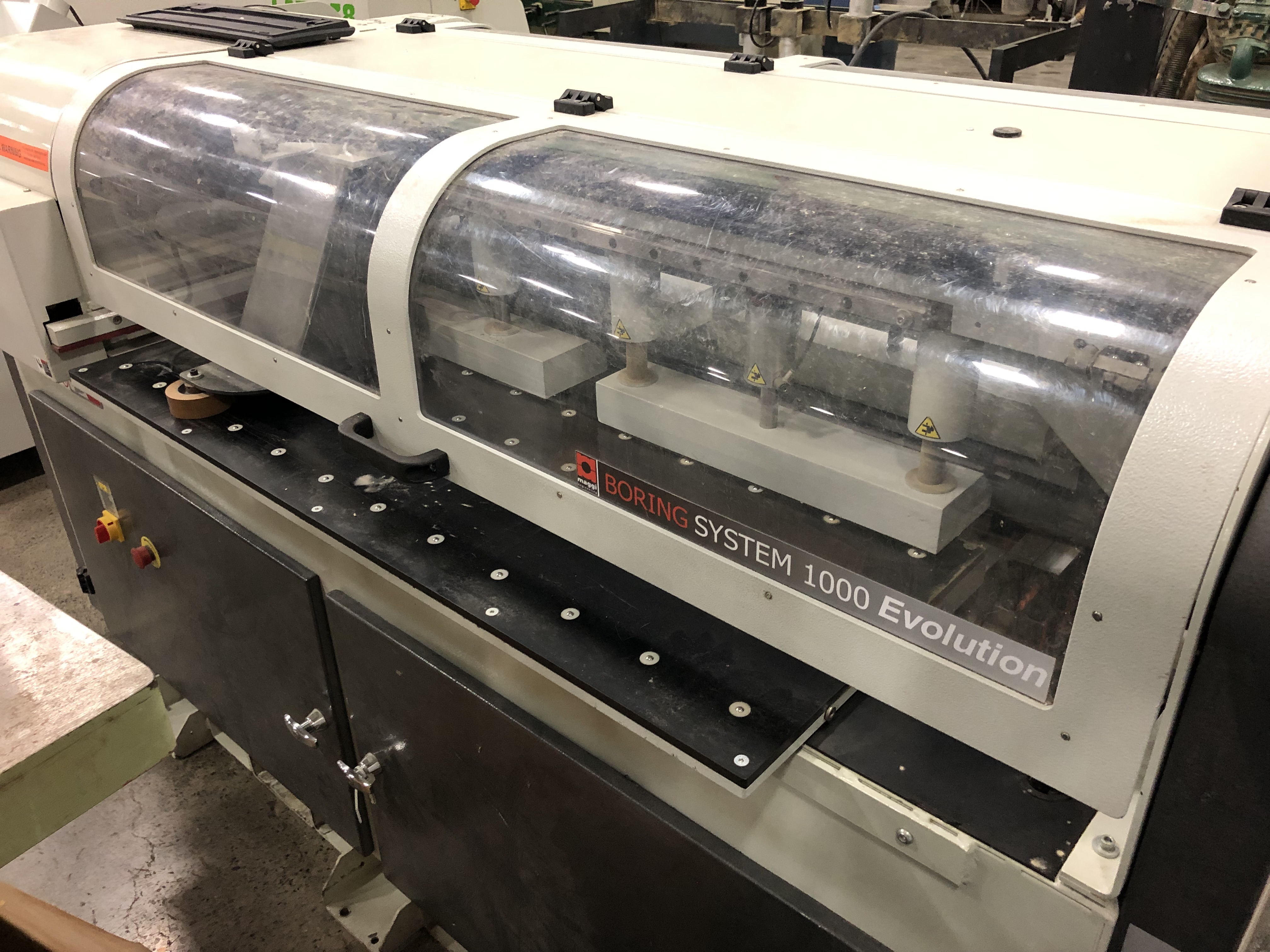

2014 Maggi Evolution 1000

orCall (905)-451-8430

Specifications

ManufacturerMaggi
ModelEvolution 1000
Year2014
Stock Number1463JW
Voltage230V 60Hz 3Ph
Dimensions3' x 6'

Description

The Evolution 1000 is designed for the small to medium sized user for fast, accurate and efficient panel boring.


The integrated PC control uses ILENIA CAD CAM software for powerful parametric programming.


A laser measuring system determines the dimensions of the work piece and calibrates the machining process according to the actual panel length (overriding the dimensions input by the operator).


The innovative drilling procedure with 4th axis and effective clamping helps ensure accurate panel assemble even if the work piece is not absolutely flat.


Features and Specs


  • Spindle size: 32mm
  • Boring depth: 50mm
  • Min-Max Panel Size: X:300-3200mm Y:120 – 1000mm Z:8-50mm
  • 3200 RPM
  • Line boring, Hinge boring, dowel boring and grooving in one machine
