2014 Martin T65

Sold

Specifications

ManufacturerMartin
ModelT65
Year2014
Stock Number1452JW
Electrics230V 3Ph 60Hz

Description

Features

  • Electric, wear-free saw blade brake
  • Exchangeable table lip

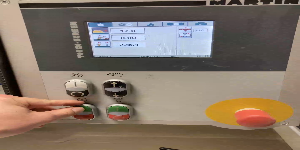

  • Modern control system, 5.7” touch screen interface
  • Motor power: 5.5 kW
  • Cutting height : 204 mm
  • Saw blade tilting range:  46°
  • Saw blade diameter : 550 mm
  • Speed: 2,800 | 4,000 | 5,000 rpm
  • Main saw blade change : ProLock
  • Blade thickness:  max. 6 mm | special tools
  • Cutting width : 1350 mm
  • Sliding table length: 3.3 m
  • Control:  5.7" touchscreen
  • Display resolution :  0.1 mm | 0.1°
  • Control panel:  at eye level, inclined, 2x rotation
  • Cutting angle/height : controlled
  • Cutting width : manually position of the rip fence via handwheel
  • Extraction connection : 120 mm on frame
  • Weight approx. : approx. 1,600 – 2,100 kg


Benefits

  • Sliding table with hardened steel guides, self-cleaning
  • Wear-free, smoothly running, infinitely lockable
  • Quick-change system for main and scoring saw blade
  • Blade changes done quickly and accurately
  • Electrical equipment according to UL/CSA
