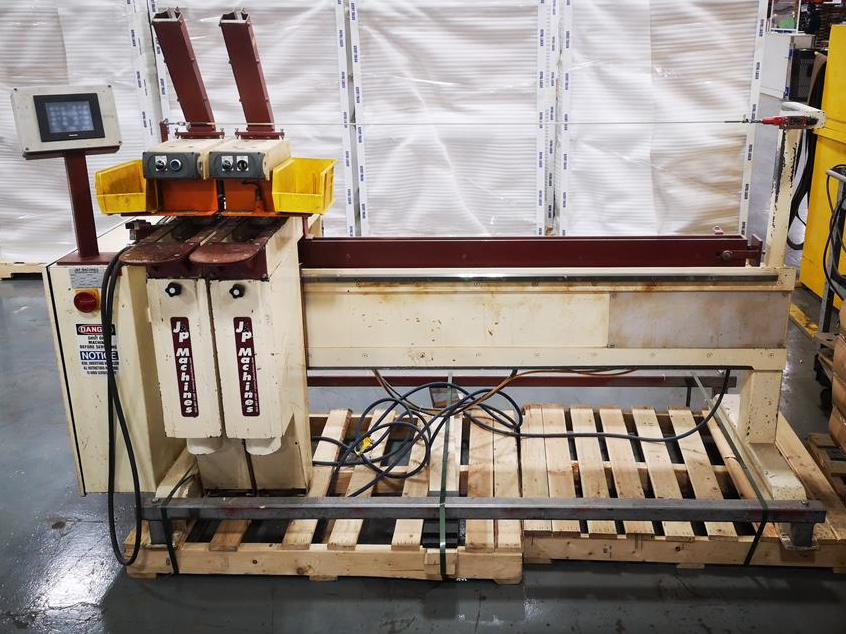

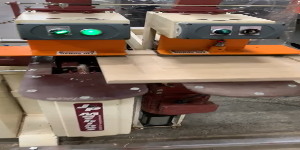

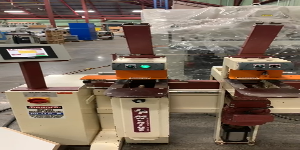

2007 J&P Machines DH-2NA Hinge Inserting Machine

Features:

• Fast setup from small to large doors with preset stops
• Cycle time approximately 4 seconds
• “Off The Shelf” components for hassle free maintenance
• Minimum distance between hinges is 6.5″ (165mm)

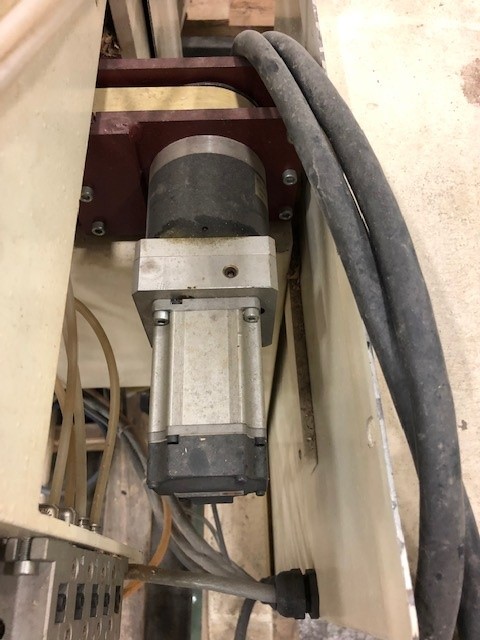

• Optional servo controlled positioning for fast changeover of sizes
• Fast setup from small to large doors
• User-friendly movable head which is easy to move to the pre-set stops
• Pneumatic lock allows drilling at any distance
• Quick change hopper magazines with a loading capacity of 35 hinges
• Insertion slide with UHMW non-wearing plastic
• Creates chip-free bores on melamine and other sensitive materials by drilling from below
• Boring heads with hard gears and spindles
• Linear bearings on slides for up and down movement
• No tools required for precision depth adjustments
• Double safety controls with metal detectors and photo eye, prevents boring unit from cycling again into the previously installed hinge
• Dust extraction hoods with 4″ diameters
• Minimum closing distance between heads is 7″, 180mm
• Maximum opening distance is 60″, 1520mm (other sizes available upon request)

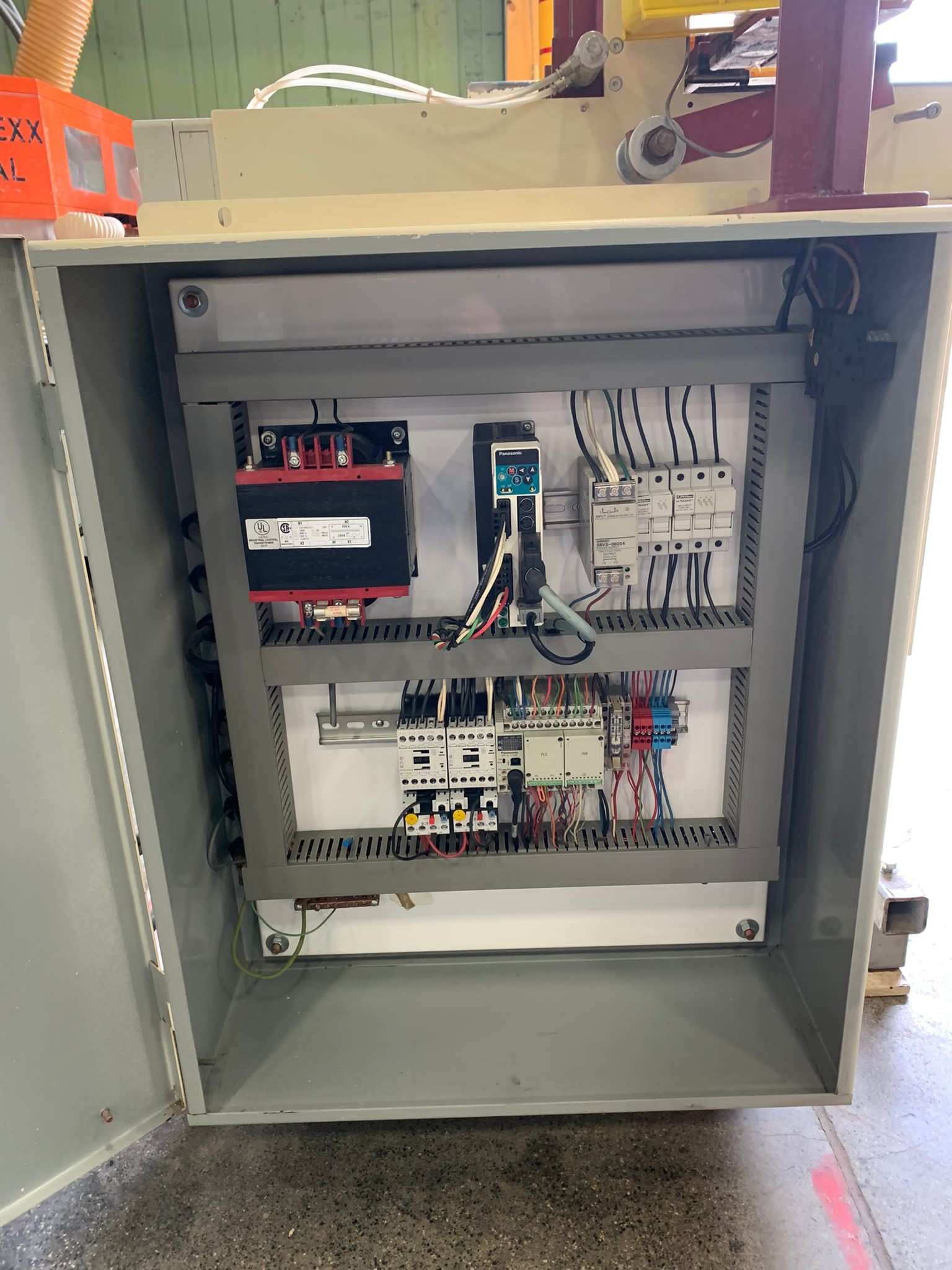

• PLC control and proximity sensors
• Emergency cord switch

Specifications

• 2 HP motors, 3600 RPM, 600V 3-phase
• Cycle time approximately 4 seconds
• Compressed air 90 PSI
• Weighs approximately 600kg
• Dimensions: 80″ long, 32″ wide, 50″ high
