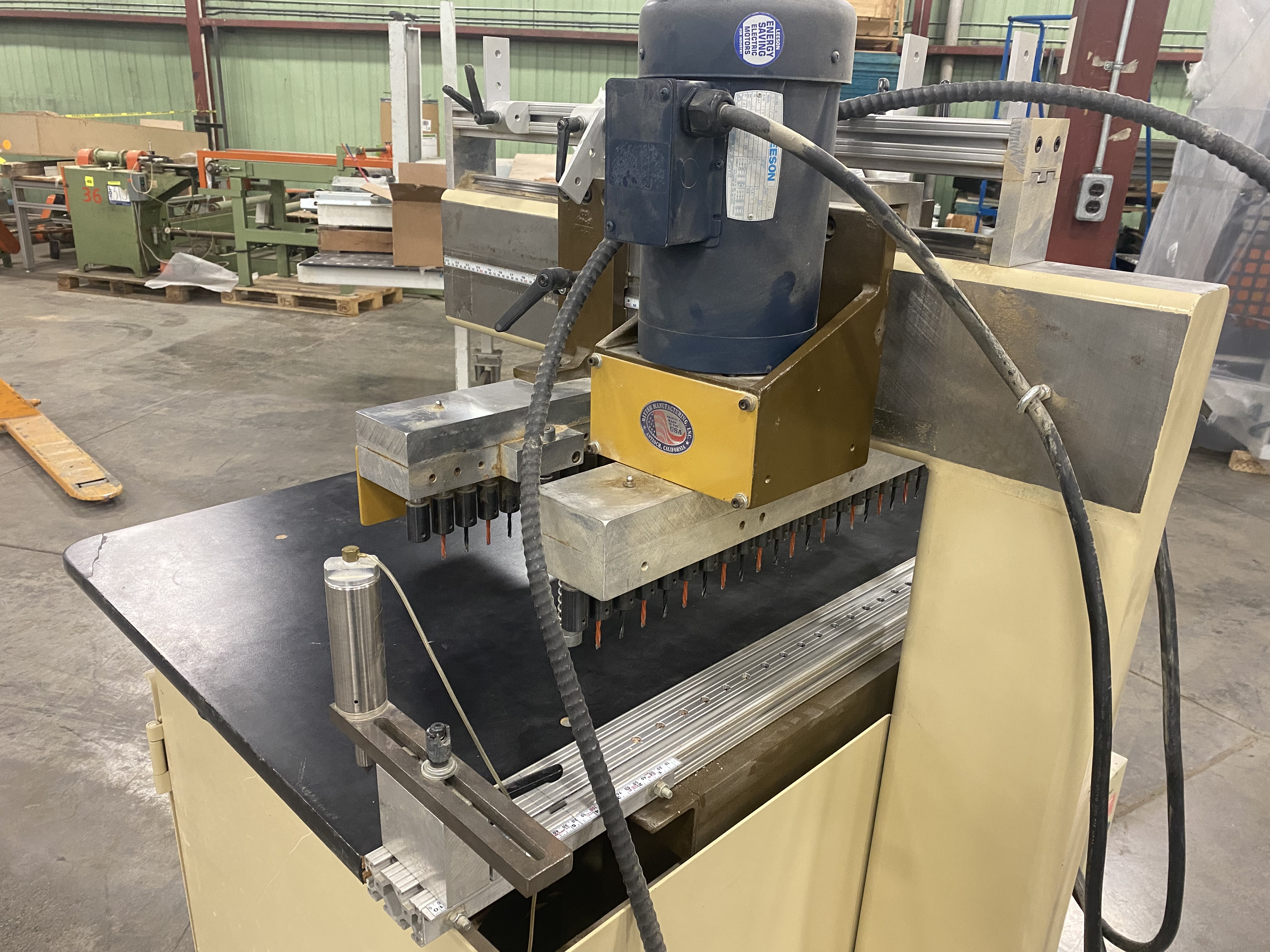

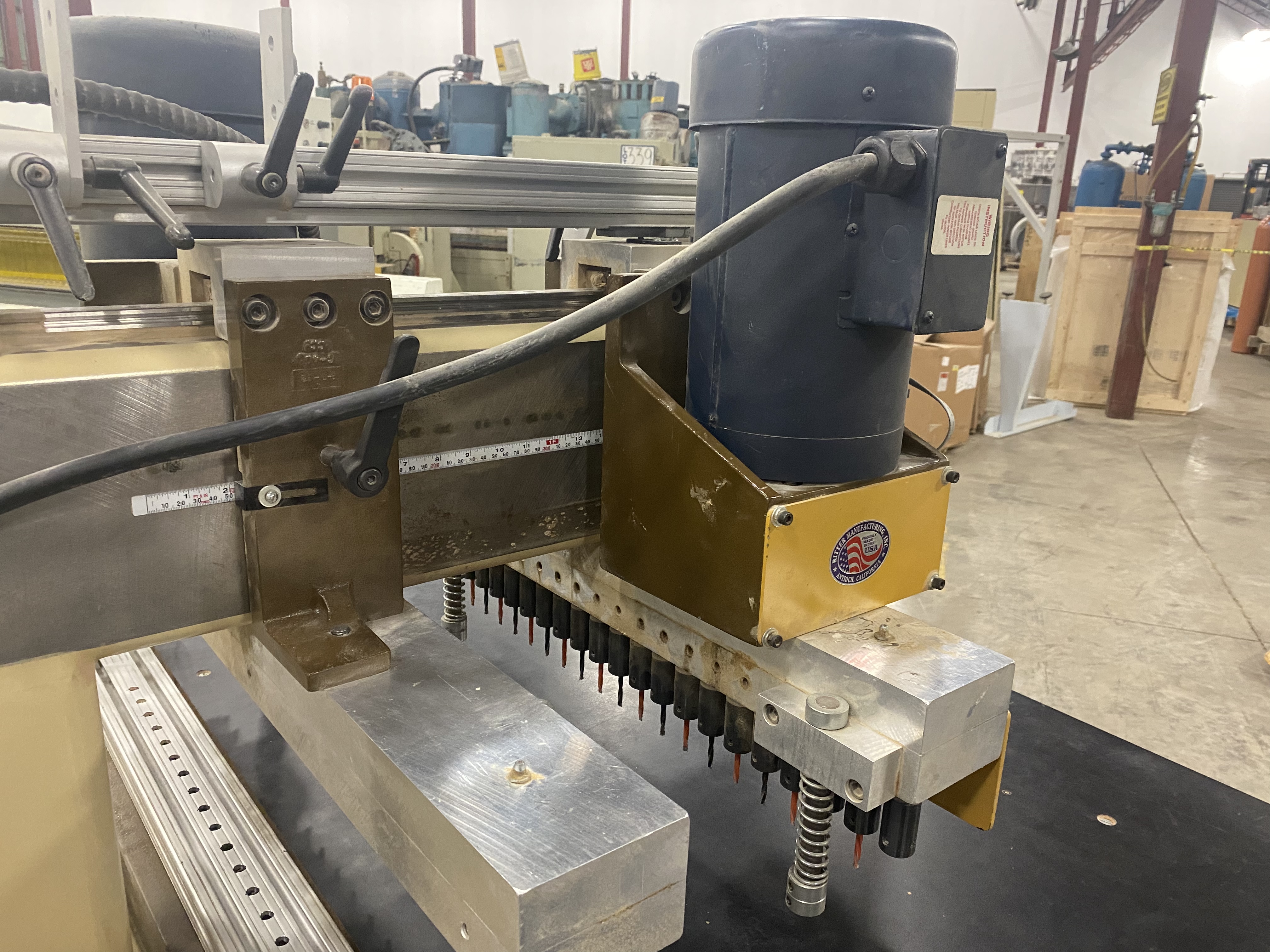

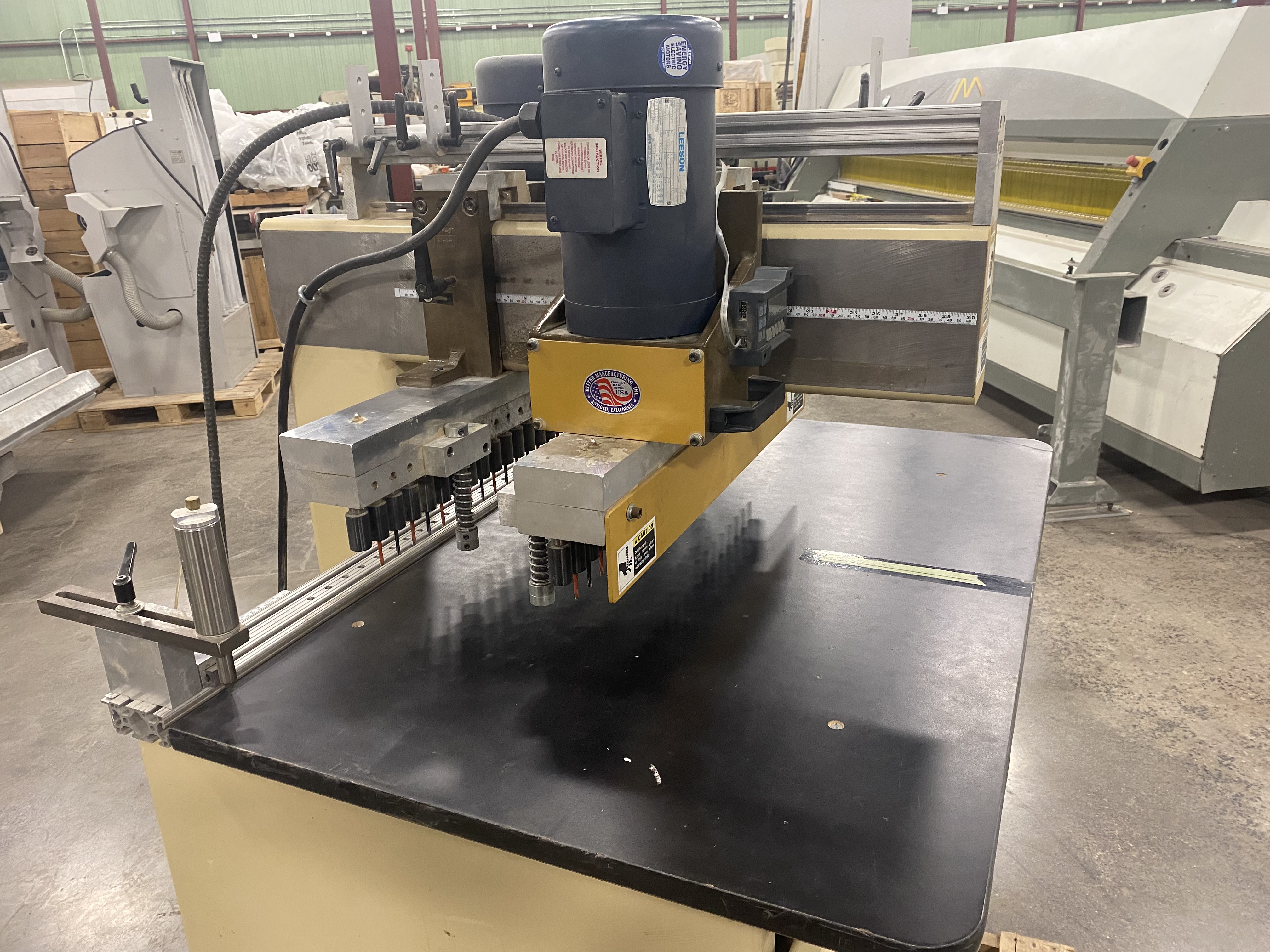

2003 Ritter R46 - 46 Spindle Double Row Line Drill

orCall (905)-451-8430

Specifications

ManufacturerRitter
ModelR46 - 46 Spindle Double Row Line Drill
Year2003
Stock Number1437JL
Voltage230V / 3Ph / 60Hz
Condition RatingGreat
Link to auctionhttps://2ly.link/21EZT

Description

Boss Auctions Listing: https://2ly.link/21EZT



Features and Specifications:

  • (2) 3 HP Spindle Drive Motors, TEFC

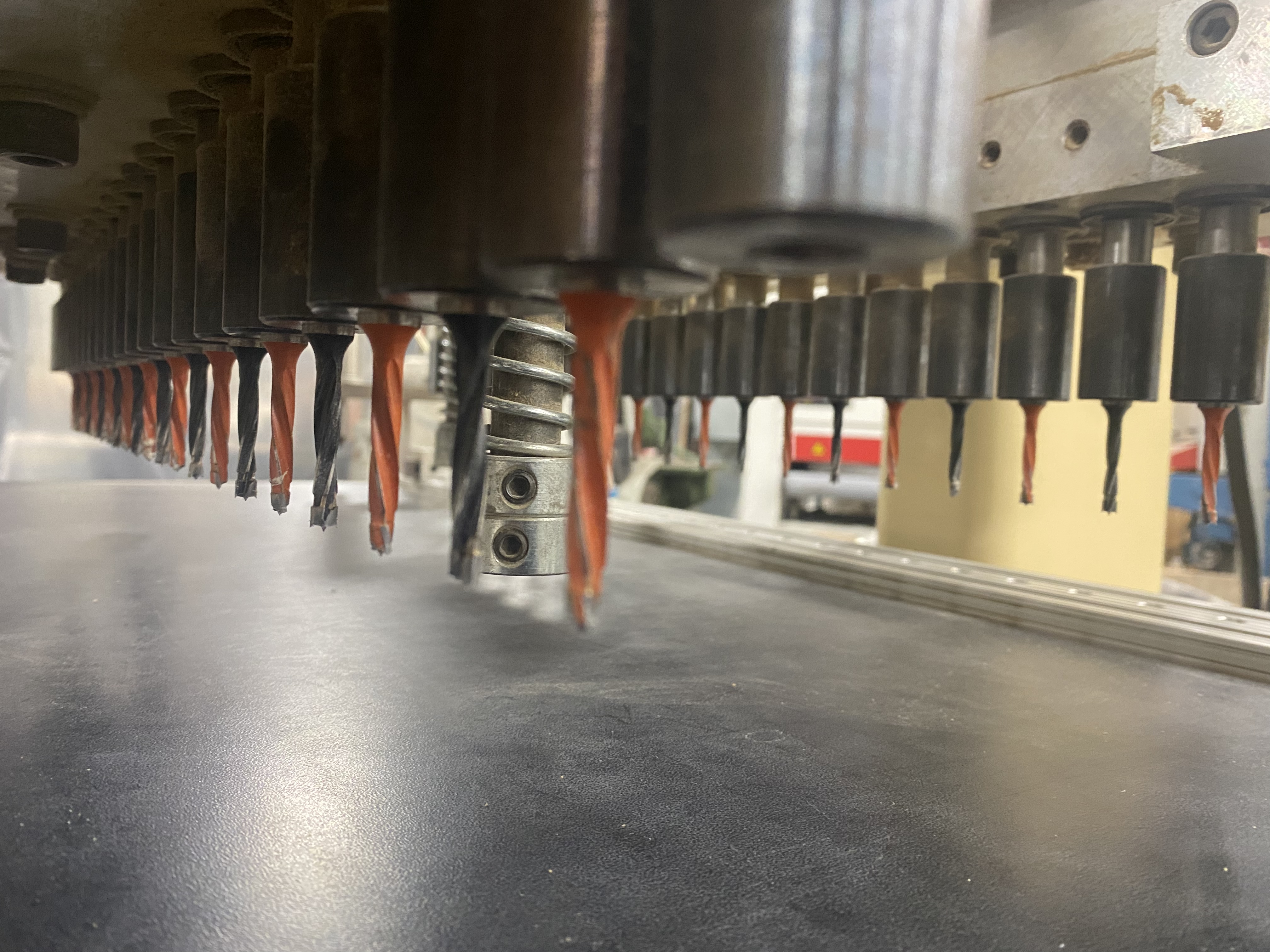

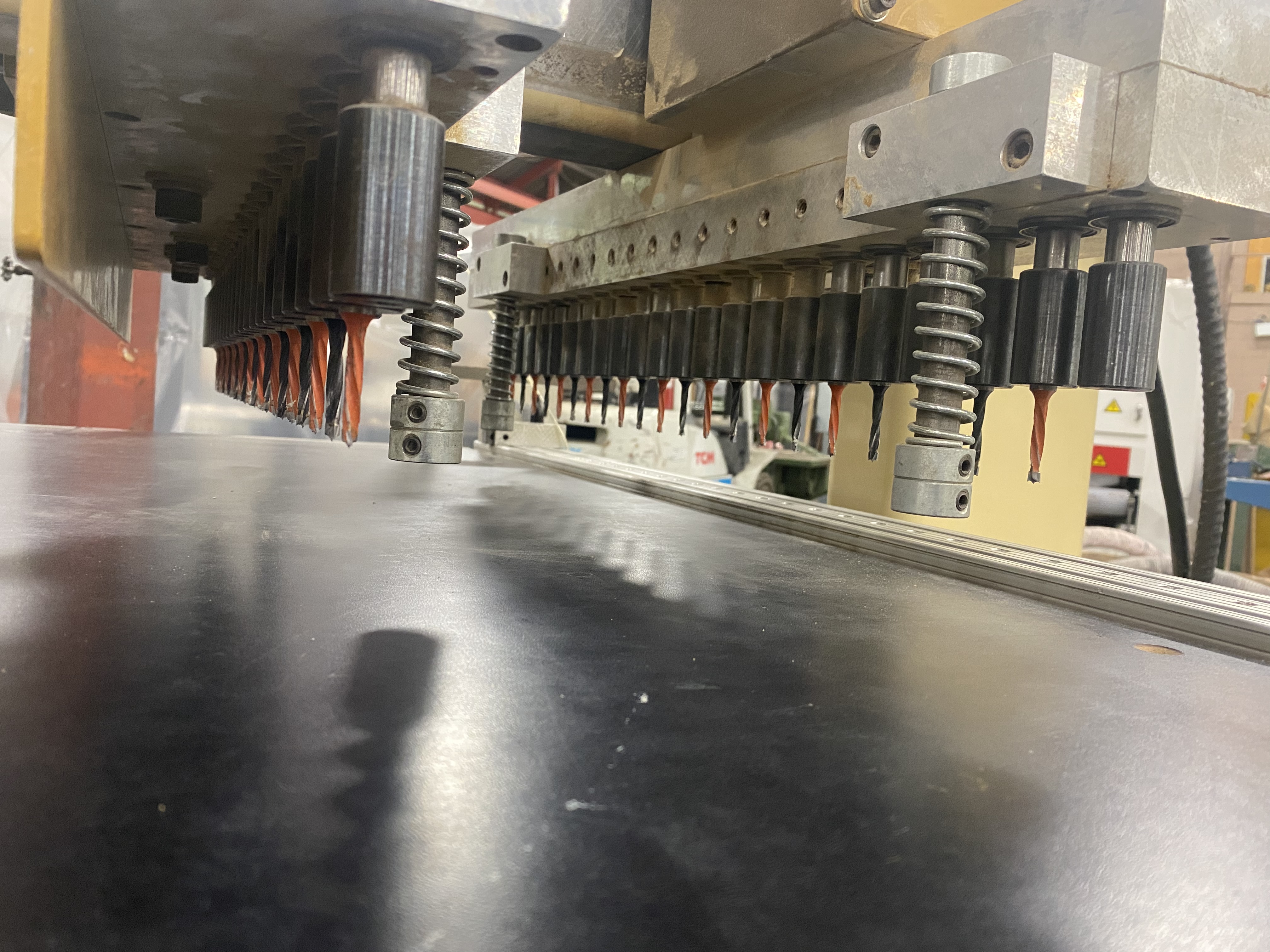

  • (2) 23-Vertical Gear Driven Spindle Rows
  • 32mm Spindle Centers
  • 10mm Bored Collets
  • (24) Right Hand, (22) Left Hand
  • ″-24″ Centers Between Rows
  • Digital Readout Front Head Position Display
  • Precision Linear Head Ways
  • (3) Quick Set Drill Head Position Stops
  • Rear Drill Row Nesting

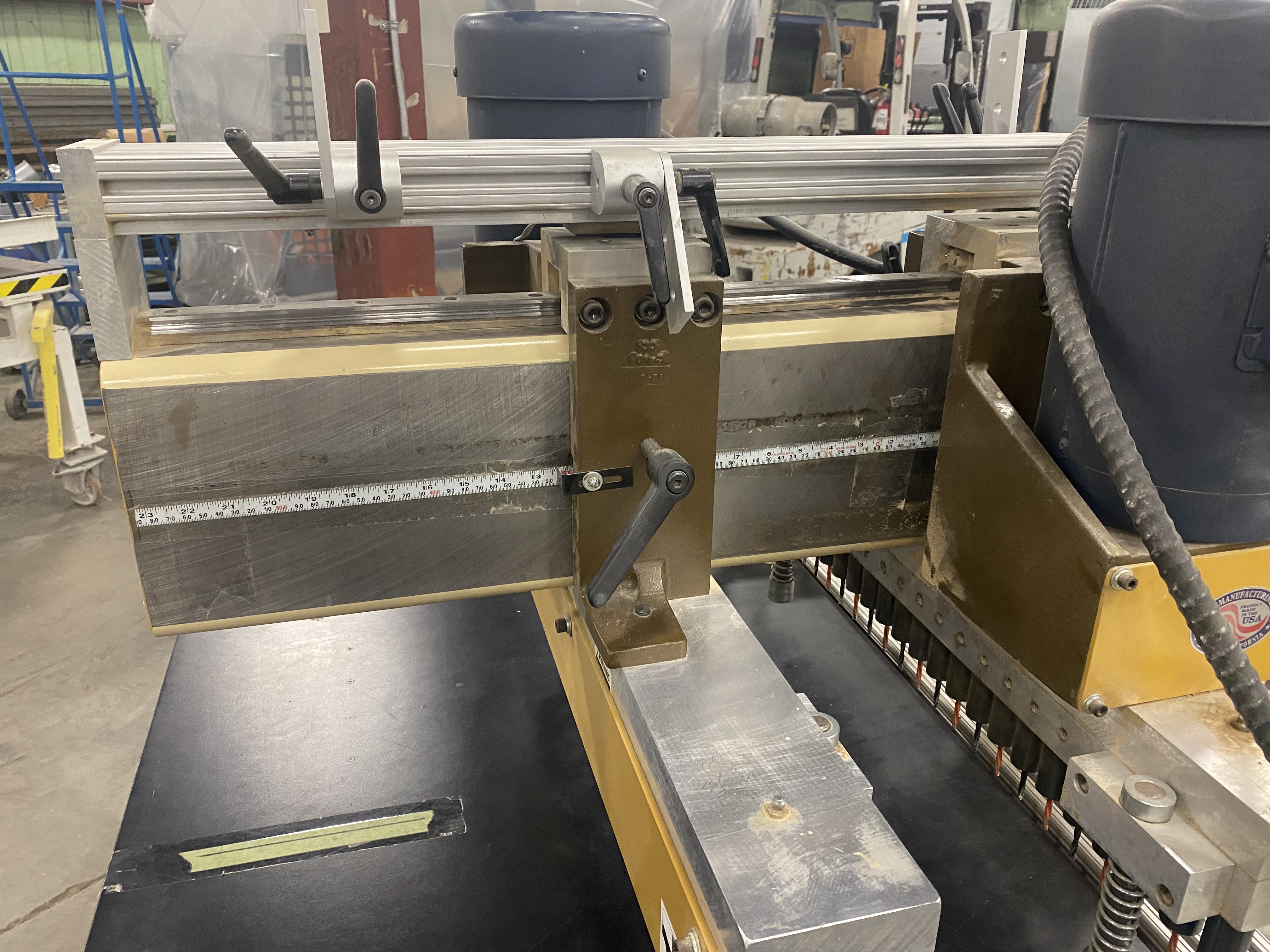

  • 48″ Back Fence with (2) Stops
  • (2) Air Index Pins

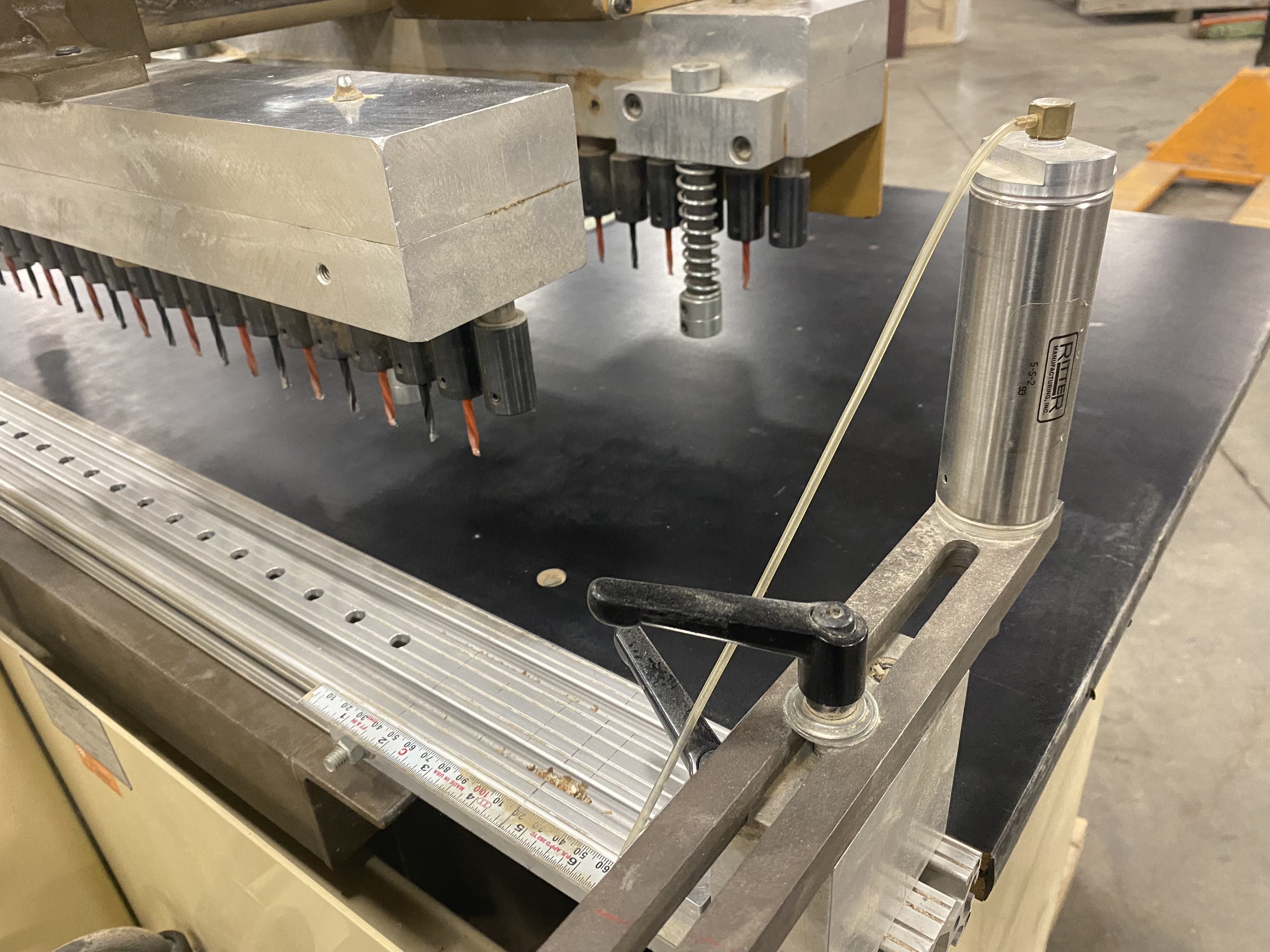

  • (2) Position Drill Depth Stop Turret
  • 30″ X 48″ Work Table Surface
  • Wired 3-Phase 240/480 Volt, 60 Hz.

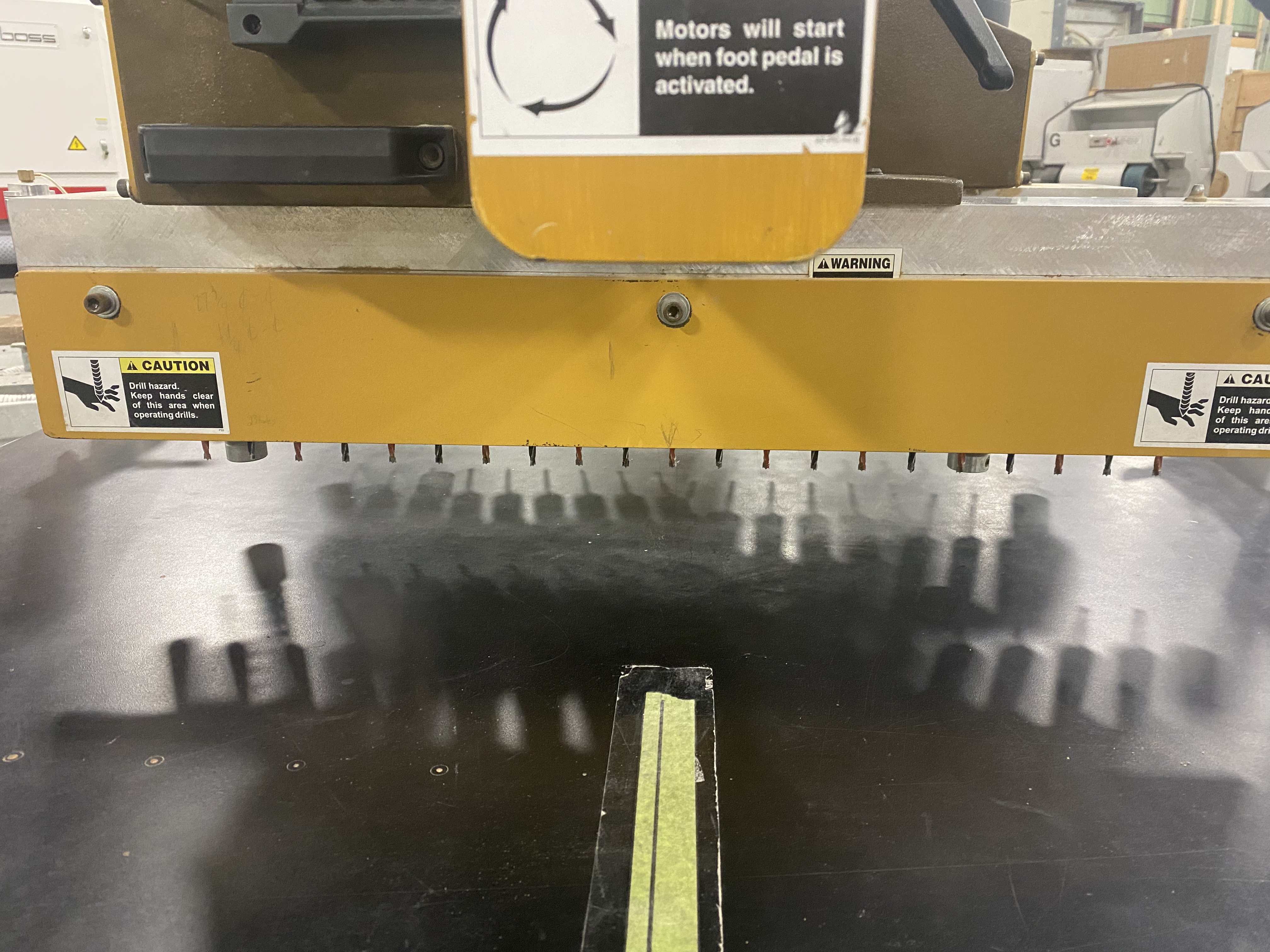

  • Foot Actuated Boring Cycle
  • Tooling Not Included
  • Designed and Manufactured in the USA
  • Approximate dimensions: 54'' x 54'' x 76''
  • Approximate weight: 1,341 lbs (608 kg)



Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |


Please contact TCMI customer service for more information.


---


** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
