2016 Orma Membrane Press, Air System Eco 30/14

Orma Membrane Press, Air System Eco 30/14

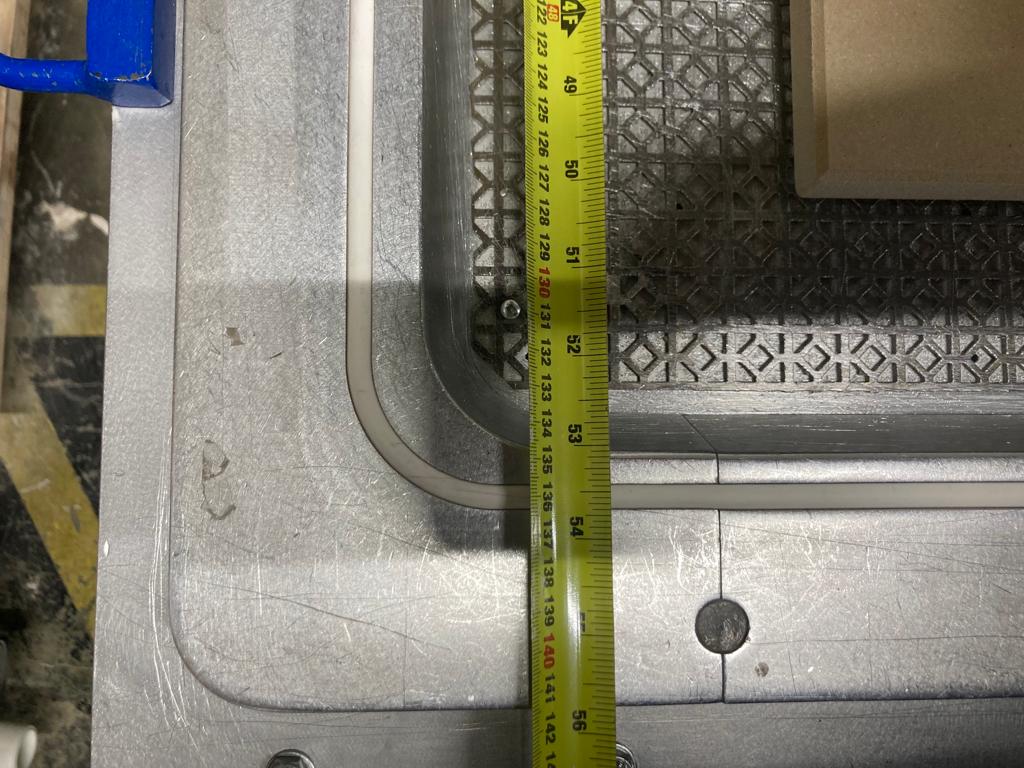

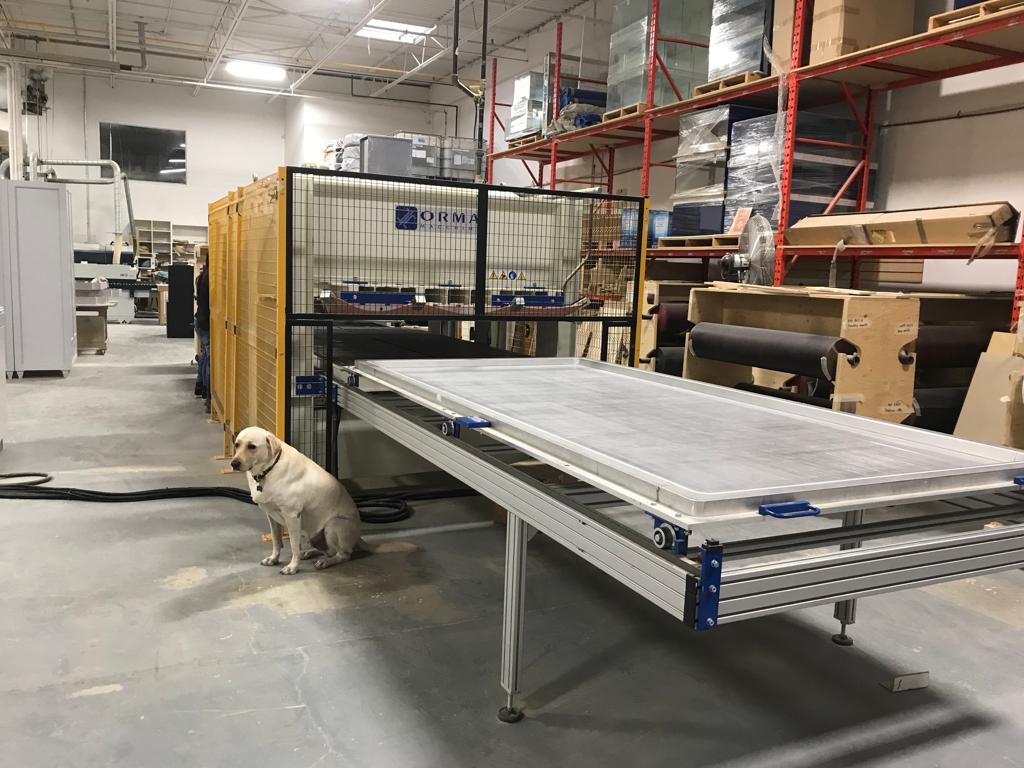

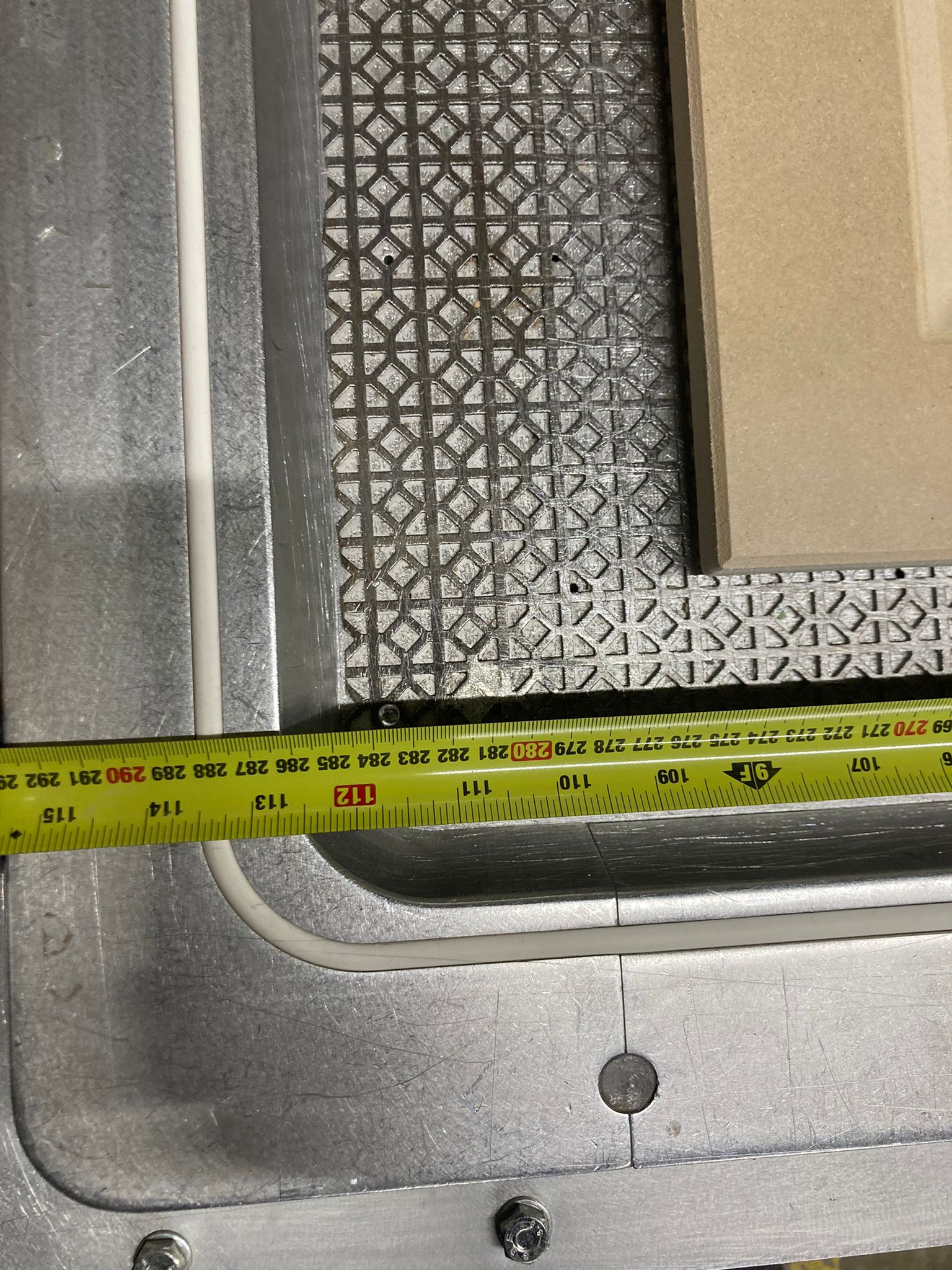

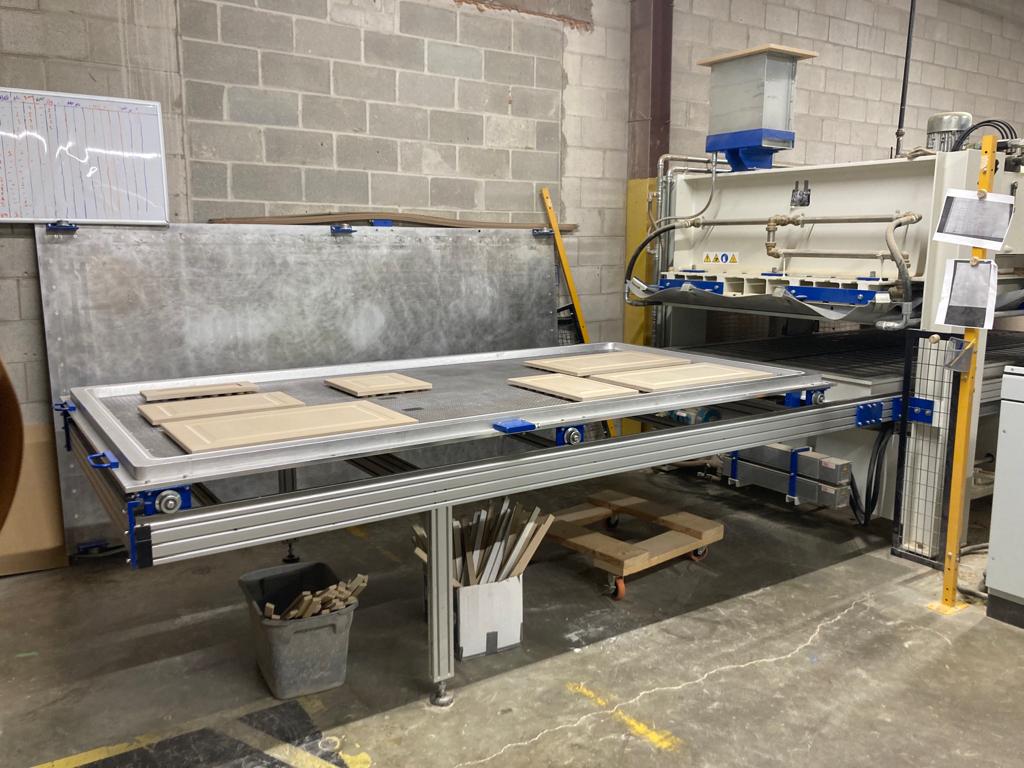

Membrane press for 3D covering - LOADING/UNLOADING TABLE WITH No. 1 MANUAL TRAY - VACUUM PRESS AIR/SYSTEM/ECO 25/14- OPTIONS LOADING/UNLOADING TABLE WITH No. 1 MANUAL TRAY The loading/unloading group, composed by one tray, is fitted at one end of the press. Structure of the table made of anodized aluminum profiles. Loading/unloading manual movement. Wheels and guides for a perfect movement of the tray. Thick perimeter aluminum flange with special O-ring silicon seal in order to ensure the perfect pressure tightness. Tray overall dimensions 2500 x 1400 mm Inner flange dimensions 2340 x 1340 mm Flange height 40 mm VACUUM PRESS AIR/SYSTEM/ECO 25/14 Press platen dimensions 2500 x 1400 mm 98.4” x 51.1”Inner flange dimensions 2340 x 1340 mm 92.1” x 52.7“Max. useful panel dimensions 2240 x 1240 mm 88.1” x 48.8”Working chamber height 60 (40+20) mm 2.36”Max. panel thickness 55 mm 2.16”Max total thrust 200 ton Max. specific pressure 5 kg/cm² 71 PSI Pressing cylinders 4 ø 140 mm Daylight opening 230 mm End loading 1400 mm Working temperature 150 °C . Second tray on the same loading side High Gloss Kit including membrane kit, intermediate flange and control board modifications.

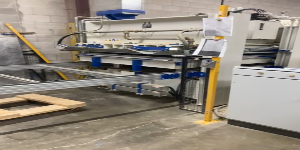

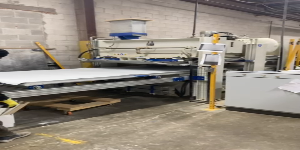

-This machine has moved with the customer to a new location therefore; pictures of the machine have changed over time.

Orma machine membrane presses cover shaped panels are the result of the company’s experience in this particular field.

Dimensions - 2840mm x 1340mm

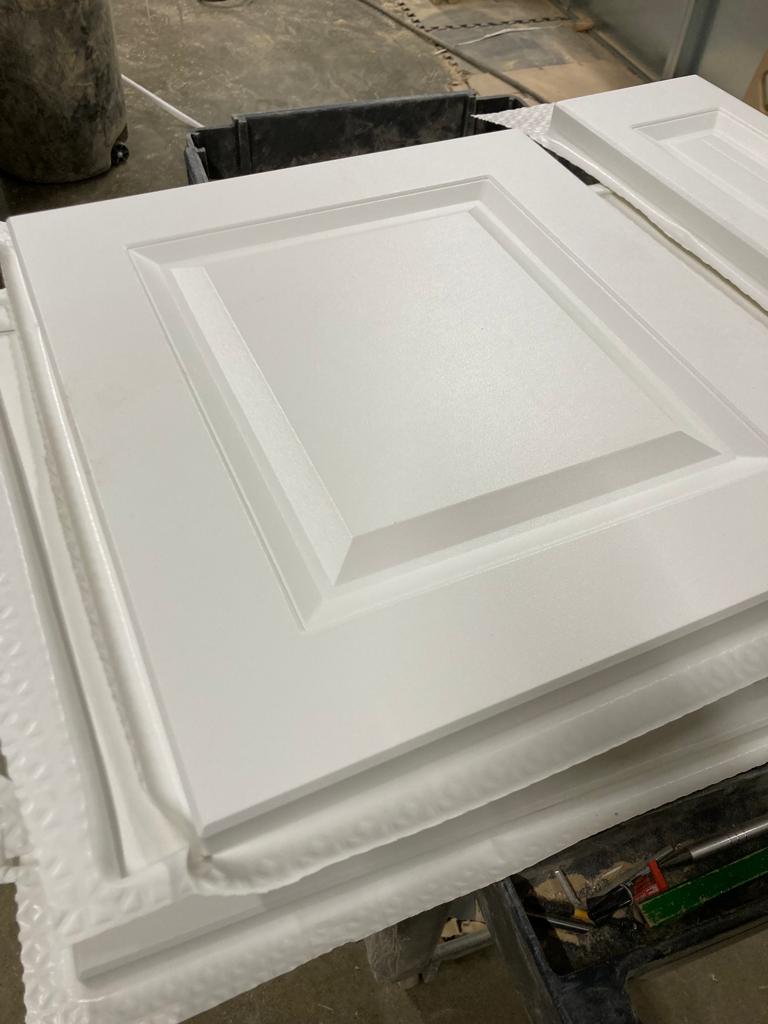

3D PVC Coating - Largest panel dimensions - 2740mm x 1240mm

Working Chamber Height - 60mm

Number of Pistons - 6 at 140mm Dia.

Stroke - 100mm

Tonnes - 270

Heating - 18kW

Total Consumption - 25kW

Weight - 8400kgs

Length - 6614mm

Width - 2190mm

Height - 2100mm
