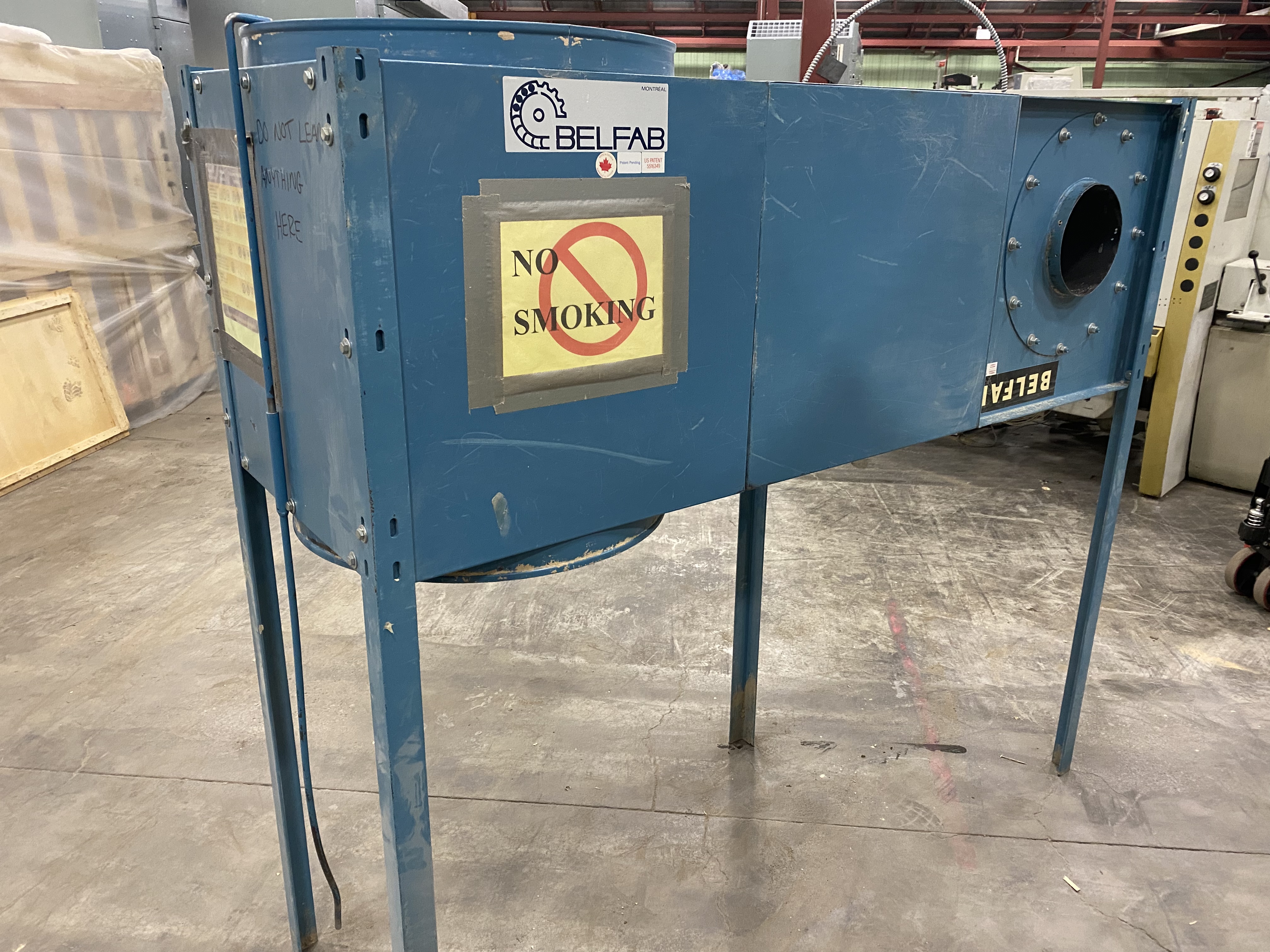

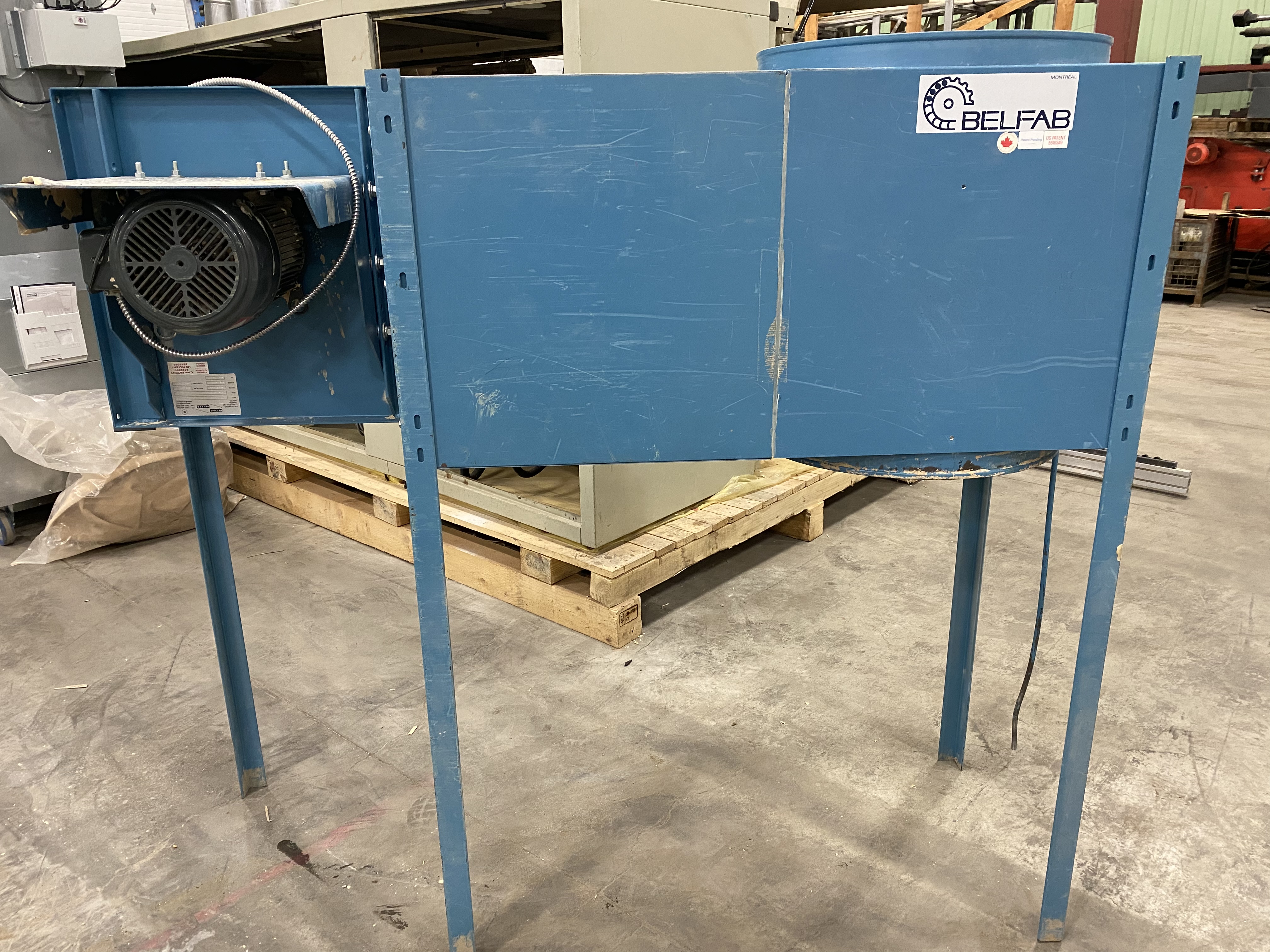

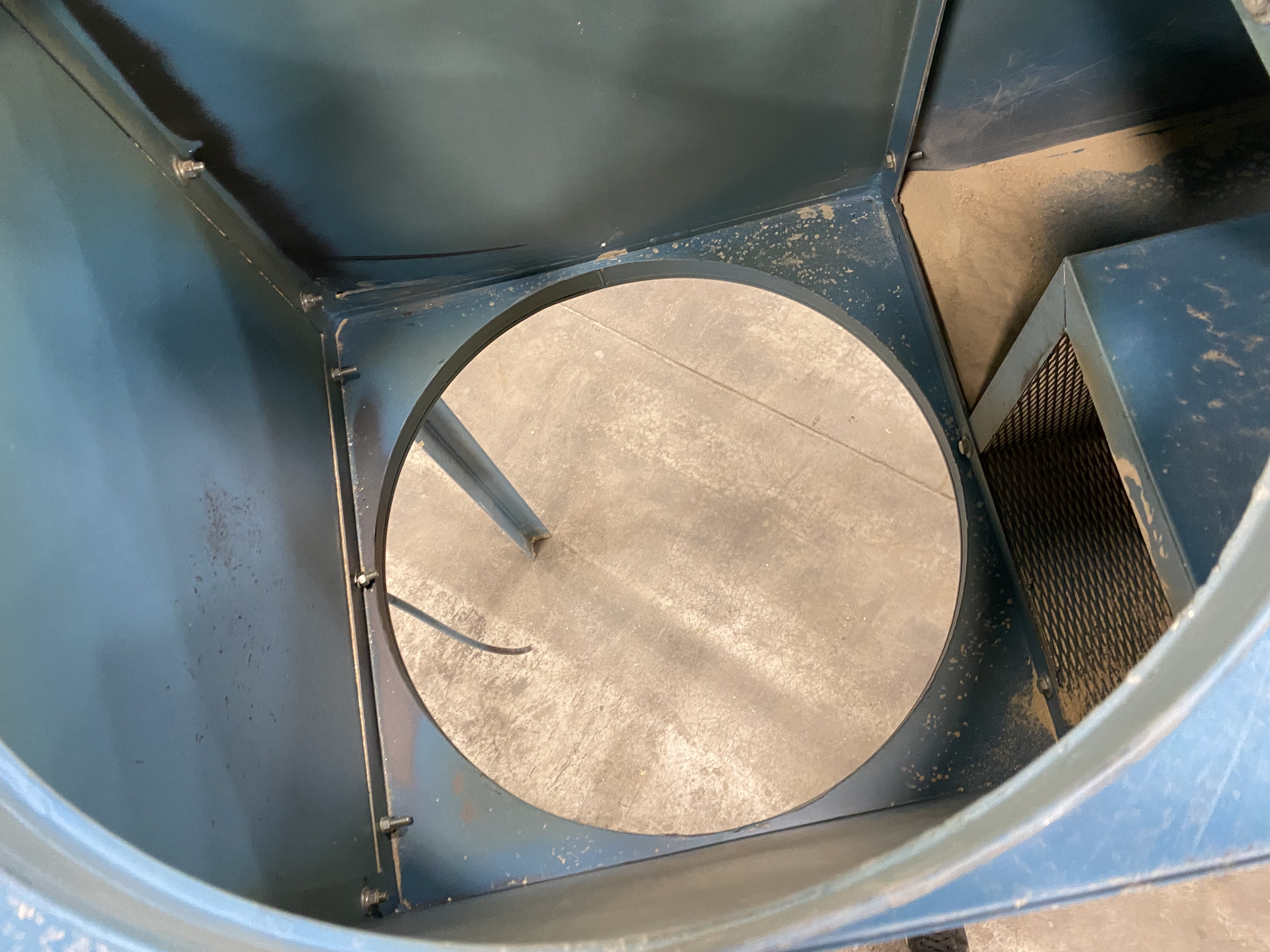

2010 Belfab LW - Dust Collector

The “LW” model is engineered as a compact and high efficiency collector solution, offering a height of less than 11’. This unit is designed to operate as either a dedicated “stand alone”, or main dust collector within a woodworking facility.

The LW open system design integrates BELFAB modular filter technology. This feature makes it possible to increase filtration surface cost effectively, with the introduction of additional filter modules. This expandable filter module capability makes it possible to offer large filtration surfaces, capable of developing an air to cloth ratio better than 6:1. This feature makes it ideal for dust collection application involving moderate to large dust volume in either coarse or fine material.

• Low maintenance direct drive centrifugal fan • AMCA Class B (standard) and Class C (Hummer) anti-spark blower assembly • High efficiency TEFC motor, CSA-UL or CSA-US approved • High efficiency needle felt filter bags • Bag secured by quick release clamps for quick and easy removal of residues • Minimal space requirements for indoor installation

Filtration surface (sq.ft.) 35

Dimension (W x D X H) in. 48” x 24” x 130”

Module weight (lbs) 129

FAN MODULE 5HP

Capacity (CFM) 2 500

Sound pressure (dB) at 10´ 86

Inlet diameter (in.) 9

Module weight (lbs) 200
