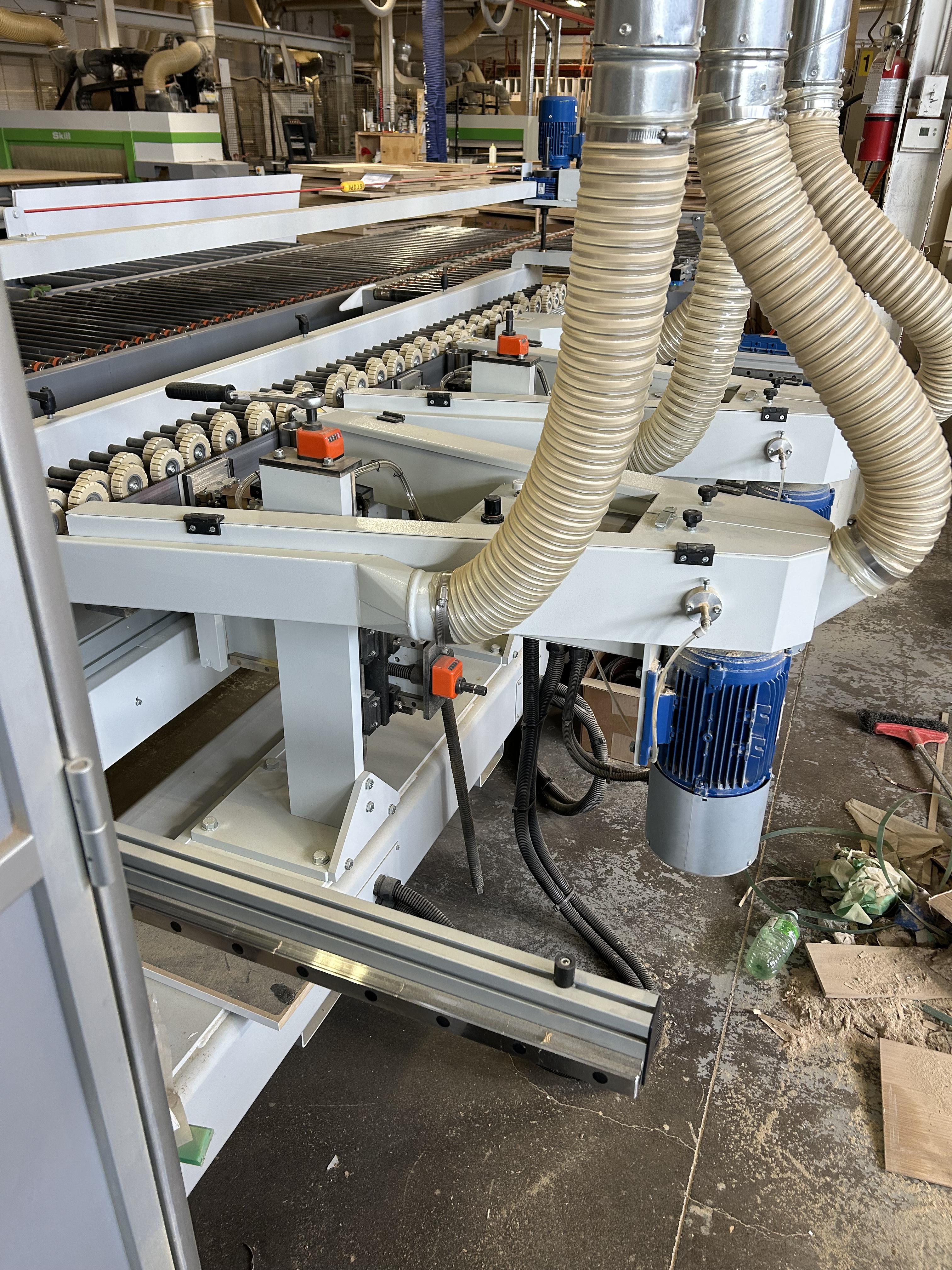

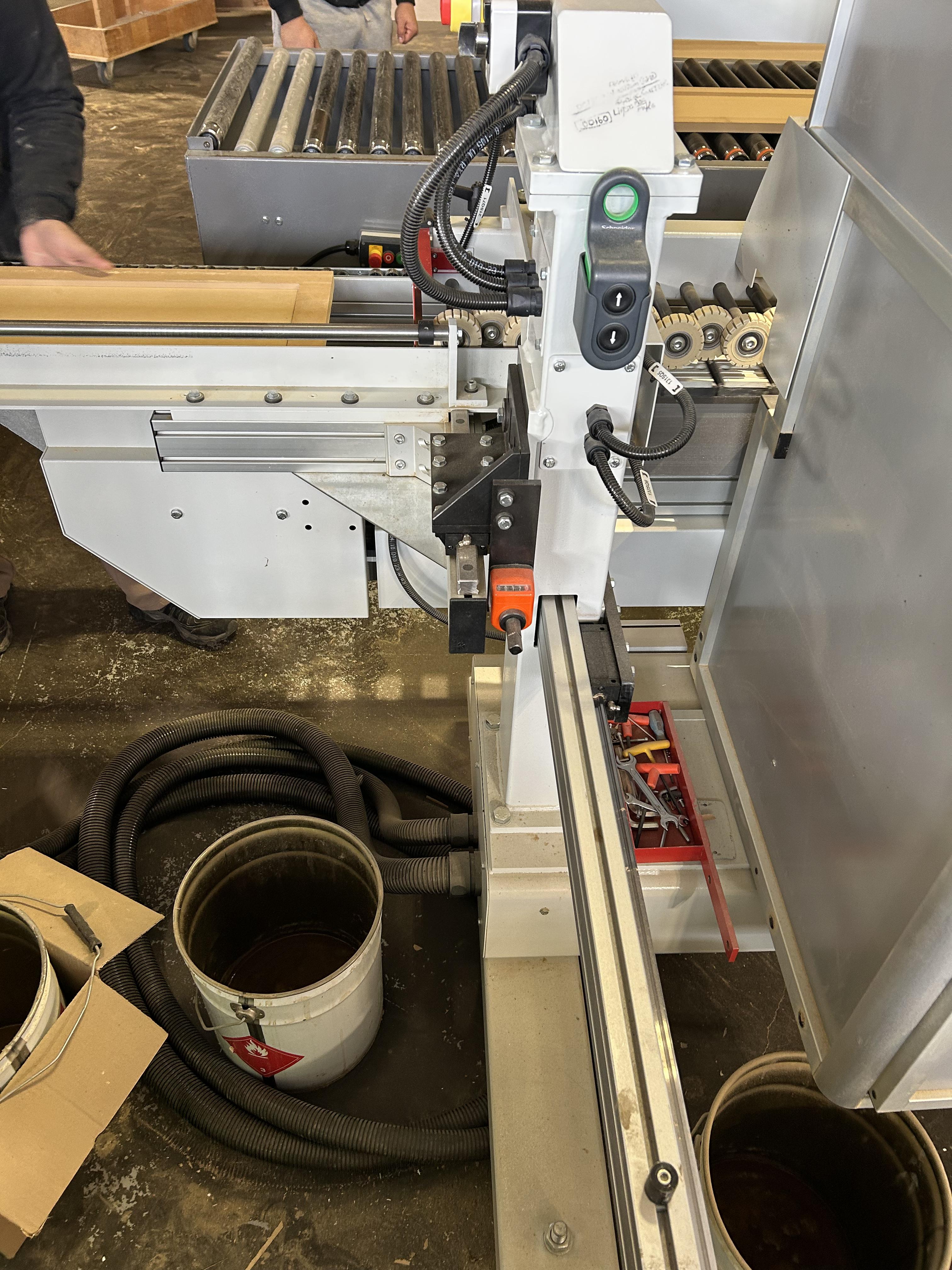

2024 Giardina Destefani MVT 5000

MVT 5.000

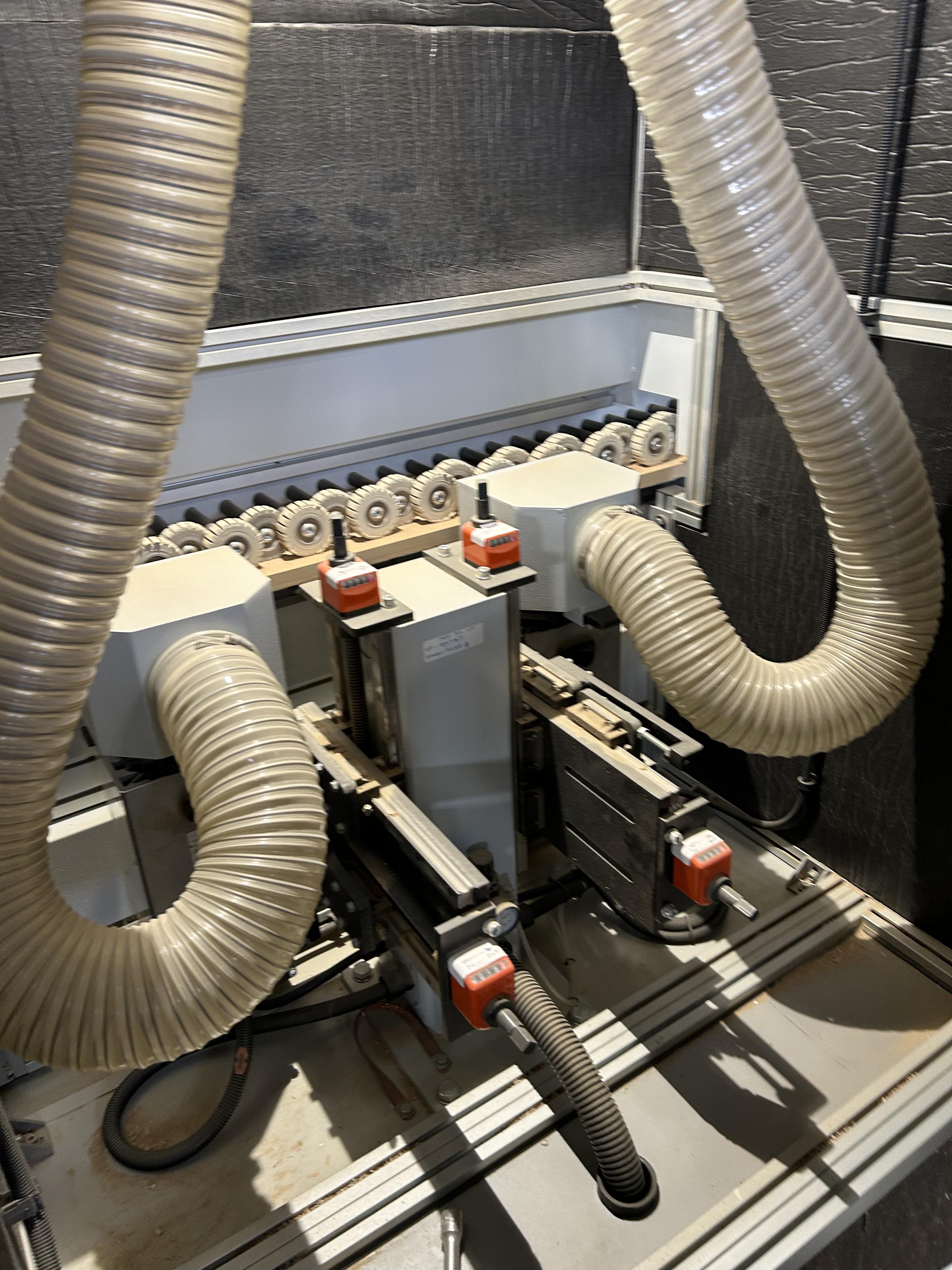

• pos. 1 - TP L-M wheel unit with timed intervention (Milling UNIT)
• pos. 2 - TP L-F wheel unit (Milling UNIT)
• pos. 3 - AT belt unit
• pos. 4 - AT belt unit
• pos. 5 - SB wheel unit

TECHNICAL DATA:

• Working side: 1 - single side machine
• Processing: sanding
• Min. length: 200 mm
• Min. width: 50 mm
• Max. Thickness: 100 mm
• Variable feeding speed by inverter: from 5 to 25 m/min
• Feed motor power (with inverter): 1.5 kW
• Working height (+/- 30 mm): 900 mm
• Total installed power: 8.5 kW
• Voltage: 480 V (3 phases,60 Hz+NEUTRAL WIRE)
• Machine colours: RAL 7035 light grey
• Machine length: see drawing
• Machine width: 1,700 mm
• Machine height: 1,500 mm
• Safety devices: CE
• Compressed air feeding : 6 ÷ 8 Bar
• Piece loading-Unloading: Manual
• Extracted air consumption: 5,500 m³/h (at speed of 25 /sec)
• Dust suction ports: Nr. 2 - Ø 120 mm & Nr. 5 - Ø 100 mm
