2021 Dynma AIRKOMP Electro-pneumatic Case Clamp
No longer available
Specifications
| Manufacturer | Dynma |
| Model | AIRKOMP |
| Year | 2021 |
| Stock Number | T4503RC |
Description

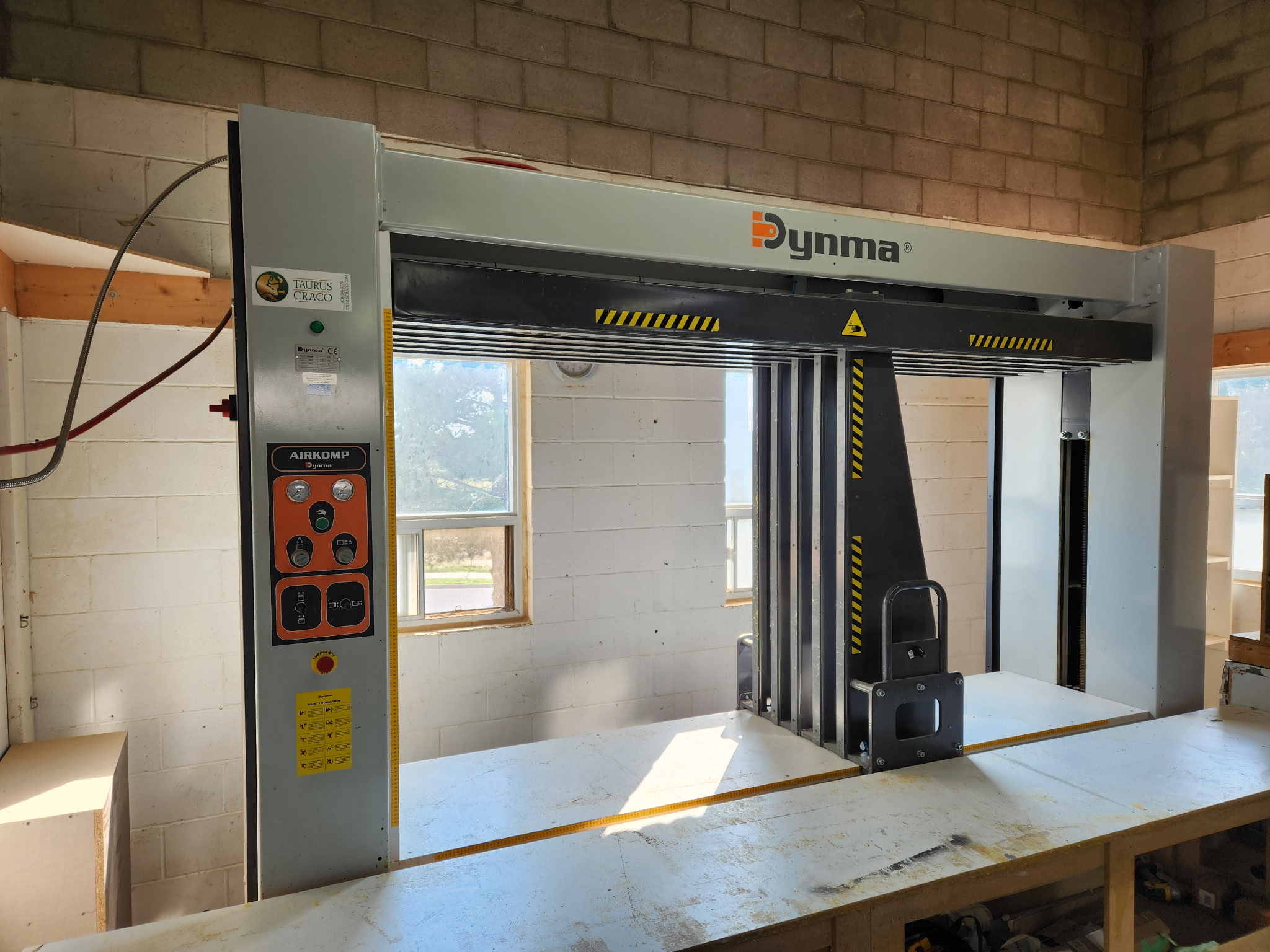

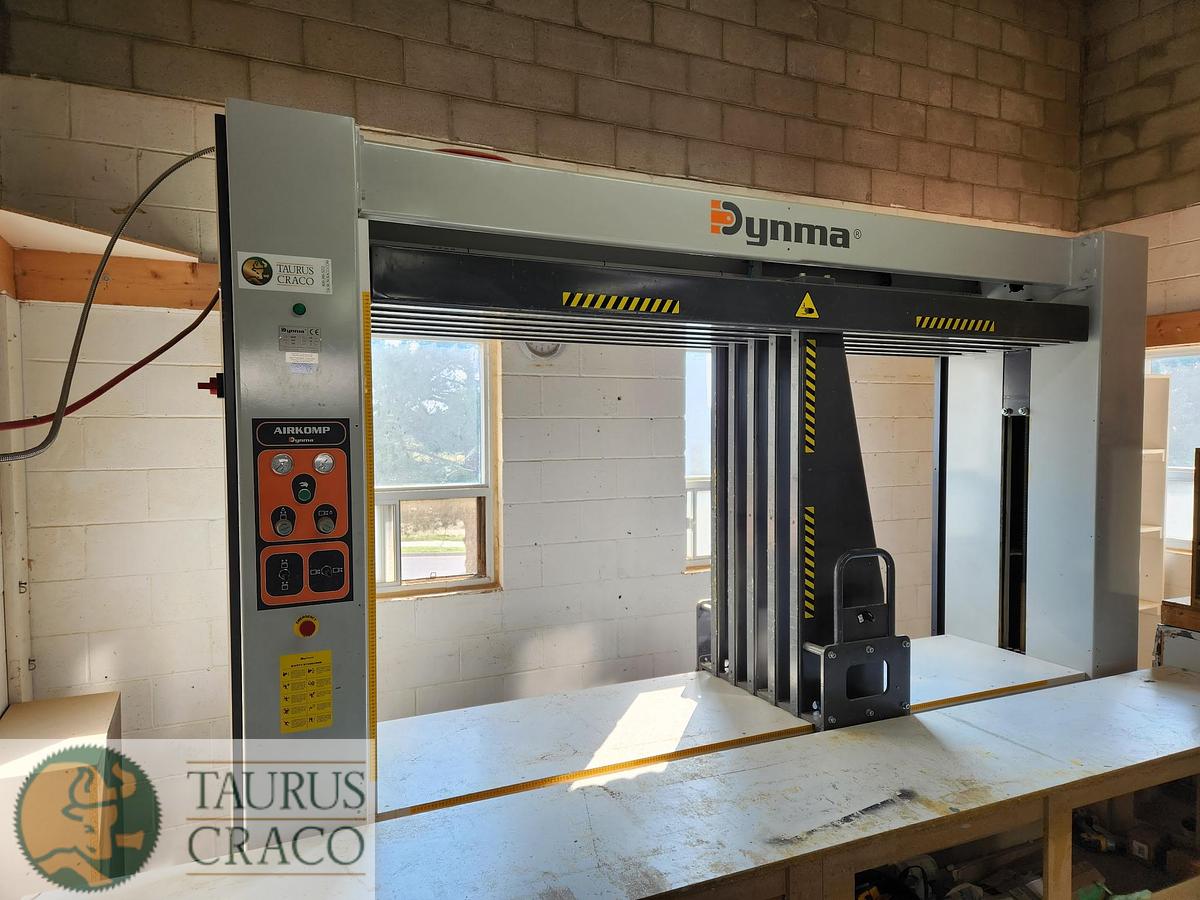

The Dynma AIRKOMP Electro-Pneumatic Press is a manual load press designed for efficient furniture assembly, particularly for 45º jointing system cabinets. It features robust construction with intercrossed steel pipes for quick setup without adjustments via an electro-pneumatic system.
- Max/min cabinet height: 1,380/300 mm
- Max/min cabinet width: 700/200 mm
- Overall size: 3,660 x 2,270 x 900 mm.
- Max strength: 1,700 kg vertical - 1,200 kg lateral.
- Vertical platform with 6 steel pieces (150x50 mm), lateral column with 5 steel pieces (150x50 mm), polyethylene strips for smooth sliding.
- 420 mm standard working height
- 400 V/50 Hz, 0.75 kW, 6 bar air pressure, 25 Nl/cycle air consumption.
- Weight: 2,100 kg.
**Benefits**:
- User-friendly joystick control panel for quick adjustments.
- Pneumatic controls for customizable pressing strength.
- Grinding spindle and linear guideways for stability and performance.
Distributed by Taurus Craco, a leading supplier of Dynma and other premium machinery brands. For further details or inquiries, contact Taurus Craco directly.
