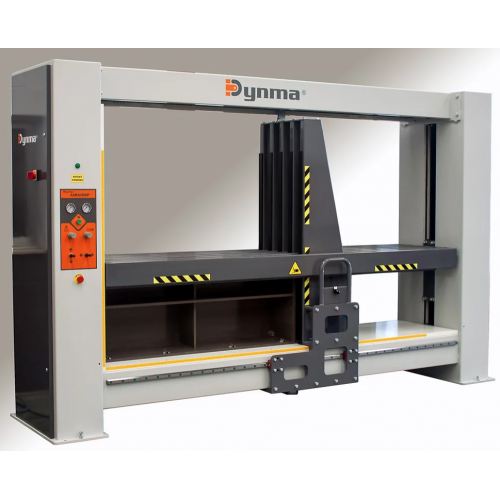

Dynma AIRKOMP Electro Pneumatic Press Case Clamp

The Dynma AIRKOMP Electro-Pneumatic Press is a manual load press.

The AIRKOMP's pressure planes are constructed with intercrossed steel pipes, allow quick assembly of  furniture the need to make adjustments. Fast working way, with limited stroke and pressure can also press 45º jointing system cabinets.

the AIRKOMP is based on the design of the VK-011 press, the platform and moving column are formed by a series of structural steel and covered with polyethylene strips for best sliding in pressing operation. With 1.700 / 1.200 kg of developed strength all controlled by an electro-pneumatic system.

Features

Max. / min. cabinet height: 1380 / 300 mm

Maximum cabinet width: 700 / 200 mm

Max. lateral strength: 1200 kg

Max. vertical strength: 1700 kg

Vertical platform with 6 intercrossed steel pieces: 150x50 mm

Lateral column with 5 intercrossed steel pieces: 150x50 mm

Standard working height (H1): 420 mm

Electric power: 0.75 kw

Air pressure: 6 bar

Length x height x width: 3660 x 2270 x 900 mm

Weight: 2,100 kg

Benefits

• Easy to use control panel with joysticks for a quick press adjustment.
• Pneumatic controls will enable you easily to select the pressing strength.
• Grinding spindle and linear guideways, ensure proper stability and high performance.
