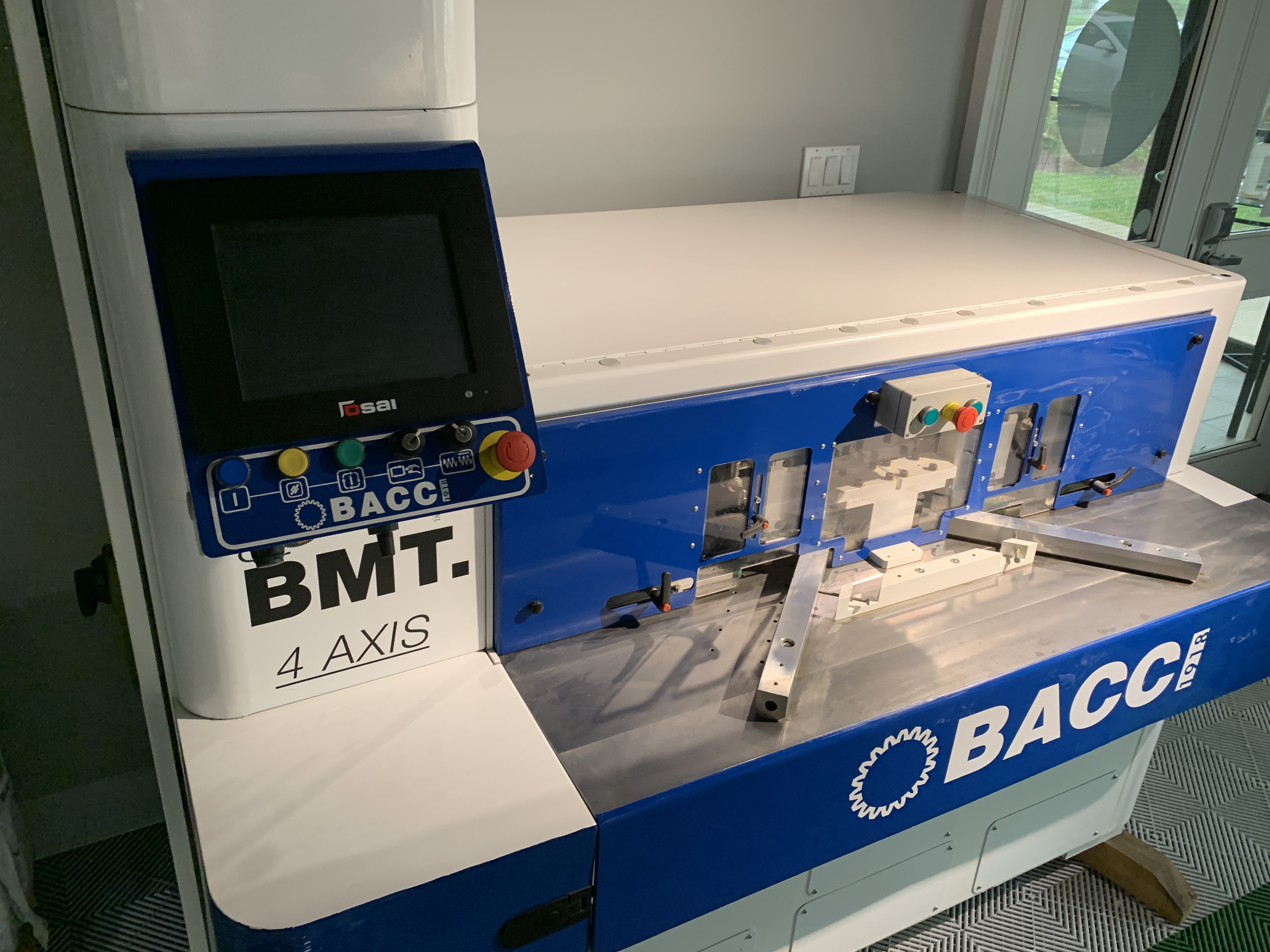

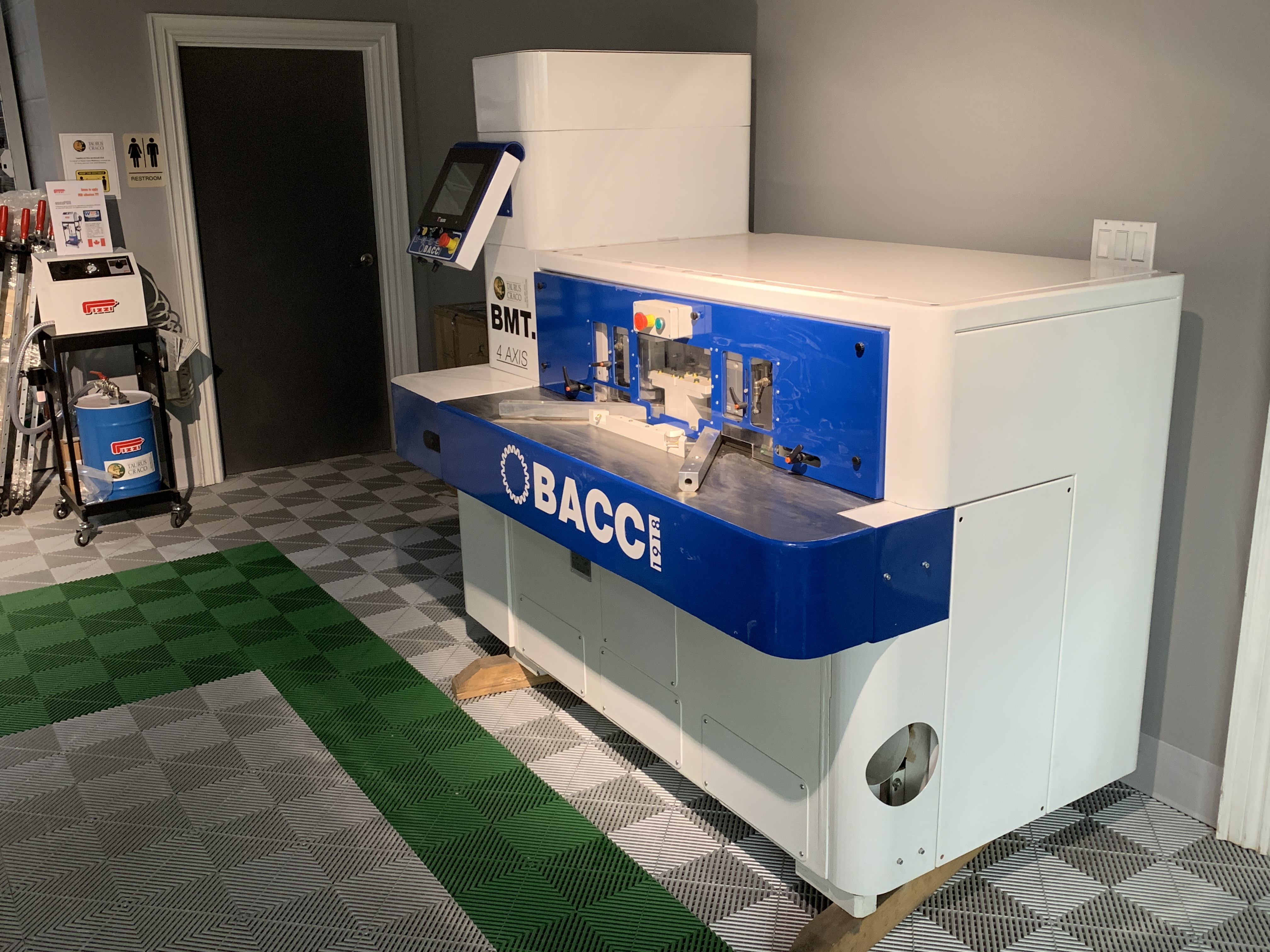

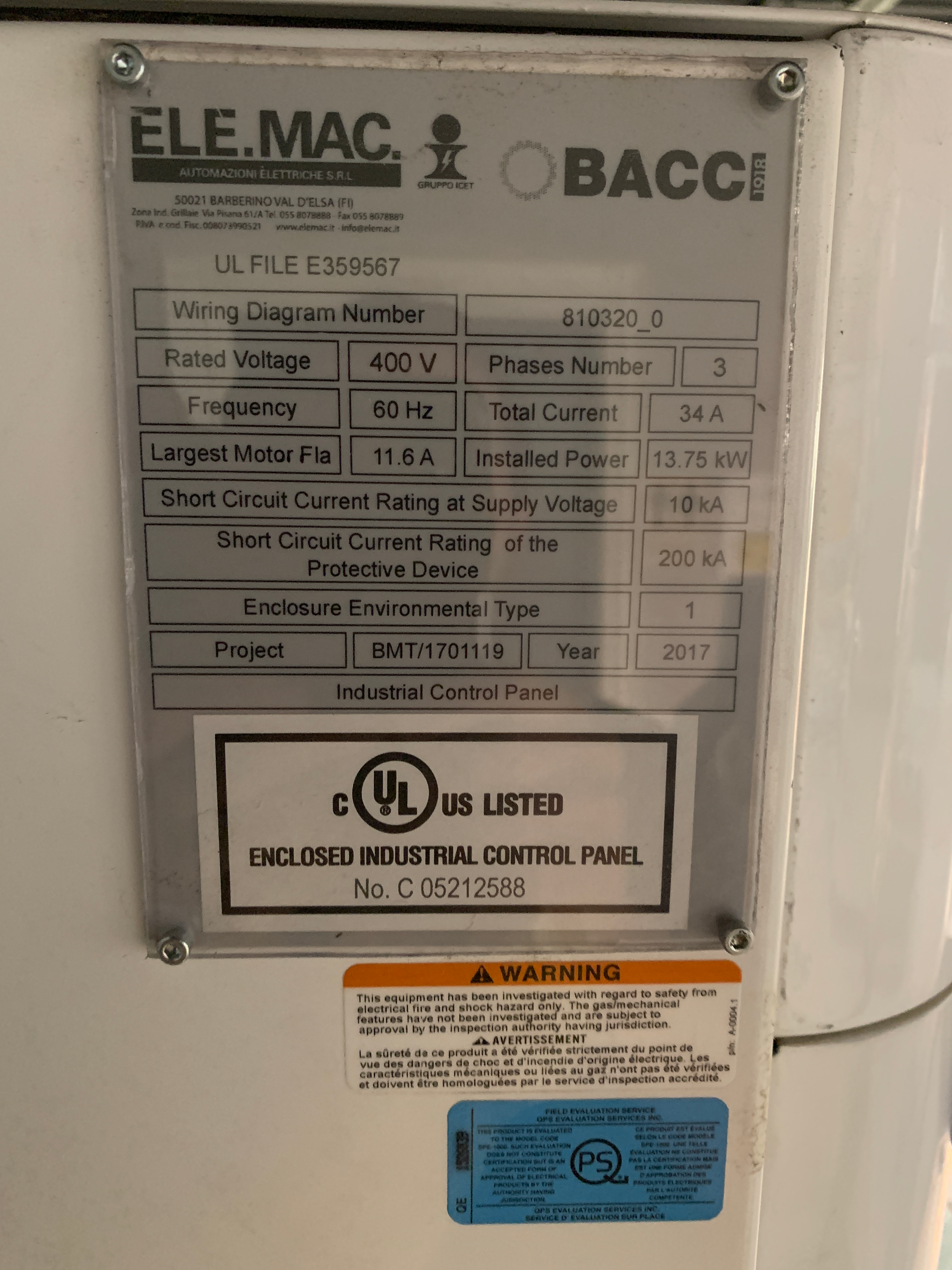

2017 Bacci BMT 4 Axis

This Bacci BMT 4- Axis Machine has been display in trade shows and demo in the shows only .

4-AXES CNC

MACHINING CENTRE for

Mitre, Mortise, and Tenon

Of Stile and Rail Components

MACHINE DESCRIPTION:

The BMT 4-Axis is Baccis’ new solution for producing mitred kitchen cabinet door components, and is specifically configured for flexible, high volume production requirements. The Bacci BMT 4-Axis produces high quality 45° mitred, mortised and tenoned components for use in cabinet door construction.

Bacci BMT 4-Axis Features:

- Two (2) direct drive spindles, one for the mortise and one for the mitre/tenon.

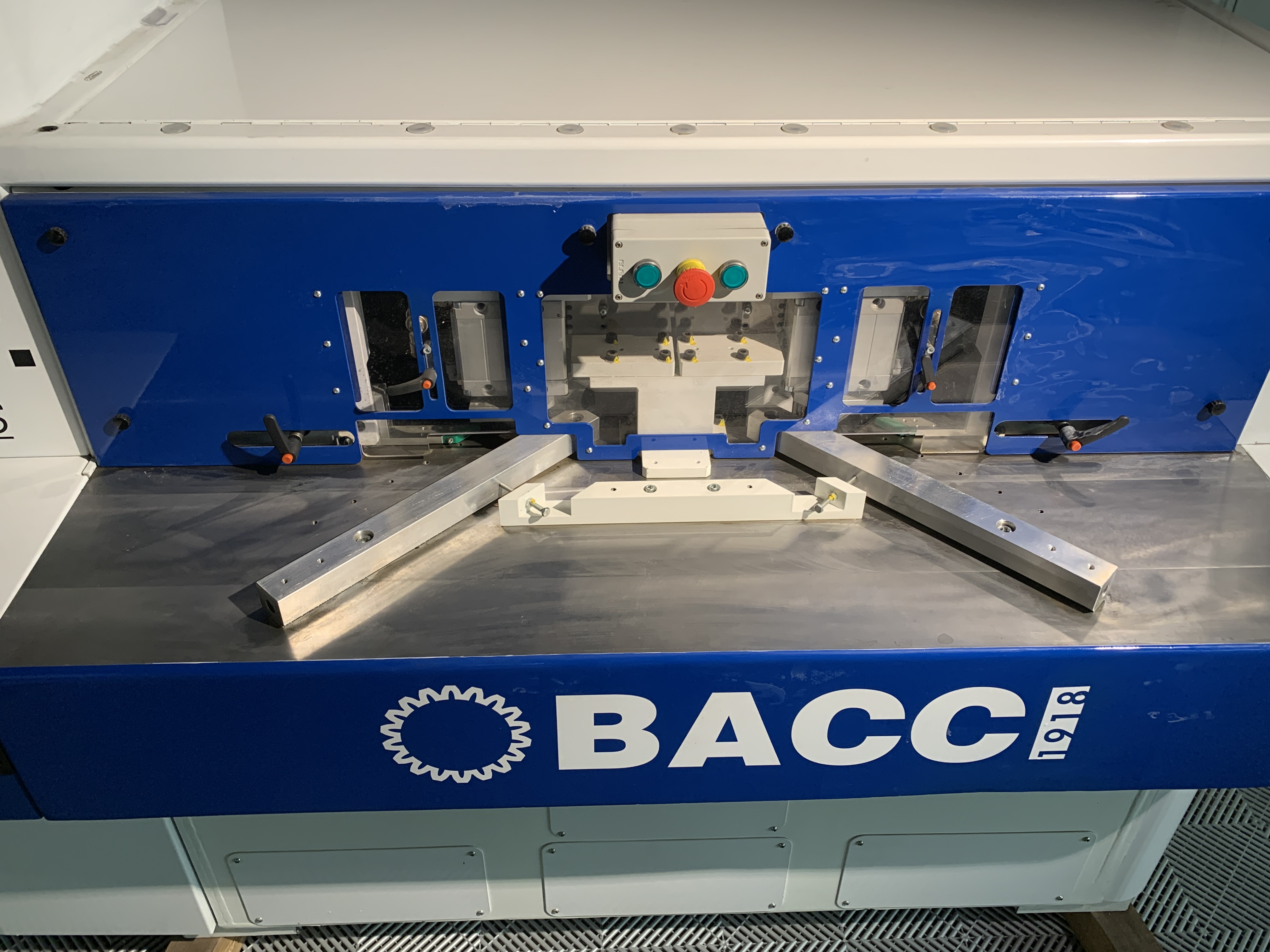

- Two (2) zone work table for pendulum processing capability.

• Opposing left and right reference fences for perfectly mitred corners.
• Side and top clamps for maximum clamping ability.

- Four (4) interpolated axes fully managed by the NC control.

- Longer (800mm) X-Axis stoke for machining even the widest parts.

- Automatic lubrication system for the 4-Axis NC controlled motion systems.

- Quick and flexible programming software for processing various profiles shapes and sizes.

- Easily recall previous programs manually or via bar code.

4th NC CONTROLLED AXIS :

The Bacci BMT 4-Axis CNC is the only machine to be equipped with a 4th NC controlled axis.

This 4th NC controlled axis allows:

• Complete elimination of any possible manual settings, other than for a tool change.
• More accurate positioning and faster cycle times. The common 3-Axes machine controls the Y-axis movement of the mortise and tenon spindles with pneumatic cylinders. Bacci, instead, uses independent NC controlled drive motors for the mortise and tenon spindles. Thus the Y-Axis movement is faster and more accurate.
• A more reliable drive system over that of a pneumatic cylinder.
