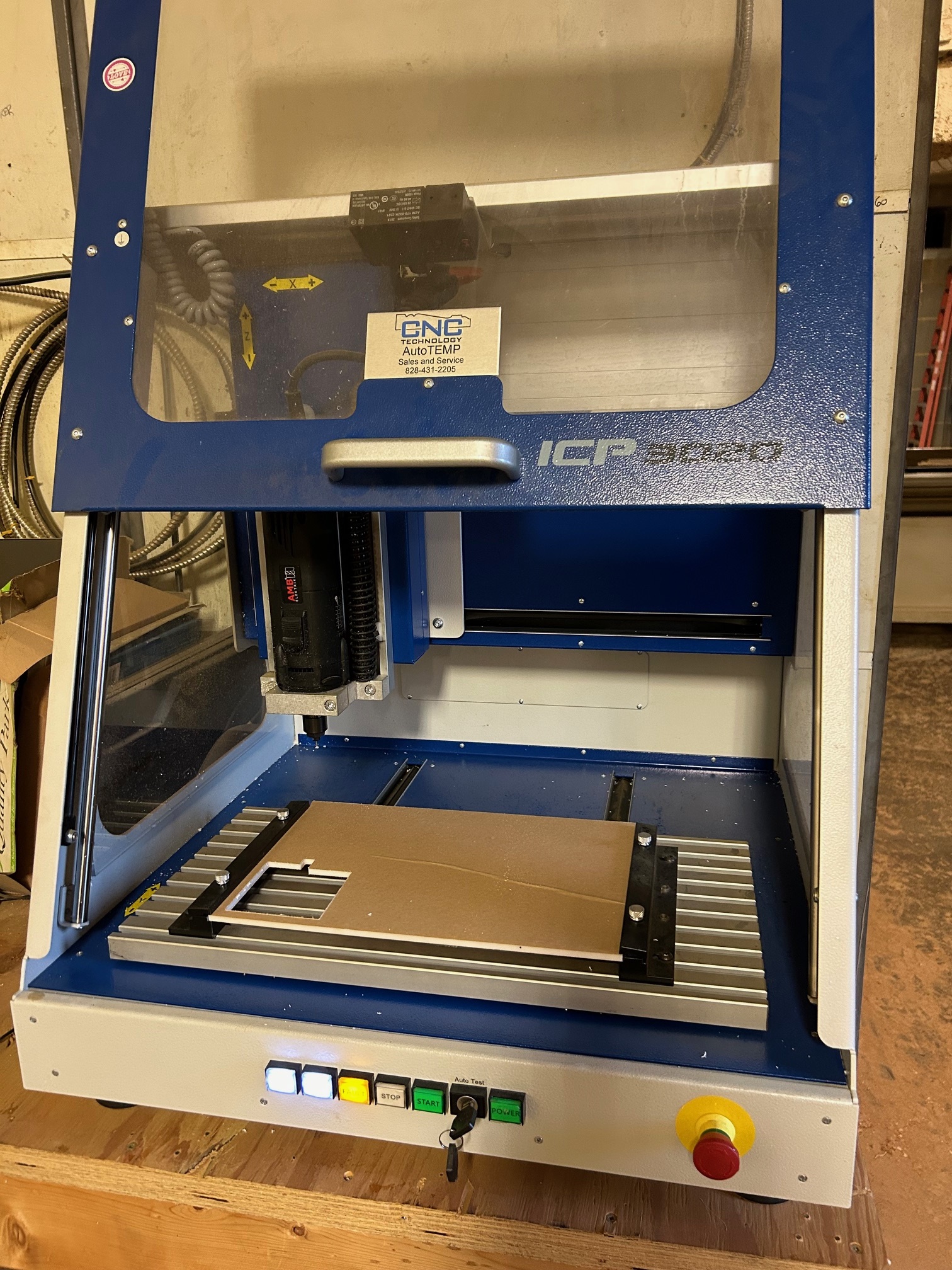

2020 Isel ICP 3020 CNC Template Maker

Inquire today!

Isel ICP-3020 CNC Stepper Gantry - Features and Specifications:

• Includes PC and up-to-date CAD software
• Traverse path X/Y/Z: 11.8'' x 7.9'' x 3.5'' (300 x 200 x 90mm)
• Clamping table surface: 19.7'' x 9.8'' (500 x 250mm)
• Throughput: 4.5" (115 mm)
• Guides: Linear units with precision steel shafts and recirculating all slots, clearance free, adjustable
• Process speed X/Y/Z: 3.9" (100 mm/s)
• Repeatability: +/- 0.0008" (+/- 0.02 mm)
• Drive motors: Stepper motors
• Approximate dimensions: 30" x 35" x 32"
• Approximate weight: 225 lbs (102 kg)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
