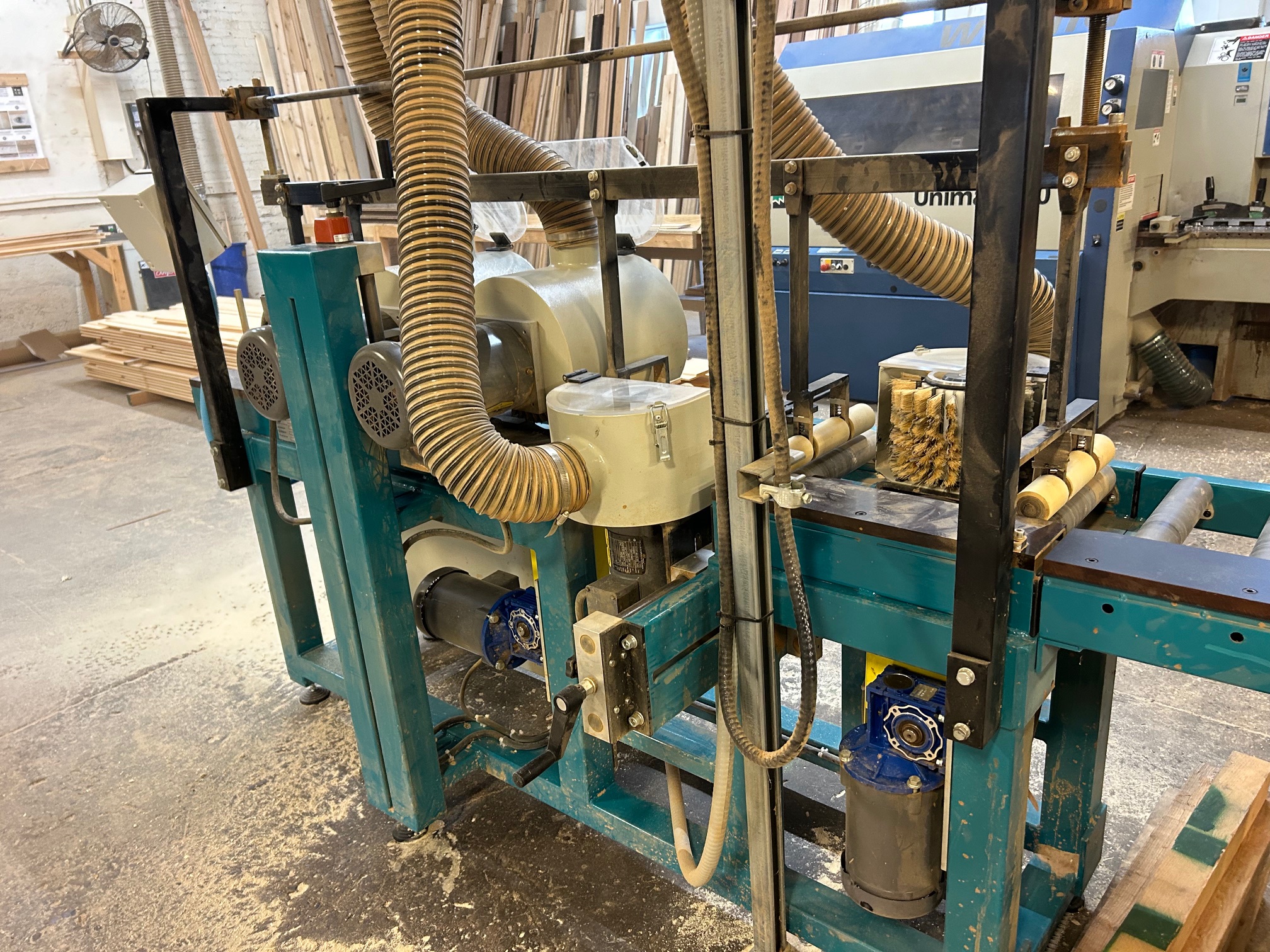

Opti-Sand L202 Linear Moulding Sander

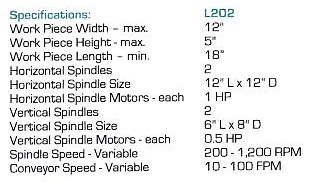

Opti-Sand L202 Linear Moulding Sander - Features and Specifications:

• 2 top heads, 2 side heads
• 4 sanding heads w/ various sanding and wire wheel inserts
• Approximate dimensions: 96" x 50" x 72"
• Approximate weight: 1,500 lbs

The Opti-Sand Moulding Sander is a specialized sanding machine designed for finishing and sealer sanding of various workpieces, including mouldings, trim, flooring, and similar items. Its key features and design elements emphasize thorough and uniform sanding across different surfaces.

Spindle Configuration:

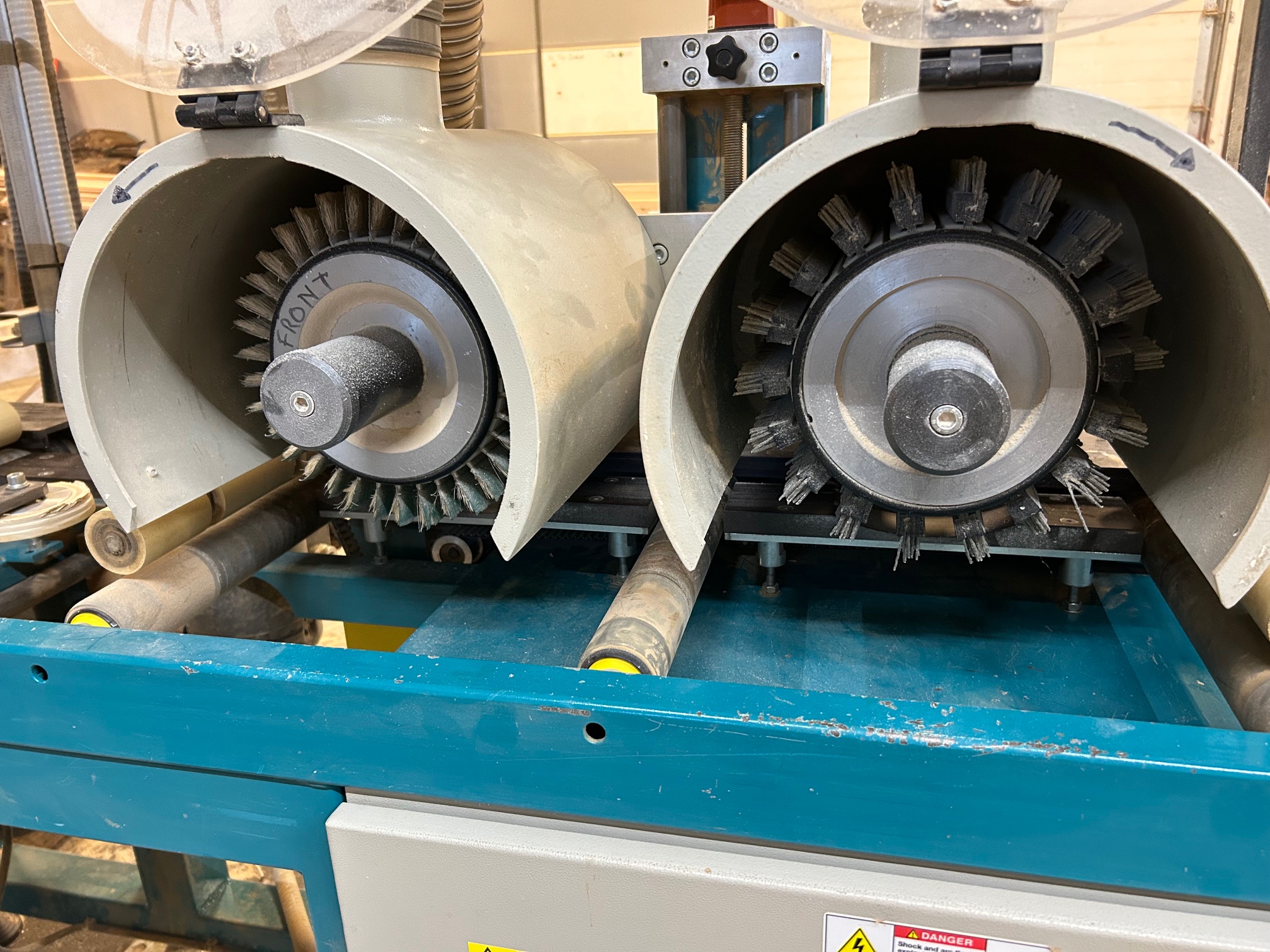

• Two horizontal top spindles: These target the upper surfaces of the workpiece, ensuring consistent sanding across the top.

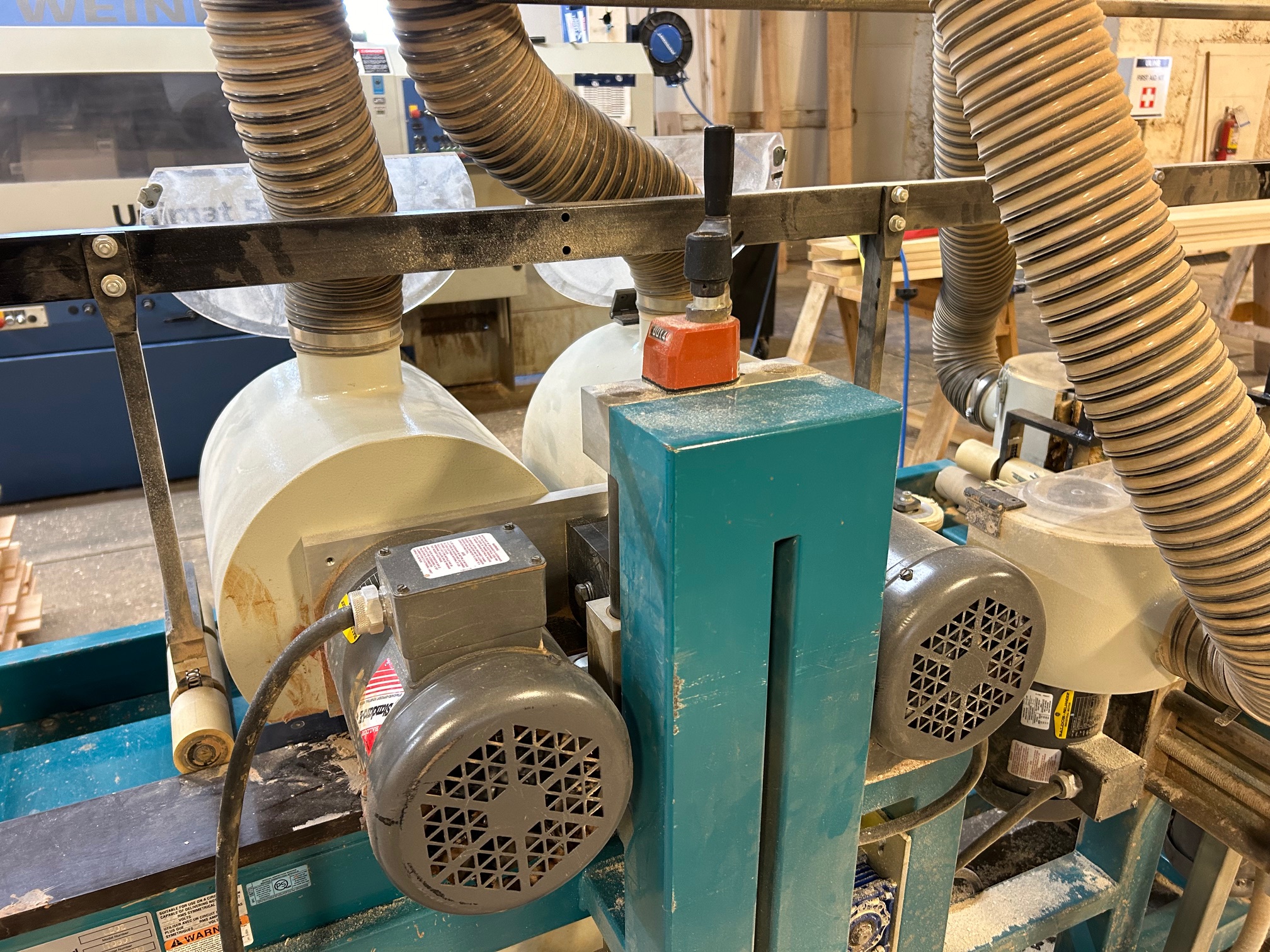

• Two vertical side spindles: These handle the sides, allowing for comprehensive sanding of vertical surfaces.

Adjustability:

• All spindles are adjustable to accommodate different workpiece sizes and to compensate for abrasive wear, ensuring long-term usability and precision as the sanding media degrades over time.

Tiltable Spindles:

• Both the top and side spindles can be tilted, optimizing the sanding angle for different profiles and ensuring maximum contact and effectiveness on varied workpiece shapes.

Pressure Rollers and Conveyor System:

• Full-width pressure rollers, adjustable via a hand crank, secure the workpieces firmly against the power conveyor and the rear guide fence. This ensures stability during sanding, preventing movement that could cause uneven finishes.

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
