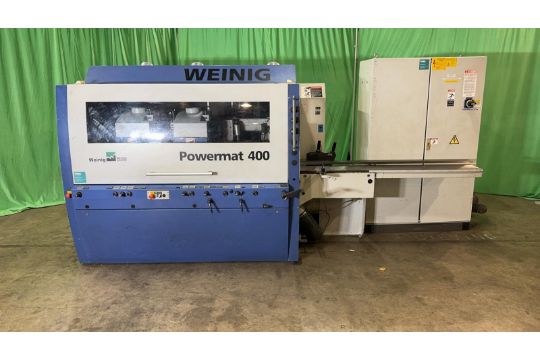

2007 Weinig Powermat 400 6 Head Moulder (w/ HSK)

Specifications

ManufacturerWeinig
ModelPowermat 400 6 Head Moulder (w/ HSK)
Year2007
Stock NumberT4370KR
Voltage460V / 60Hz

Description

The Weinig Powermat 400 brings incredibly fast machining of solid wood and various other materials such as plastic or MDF to the table. Boasting unsurpassed surface quality, short setup times, high repetitive accuracy, and ease of operation, the Powermat 400 Moulder is the perfect machine for any woodworking shop looking to upgrade or incorporate a new moulder. With their decades of experience and cutting edge innovation, Weinig is trusted industry-wide to deliver premier results.



Features and Specifications:

  • 6-head moulder: B-R-L-T-T-B
  • Motors
  • Spindle 1 - 10 HP
  • Spindle 2 - 15 HP
  • Spindle 3 - 15 HP
  • Spindle 4 - 15 HP
  • Spindle 5 - 20 HP
  • Spindle 6 - 10 HP
  • HSK spindles on heads 2 to 6
  • Working height min./max.: 0.3" / 4.7"
  • Working width min./max.: 0.8" / 9.1"
  • 6,000 RPM, PowerLock tool holder
  • Max. tool diameter horizontal (not 1st bottom): 7.9"
  • Max. tool diameter vertical: 7.9"
  • Connected load: 91 HP
  • Full load amps: 127 A
  • Main fuse: 160 A
  • Note: DAMAGED TABLE, please see last photo
  • Approximate dimensions (moulder): 14' x 7'
  • Approximate weight (moulder): 6,500 lbs
  • Approximate dimensions (electrical cabinet): 4' x 2'
  • Approximate weight: 10,000 lbs


---


** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
