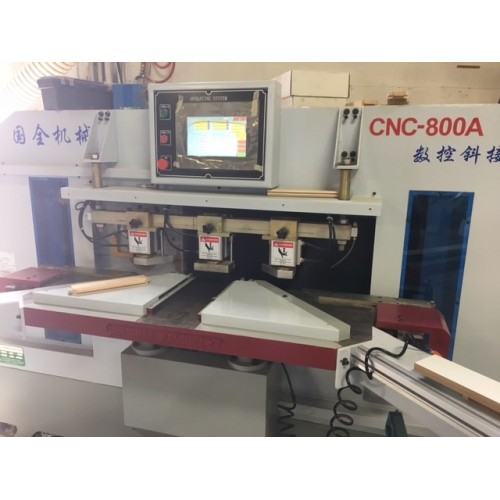

2016 CNC-800A NC Mitered Door Machine

Sold

Specifications

ManufacturerCNC 800A
ModelMitered Door Machine
Year2016
Stock Number1400JW

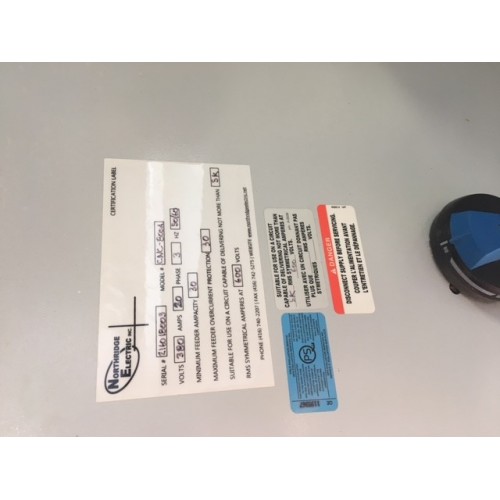

Voltage600 V - 3-Phase - 60 Hz
LocationCentral Canada

Description

The CNC 800A is capable of creating endless mortise and tenon combinations. It is perfectly suited for applications such as cabinetry, doors, windows and photo frame construction.


Features:

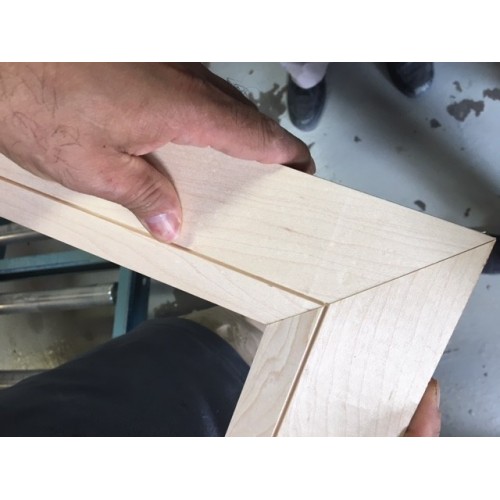

  • Produces 45°and 135° tenoned miters
  • Shaft dimensions: 30mm
  • 45° tenoning depth 10-45mm
  • 135° tenoning depth 10-20mm
  • Hogging cutter (max) 130mm
  • Tenoning tool body (Max) 90mm
  • 1200x450mm worktable
  • Drill rotating speed 9000/12000/18000 rpm
  • Fence angle 45°/90°
  • Mortising bit shank E25 collar (min 3mm max 16mm)
  • 45° Tenoning width 0-150mm
  • 135° Tenoning width 0-120mm
  • Overall size " 2450 x 1200 x 1700 mm
