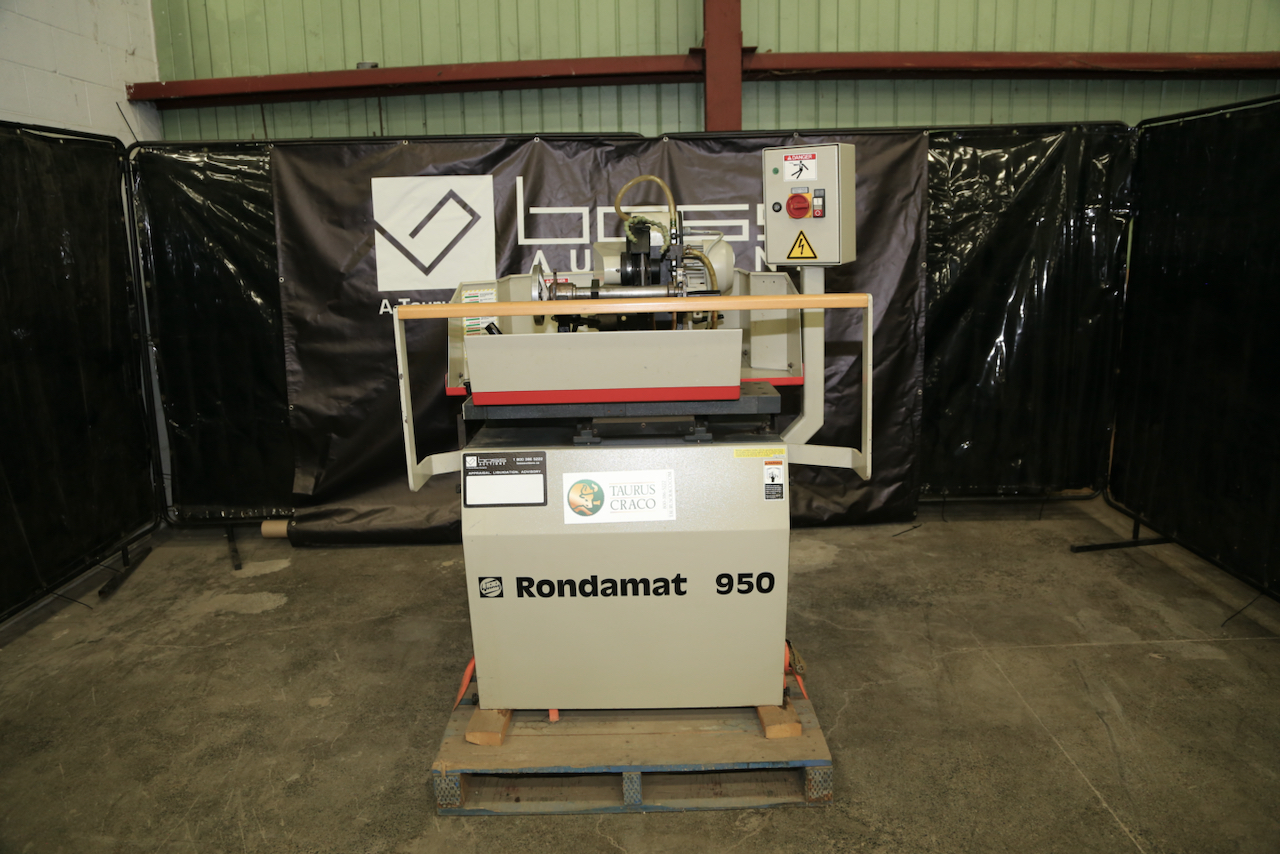

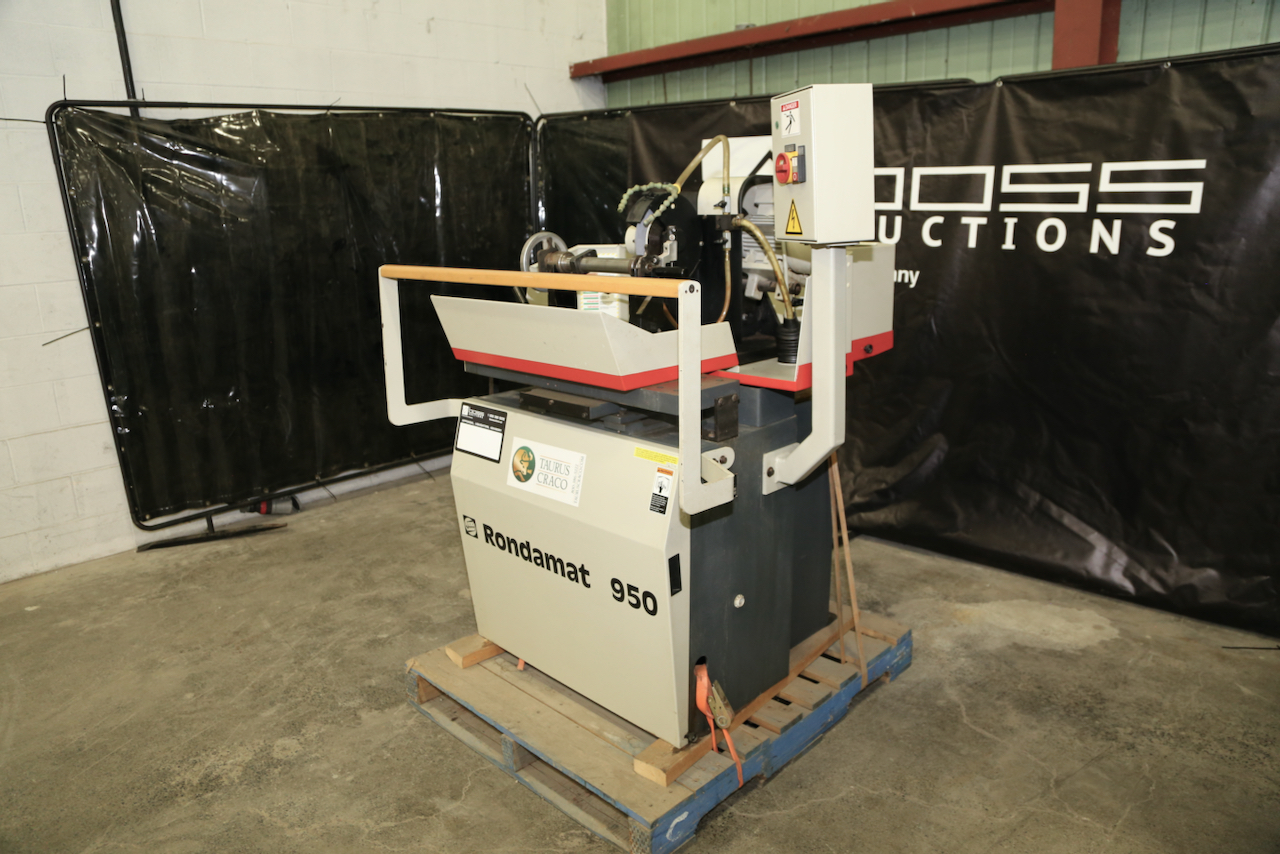

2000 Weinig Rondamat 950 Profile Grinder
|Model||Rondamat 950 Profile Grinder|
|Voltage||450V / 60Hz / 3Ph|
|Condition Rating||Very Good|
Excellent well built machine for grinding all of your moulder and knife profiles. This machine keeps your production flowing by giving you the ability to grind your profiles in-house, no need to wait!
Weinig Rondamat 950 Profile Grinder Features and Specifications:
- Maximum tool width: 240mm
- Tool diameter min-max knife heads: 100 - 230mm
- Tool diameter min-max saw blade: 100 - 230mm
- Grinding wheel diameter min-max: 150 -224mm
- Grinding wheel width: 2 - 3 - 4 - 10mm
- Grinding wheel bore size: 60mm
- Grinding wheel drive: 1.1kW
- Clearance angle grinding on back of knife: 15-35°
- Side clearance angle grinding, manual: 0-10°
- Motor coolant pump: 210 W
- Connection values, total: 2 kW
- Max arbor length: 9⅜"
- Tool diameter: 9'' max, 4'' min. 1¹³⁄₁₆'' diameter
- Grinding wheel speed (inverter controlled): 1,500-3,000 RPM by 1.5 HP motor
- Onboard diamond wheel dressing: 8⅞" max. 6" min
- Mechanical clamping of grinding wheel to arbor

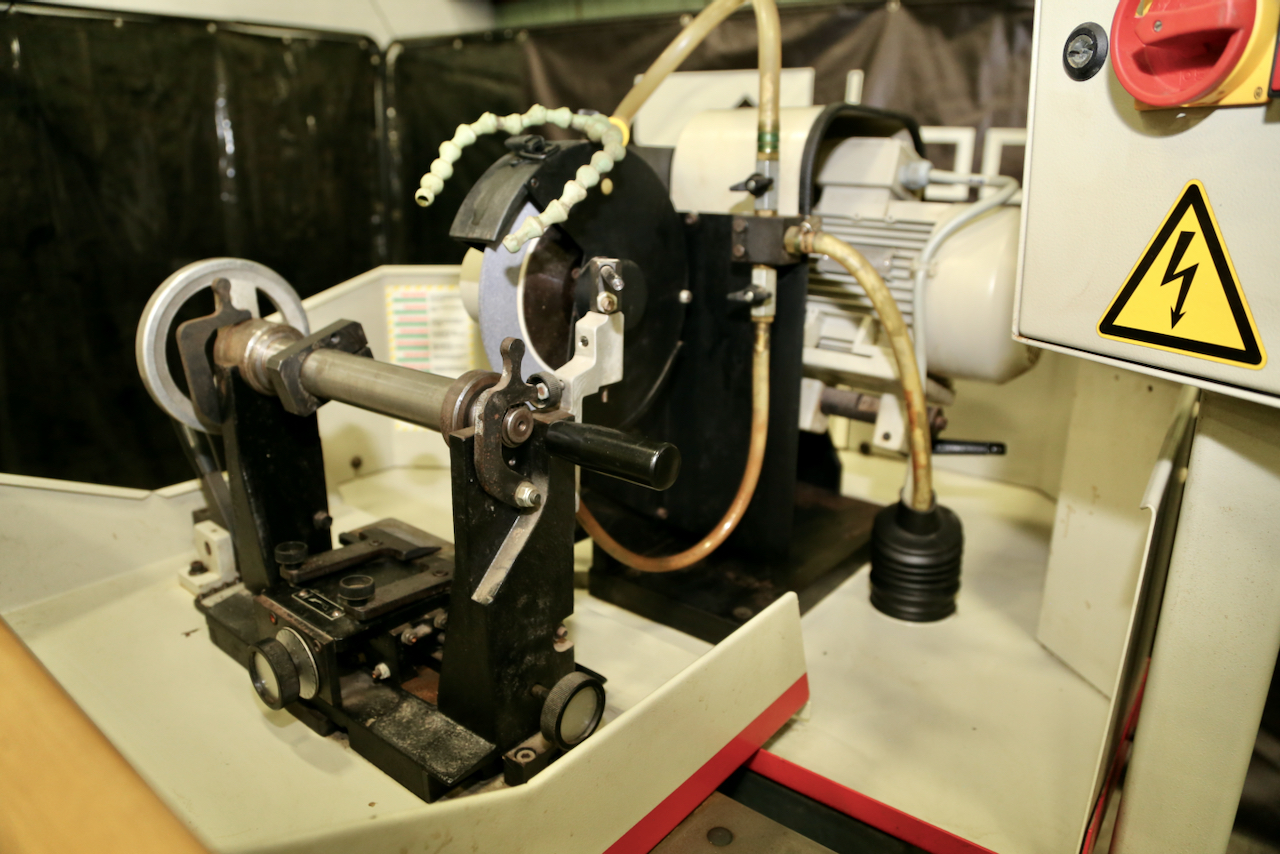

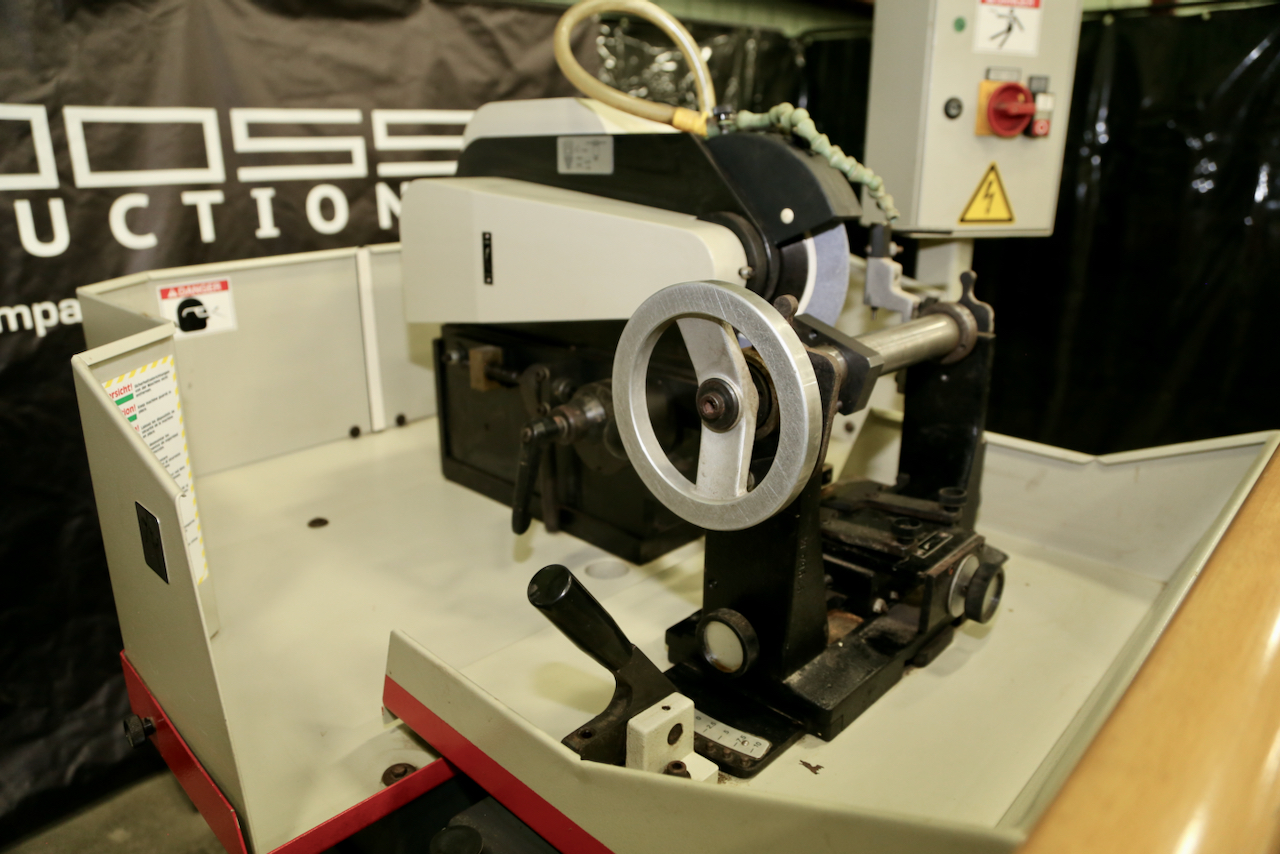

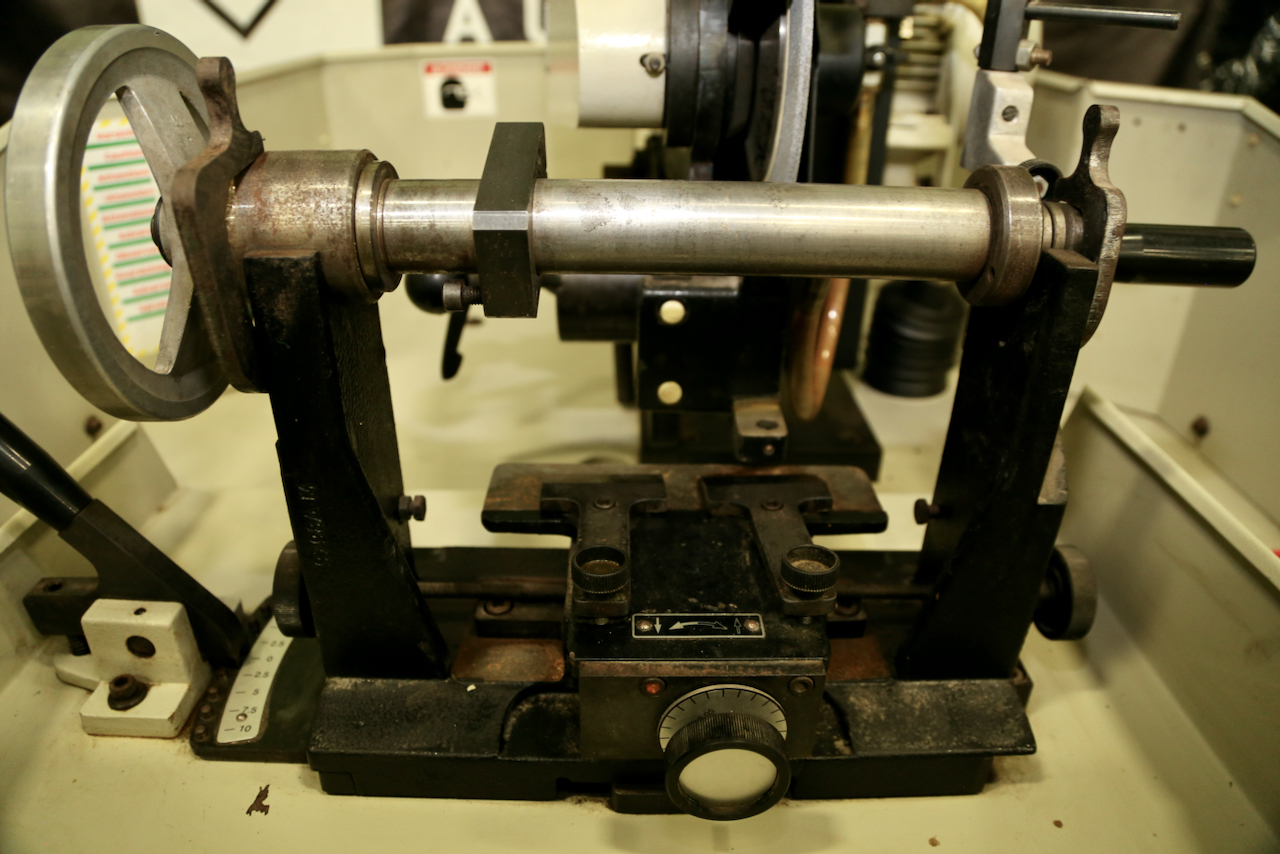

- Tool carriage movement with precision linear table bearings, setting gauges for axial constant, axial (side) clearance angle 0° - 20°

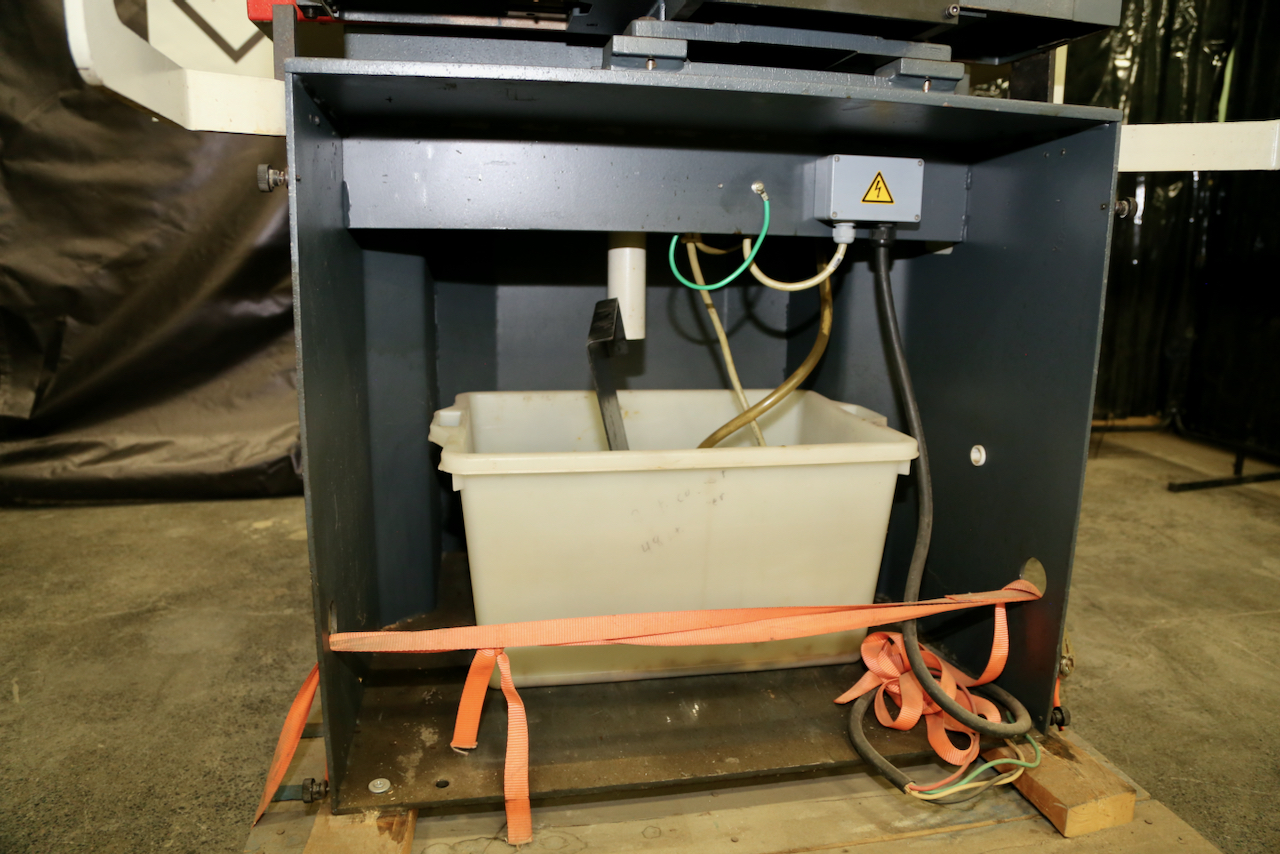

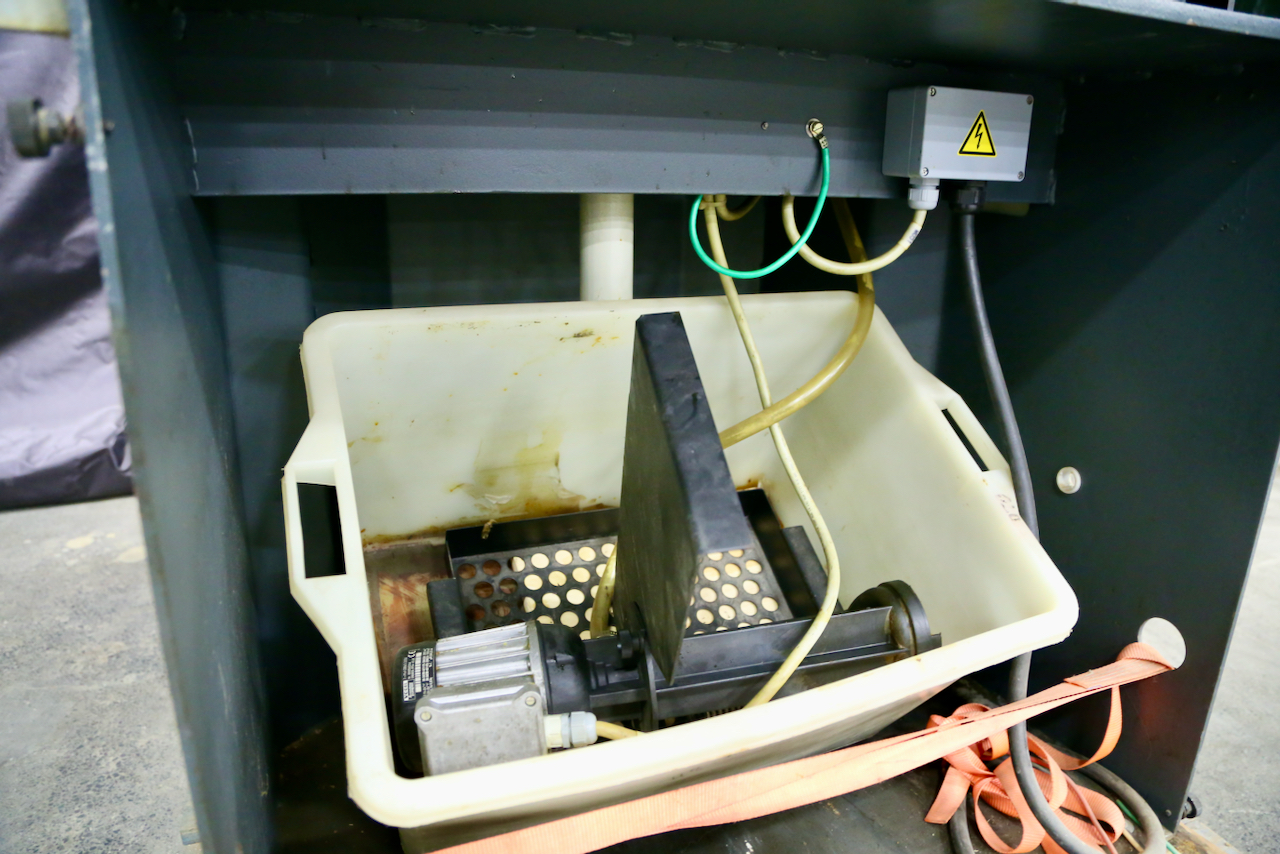

- 13-gal. coolant tank with 1.2 HP pump.
- Approximate shipping dimensions: 48'' x 48'' x 56''
Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –
Please contact TCMI customer service for more information.
** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
