2002 SCM Morbidelli Author 600 kLS Pod & Rail CNC Machining Center

orCall (905)-451-8430

Specifications

ManufacturerSCM Morbidelli

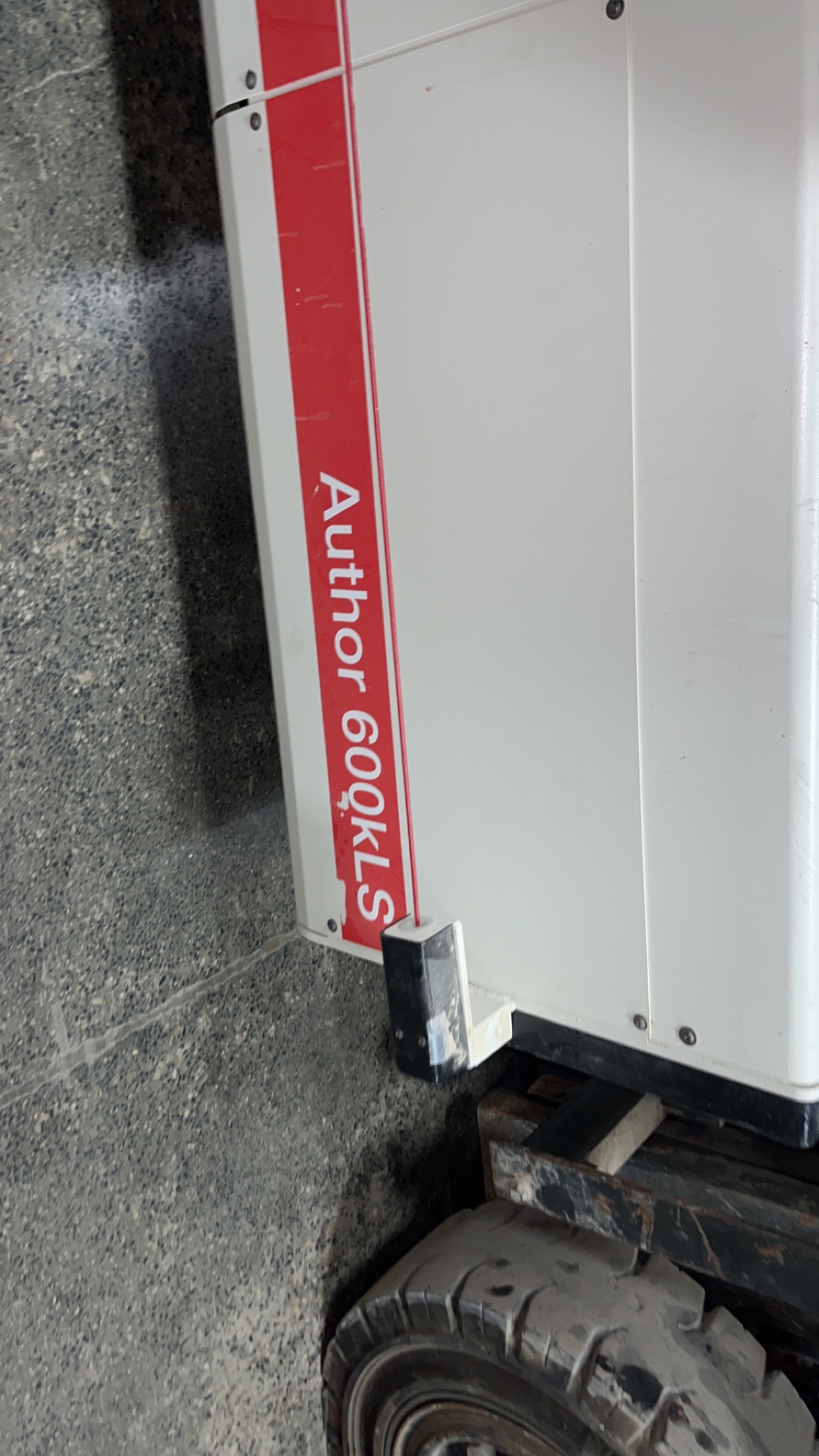

ModelAuthor 600 kLS Pod & Rail CNC Machining Center
Year2002
Stock Number1639WL
Voltage400V / 60Hz
ConditionExcellent

Description

Inquire about this CNC today!


Features and Specifications:

  • THK Square Guide Dimensions

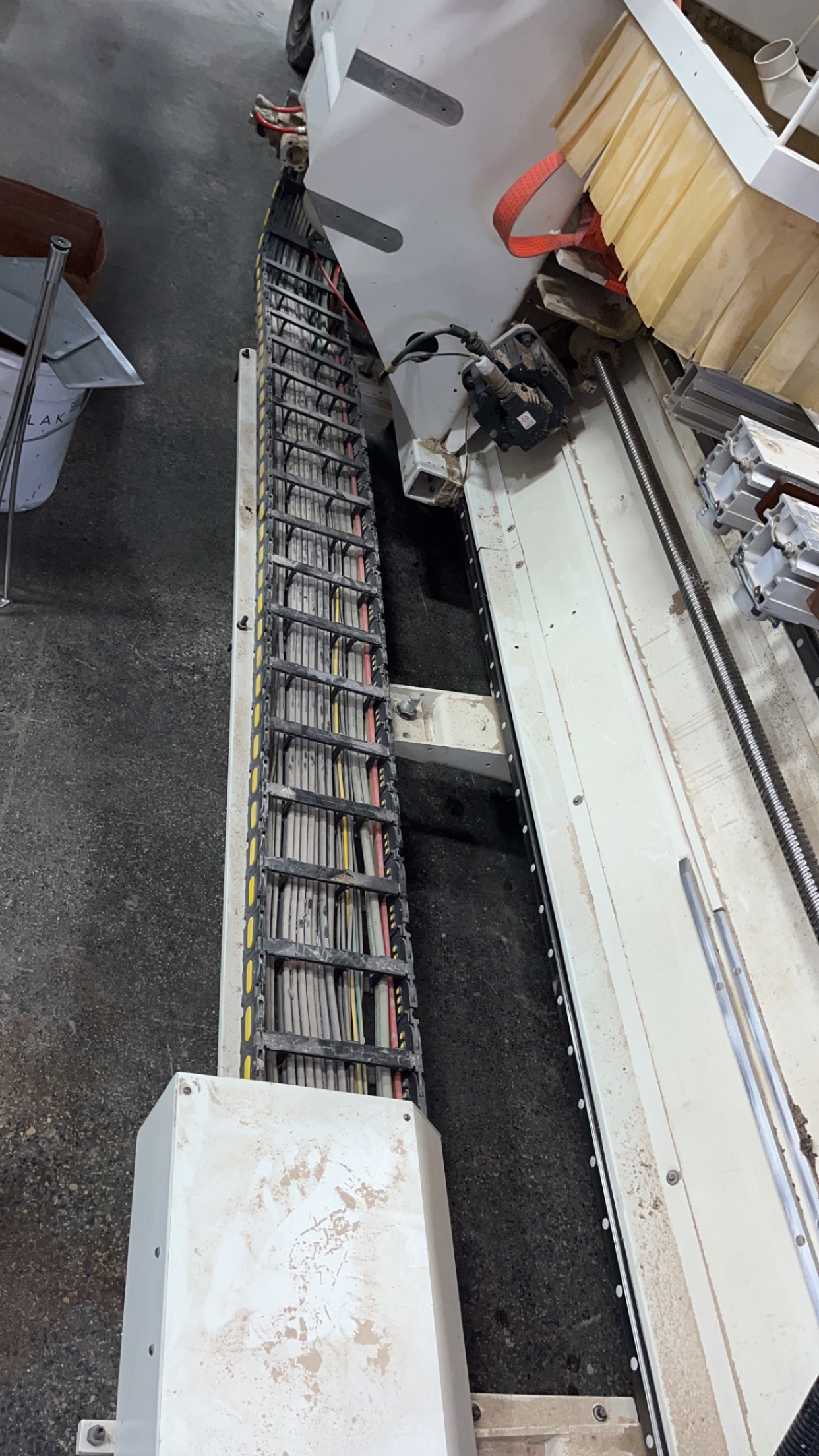

  • X axis: 30 mm (rack & pinion)
  • Y axis: 25 mm (ball screw)
  • Z axis: 25 mm (ball screw)

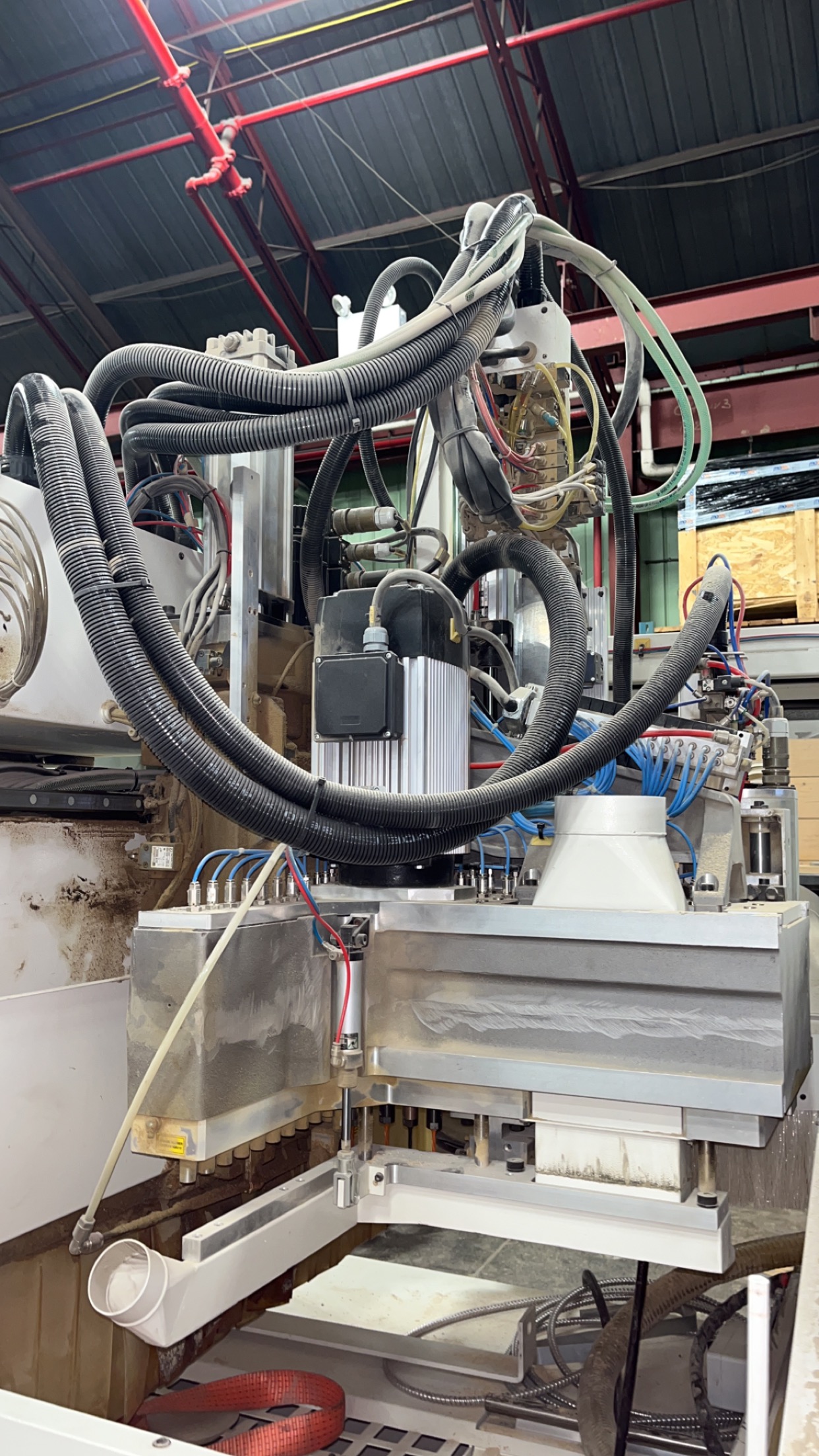

  • 30 spindle drilling unit
  • Spindles spaced on a 32 mm center-to-center distance
  • Each spindle with automatic and independent operation from others
  • 14 spindles in a row in the X axis
  • 16 spindles in a row in the Y axis
  • 2+2 independently controllable horizontal spindles in "X" axis
  • 1+1 independently controllable horizontal spindle in "Y" axis

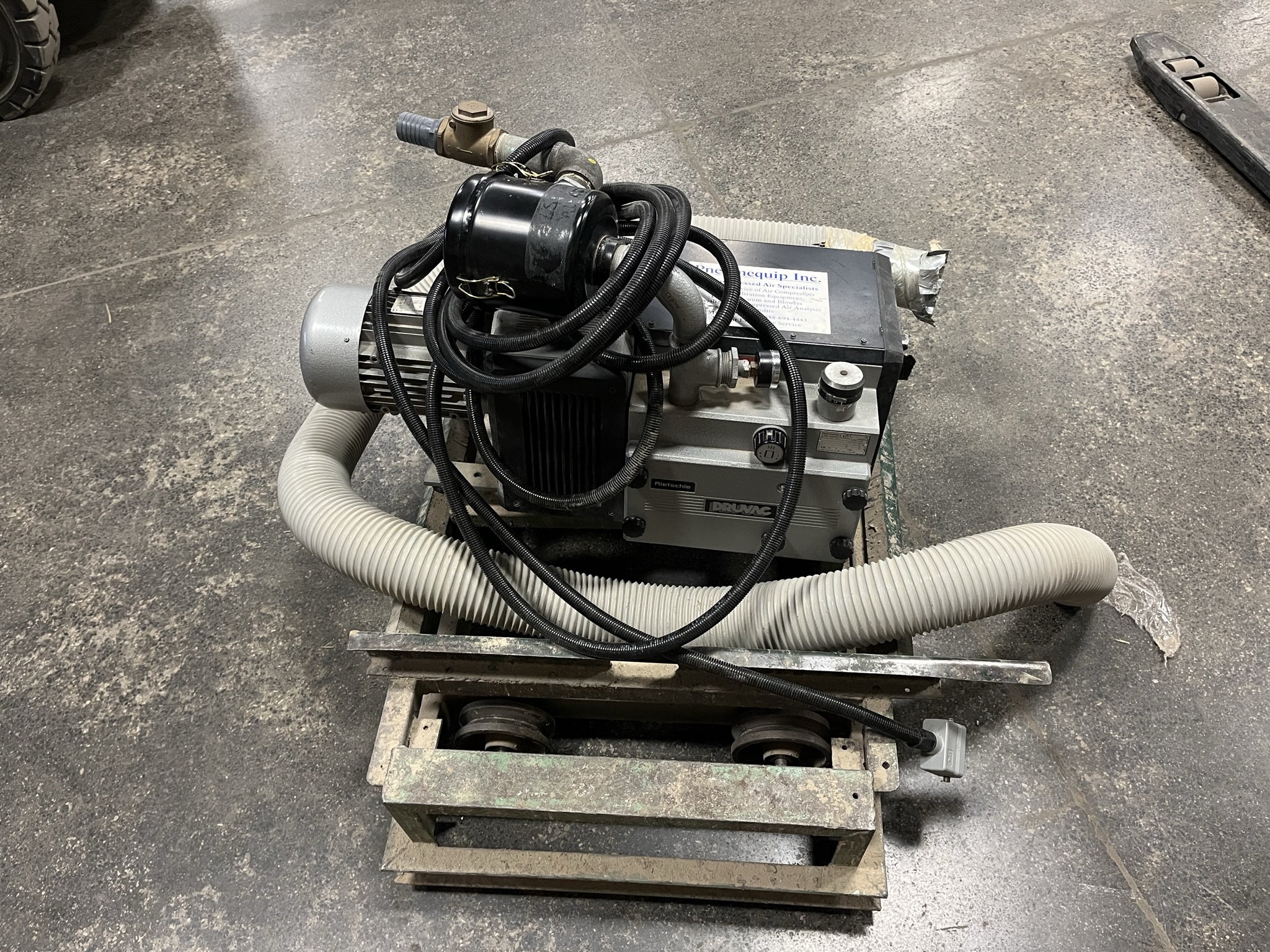

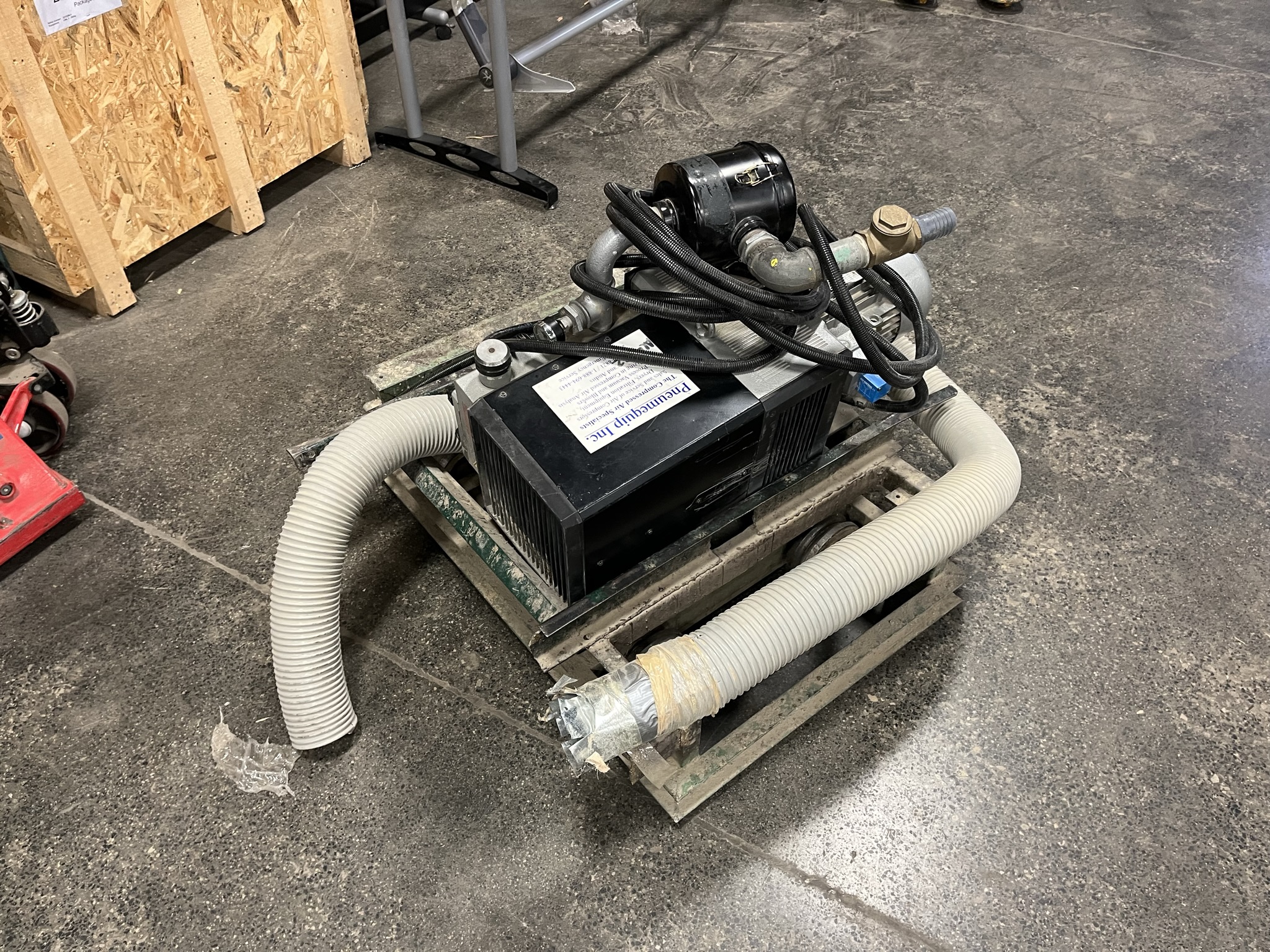

  • Each tray has three (3) vacuum pumps each for a total of 30 cups on the machine
  • Work table dimensions (L x W): 142'' x 47'' (3,600 x 1,200 mm)
  • Boring pattern dimensions:
  • Maximum in X axis: 142'' (3,600 mm)
  • Maximum in Y axis: 41'' (1,049 mm)
  • Maximum in Z axis: 7.1'' (180 mm)
  • Router working dimensions:
  • Maximum in X axis: 142'' (3,600 mm)
  • Maximum in Y axis: 54'' (1,375 mm)
  • Spindle (main motor):
  • Size (30 spindles): 4 HP
  • Spindle rotation speed: 5,000 RPM
  • Maximum linear positioning speds:
  • X-axis: 262 ft/min (80 m/min)
  • Y-axis: 262 ft/min (80 m/min)
  • Z-axis: 73 ft/min (22.5 m/min)
  • Standard dimensions of vacuum pods: 6.1'' x 4.7'' (155 mm x 120 mm)
  • Dust extraction required (dependent upon options) minimum: 2,000 CFM
  • Operating air pressure (3/4'' I.D. feed connection): 7 ATM (102 PSI)
  • Installed power (dependent upon options): 20 kW
  • Approximate dimensions of machine: 230'' x 80'' x 105''
  • Approximate dimensions of cabinet: 32'' x 40'' x 76''

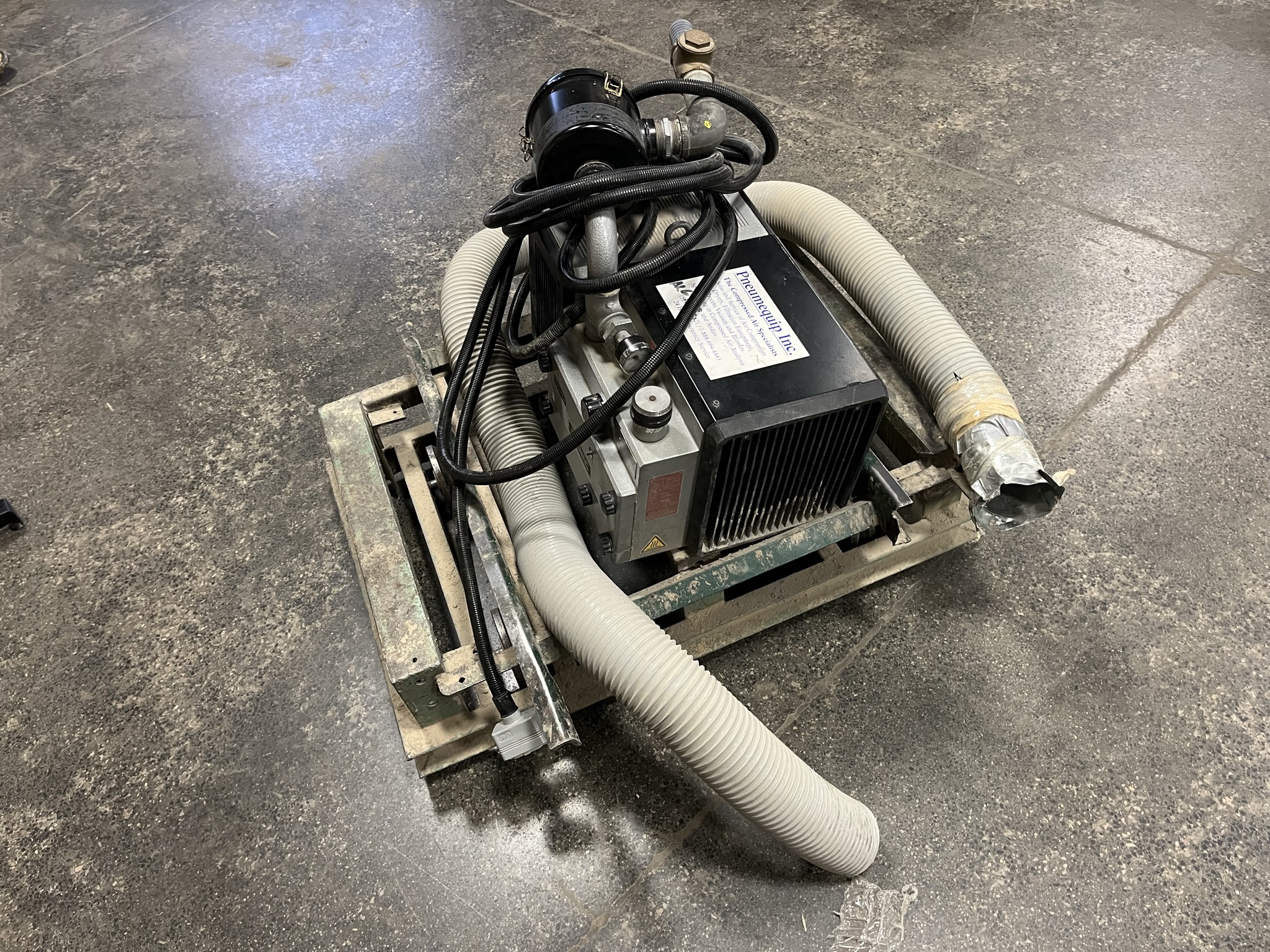

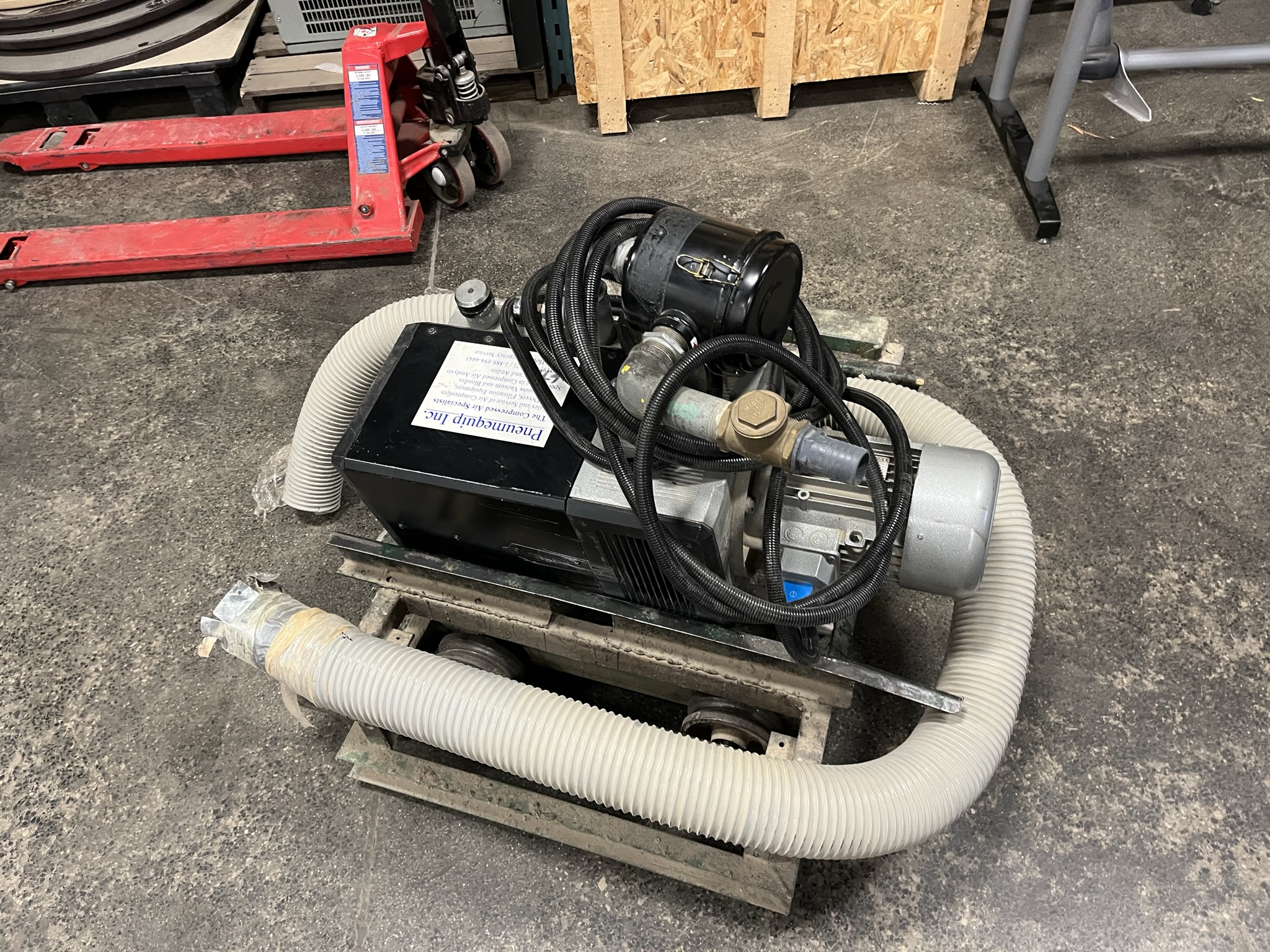

  • Approximate dimensions of pump: 46'' x 24'' x 20''
  • Approximate weight: 15,400 lbs (7,000 kg)



Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –


Please contact TCMI customer service for more information.


---


** Note: All information is to the best of our knowledge and may not apply exactly to the listed machine.**
