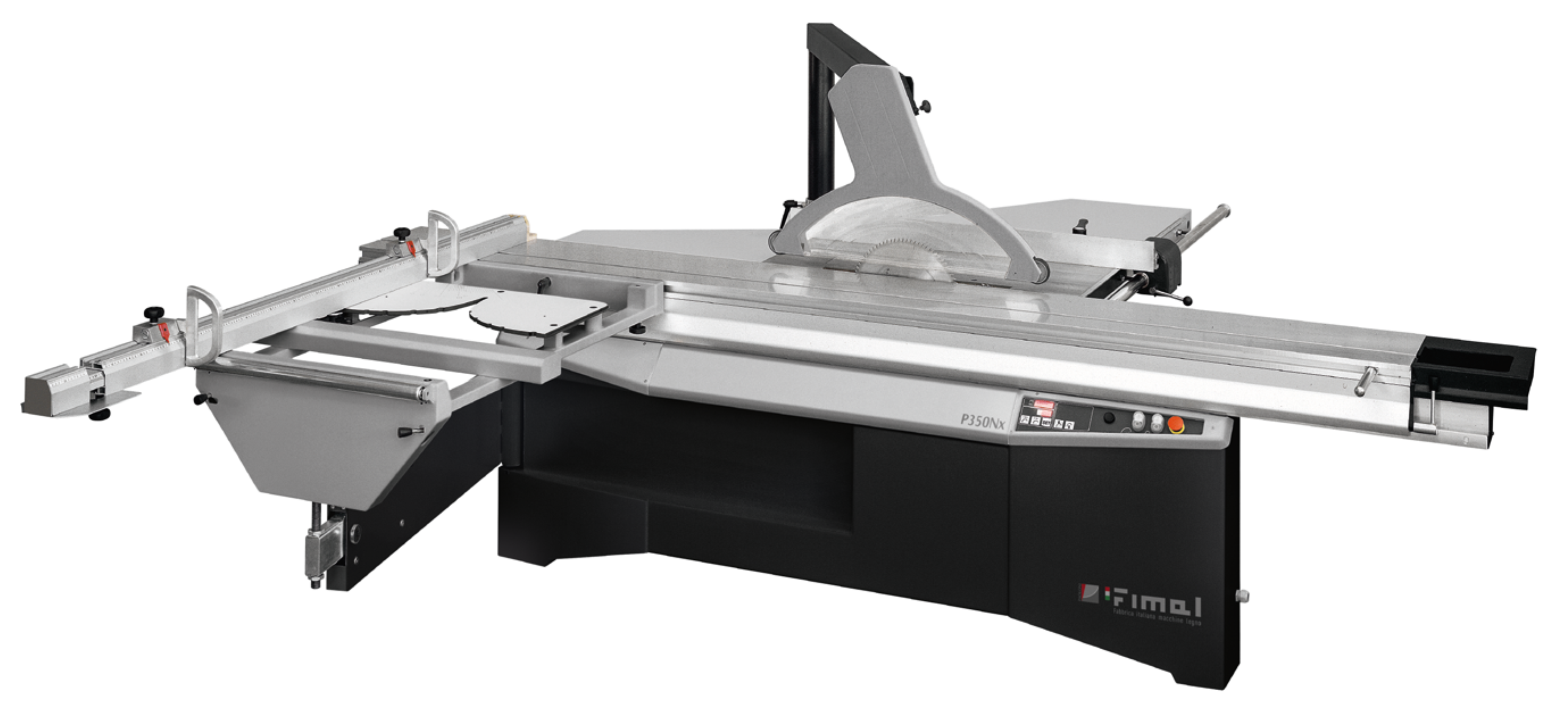

Fimal P350NX
Specifications
| Manufacturer | Fimal |
| Model | P350NX |
| Condition | Brand New |
| Fixed table dimensions/height | 100 x 560 / 860 mm |
| Carriage dimensions / stroke | 3200 x 350 / 3350 |
| Cutting width | 1300 mm |
| Maximum diameter saw blade / hole | 350 / 30 mm |

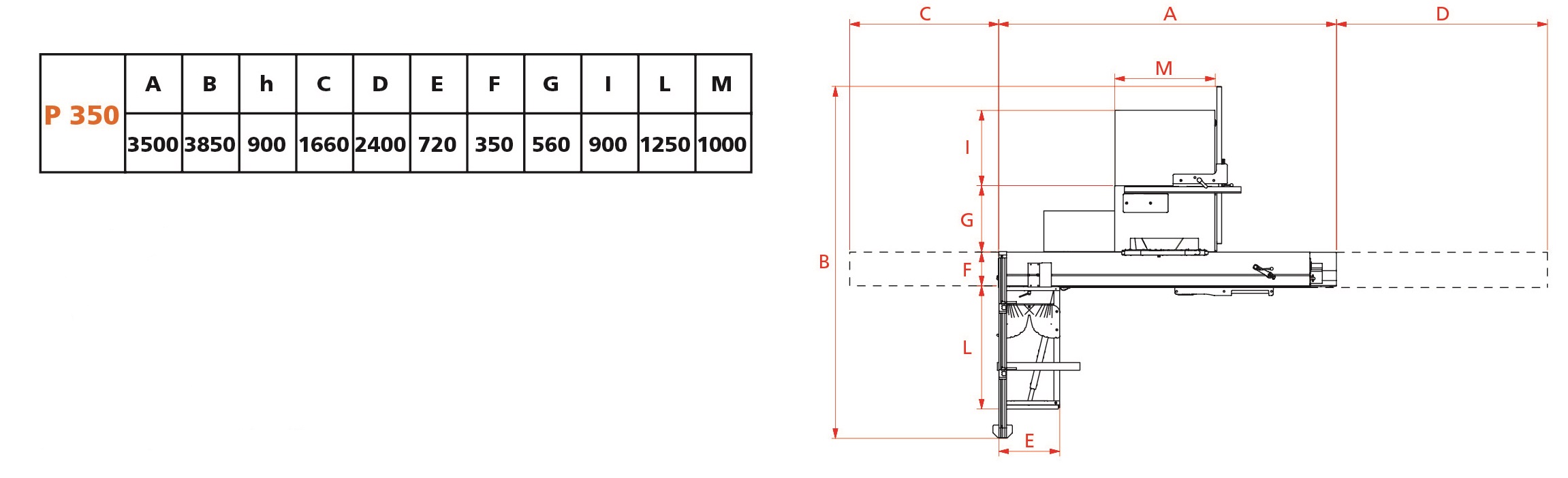

| Machine dimensions | 3500 x 3850 x 900 mm |
Description

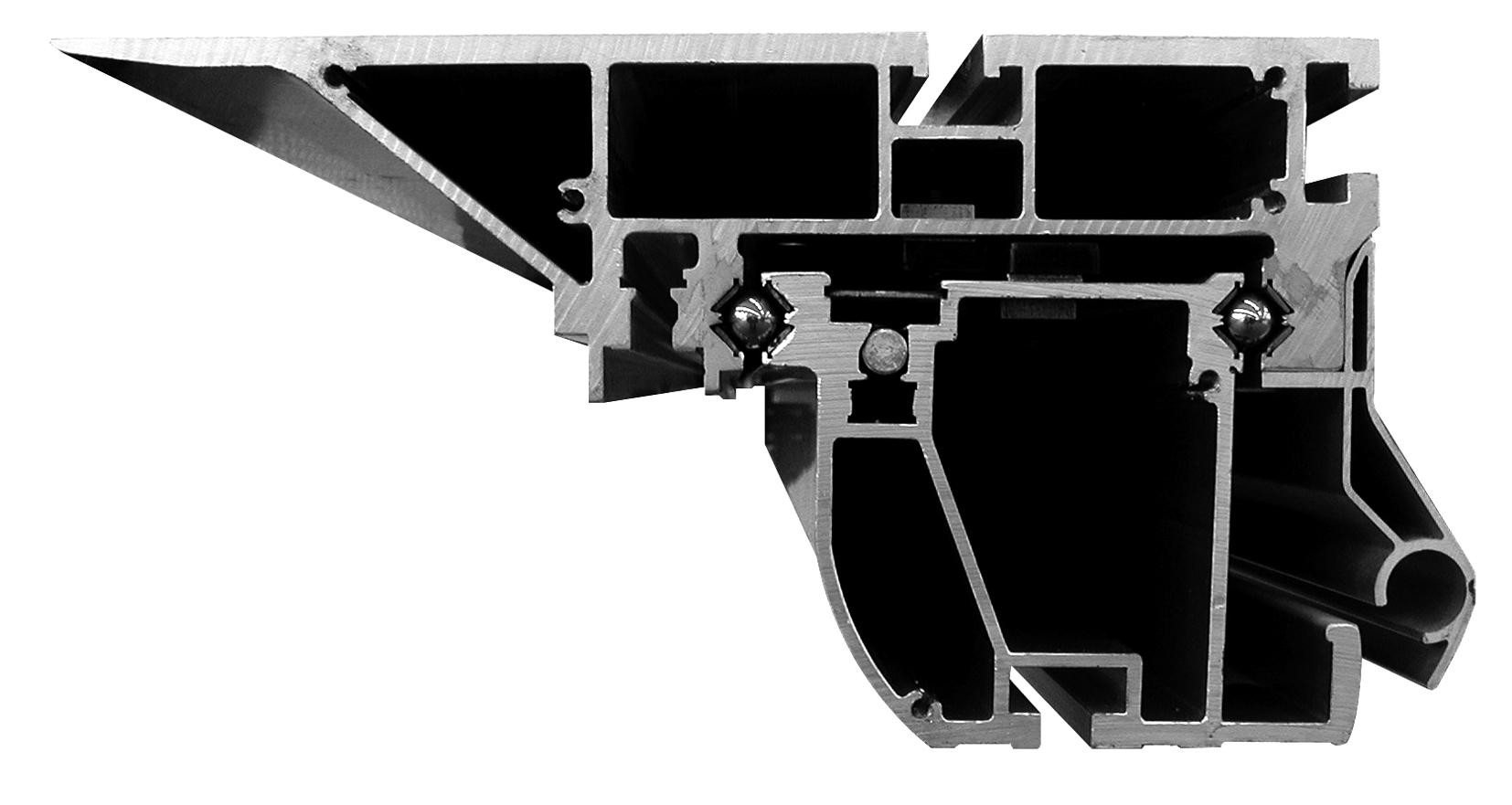

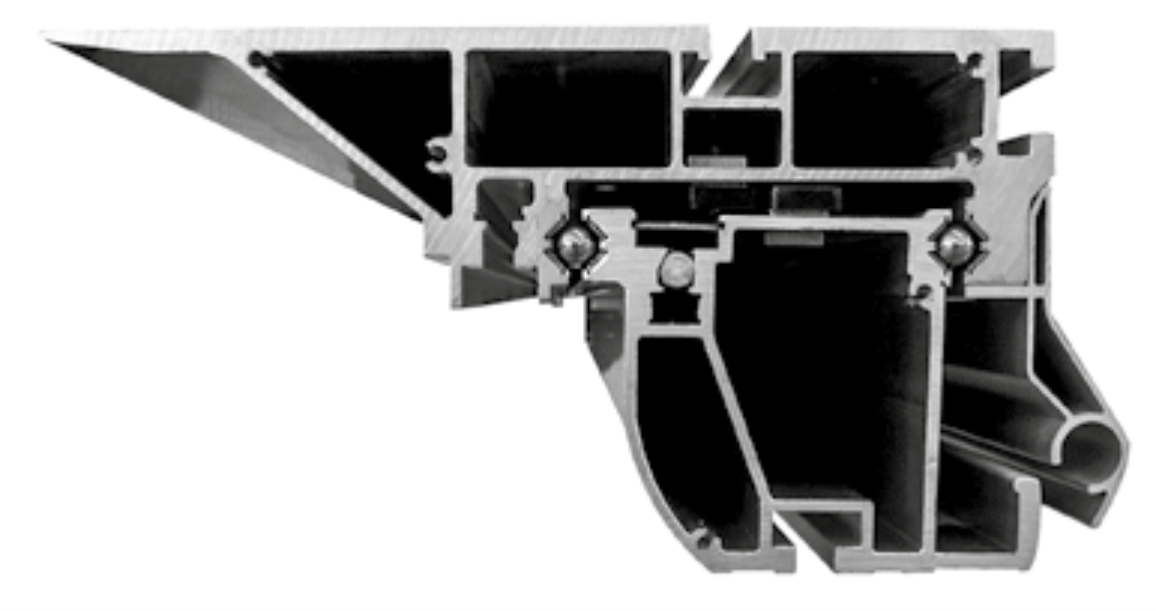

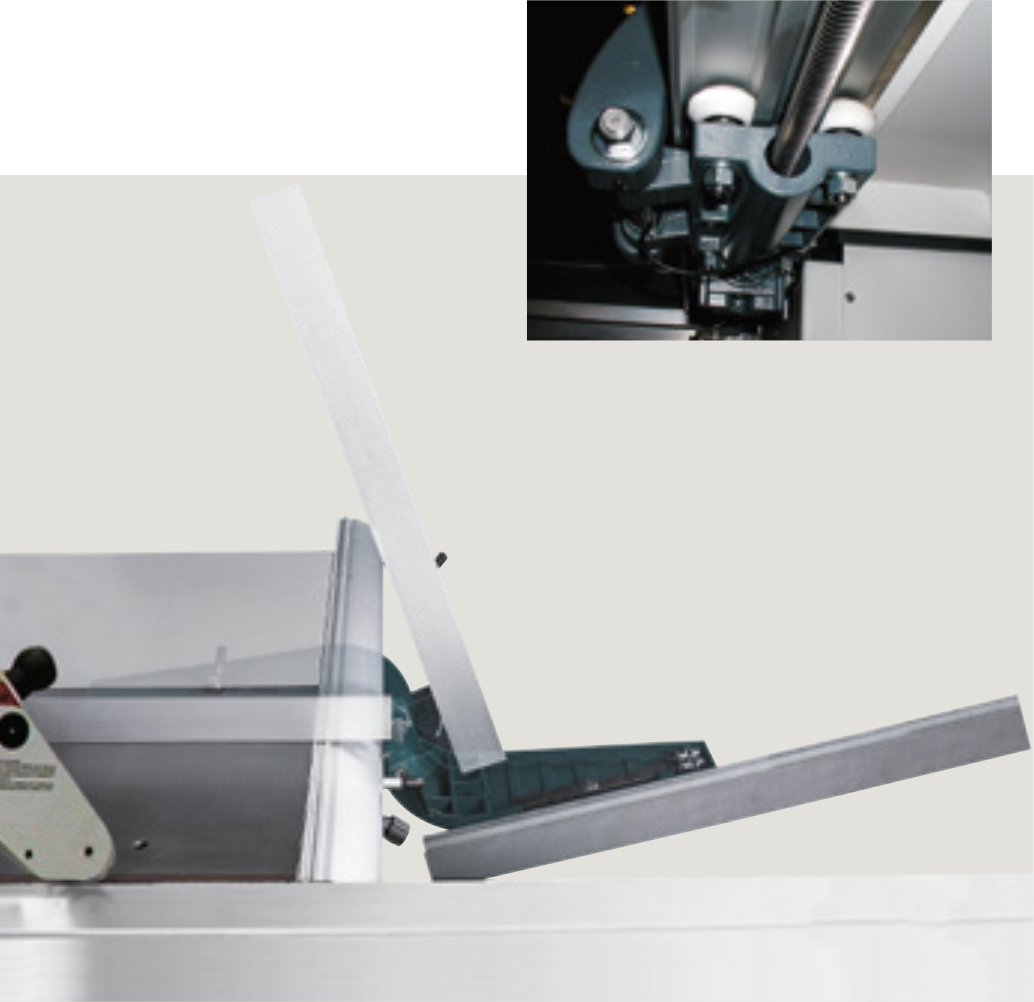

The Fimal P350NX Sliding Table Saw's sliding system adopted on the carriage, with large diameter bearings that roll along tempered and ground prismatic tracks, provides excellent smoothness and straight cutting. The tracks are fixed to the carriage and to the sub-carriage by mechanical pressure, avoiding any risk of glue losing its adhesion through age.

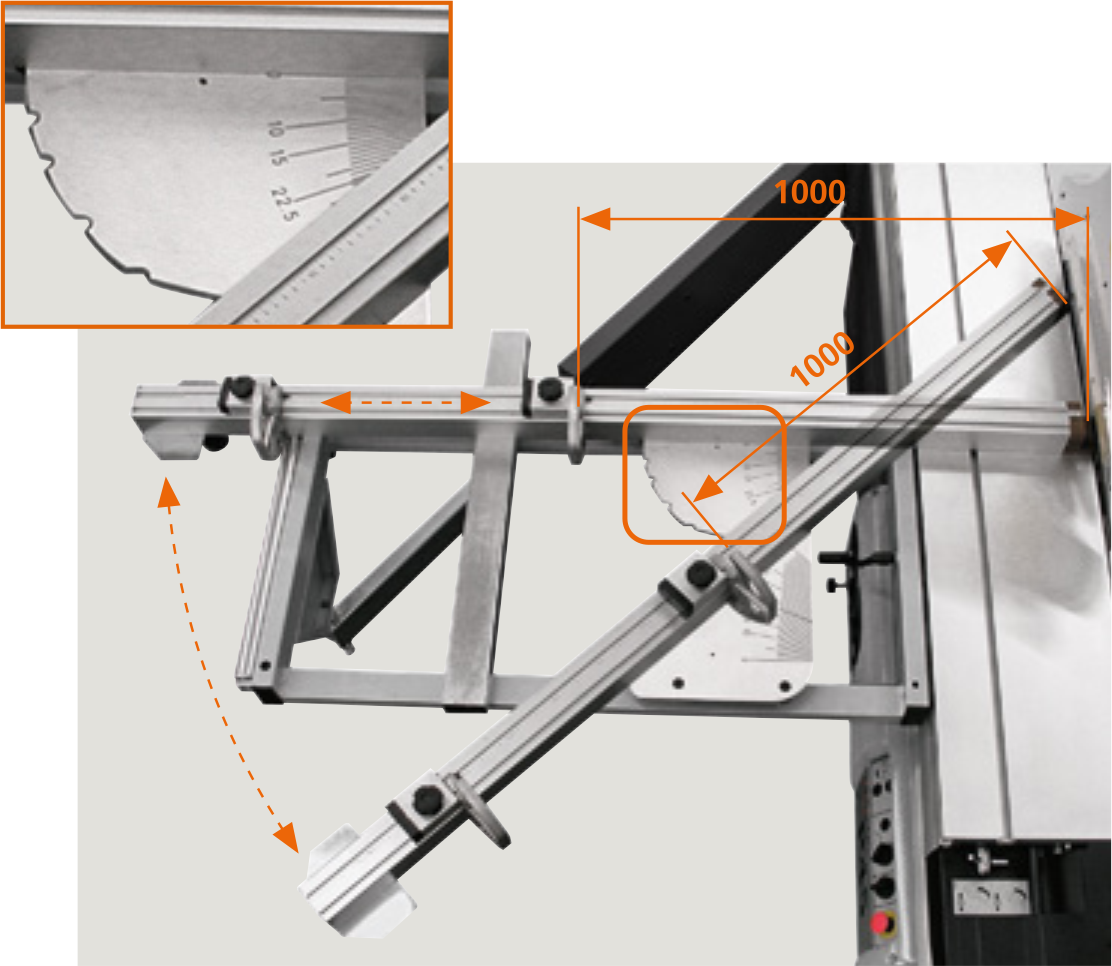

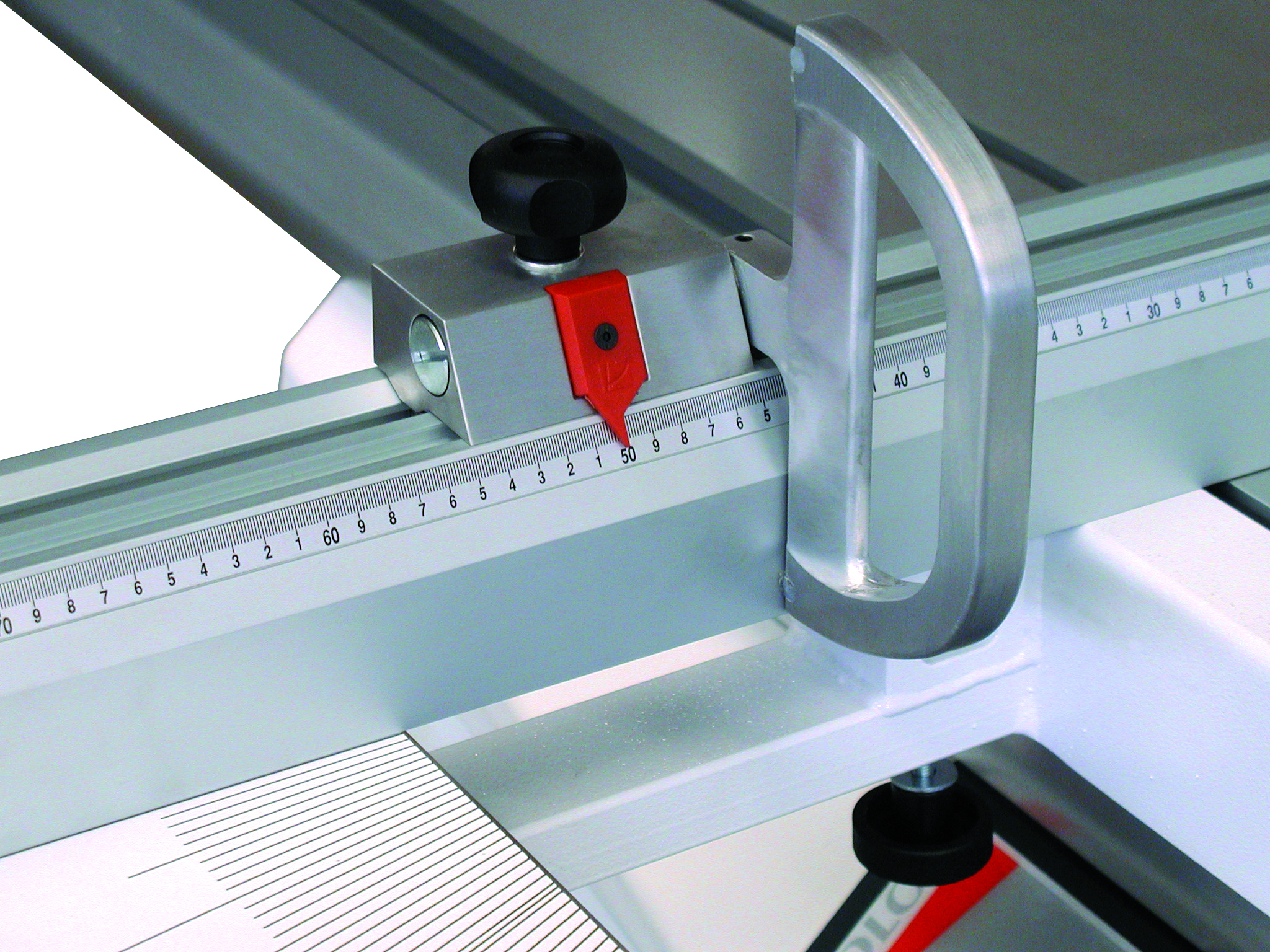

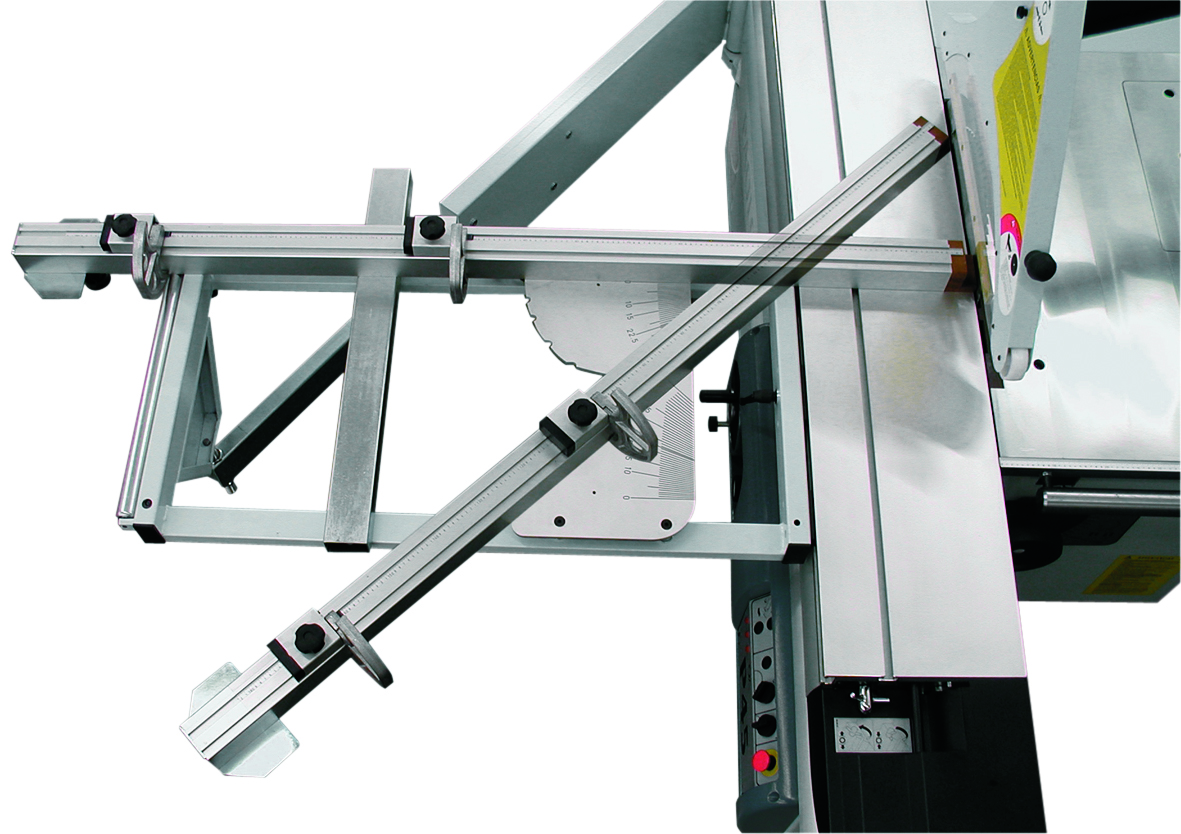

Extension table fence

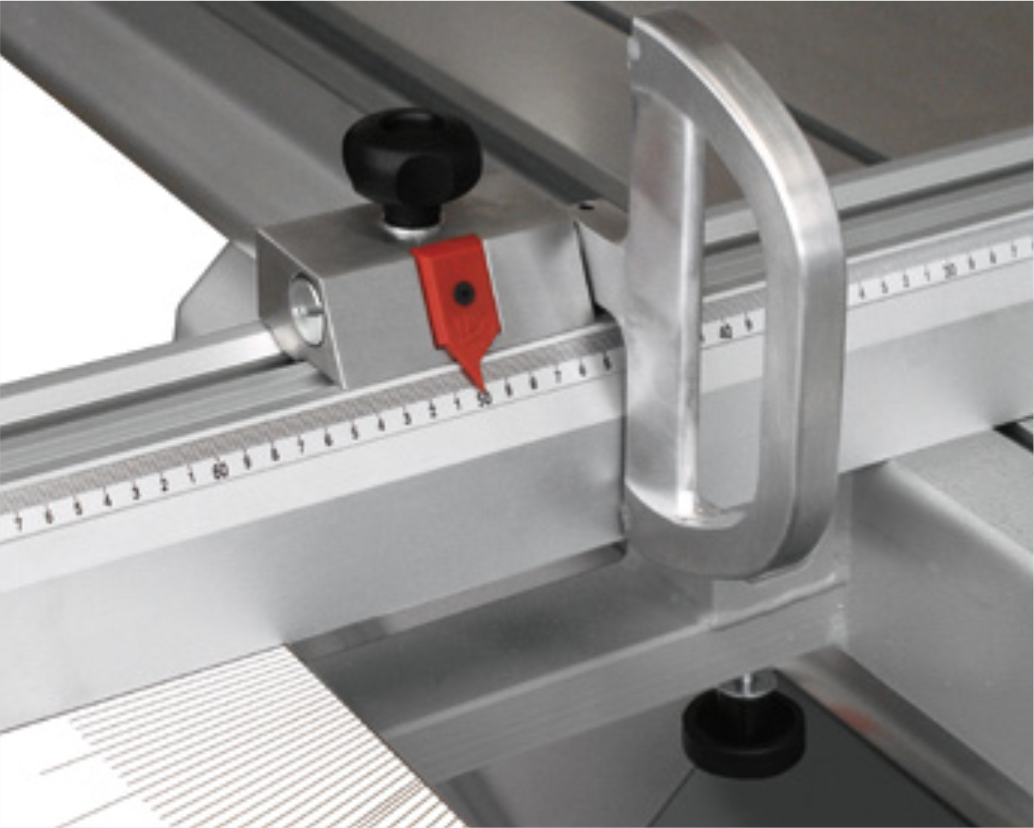

The P350NX Sliding Table Saw's extension table fence can be quickly set from +45° to -45° with fixed references at each 5° and at 22°30. The special small table allows to keep the distance between the stop and and the saw blade unchanged, while changing the tilting.

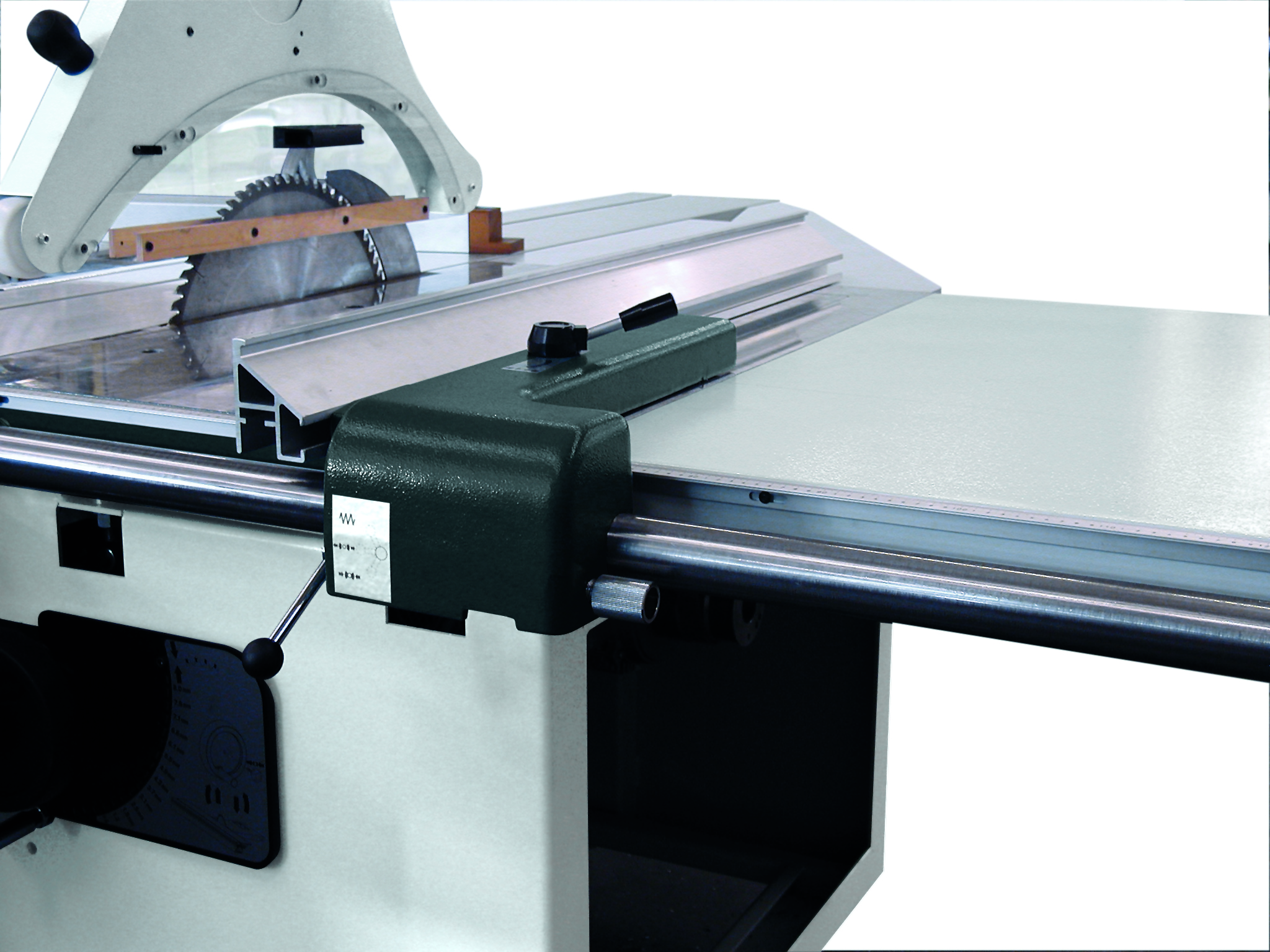

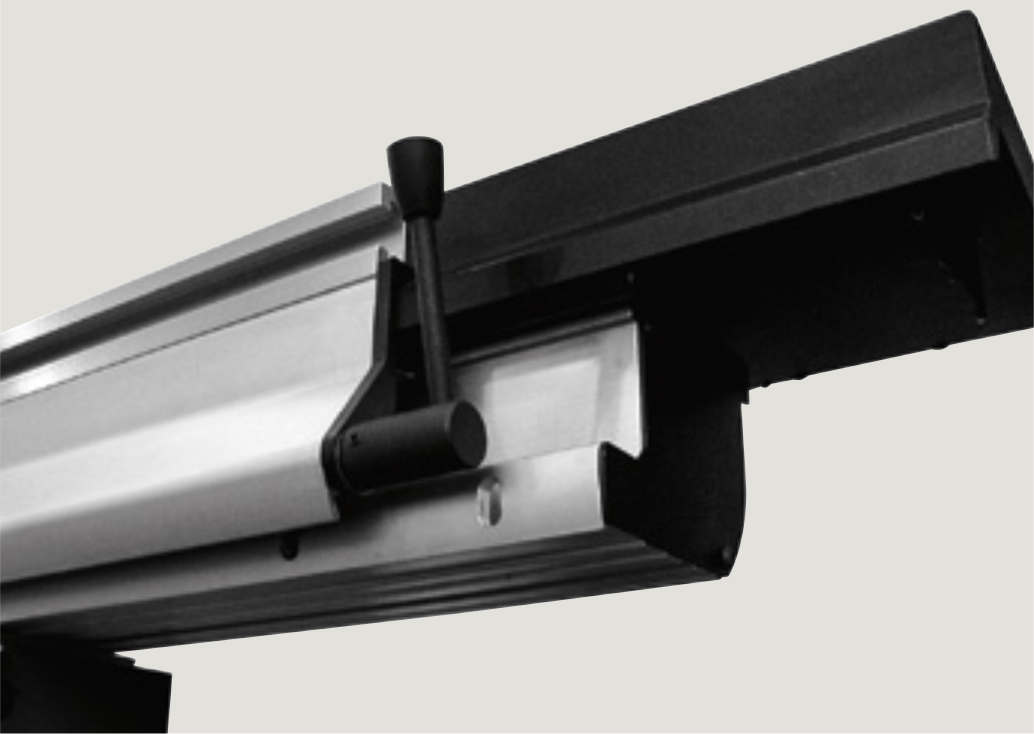

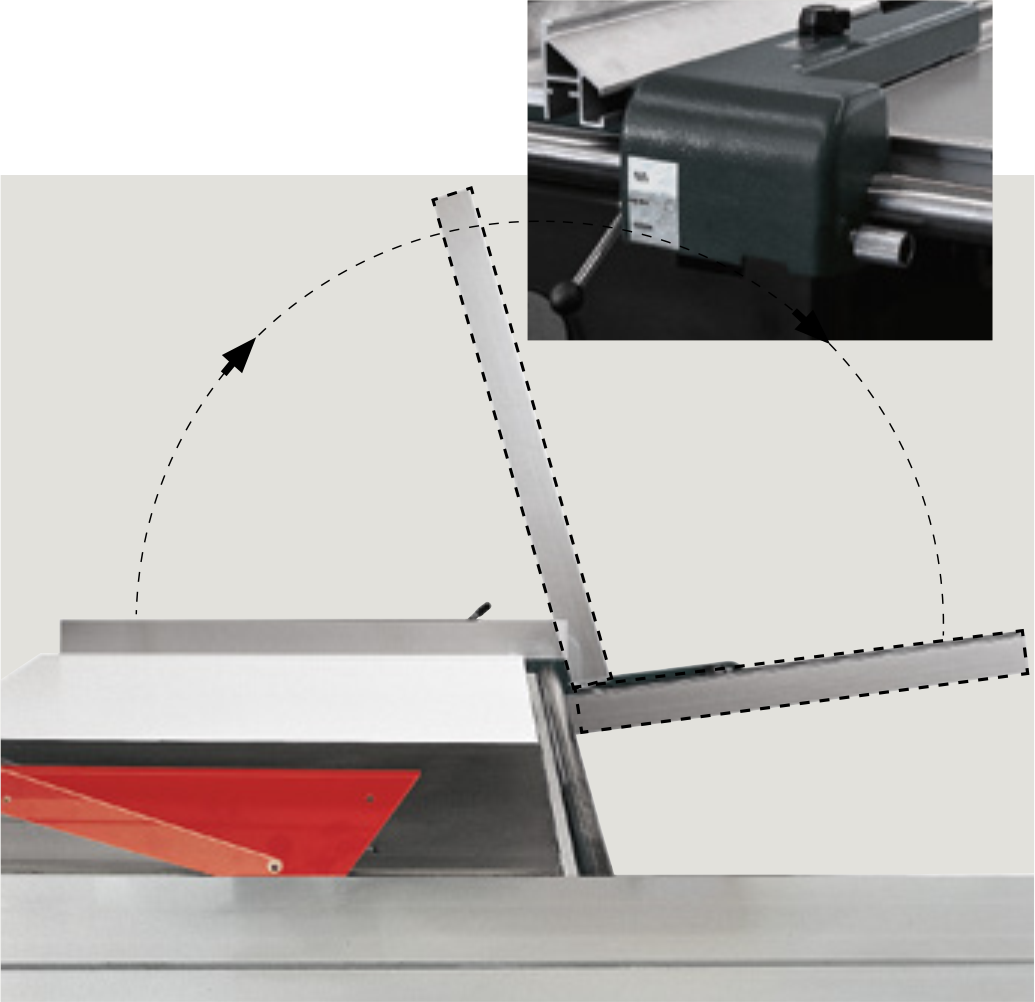

Saw guide

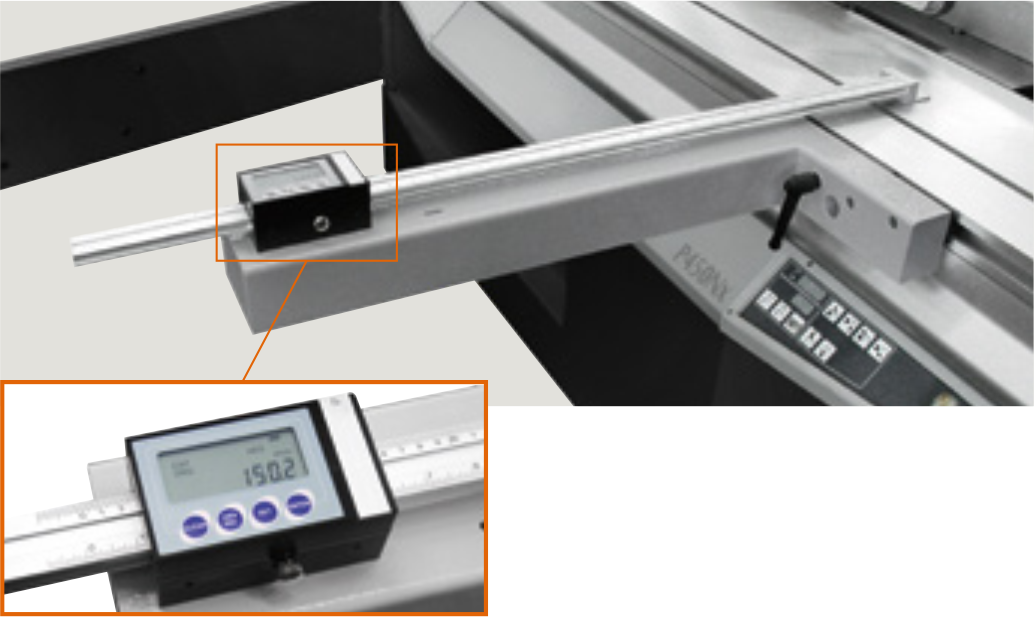

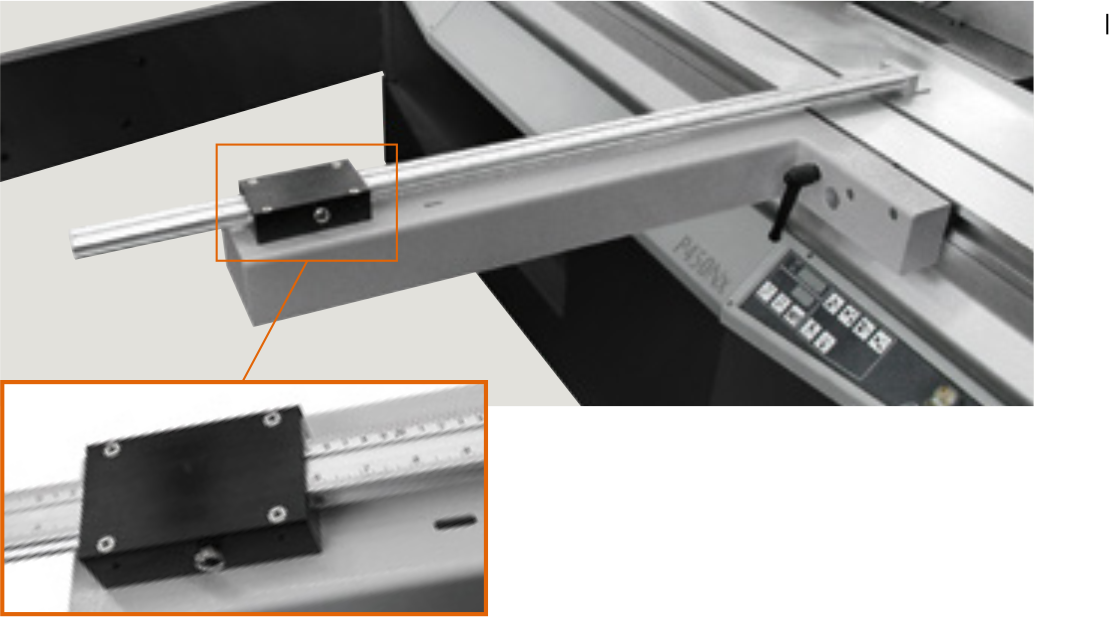

The P350NX Sliding Table Saw's saw guide, with micrometric adjustment, slides along a ground steel bar on P350Nx and P350Sx models, while on P350Ax it slides along an aluminum bar on four wheels, The guides can easily be excluded from the work table by turning them if necessary for sawing large panels
