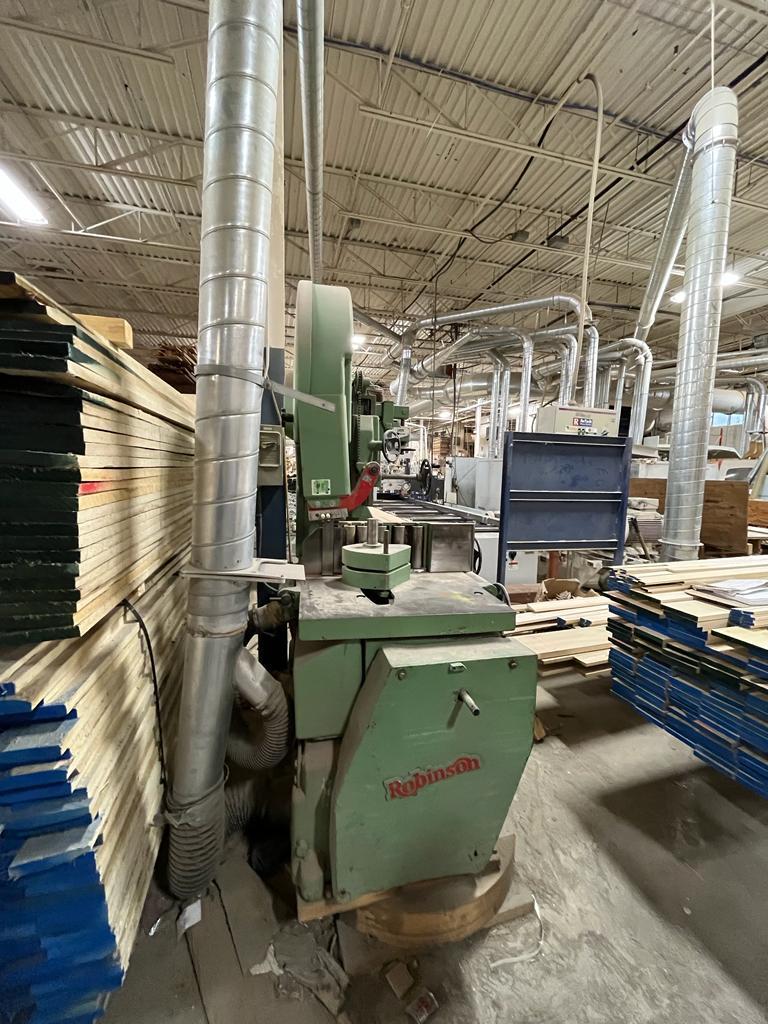

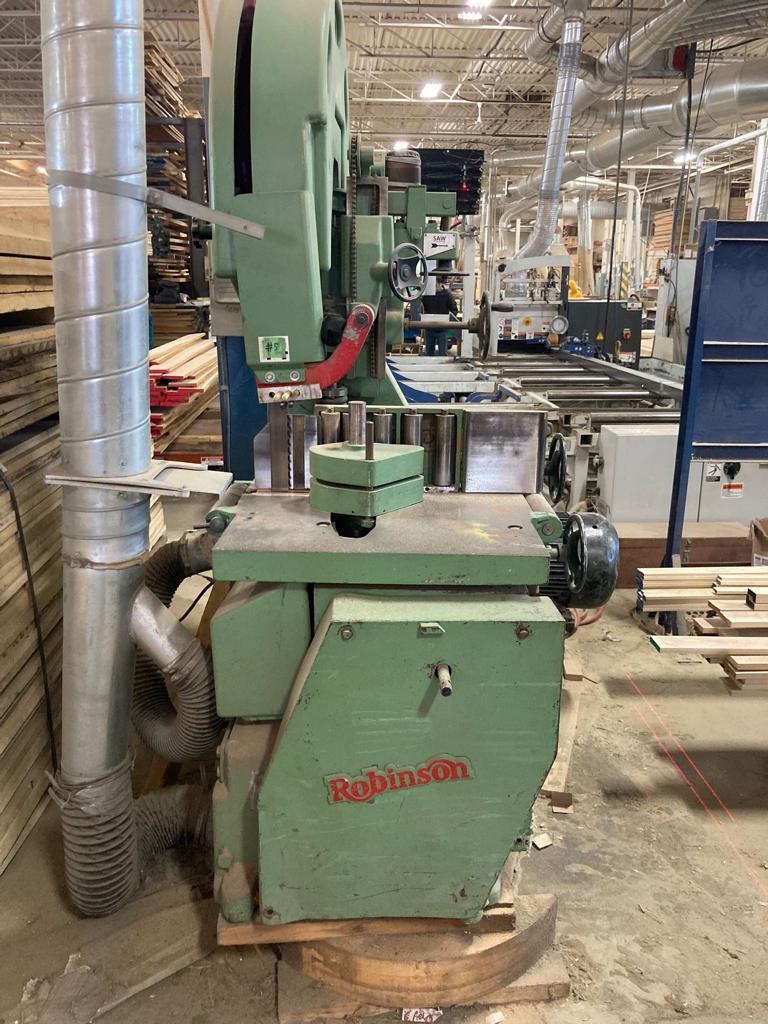

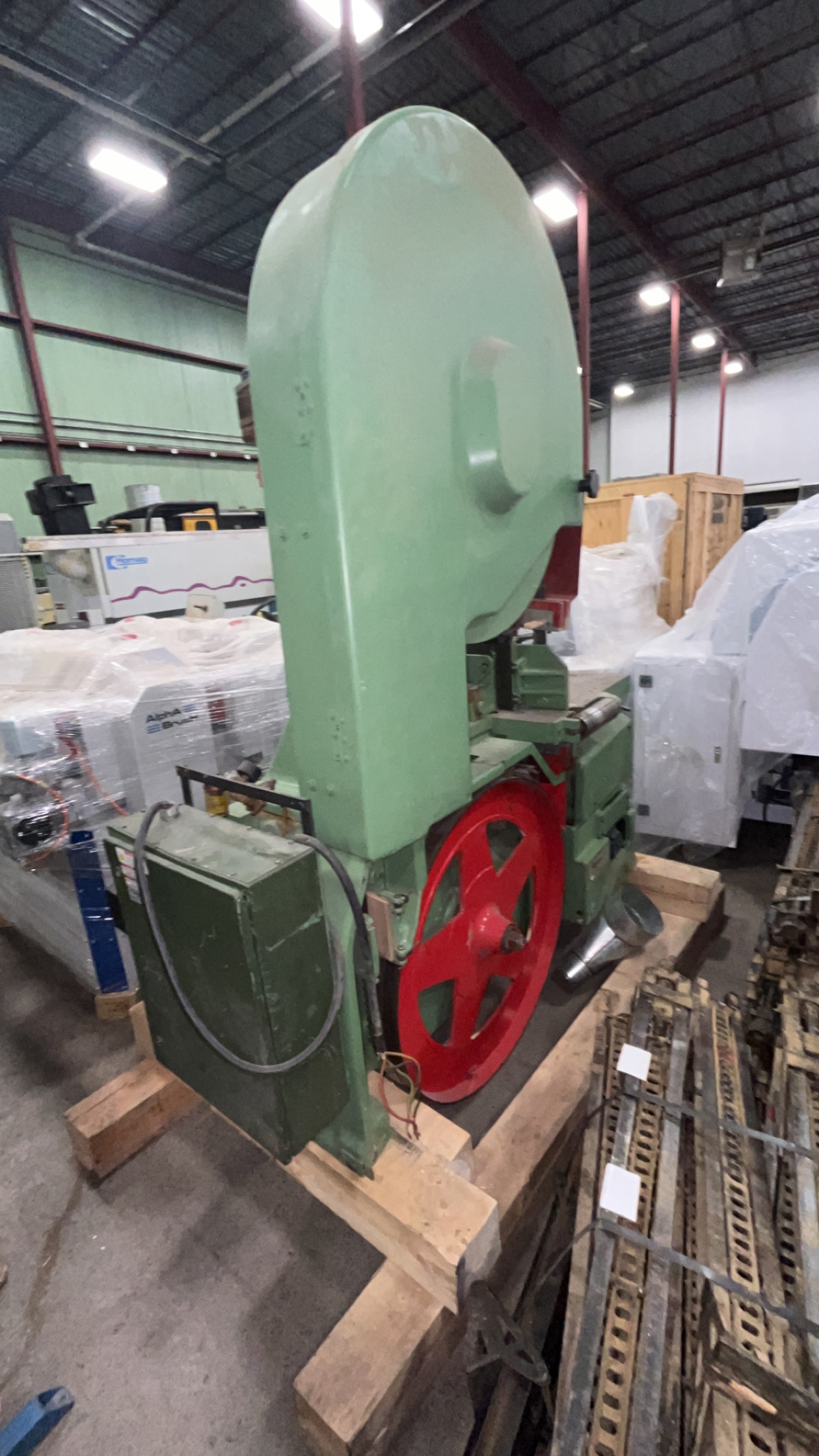

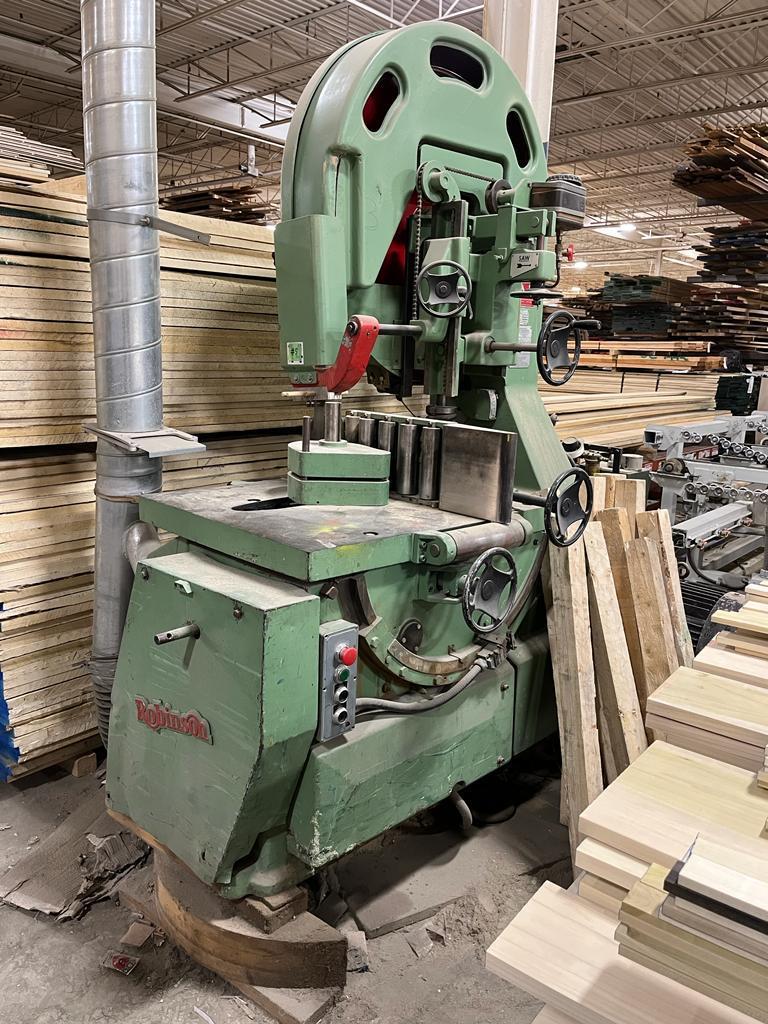

Robinson EF/C/T 36'' Bandsaw



ModelEF/C/T 36'' Bandsaw
Stock Number1583JL
Voltage575V / 3Ph

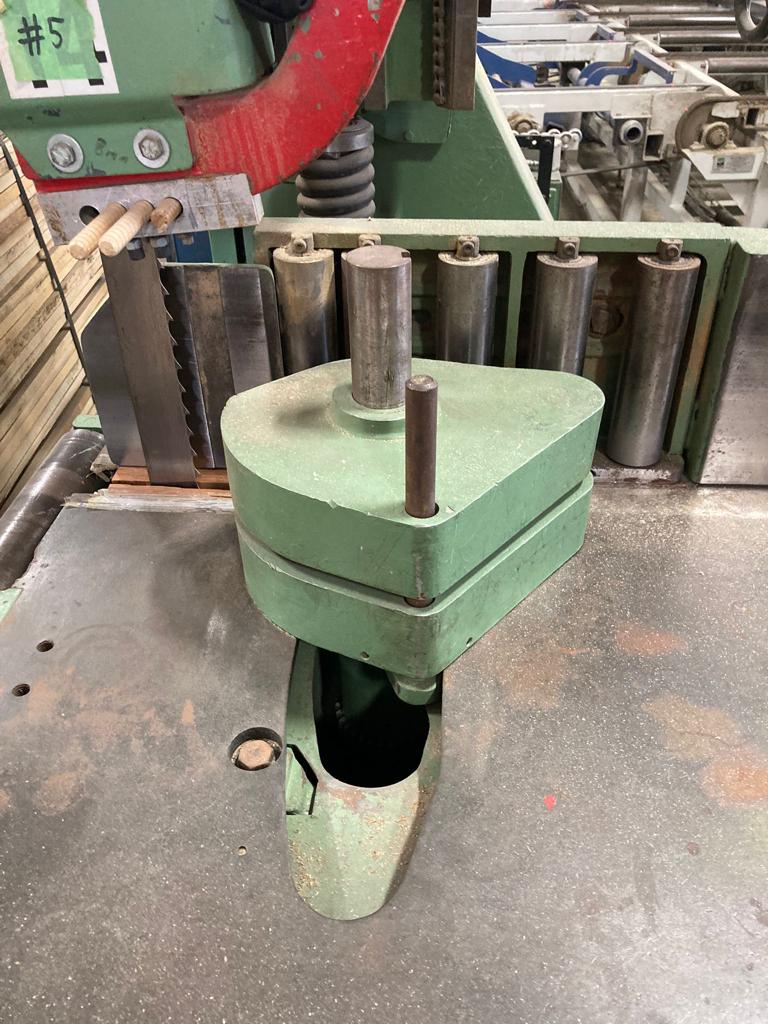

The substantial casting on this bandsaw forms a rigid base to ensure smooth, accurate sawing at high feed speed. The cast iron table is accurately machined and carried at a convenient working height. It is neatly fitted to the main frame to ensure dust tight joint. Sectional anti-friction rollers are fitted to the front and rear. The guards are easily moved or swung away for changing saws. The top guide is vertically adjustable and counterbalanced. The saw tension is applied by a sensitive but powerful coil spring; tension is indicated by pointer and scale conveniently positioned.

Features and Specifications:

  • Dia. saw pulleys: 36 inches (914 mm)
  • Width of saw wheels: 3¾ inches (95 mm)
  • Max width of saw: 4 inches (102 mm)
  • Max length of saw: 18ft 6 inches (5.64m)
  • Min length of saw: 18ft 0 inches (5.49m)
  • Max height under top saw guide: 10 inches (254mm)
  • Max distance saw to fence: 4 inches (102mm)
  • Max distance saw to feed rollers: 4 inches (102mm)
  • Feed speeds: 0-185fpm (59mpm)
  • HP of main drive motor: 25HP
  • Approximate shipping dimensions: 62'' L x 84'' W x 87'' H
  • Approximate shipping weight: 6,000 lbs (2,720 kgs)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages |

Please contact TCMI customer service for more information.


** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
