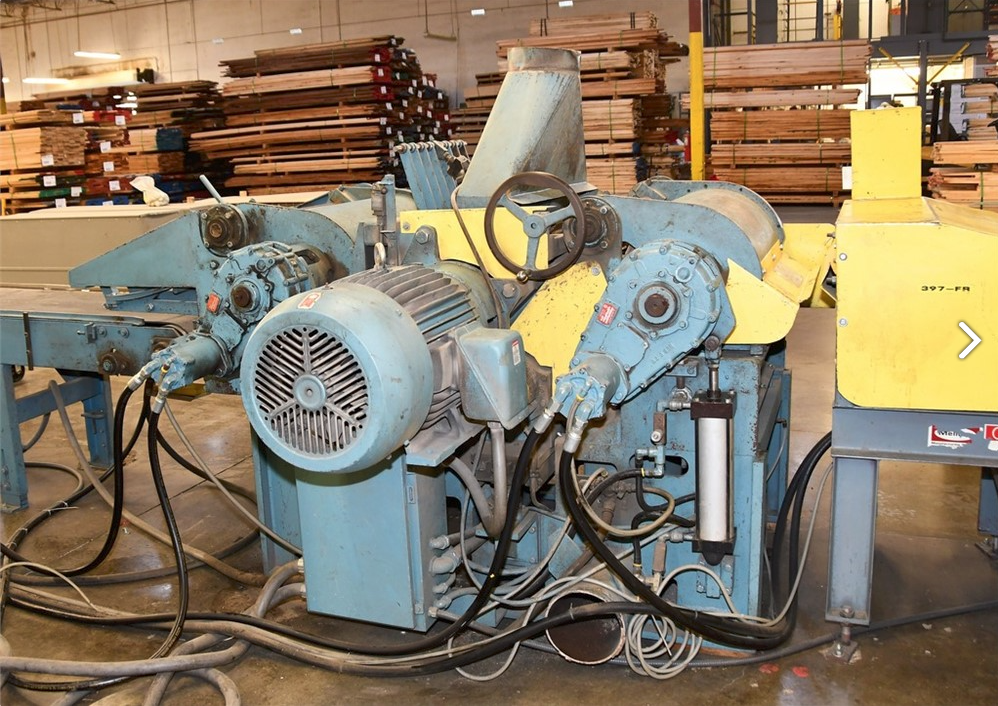

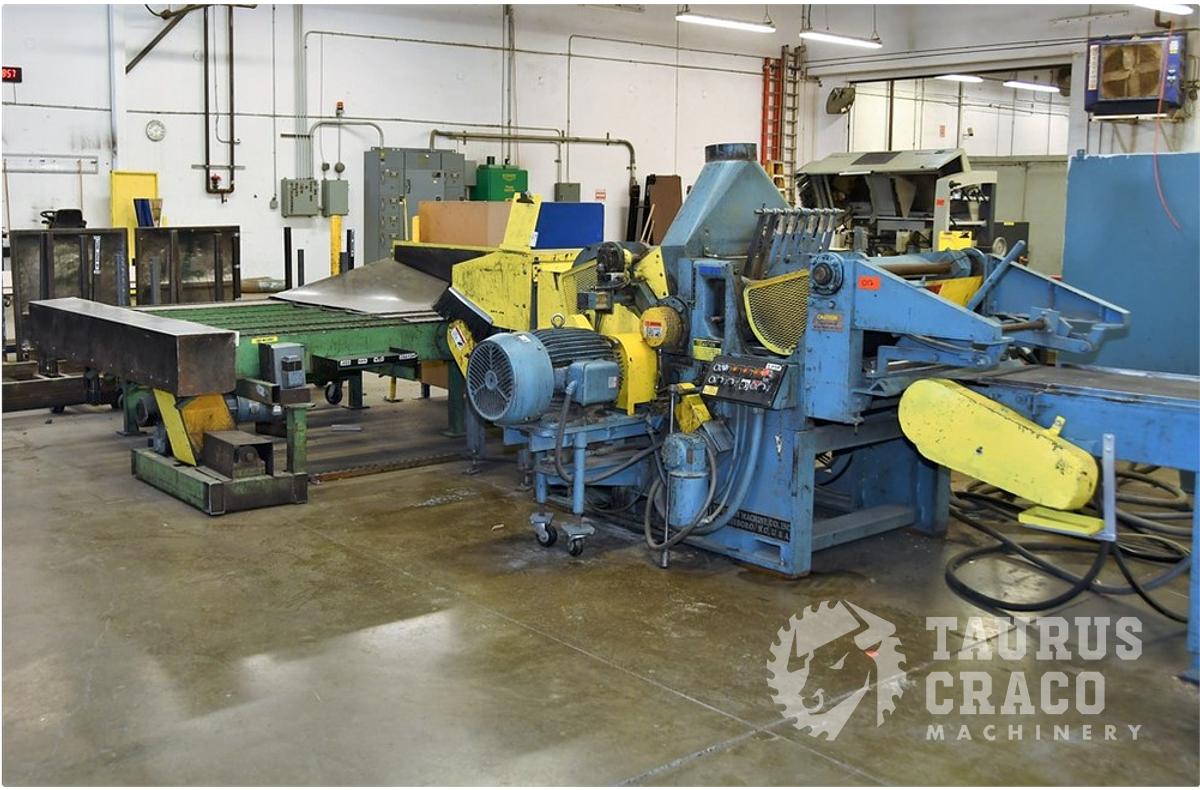

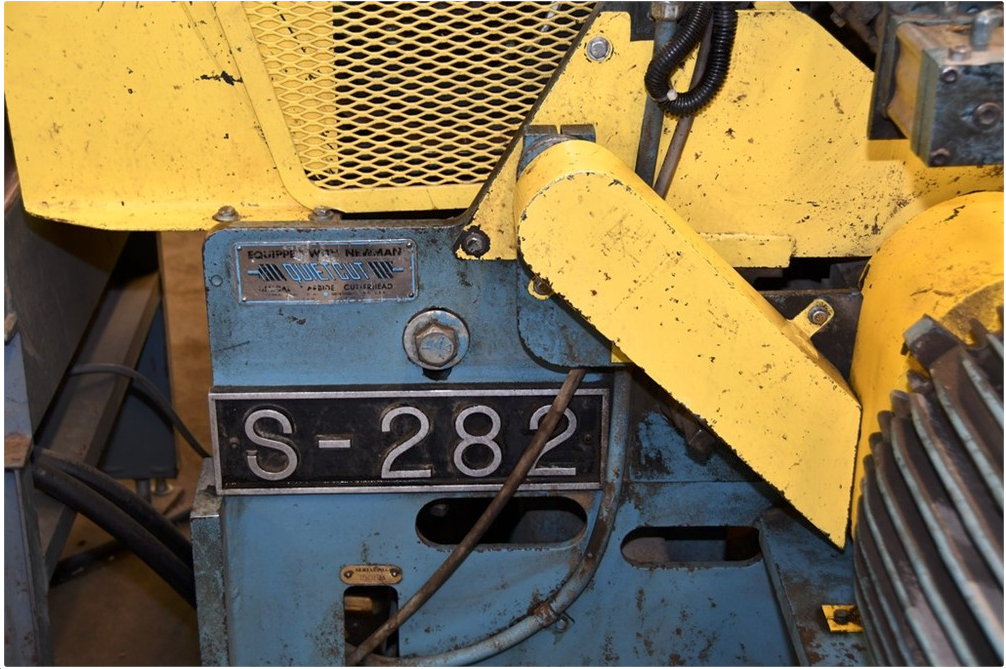

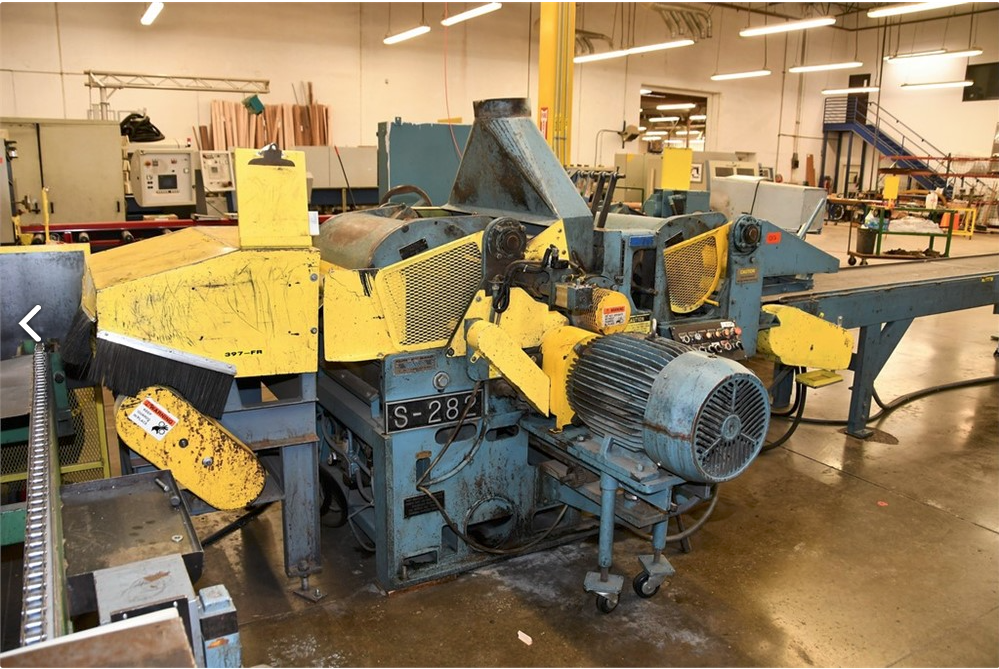

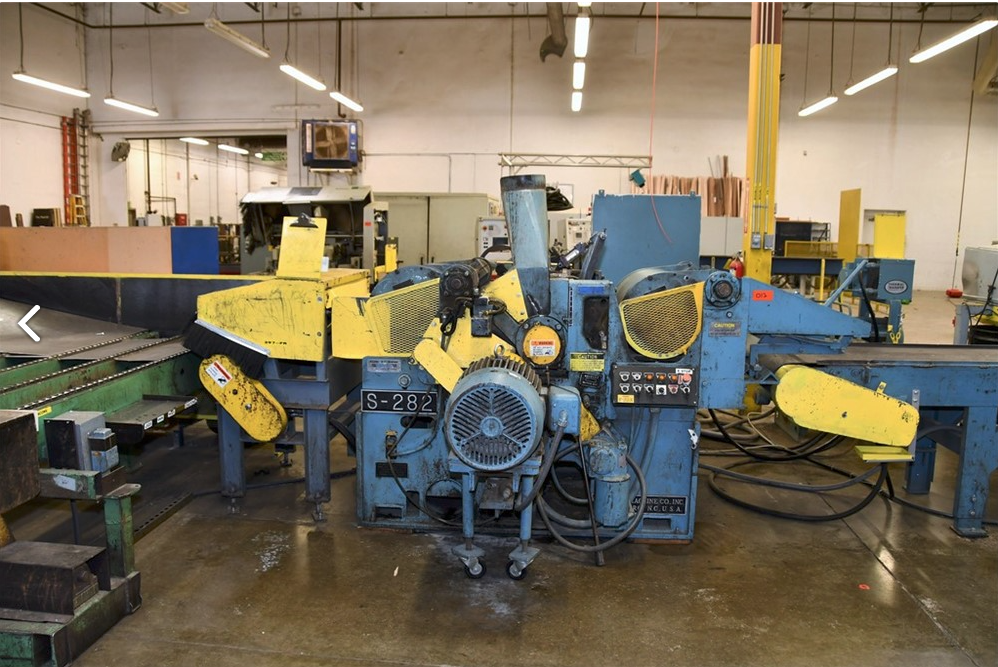

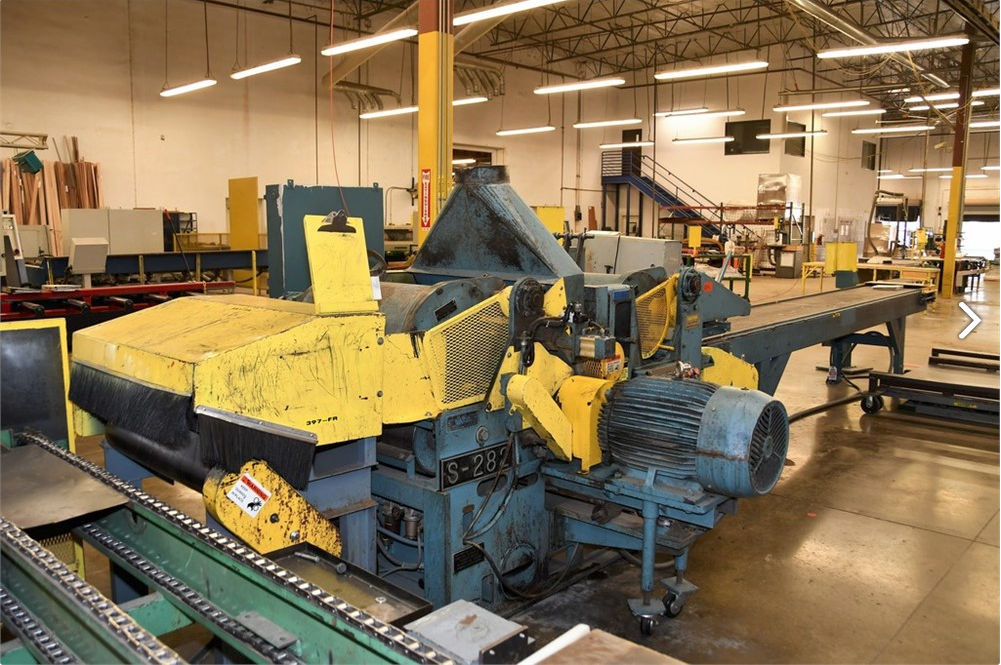

Newman Whitney S-282 Double Surface Planer

Newman "S-282" Top/Bottom Planer with Cross Transfer Deck

Features and Specifications:

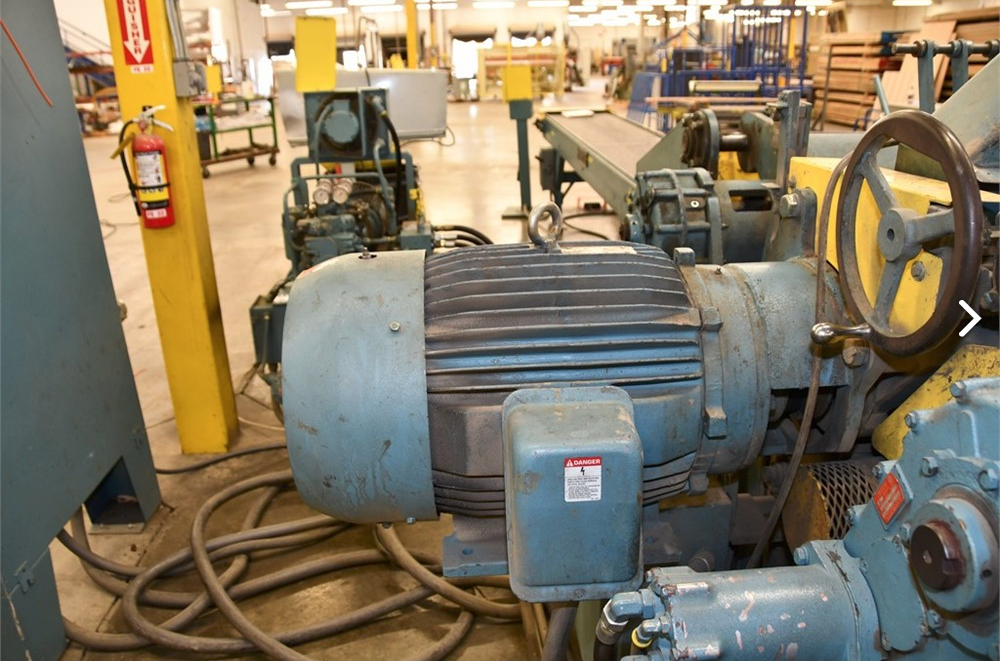

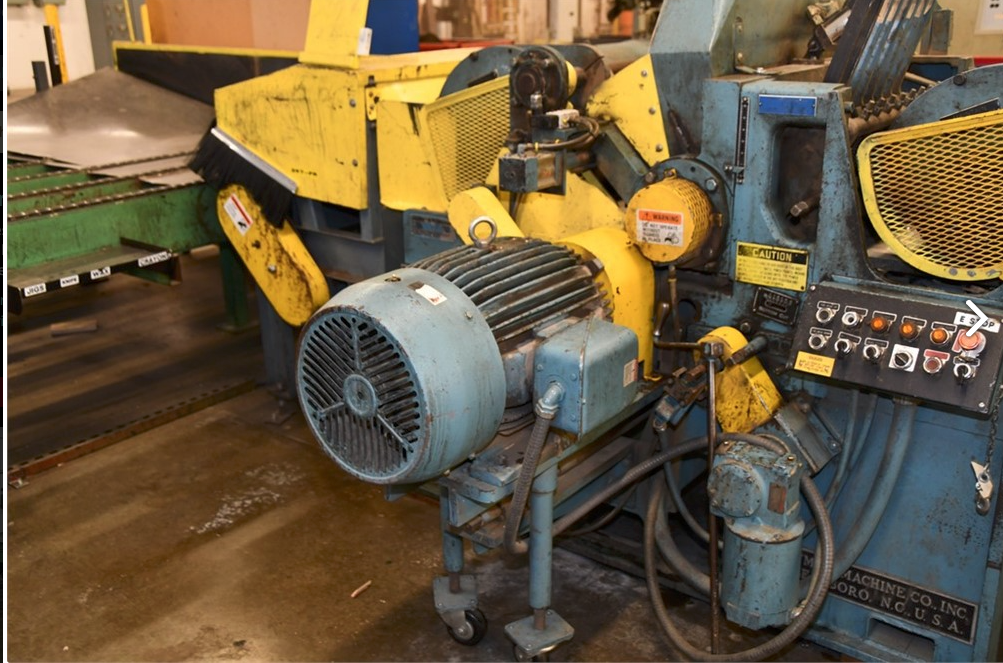

• 18" x 6" Max. capacity, Coupled Drive Fixed Bed Double Surfacer with 60 HP - 3,600 RPM top head OPD motor, 50 HP - 3,600 RPM bottom head ODP motor.
• Equipped with: Newman "QuietCut" Spiral Carbide Cutterheads on the top and bottom.
• (4) Feed rolls, top infeed roll and top outfeed roll each with (3) pneumatic tires mounted on steel shafts; top roll yokes are pivoted from frame allowing stock variations and quick roll raising; (2) idle bottom rolls mounted on ball bearings.
• (2) Pivot mounted top feed rolls each with (3) pneumatic tires (three on infeed and three on outfeed) that are 16" in dia. with over 1-1/2" independent yield.
• (1) 6" Dia. steel idle infeed bottom roll and (1) 12" dia. steel idle outfeed bottom roll.

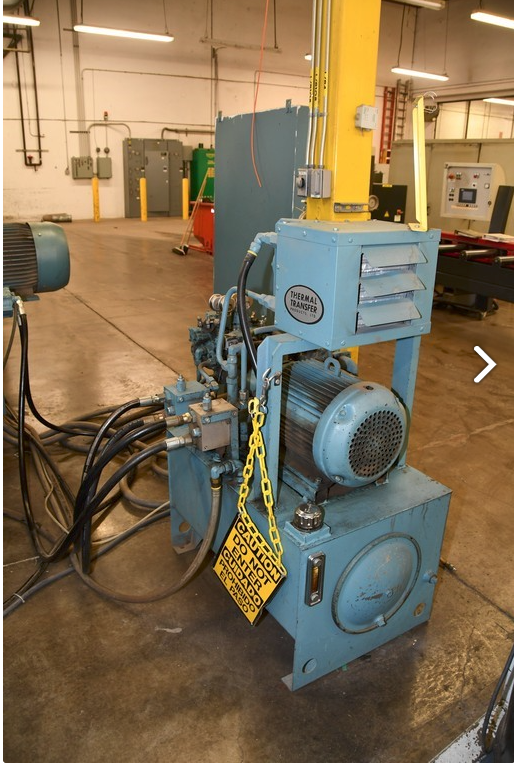

• Infinite variable feed from self-contained hydraulic drive system; 20-HP hydraulic pump motor, feed speeds 40 - 150 FPM.
• Sectional top head chipbreaker with 3" wide sections, with hardened steel toe pieces.
• Cutterhead brakes, dust hoods, outfeed bottom roll equipped with roll scraper.
• Freestanding standard control panel equipped with full voltage starters for motors and fuses for line protection.

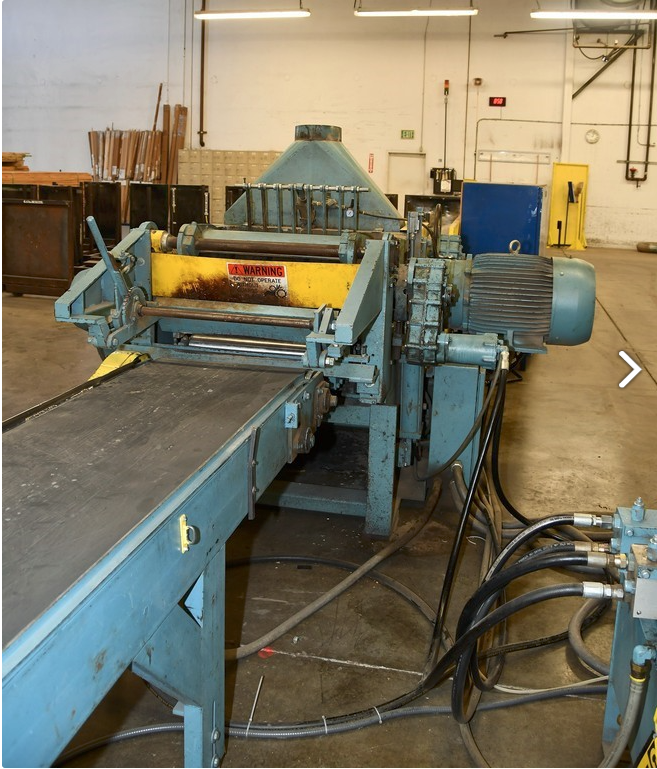

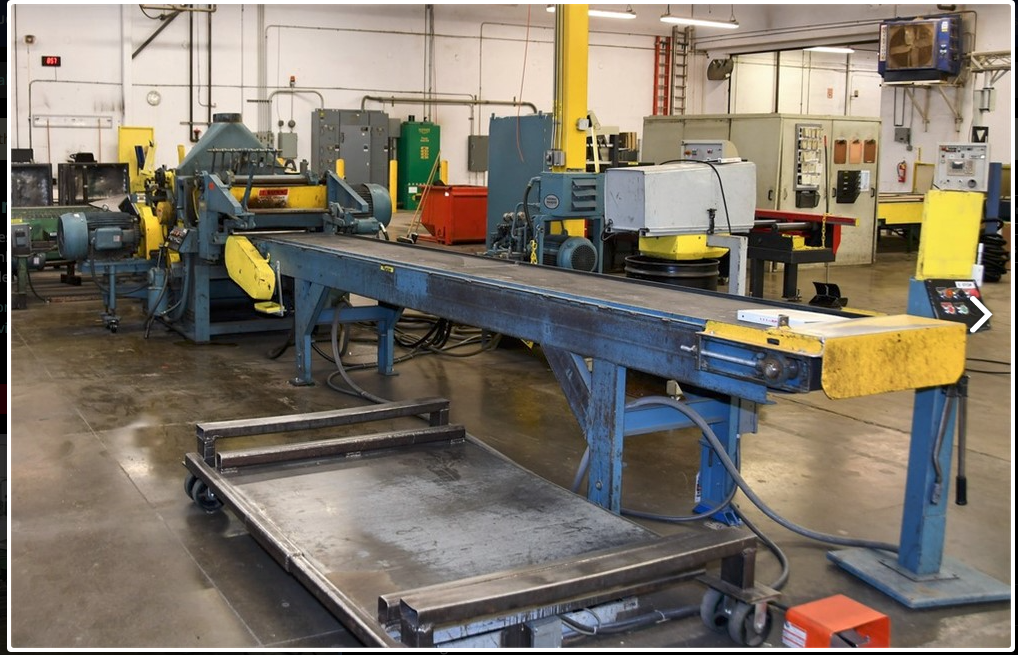

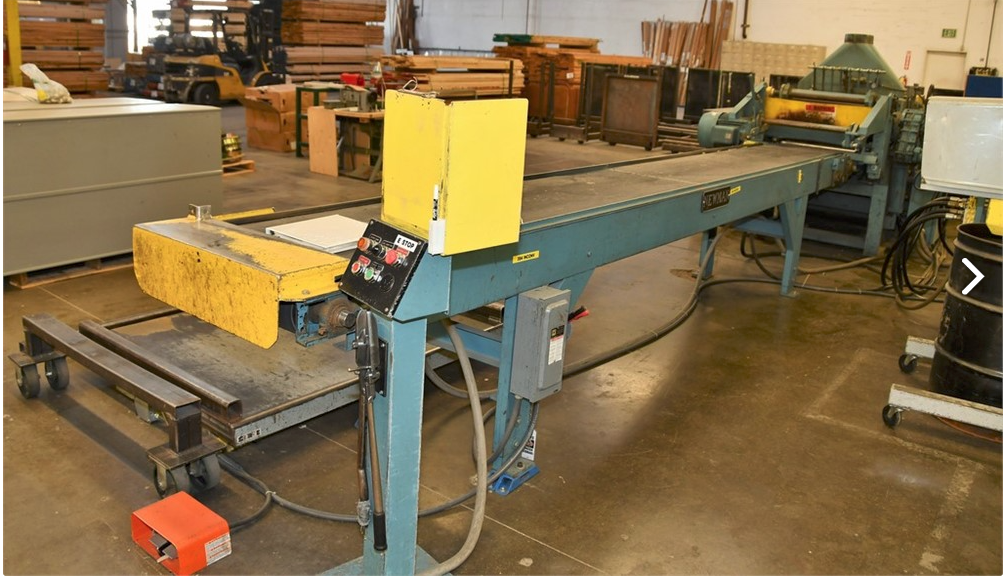

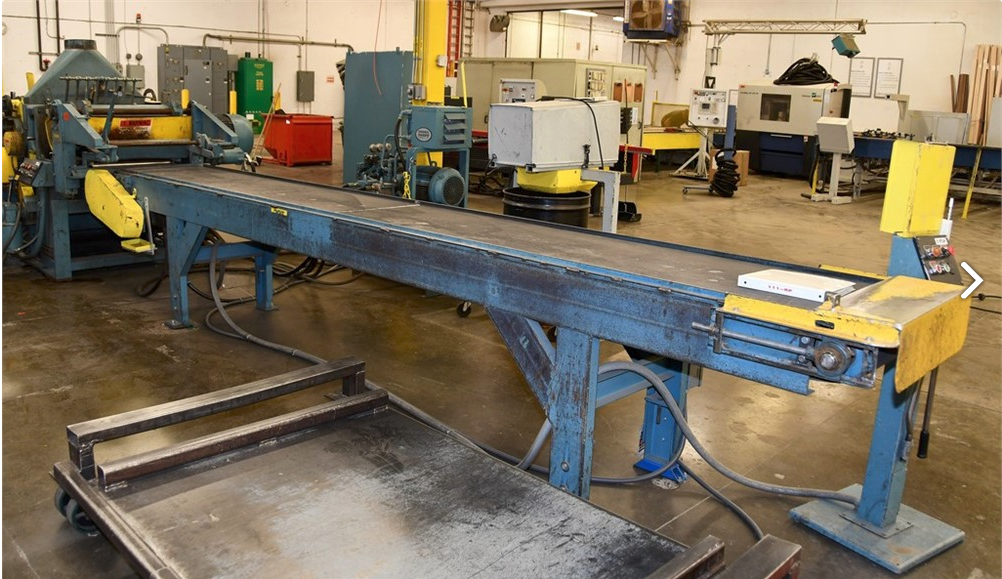

• 24" x 17" hydraulic powered belt conveyor.

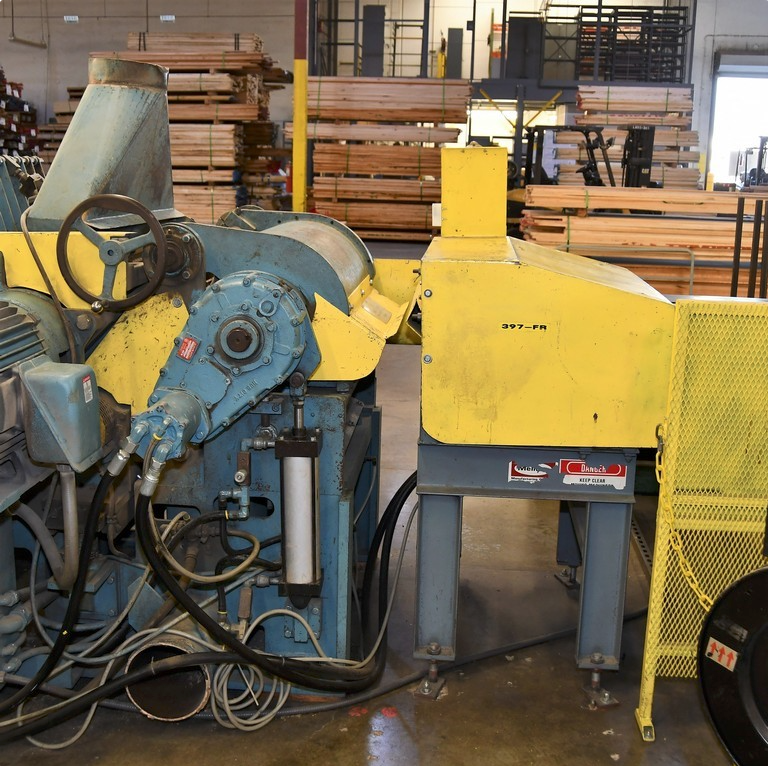

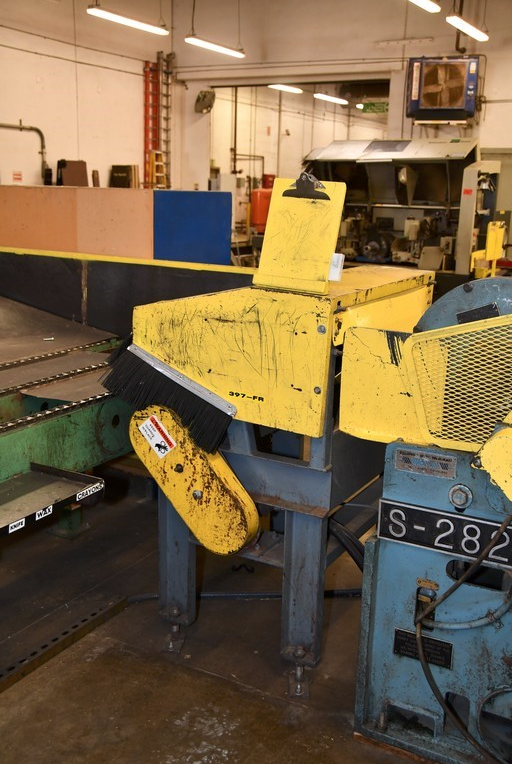

• Mellott Hydraulic powered pinch Roller

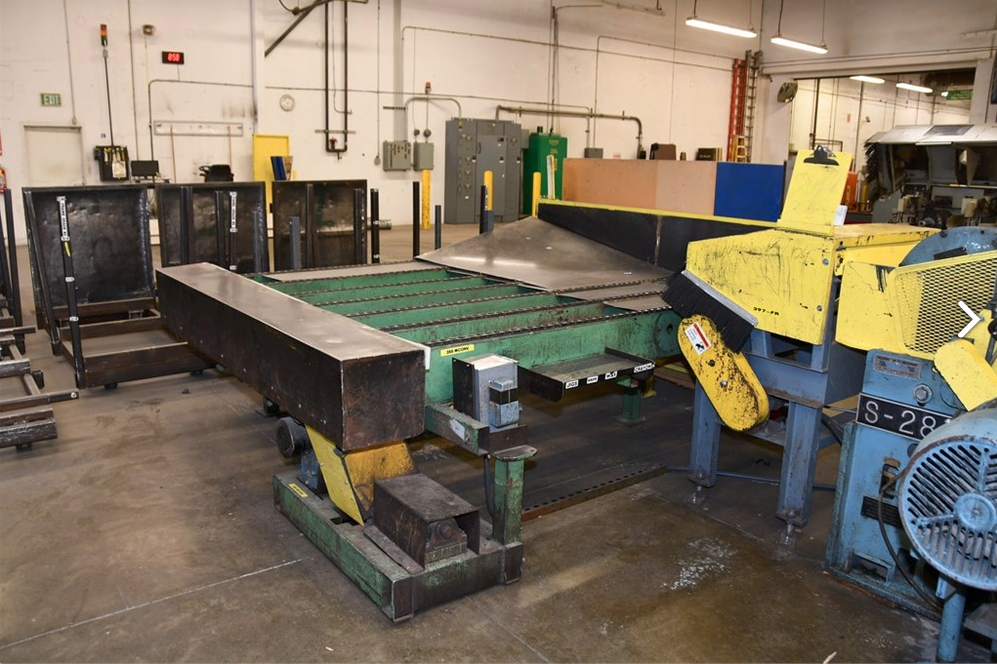

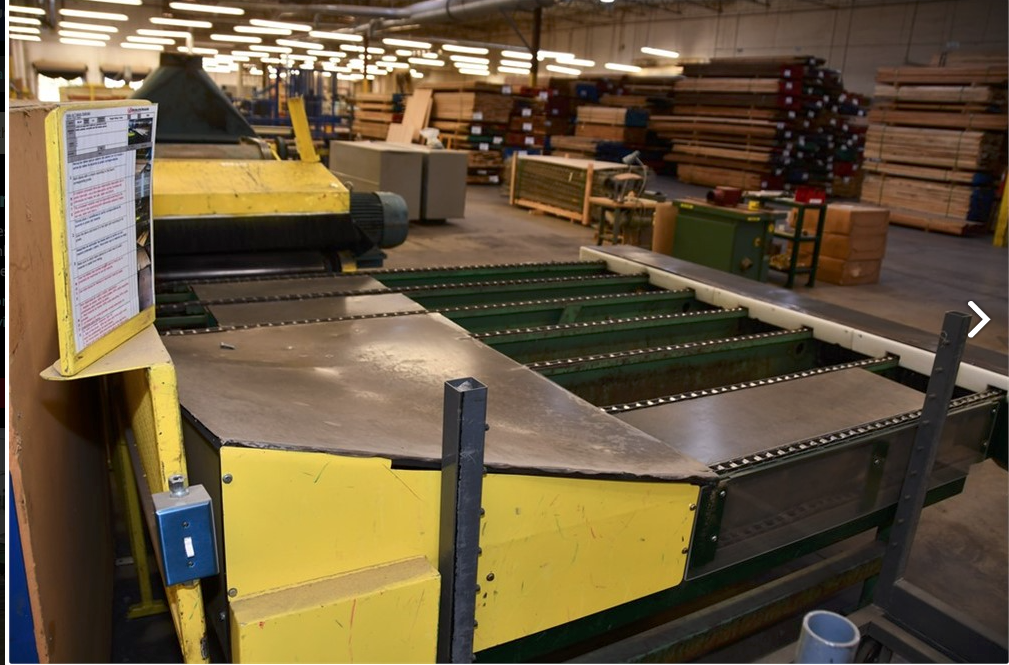

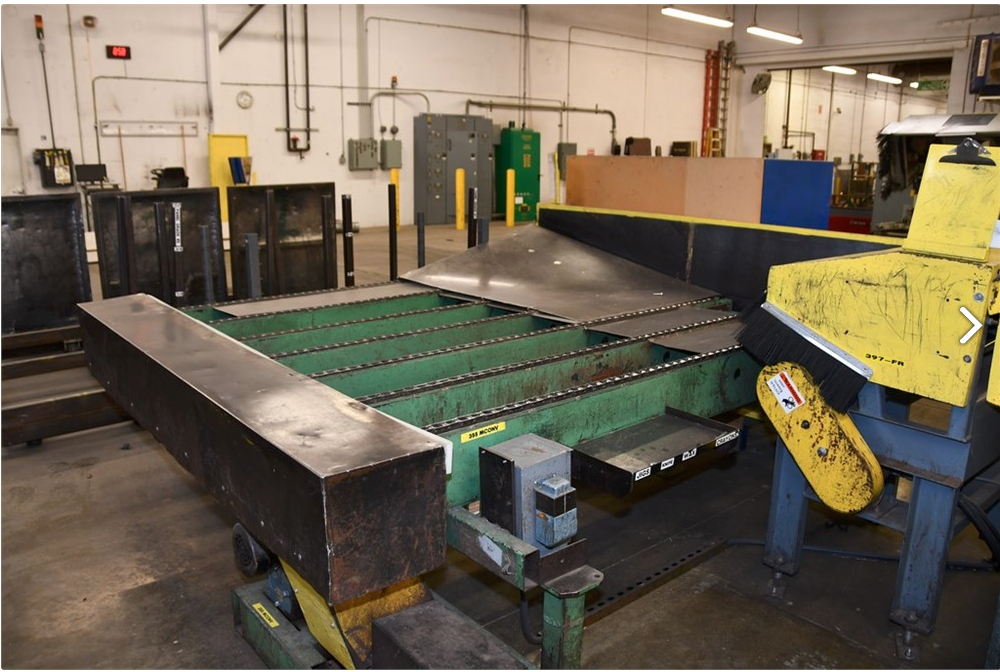

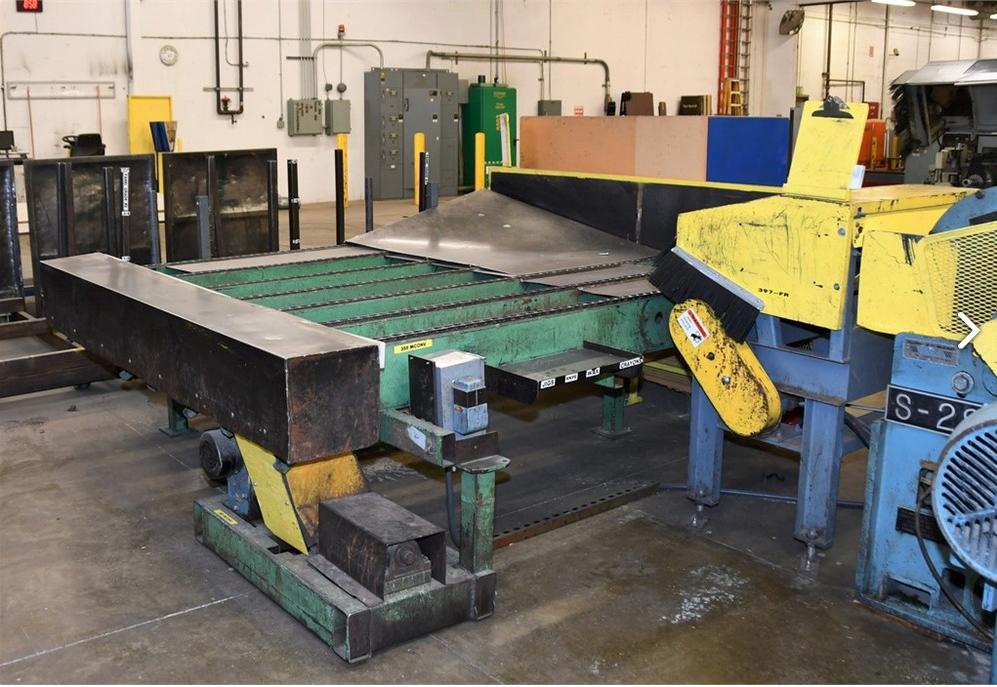

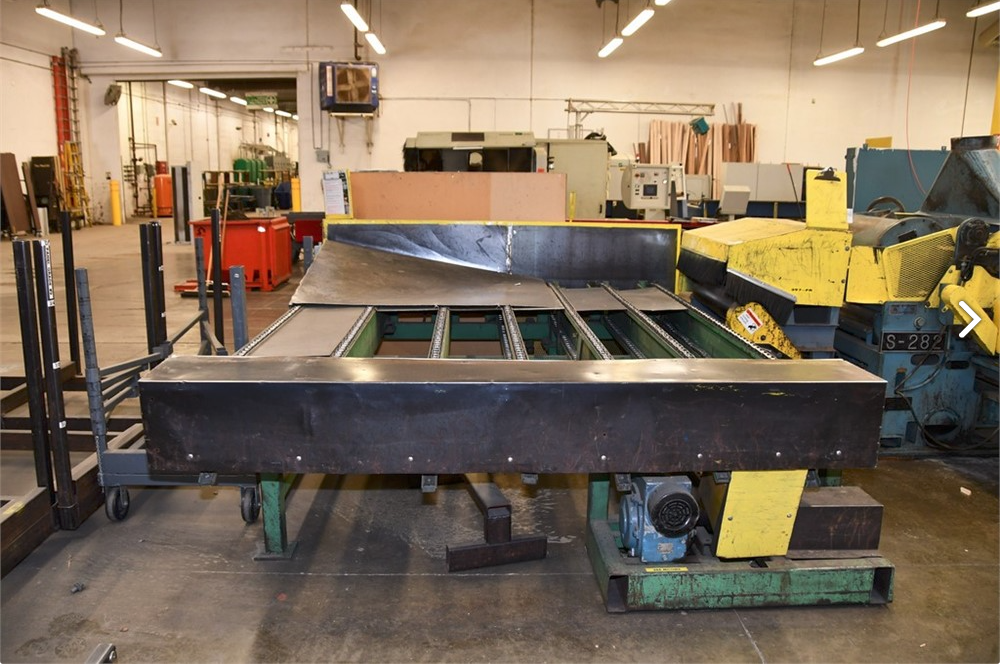

• 84" x 90" Cross transfer deck w/ 7-chains
• Additional set of Helical carbide cutters
• Additional spare parts
• Approximate shipping dimensions: 99.5'' L x 72'' W x 72'' H
• Approximate shipping weight: 10,000 lbs (4,536 kg)

Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages –

Please contact TCMI customer service for more information.

---

** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
