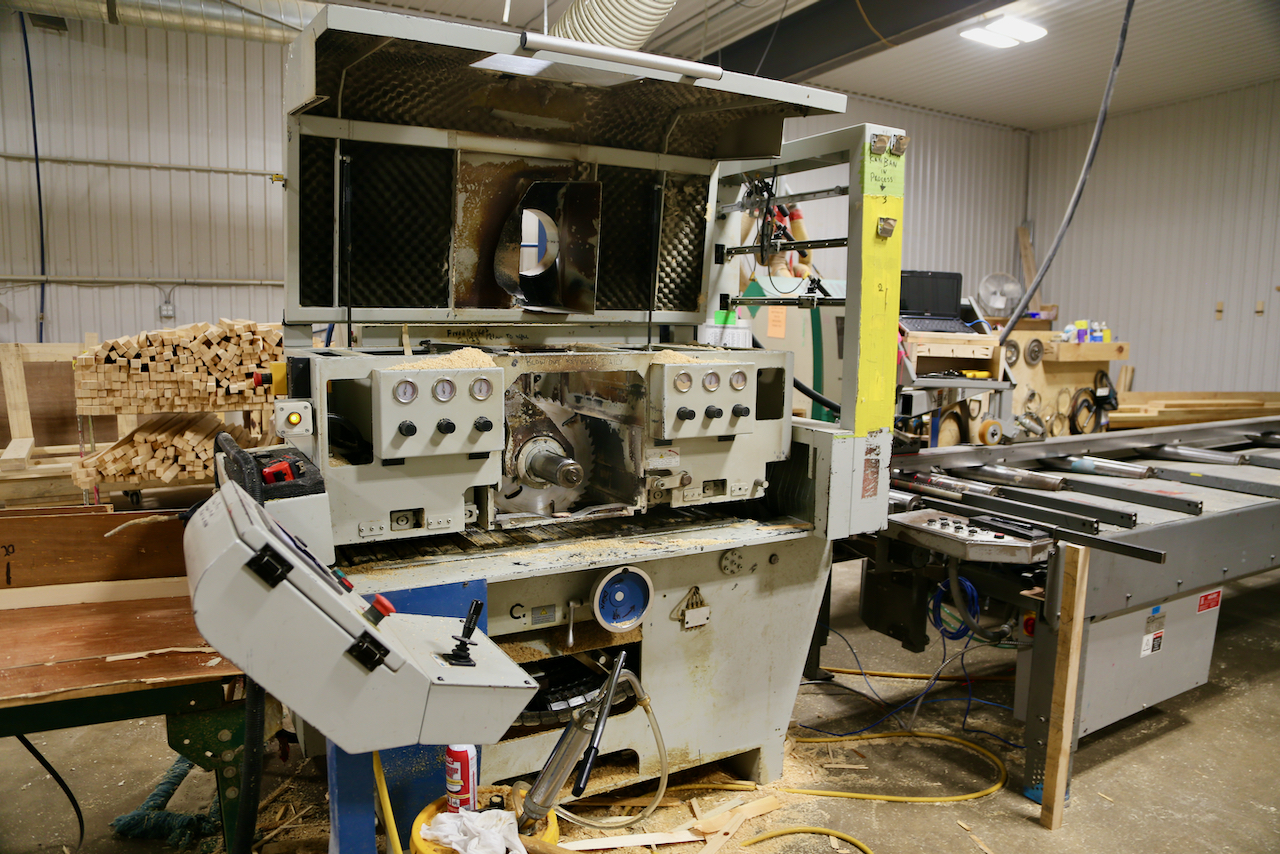

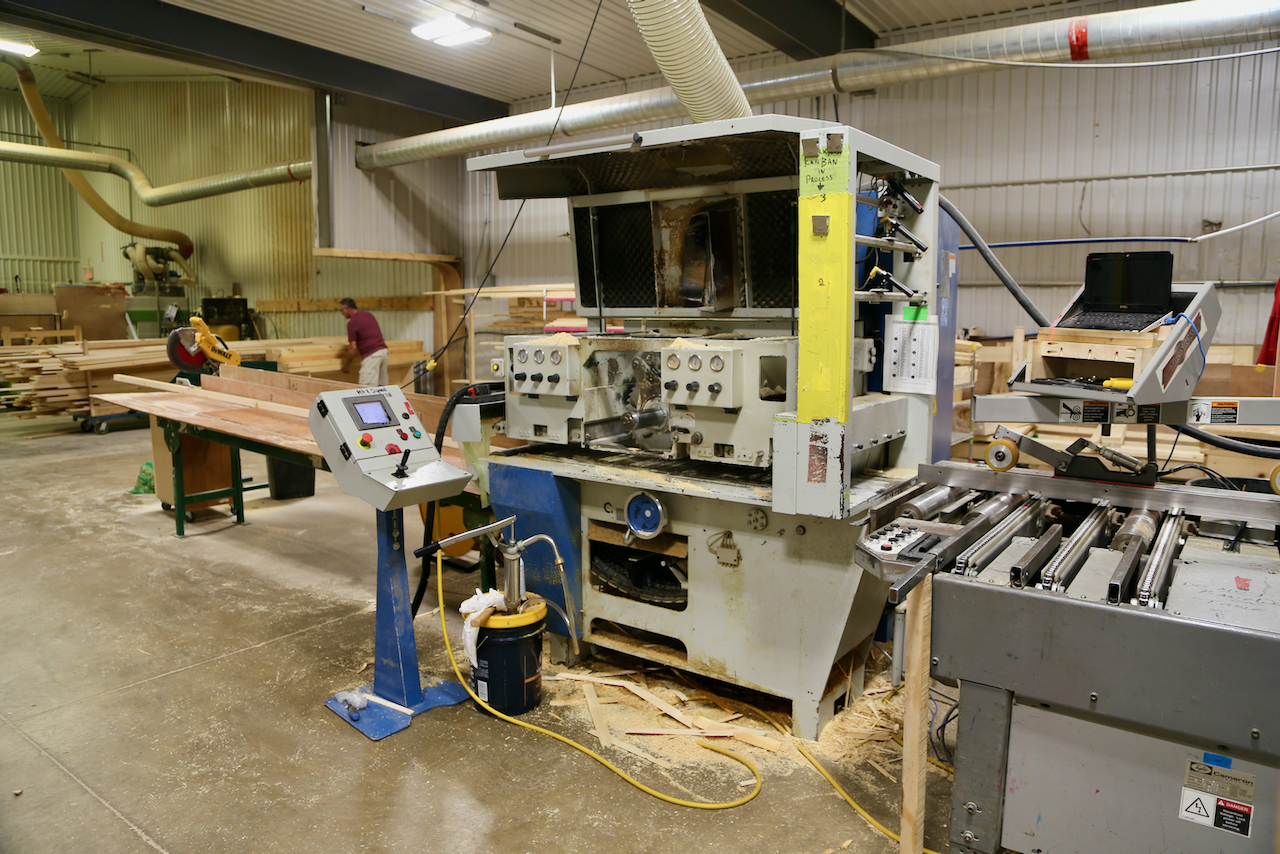

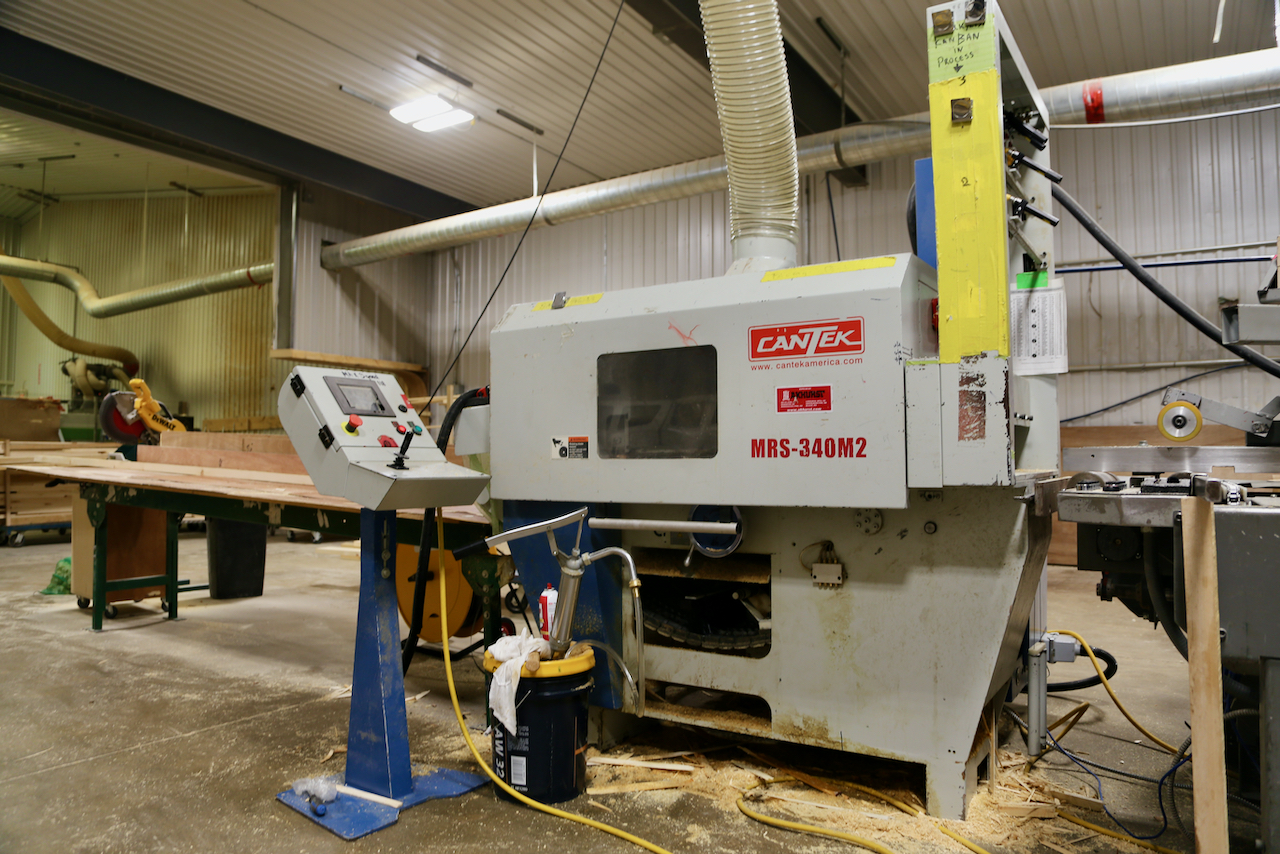

2011 Cantek MRS-430M2 Multi-Blade Rip Saw (w/ Cameron Skew)

orCall (905)-451-8430

Specifications

ManufacturerCantek
ModelMRS-430M2 Multi-Blade Rip Saw (w/ Cameron Skew)
Year2011
Stock Number1482EZ
Voltage575V / 60Hz / 3Ph
ConditionGood

Description

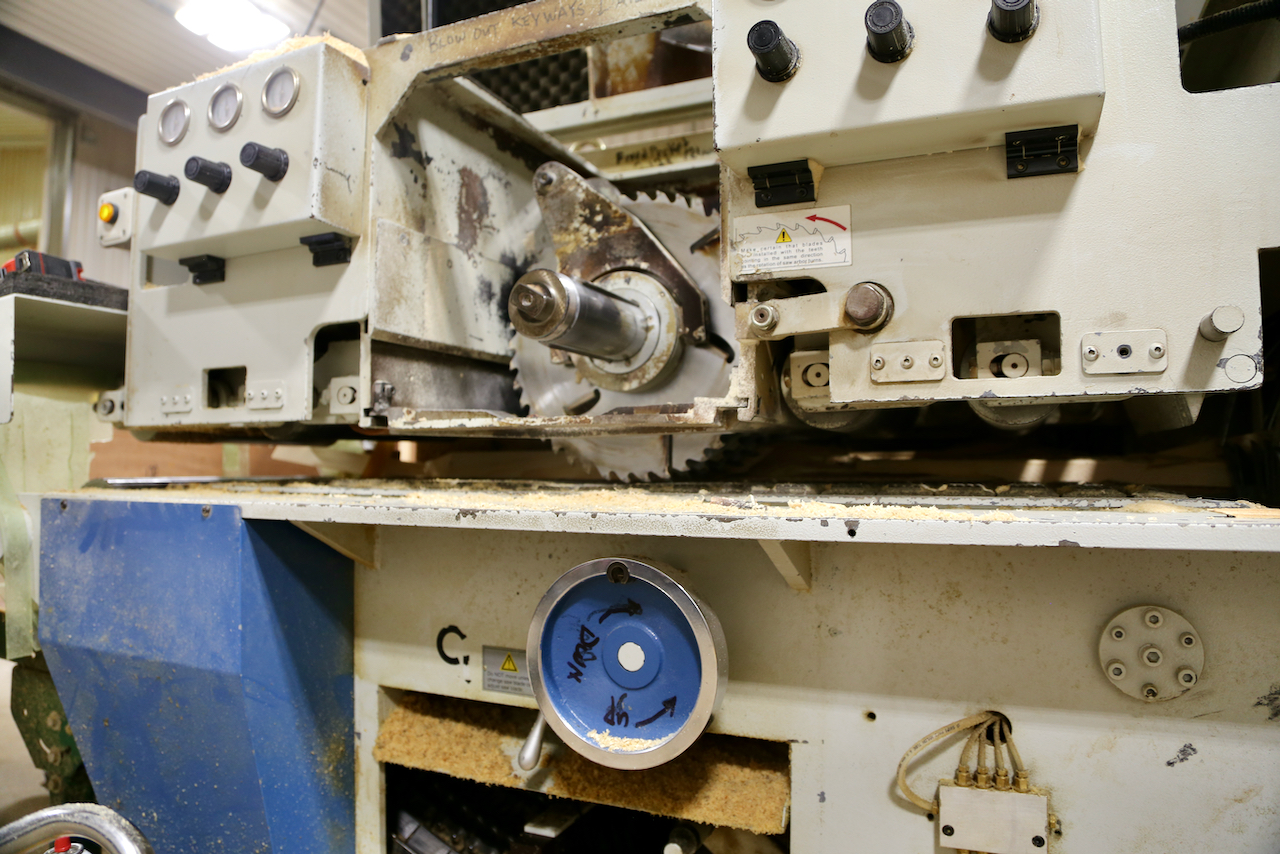

The Cantek MRS-340M2 Moving Blade Multi-Ripsaw is outfitted with 2 moving saw blades. The motorized moving blade system is designed to provide you with maximum flexibility in your ripping operations to achieve the maximum yield from your material. The touch screen control allows the operator to pre-set the blades position(s) or jog the blades to achieve the desired ripping result. Each moving blade is controlled by a servo motor and is adjusted using a ball screw and linear guideway for the highest accuracy.  The blade position is indicated with a laser projection line so the operator can visualize the cutting line to increase efficiencies.  If you are looking to increase material yield and add flexibility to your ripping operations the MRS340M series is the ideal choice.

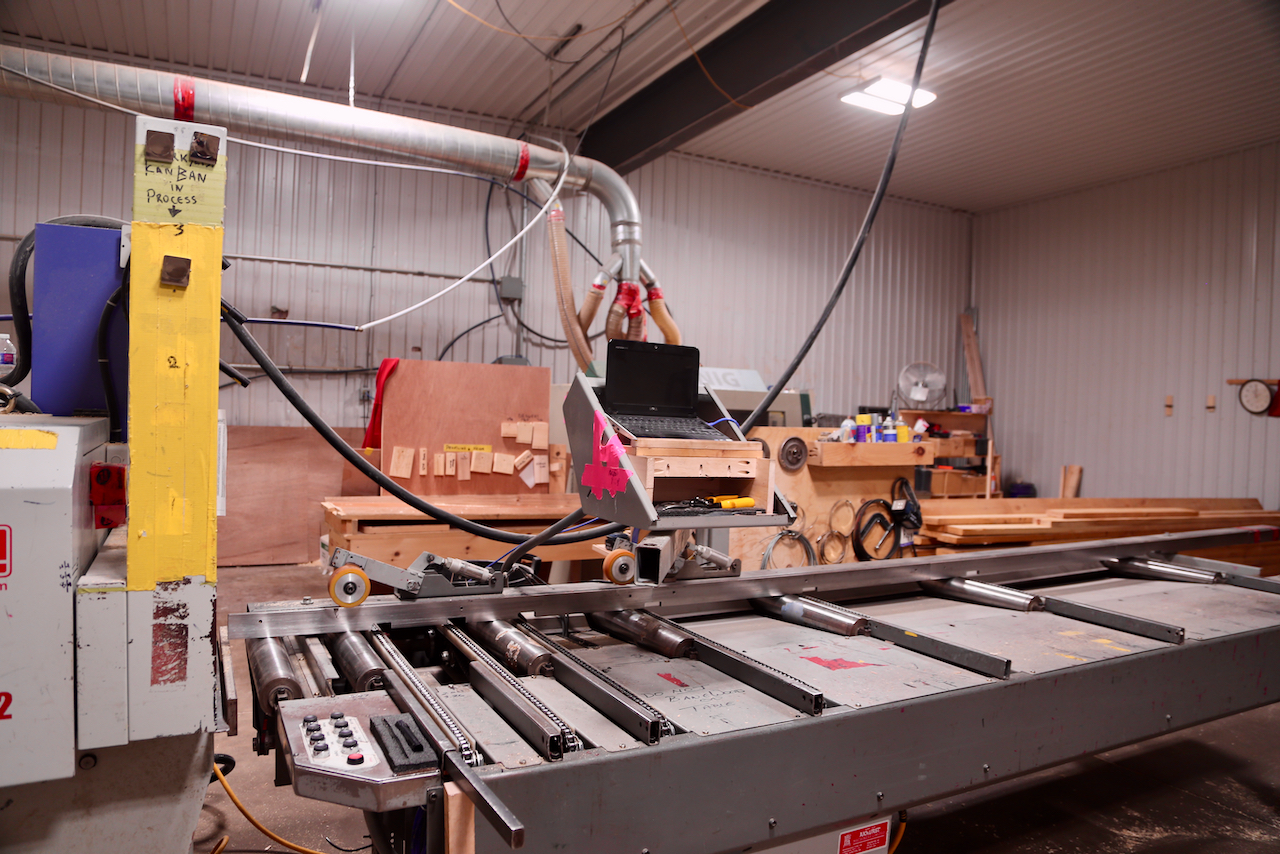

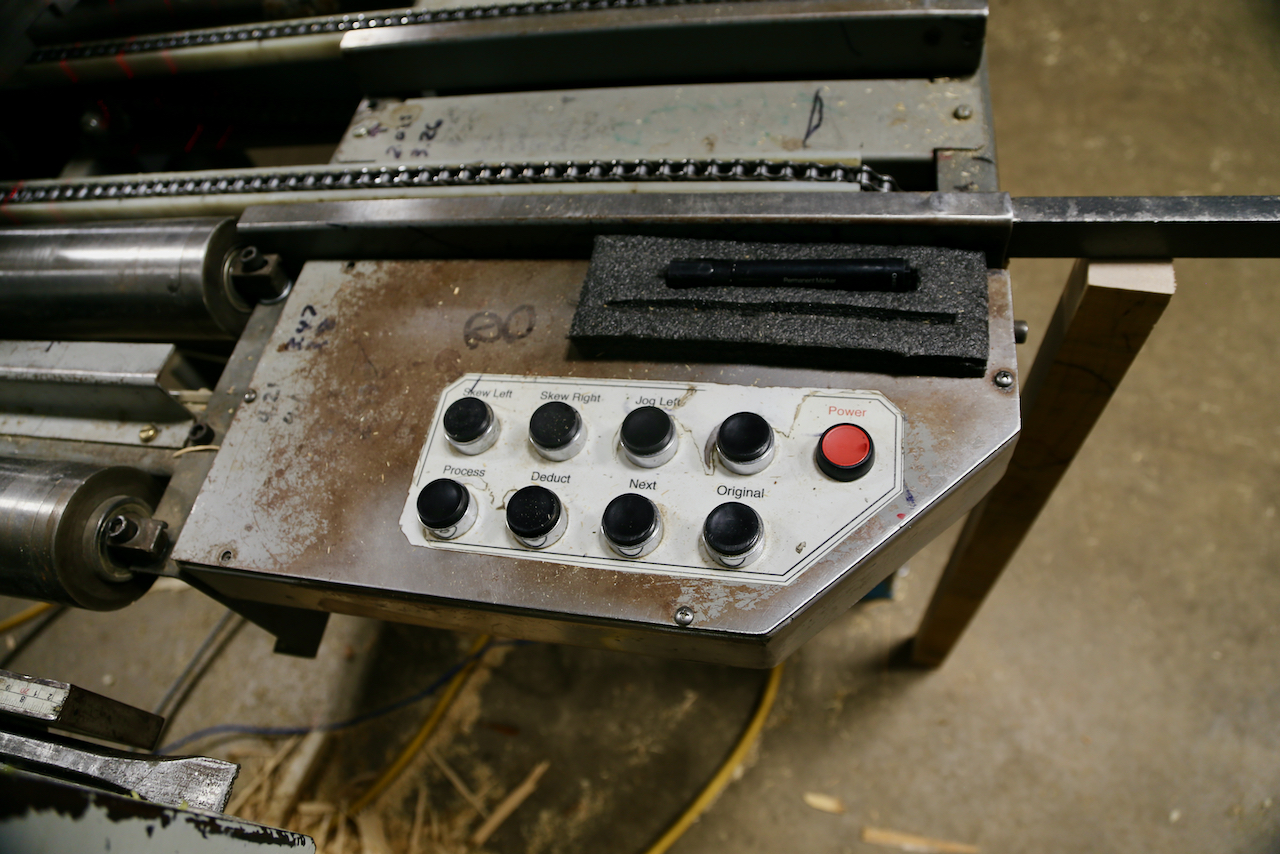

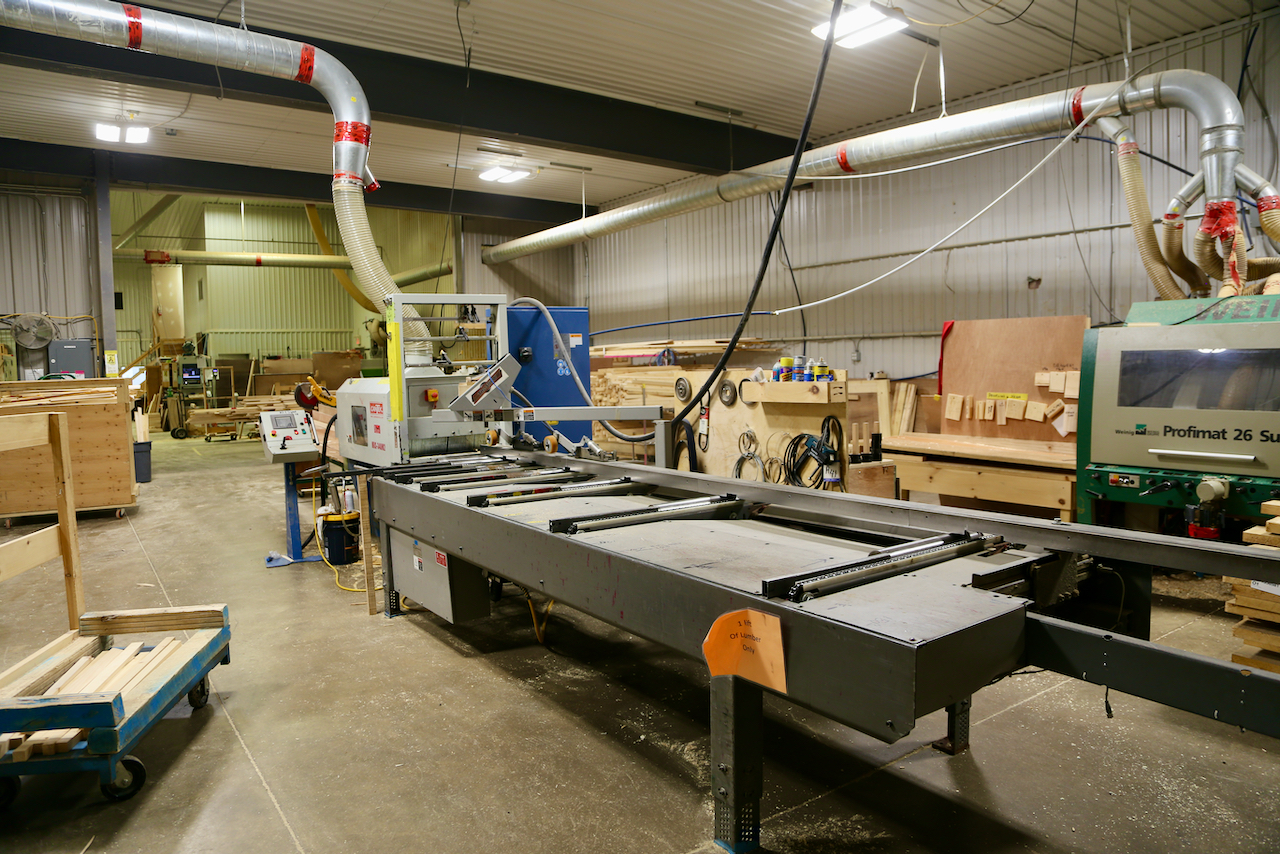

This saw has been outfitted with a Cameron Skew to further increase productivity and reduce labour burdens.


Features and Specifications

  • Max. cutting width: 13.4'' (340mm)
  • Max. material width: 25.6'' (650mm)
  • Min. material length: 22'' (550mm)

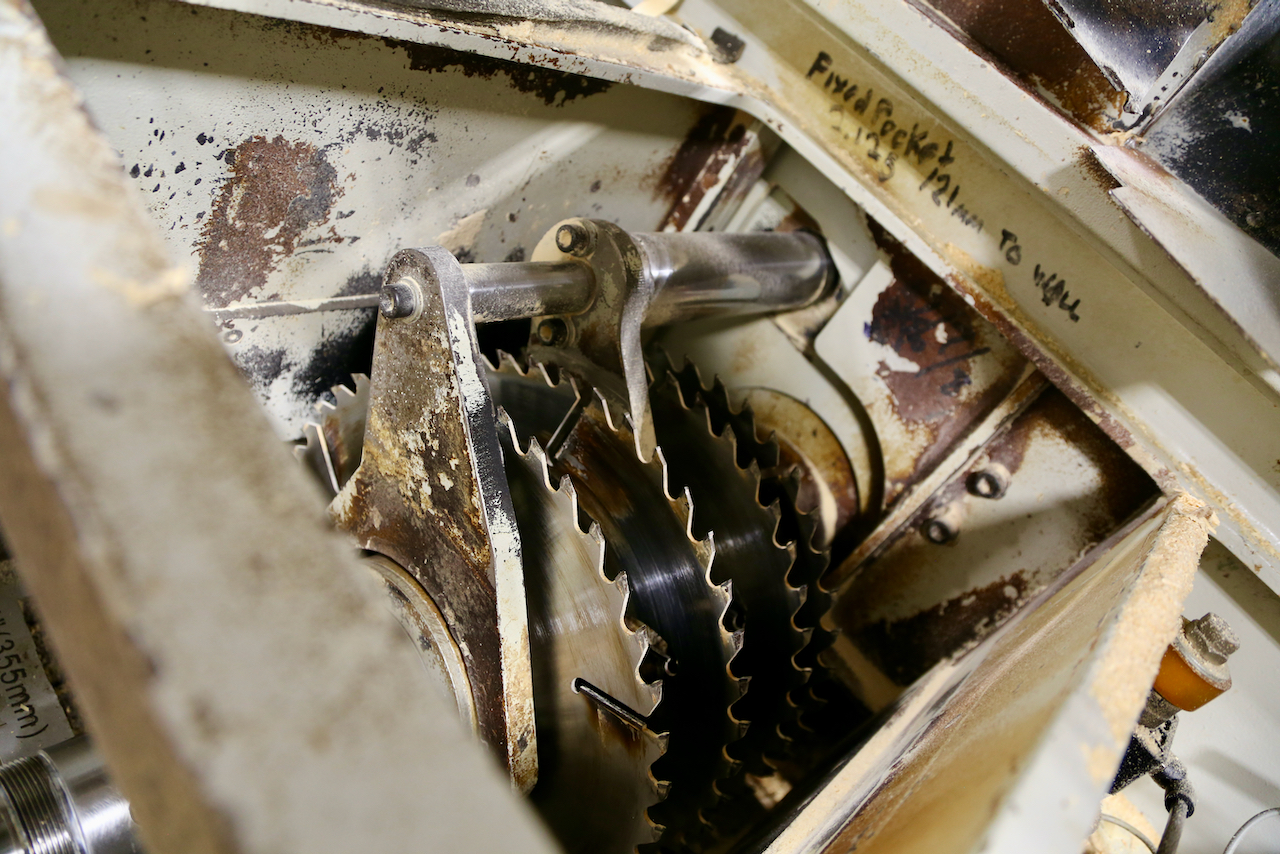

  • Max. sawblade diameter: Ø14'' (355mm)
  • Min. sawblade diameter: Ø12'' (305mm)
  • Sawblade bore: Ø3.6'' (90mm)
  • Saw arbor diameter: Ø2.8'' (70mm)
  • Saw arbor speed: 3800rpm (50,60 HP)
  • Pressure roll motor: 0.5 HP
  • Saw arbor motor: 50 HP (60 HP)
  • Feed motor: 3 HP
  • Variable feed speed: 5-40 M/min
  • Dust hood diameter: Ø8'' (200mm) x 2 / Ø4'' (100mm) x 1
  • Table height from floor (H): 35.5'' (900mm)
  • Table area (L x W): 60'' x 24'' (1525mm x 595mm)
  • Approximate shipping dimensions: 89'' L x 59'' W X 81'' H
  • Approximate shipping weight: 4,850 lbs (2,200 kg)

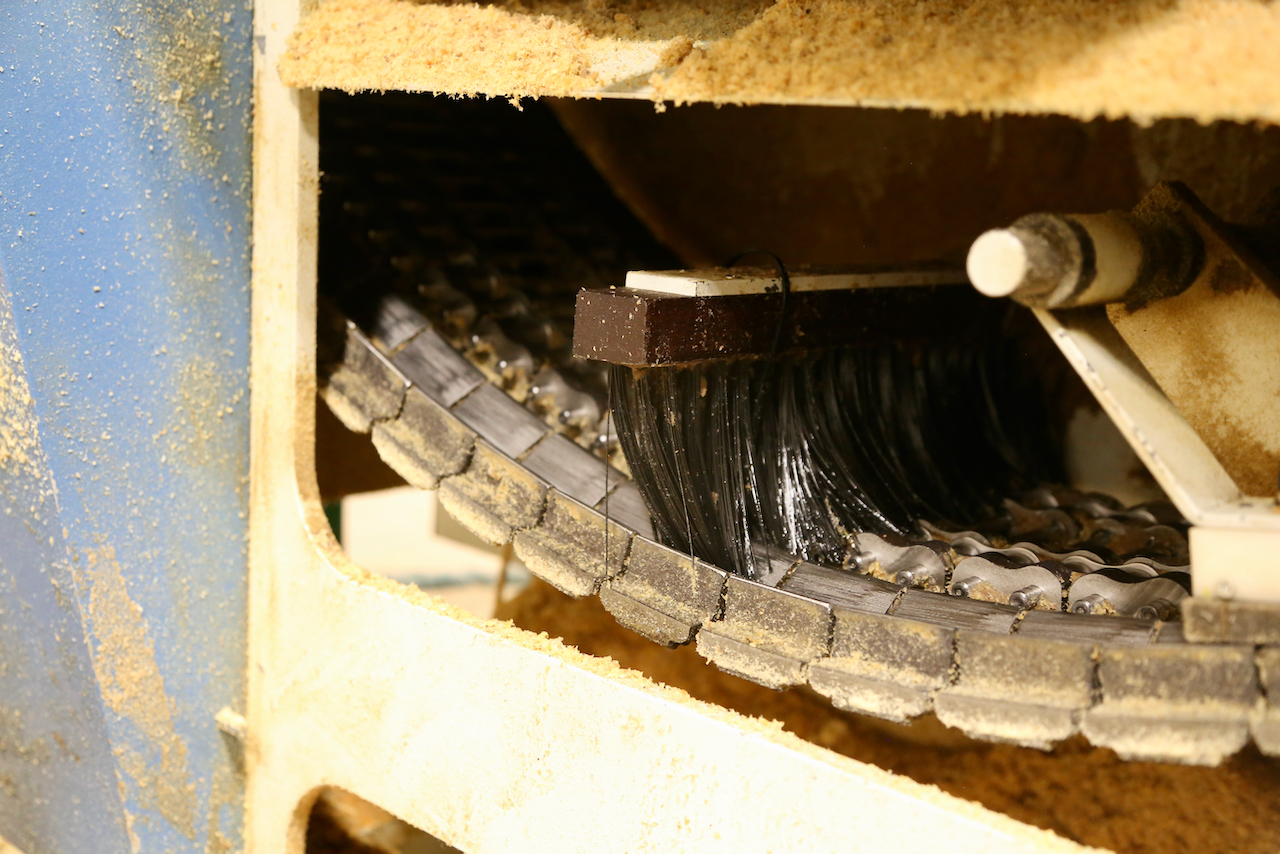

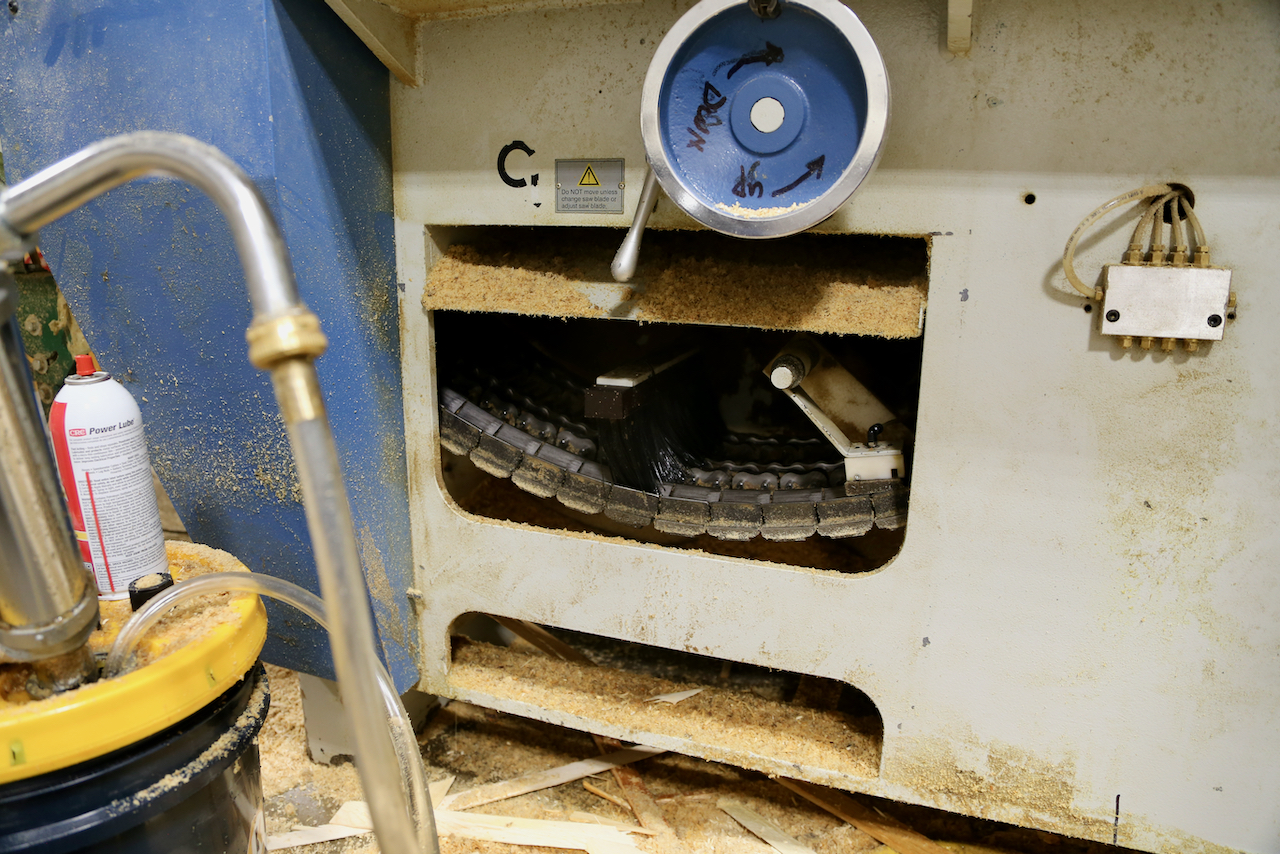

  • Automatic mechanical lubricator for provide consistent lubrication to the chain track for maximum wear resistance
  • Insert type chain track with either replaceable steel or rubber inserts
  • Fixed and moving lasers which are tied to the moving blades for projecting the cutting line
  • (4) rows of safety anti-kickback fingers
  • Powered outfeed roll to evacuate ripped material from the machine

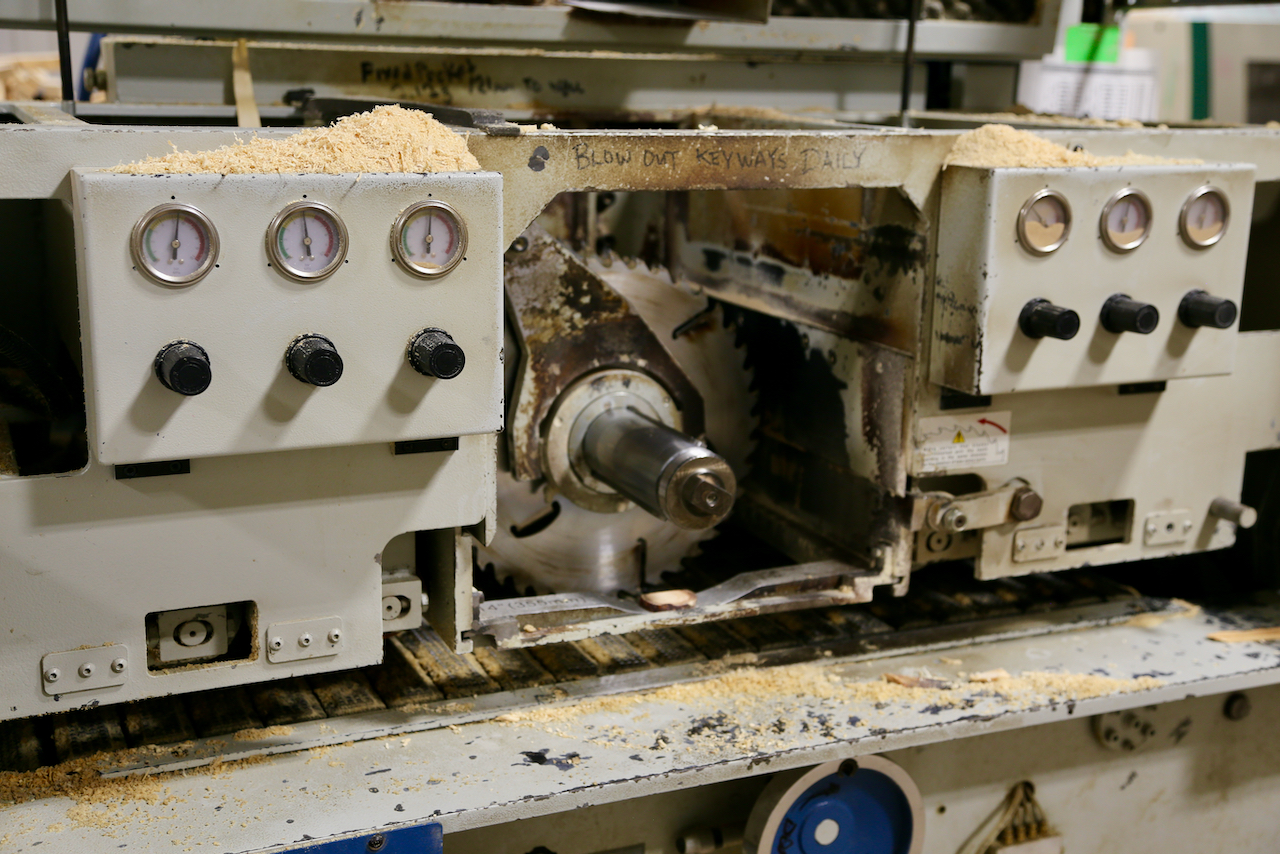

  • Pneumatic top pressure rolls for optimum control over the material resulting in accurate cutting
  • Precision high-quality cast-iron chain & track assembly for straight line cutting and maximum durability
