JLT 79X-5-M

The JLT 79X-5-M Miter Door Pro includes Dial Regulators to adjust individual clamp pressures to “dial” in mitered joints for high quality doors.

The Dial Regulator System makes this adjustment quick and easy. In a typical door shop glue is applied and components assembled on an assembly table. The door is placed in a section and clamps adjusted.

The cylinders are activated one by one which first creates initial joint pressure.

Vertical clamps and cross clamps are adjusted to bring the mitered joint into alignment.

A motor drive is used to rotate the next section. The cured door is removed and new components are placed in that section for clamping.

This 5 section Door Pro can produce up to 250 doors in an 8 hour shift. This equates to approximately 2.5 minutes per door and a clamping time of 10 minutes.

Features

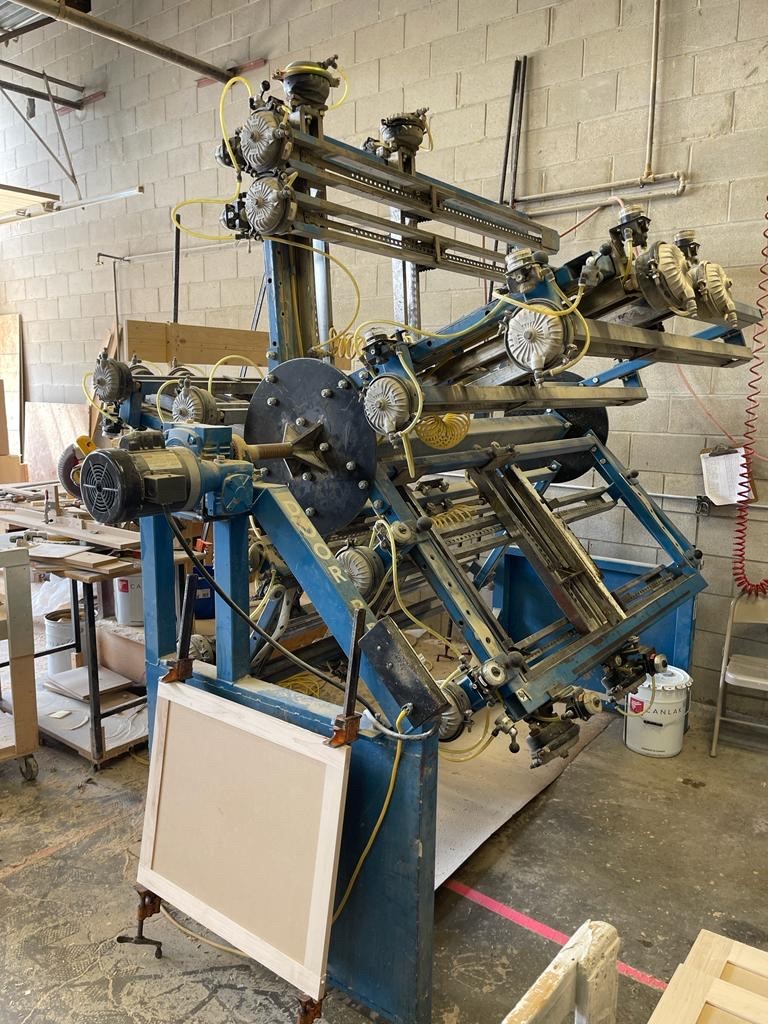

• 5 Section Miter Door Pro features the JLT Dial Control System for Clamping & Squaring Miter Cabinet Doors

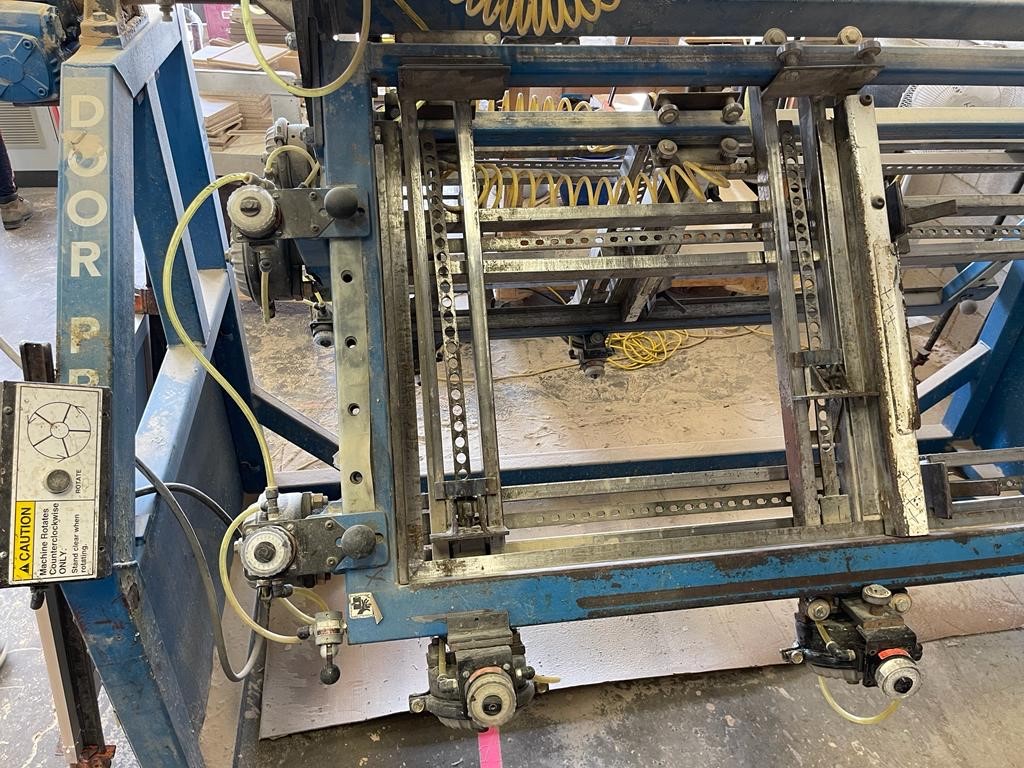

• Each Section has a 26" x 62" Maximum Clamping Capacity
• Dial in Desired Clamping Pressure to Precisely and Accurately Square any Type of Miter Door
• Each Clamp can Dial Pressure IN or OUT to Make Fine Adjustments in Each and Every Corner
• Heavy Duty Diaphragm Cylinders Provide up to 1500 lbs of Clamping per Clamp
• Door Pro Frame is made of 100% Steel Construction
• Produce up to 250+ Miter Cabinet Doors a Day

Benefits

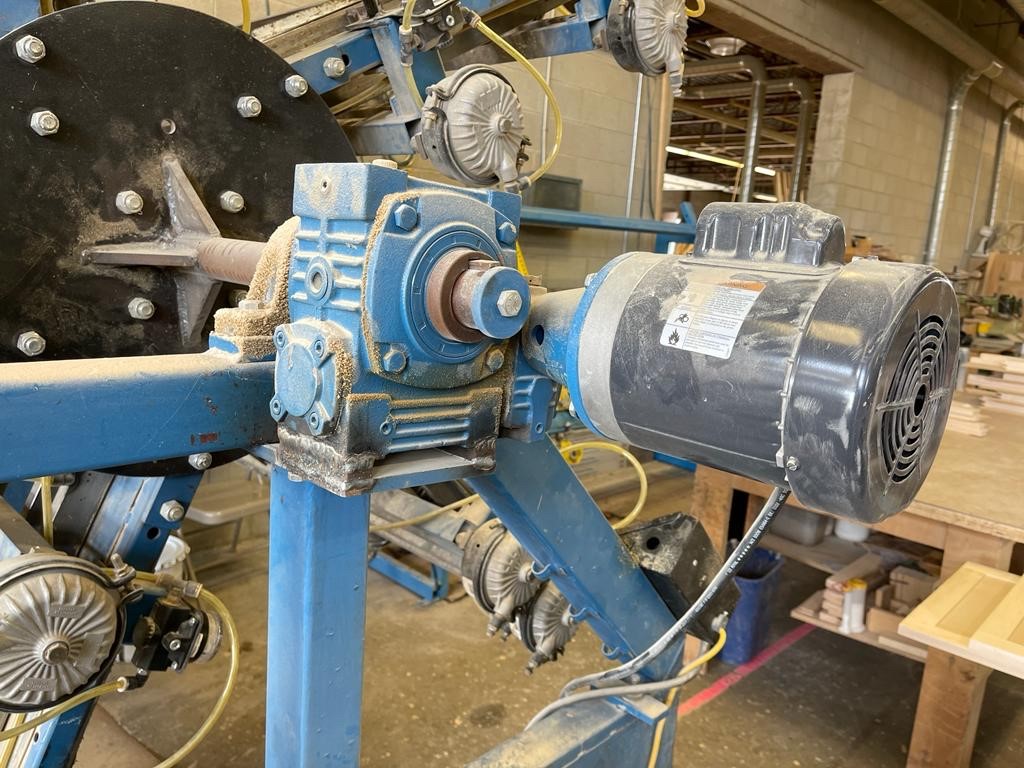

• Electric Gear Motor Provides Counter Clockwise Rotation for Operator Safety
• Single Button Control Box Activates Rotation and Includes Auto Index Feature
• Precisely Square and Clamp Stile & Rail Doors
