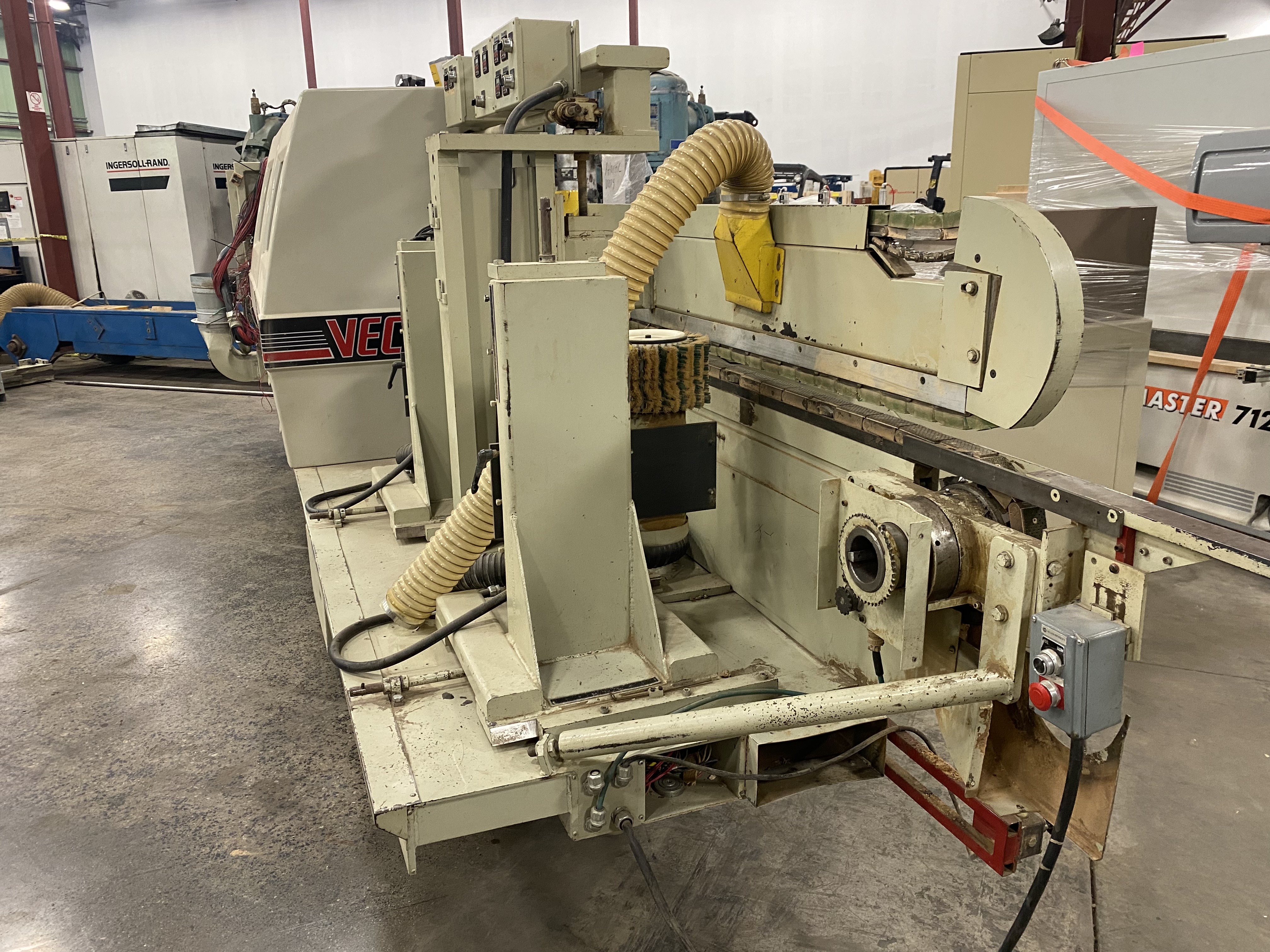

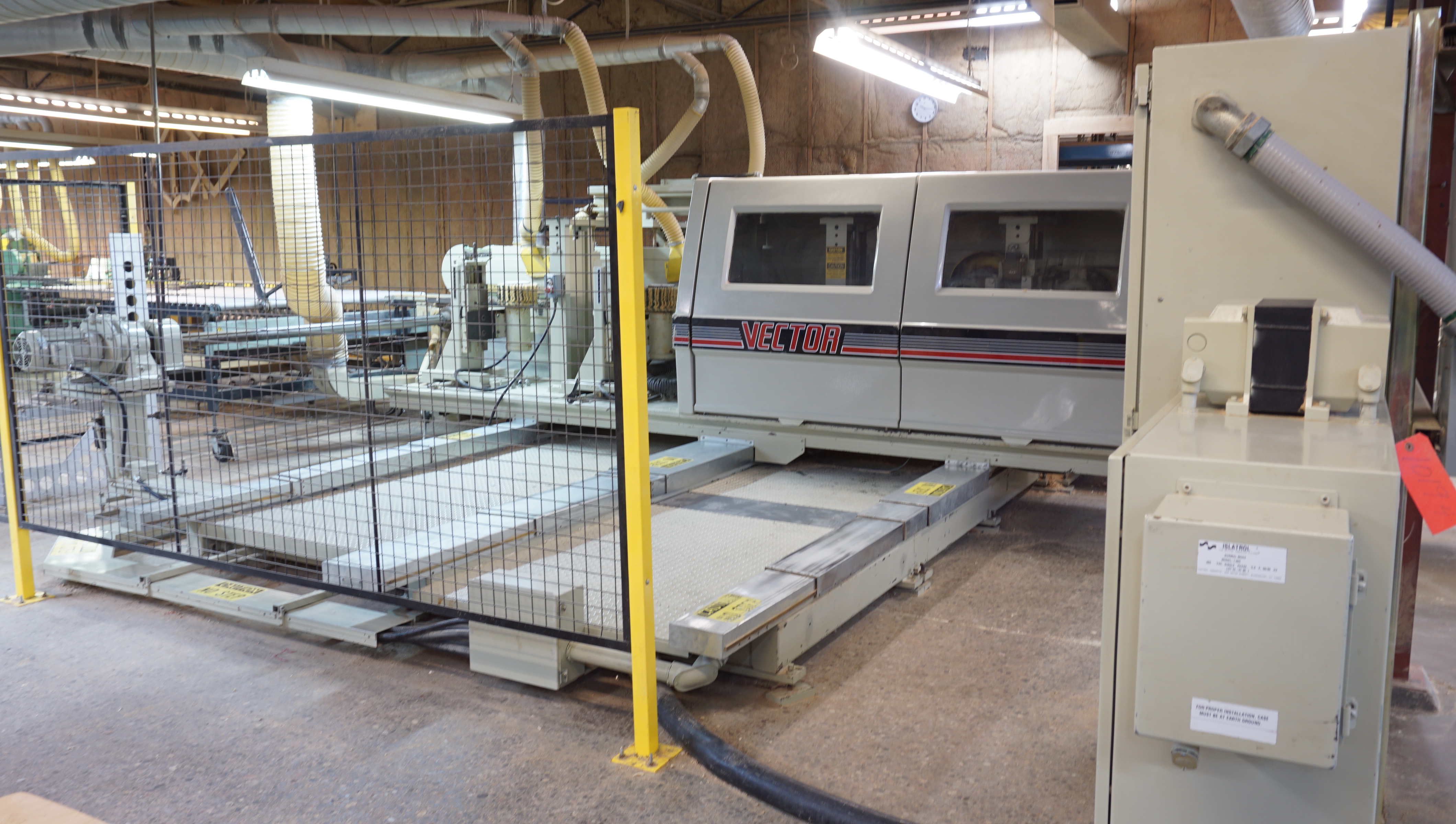

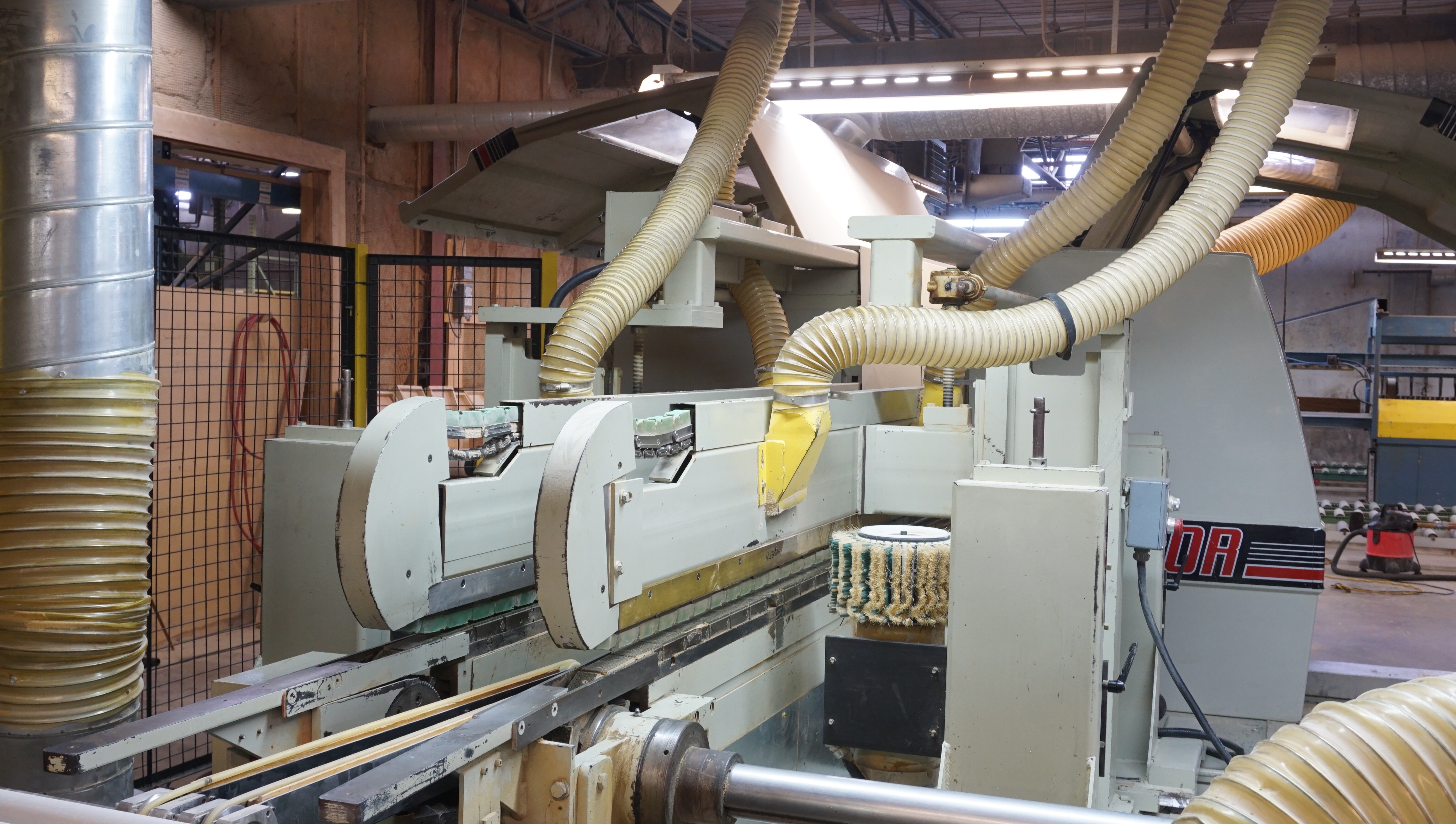

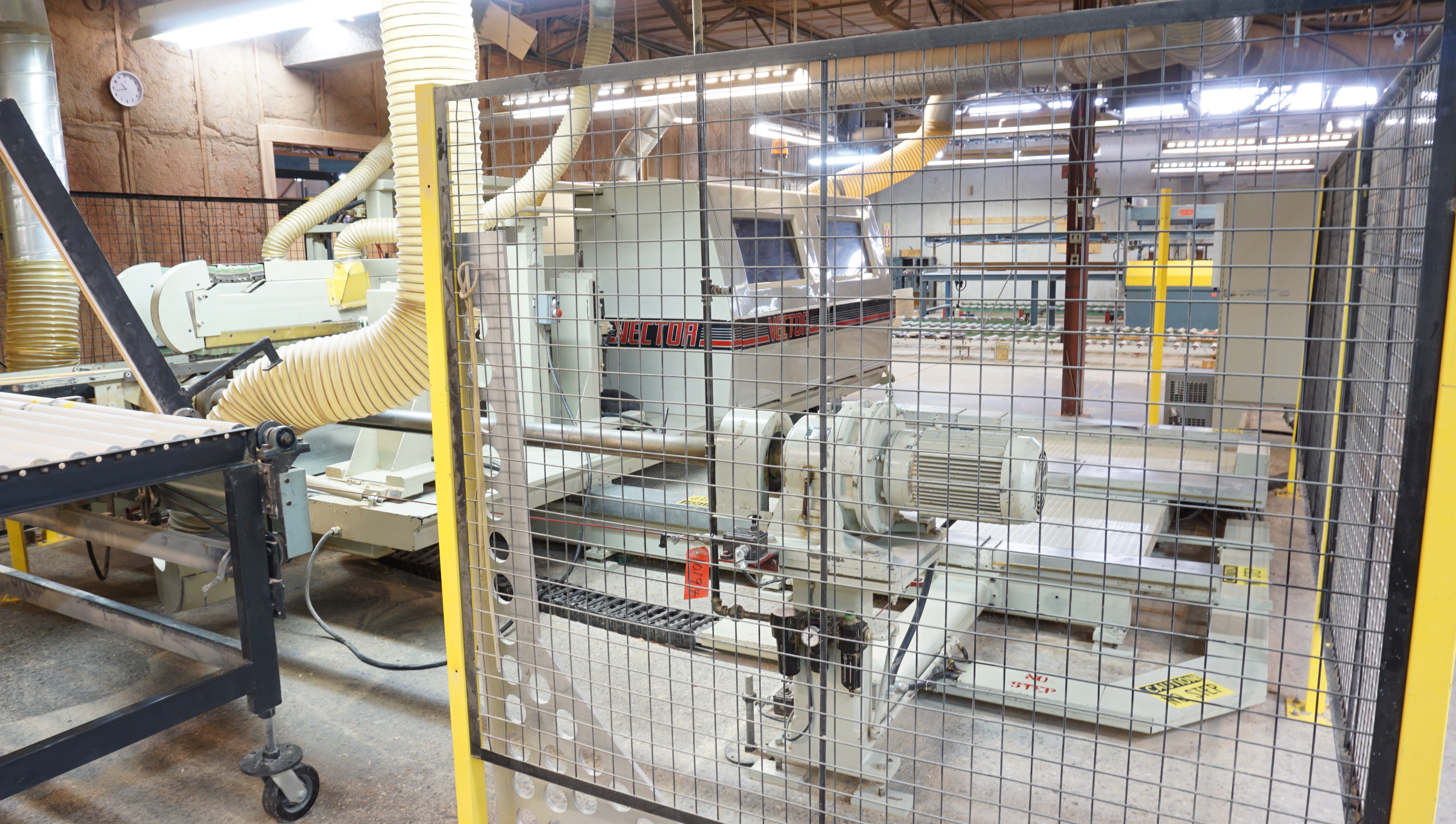

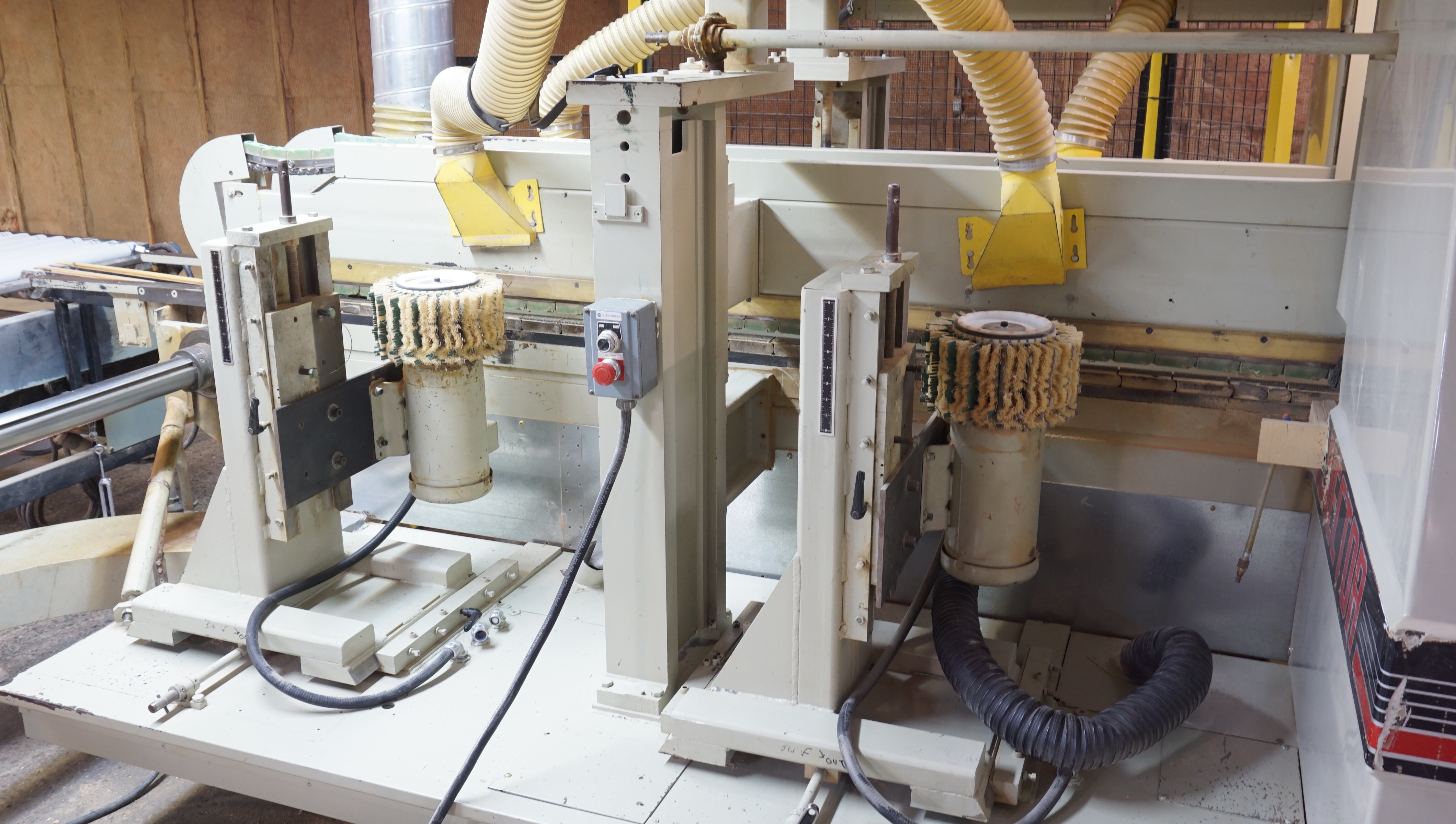

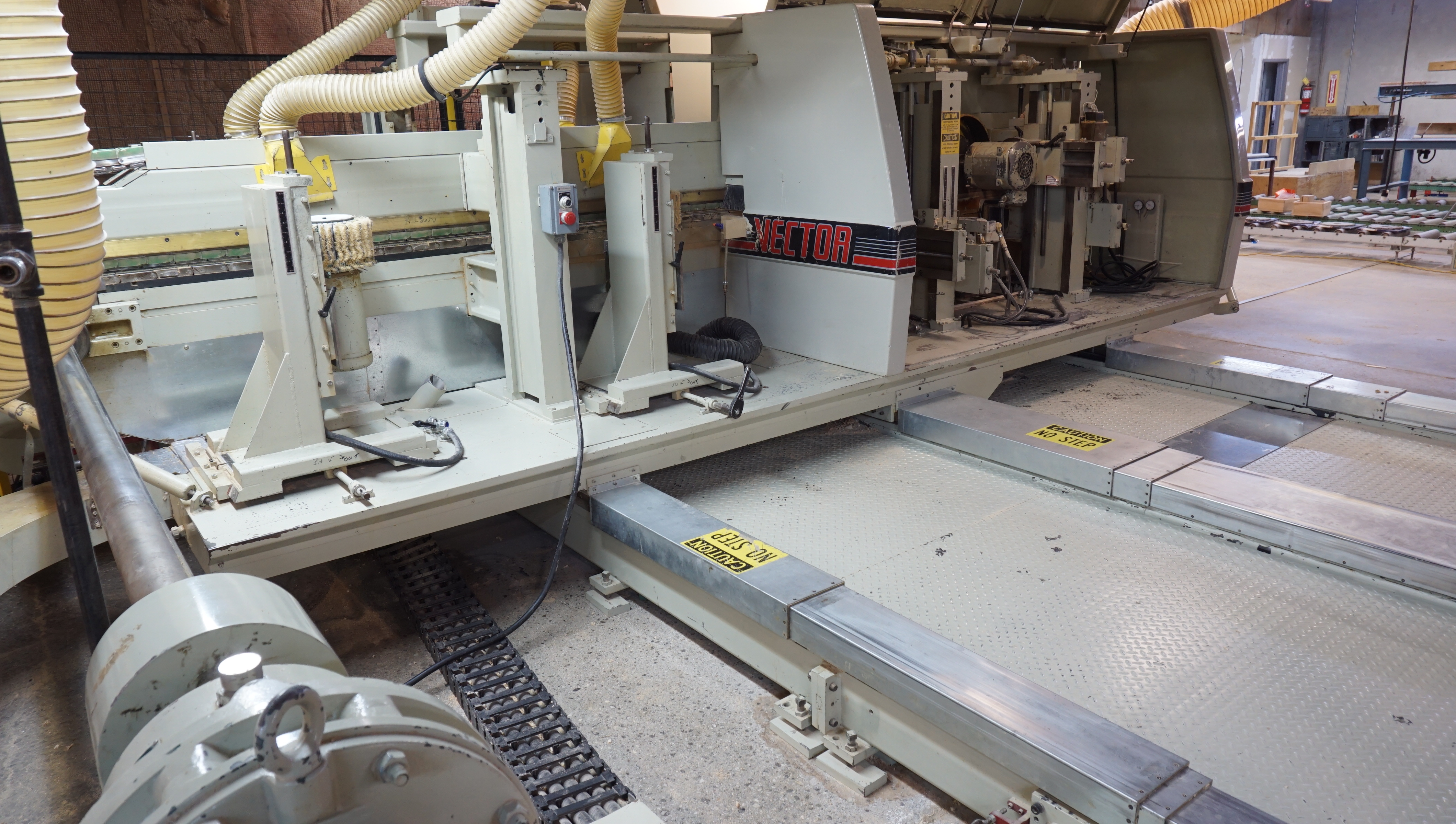

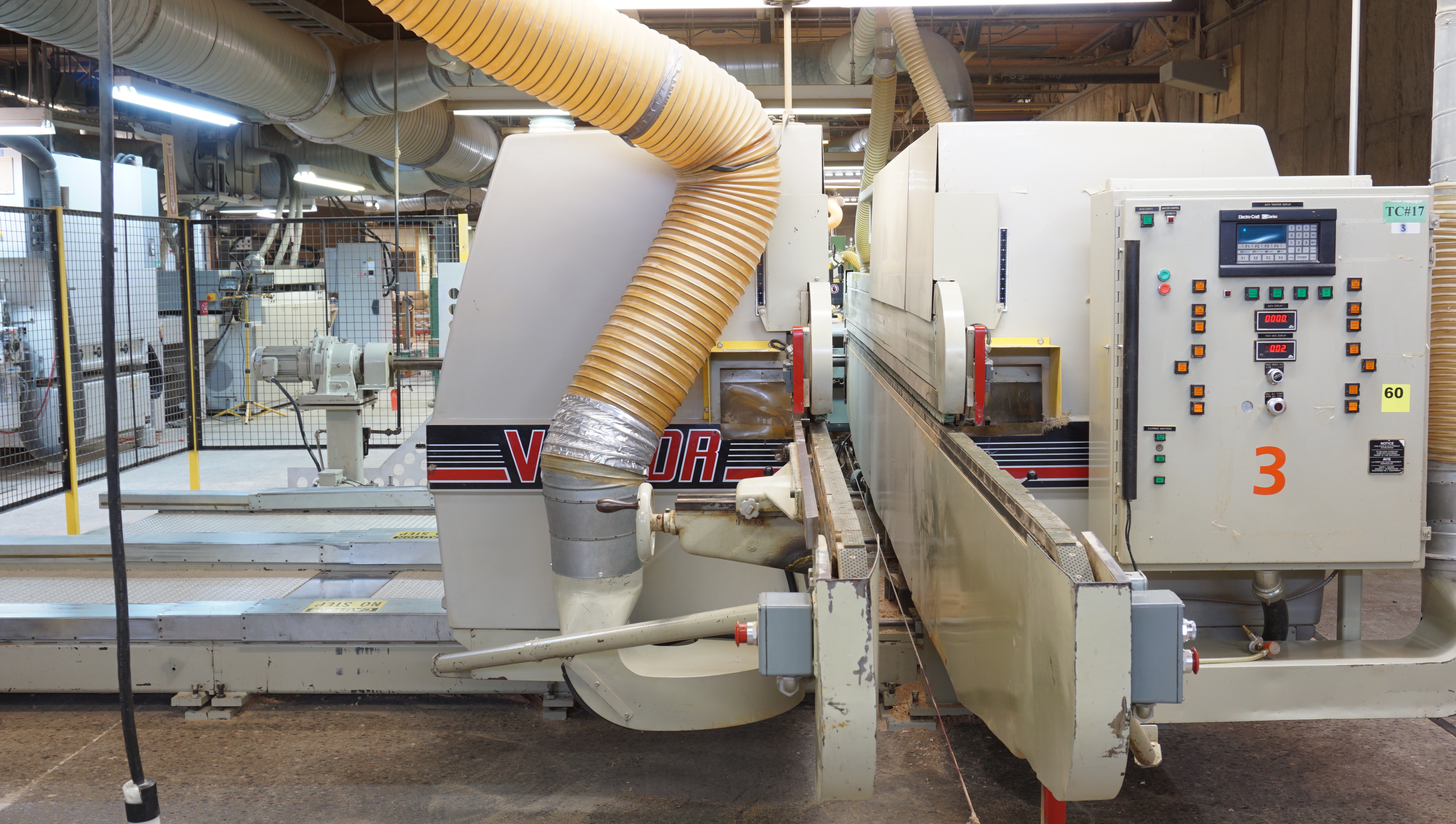

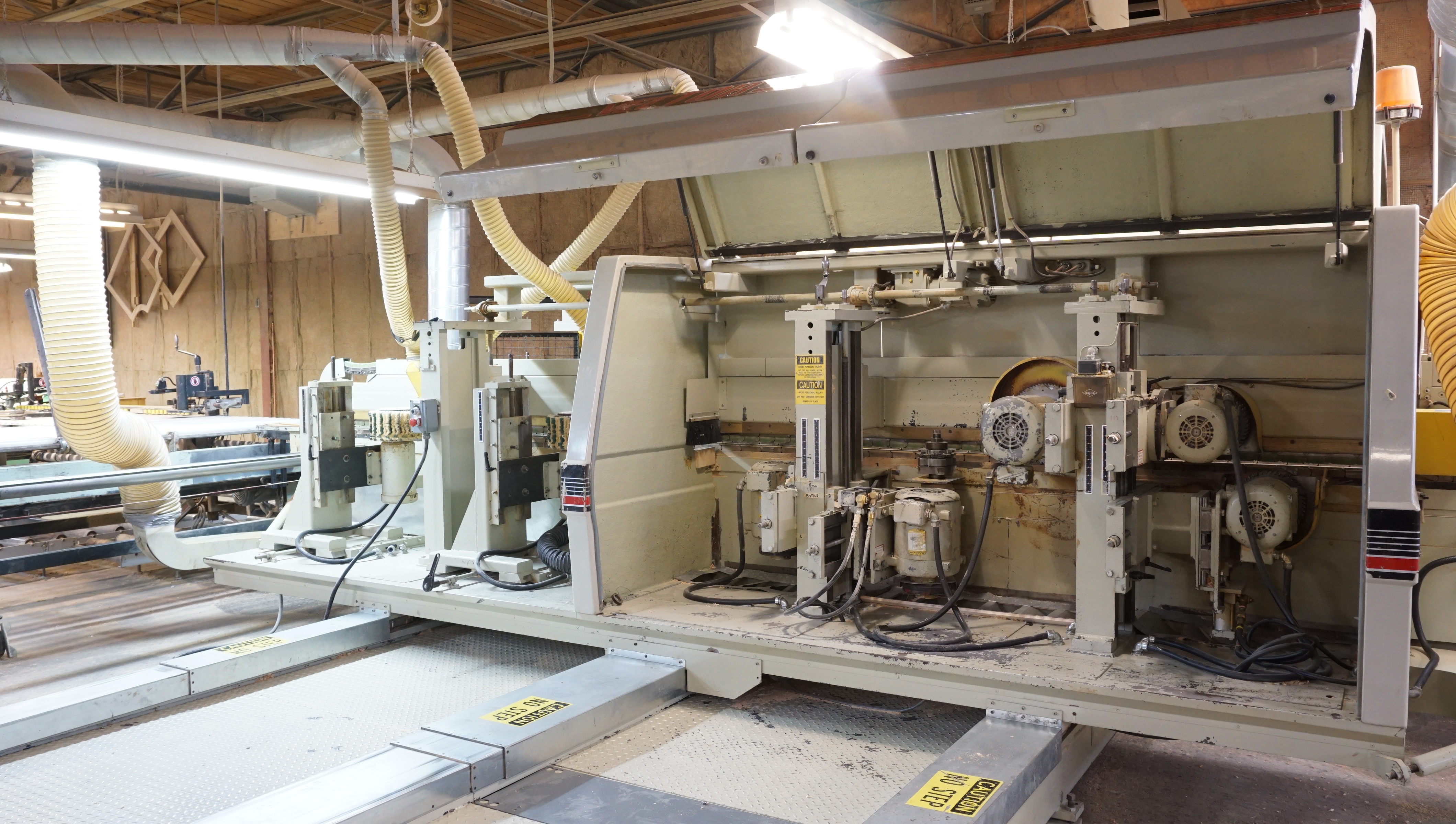

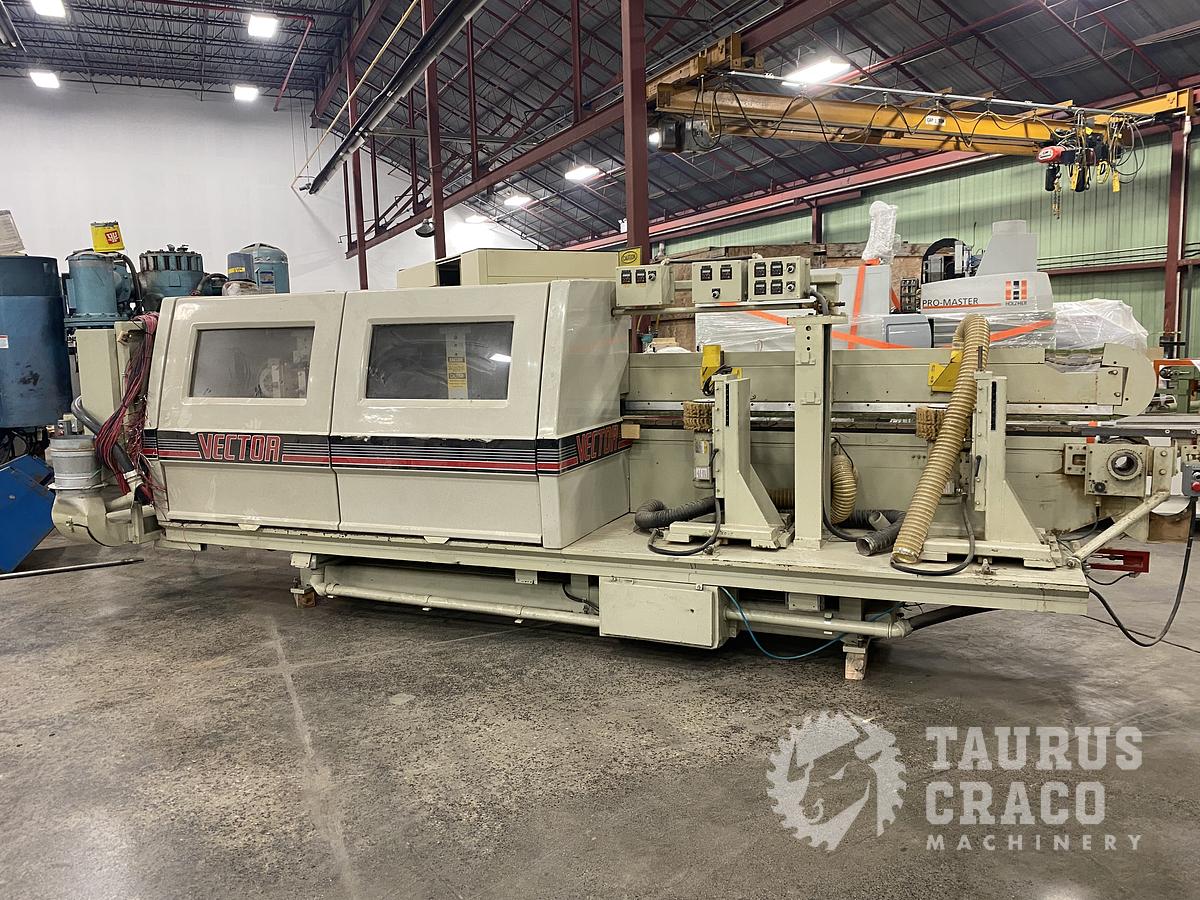

1996 CHALLONER Vector 6 Double End Tenoner

Sold

Specifications

ManufacturerCHALLONER
ModelVector 6 Double End Tenoner
Year1996
Stock Number1372KM
Voltage460V
LocationCentral Canada

Description

Vector 6 High Quality Double End Tenoner complete with:

120" Opening capacity

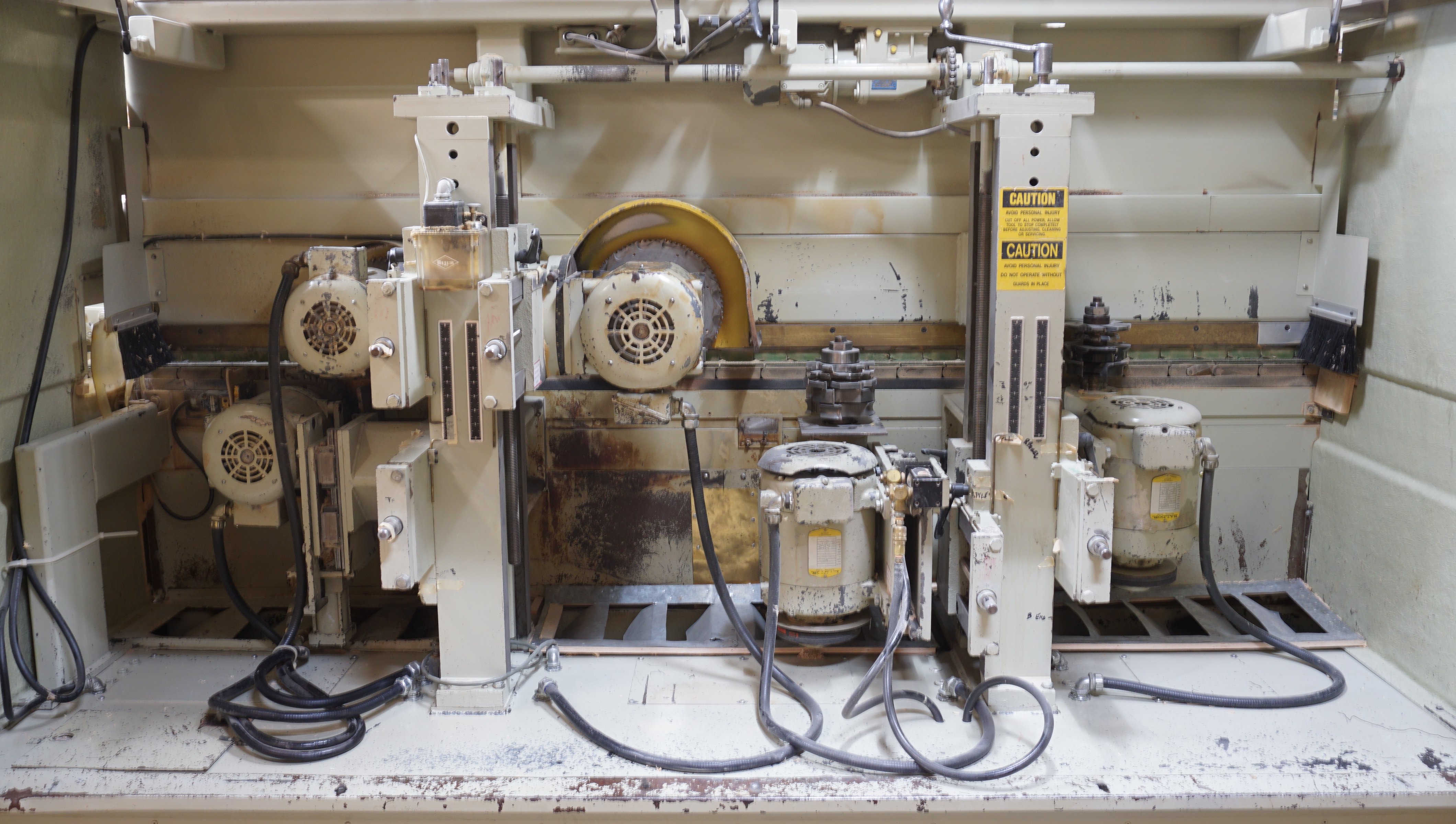

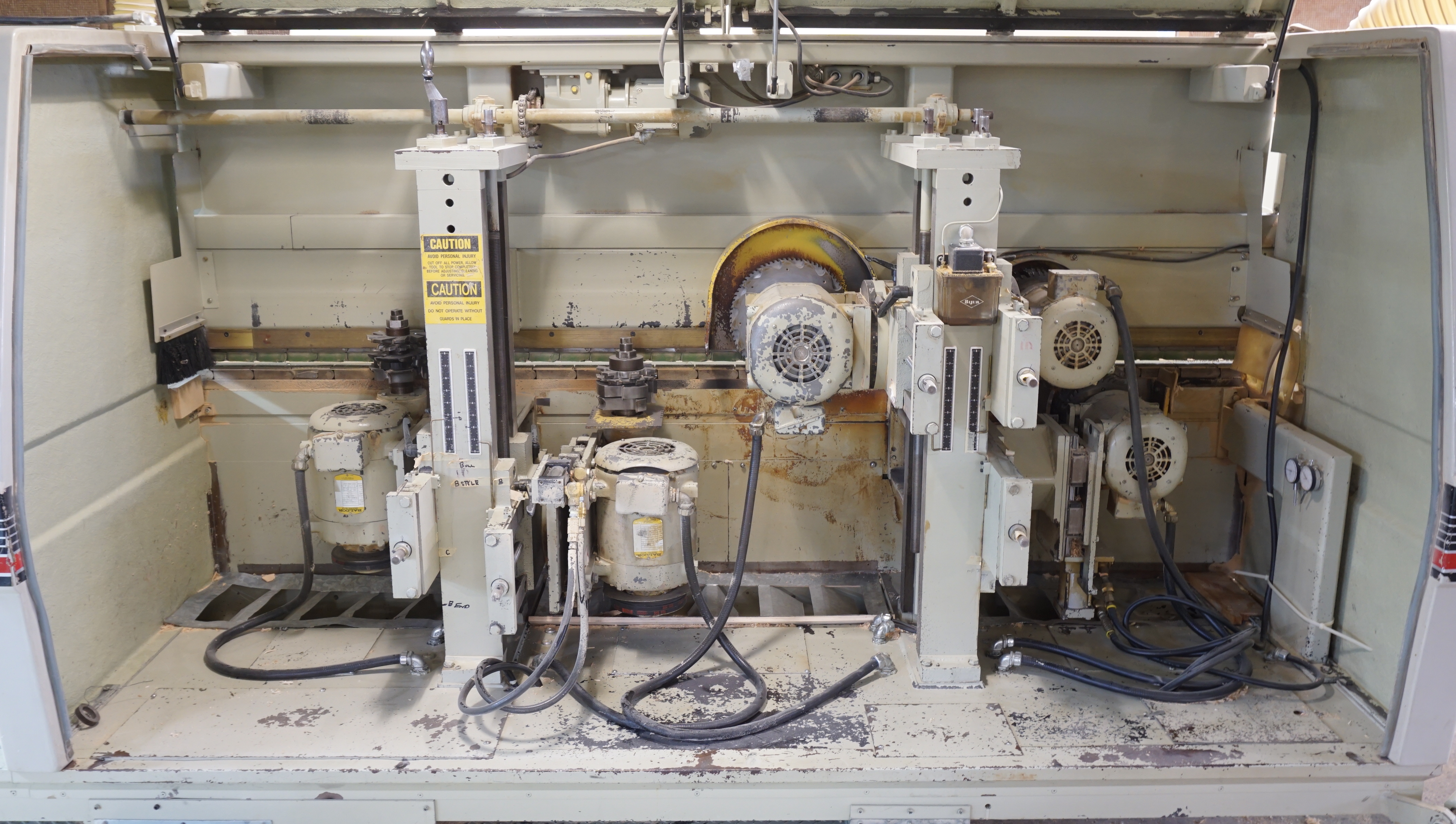

(6) Heads/Working Units per side

Variable feed speed, (TBD) meters per minute

Main Motor 30kW

Feed Motor 1.75kW

Min./Max. Cutting Height 15mm to 110mm

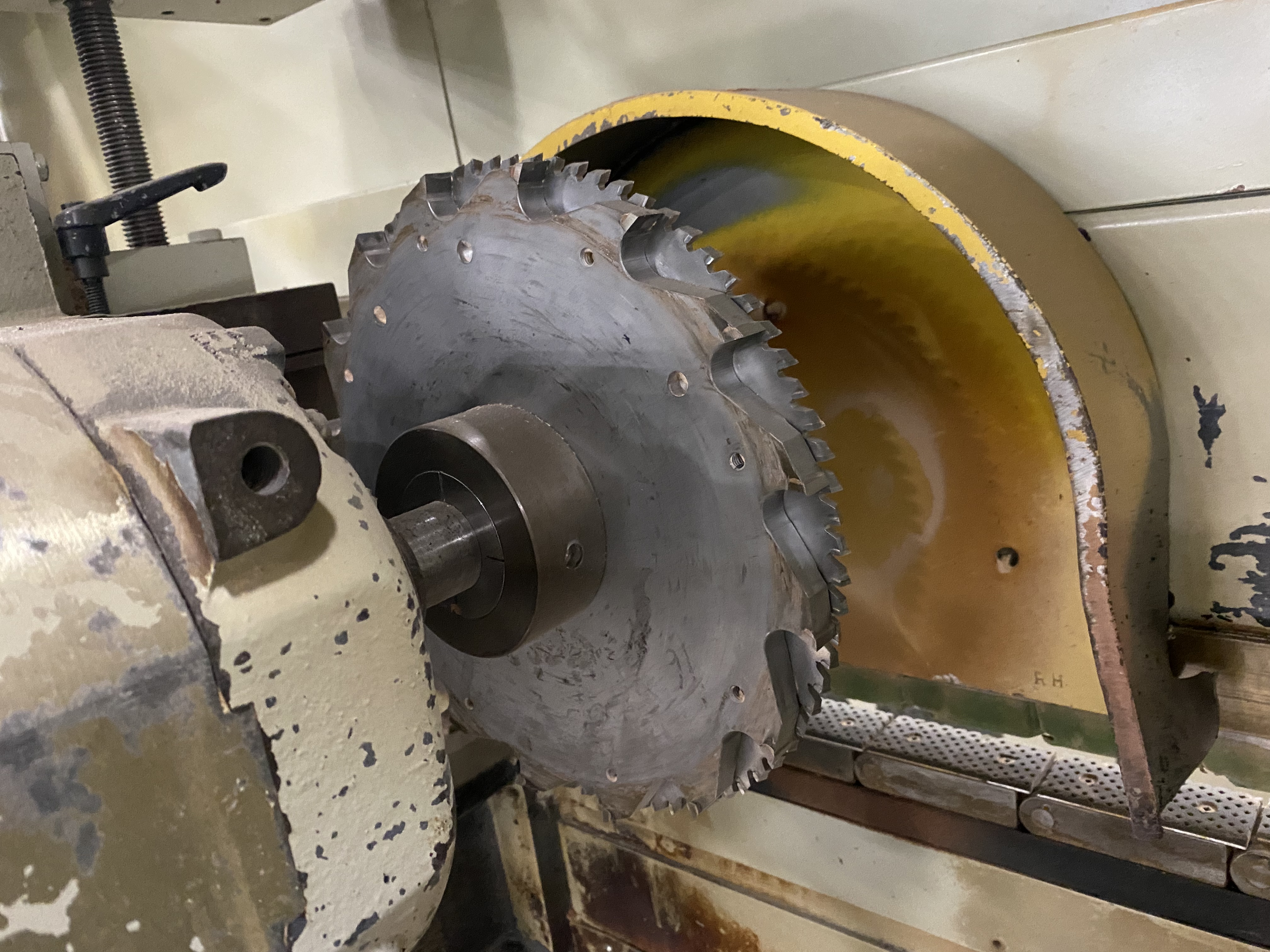

Min./Max. sawblade dia. 220mm to 350mm

Sound enclosure

" infeed chains for easy loading

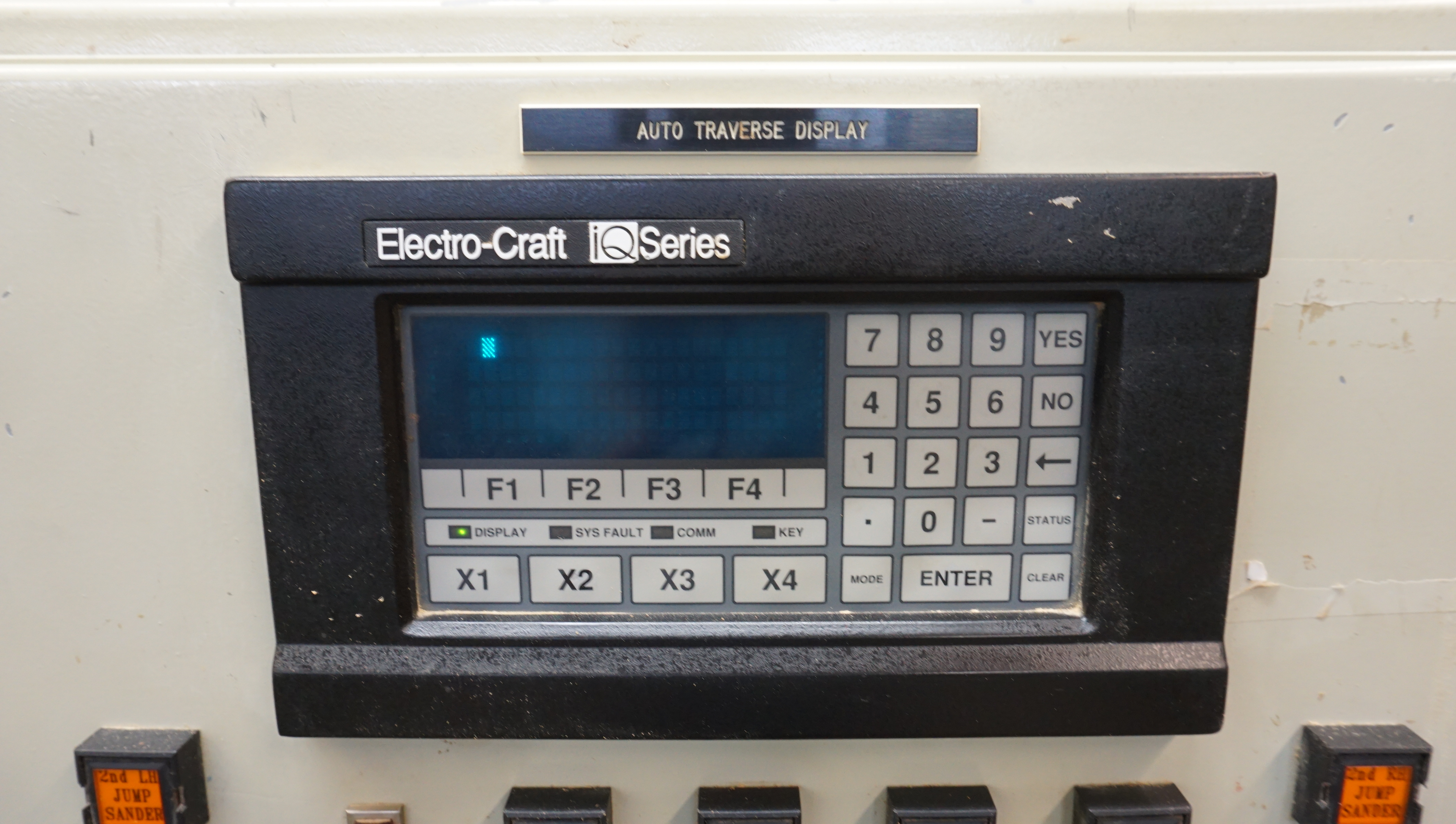

Separate operator panel


Challoner DET’s are available in a wide range of frame configurations. Each machine is custom designed for a specific application and production requirement.

Challoner DET’s offer 2 – 4 tooling stations per side and use common frame designs and components as the foundation for a variety of optional tooling units including: trim/hogging; scoring; tenoning; straight and contour profiling; sanding; notching; and dado grooving. The minimum stock trim length is 5.250″ with standard feed chains. The maximum trim length is optional from 48″ to 120″.


• Heavy fabricated steel base.

• Solid ground steel chain beams.

• Precision linear bearings on movable base.

• LH or RH opening.

• Drive shaft or shaftless synchronized servo drive units for feed chains.

• Friction free steel holddown chains with replaceable rubber pads or

continuous length holddown belts.

• Heavy cast iron tooling unit posts.

• Cast iron vertical and horizontal tooling unit slides.

• Precision feed chains with bottom vee guiding in automatic lubricated

insurok track.

• Automatic motor unit brakes standard.

• Available with or without complete machine sound and dust collection

enclosures.

• LED digital readouts available for individual tooling unit adjustments.

• Standard acme screw or ball screw motor unit positioning available.

• Servo CNC positioning available for traverse; holddowns; stock guide;

chain squaring; and tooling units to accomplish machine setups in seconds.

• “Touch Screen” Operator Interface Terminal (OIT) provided standard.

• Infeed and outfeed systems

• Stock transfer systems.
